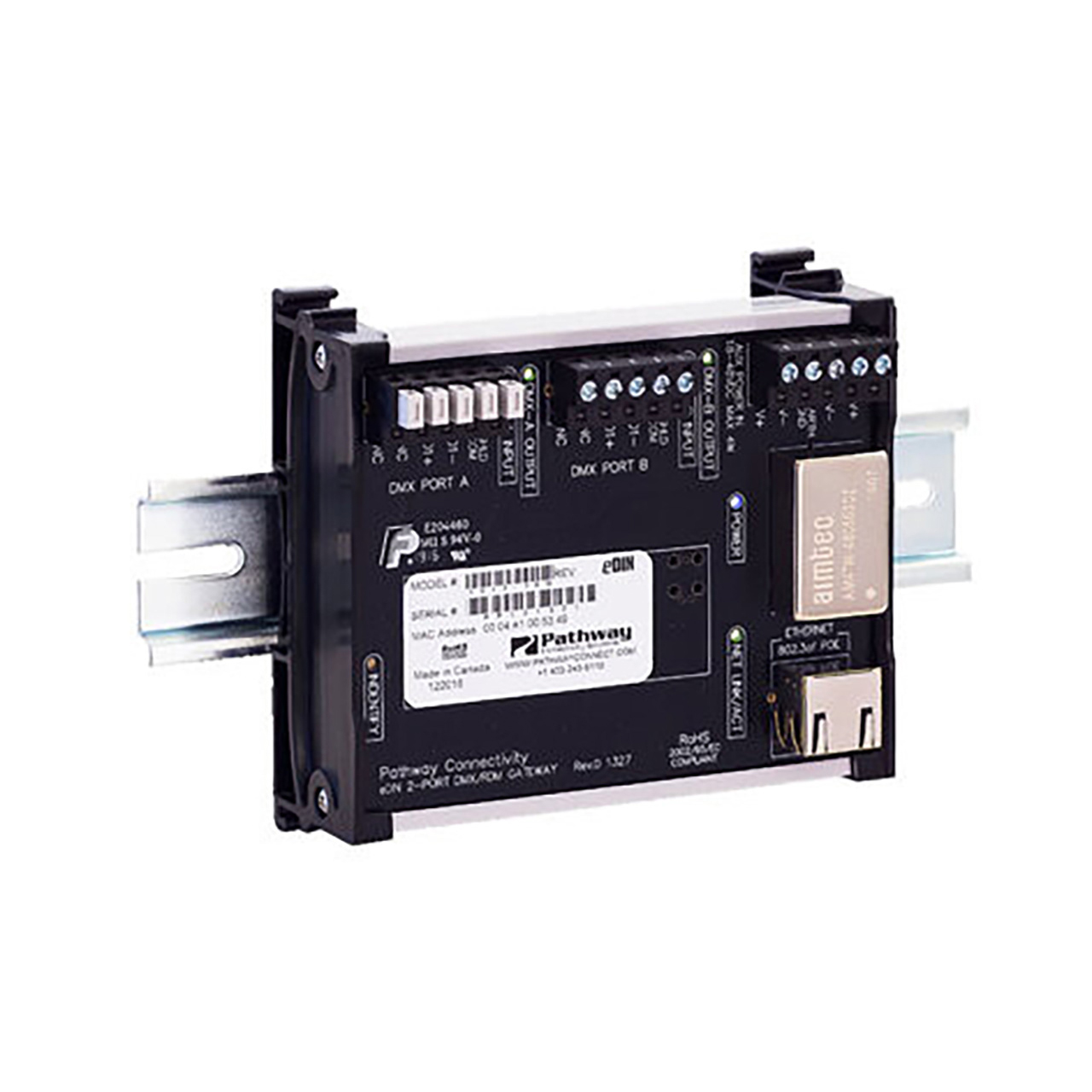

Pathway Connectivity PWPP DIN P2 Pathport 2-Port DMX/RDM Gateway for Encoding and Decoding DMX512 over Ethernet

6822 - Overview

• Features:

  • Two DMX512 ports-user configurable as inputs or outputs
  • E1.11 DMX512A and E1.20 Remote Device Management (RDM) compliant
  • LED indicators for port direction, power, Ethernet link activity and identify
  • Operates on 802.3af Power-over-Ethernet or on an 18-48V wide-range DC input
  • Fully compatible with all Pathport gateway and eDIN interfaces
  • Configuration is set using freely available Pathscape software
  • Soft patch allows mix-and-match of different protocols
  • Route DMX according to universe or channel-by-channel
  • Multiple sources may be merged and/or prioritized
  • Fully customize your DMX output universes


• Specifications:

  • Class 1 PoE powered device
  • Auxiliary input voltage 18V - 48VDC
  • 4W power consumption
  • 60V protection on each port
  • 10Mb TCP/IP connection
  • 14°F - 122°F (-10°C - 50°C) operating conditions, 5% - 95% relative humidity, non-condensing.


• Item Includes:

  • 11" (280mm) piece of DIN rail
  • Installation/Operations manual
