Elation DMX10-5 Rackmount 10-port DMX 5-Pin Splitter with Dual Inputs

ITEM #: ELAT-DMX10-5 MFG #: DMX10-5

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$495.00

Our Price:

$396.00

Availability: In Stock
iAvailability Description Popup


    DMX10-5 - Overview

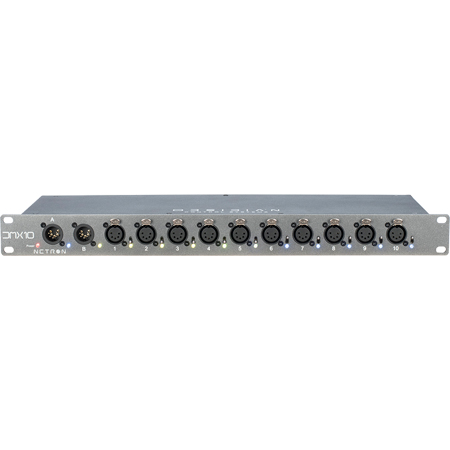

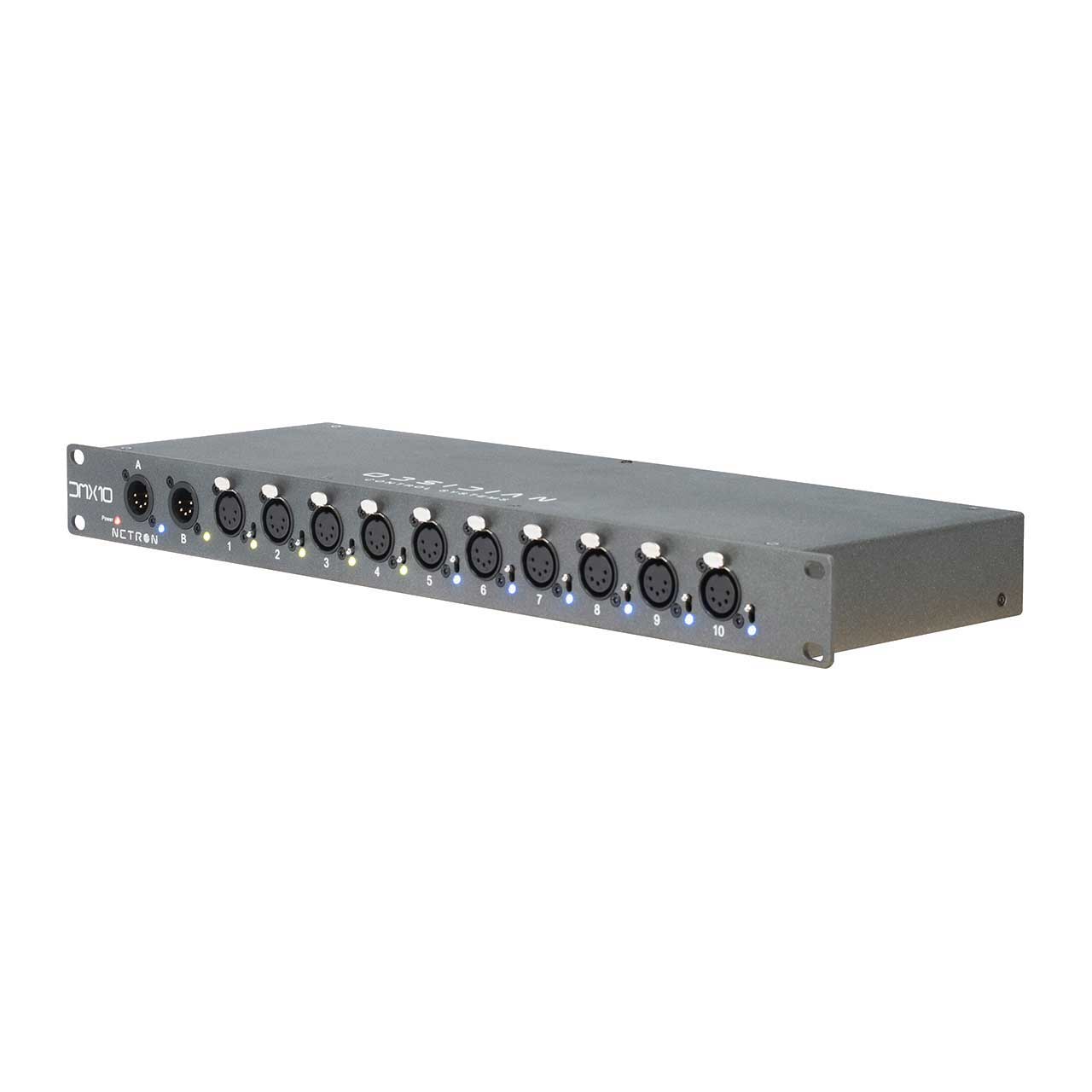

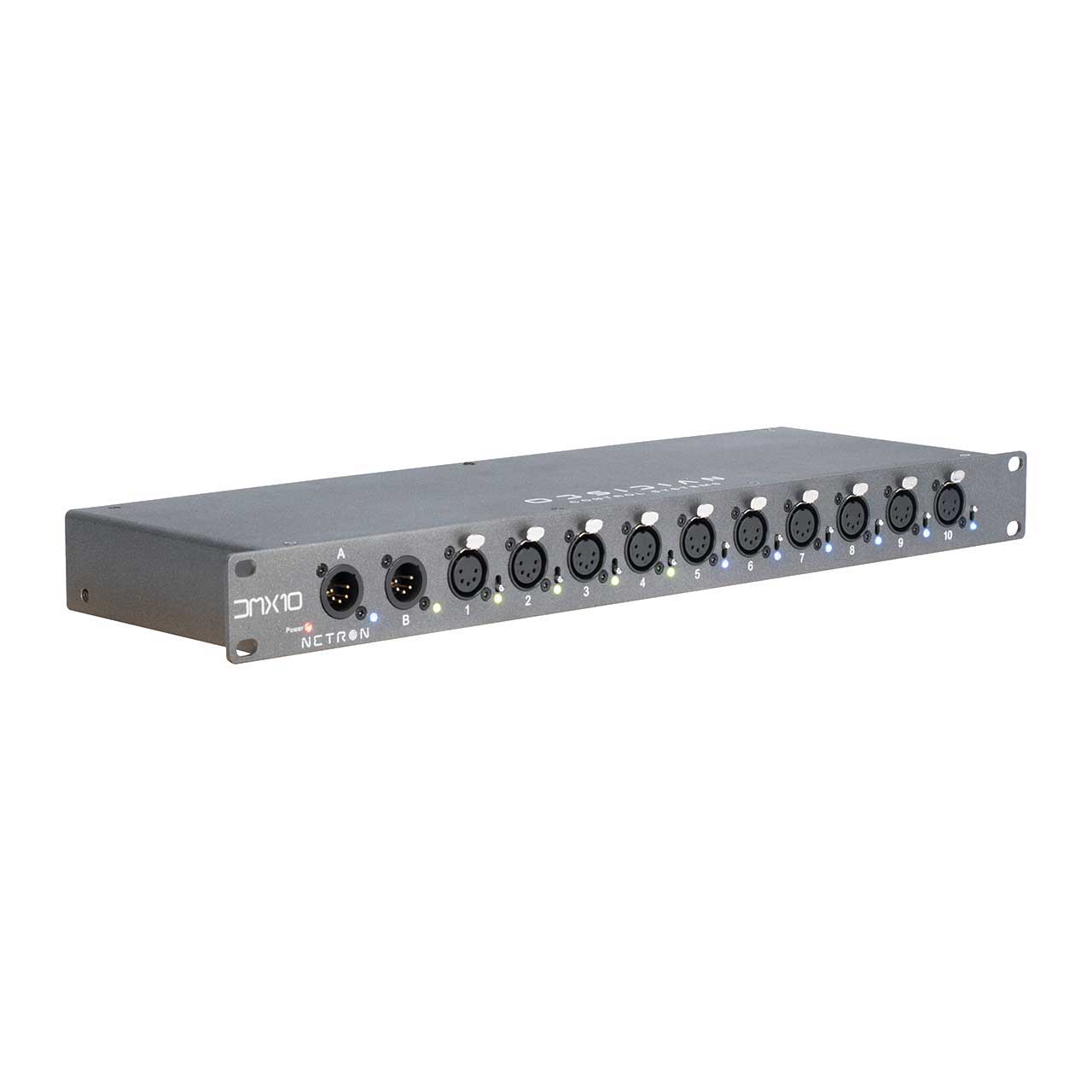

    The Elation DMX10-5 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5pin XLR DMX outputs. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation.

    The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations.

    • Features:

      • Dual A/B XLR DMX Input
      • 10 isolated XLR DMX Outputs
      • A/B routing per output port
      • LED feedback for In/Out/A/B/Power
      • Powder-coated rackmount housing

    • Specifications:

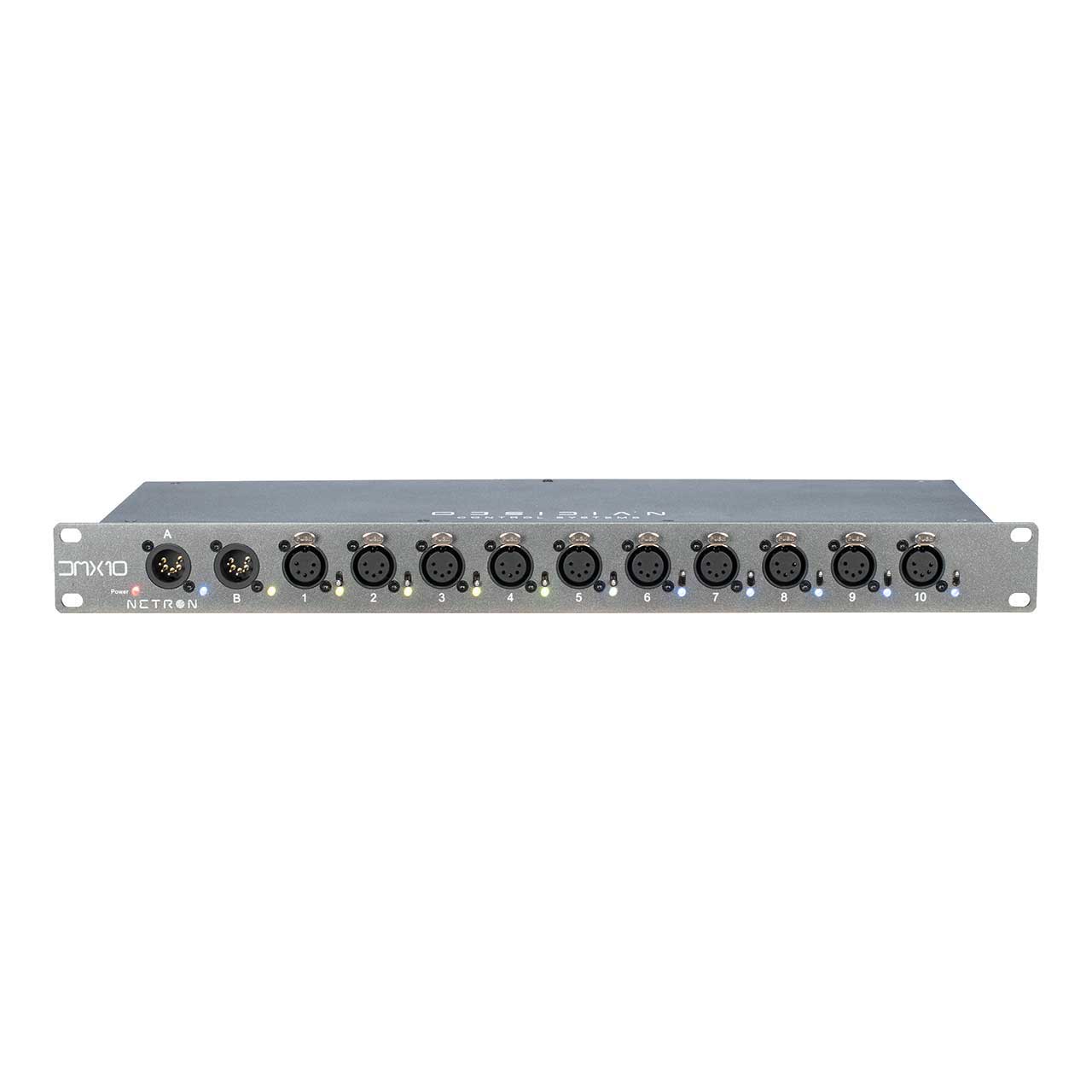

      • Front I/O's
      • (2) 5pin DMX Input
      • (10) 5pin Opto-Isolated DMX Outputs

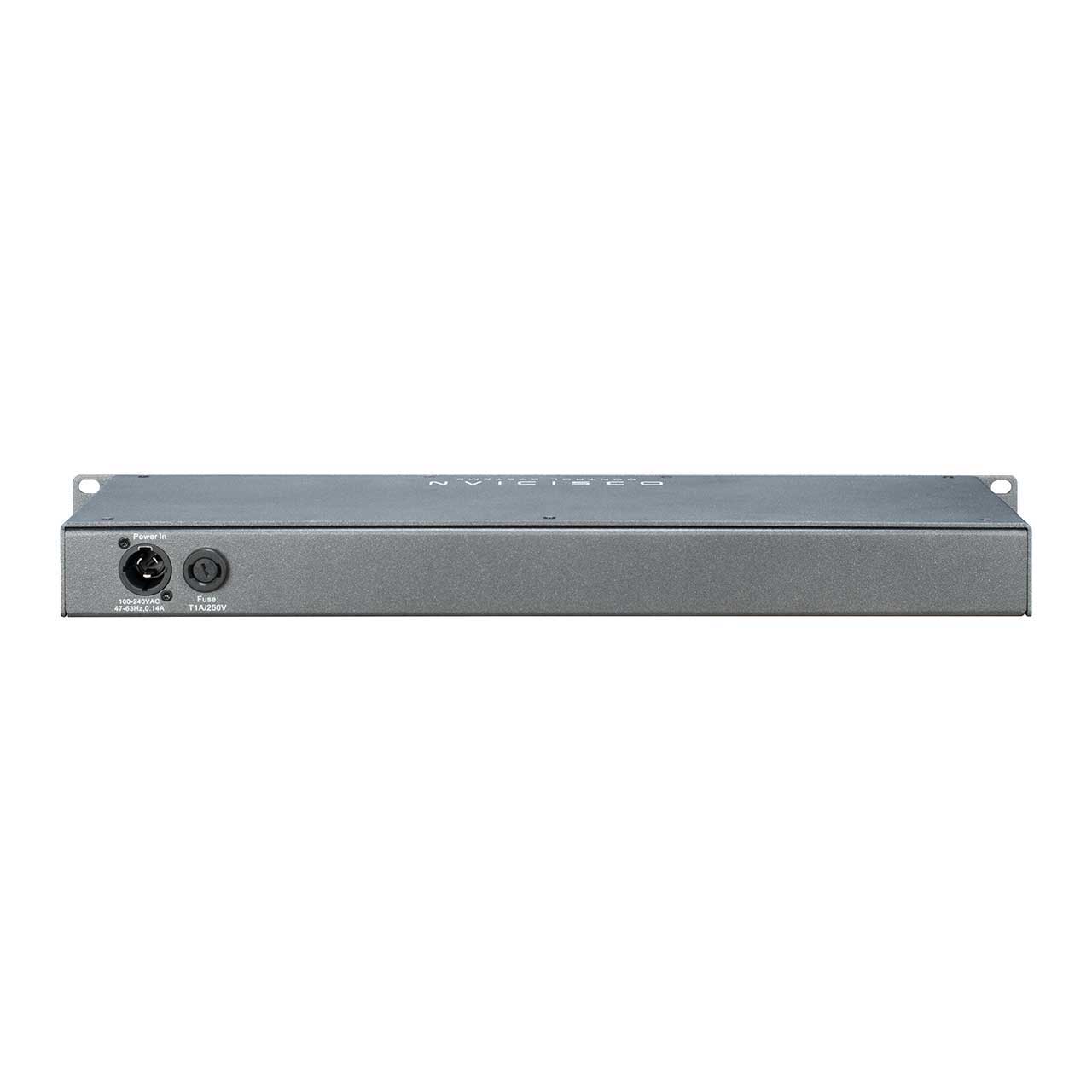

        Back I/O's
      • Locking Power In

        Physical
      • Length: 19 in.
      • Width: 6.1 in.
      • Height: 1.7 in.
      • Weight: 3.31 lbs

        Electrical
      • 100-240 V nominal, 50/60 Hz

        Approvals / Ratings
      • cETLus / CE / IP20

    • Item Includes:

      • 1x 1.5m Locking power cable (US version)
