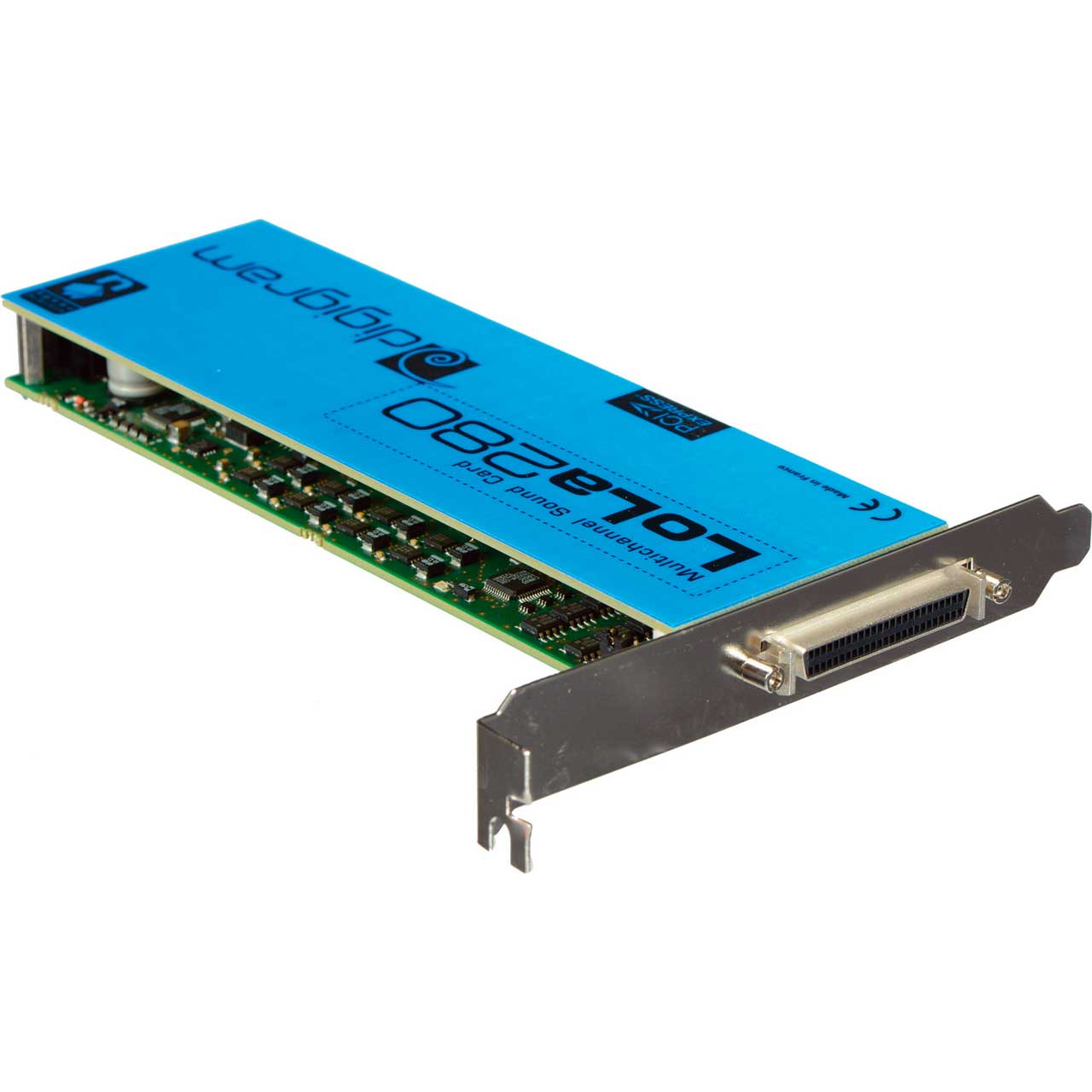

Digigram LoLa280 low profile PCI Express Audio Card

ITEM #: DGR-LOLA280 MFG #: LOLA280

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DGR-LOLA280

LOLA280 - Overview

A state-of-the-art low latency sound card for logging and multi-channel recording, in a low-profile PCI Express form factor
The LoLa280 includes 8 line level inputs and 2 line level outputs.
It also includes a built-in mixer with automatic gain control (AGC) and a software control panel, allowing inputs to be summed prior to recording and to directly monitor inputs. This feature is important for applications such as courtroom and evidence recording, where several microphone inputs need pre-mixing prior to being assigned to record channels and where confidence monitoring is a must.
The LoLa280 supports standard audio device drivers including DirectSound WDM and ASIO.

  • Features:

    • Embedded mixer with;
    • 8 physical inputs,
    • 8 playback stream inputs,
    • 8 record stream outputs,
    • 2 physical outputs,
    • premix,
    • mix monitoring.

    • WDM DirectSound, ALSA and ASIO drivers
    • HD Audio compatibility
    • Visiblu compatible
    • Short-length low-profile format

  • Specifications:

    • 8 balanced analog inputs / 2 balanced analog outputs, headphones output
    • 24-bit/192 kHz converters
    • Maximum input and output level: +24 dBu
    • Word clock input/output - On-board hardware digital mixer. Mixer application suitable for audio logging applications.
    • WDM DirectSound and ASIO drivers for Windows XP and Windows Vista

  • Item Includes:

    • Breakout cable
