    TLC-8D - Overview

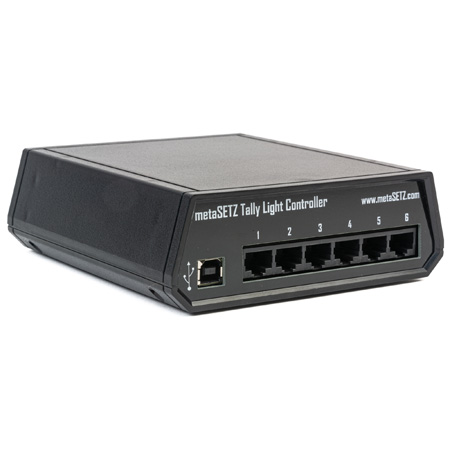

    The TLC-8d controller is an adapter box the connects to the TriCaster TCXD850's 15 pin tally port and interfaces to either model of our tally lights.
    The '850's tally port supports a 'program' tally for the source selected on the program bus of the switcher. The TLC-8d translates this signal to illuminate the red camera operator tally and the 'talent' tally on the TL-2 tally light. The talent tallys can be globally disabled via a jumper in the TLC-8d.

    For CCU users the TLC-8d has wet contact closure outputs (5v @20mA) so it can be interfaced with some CCUs tally ports.

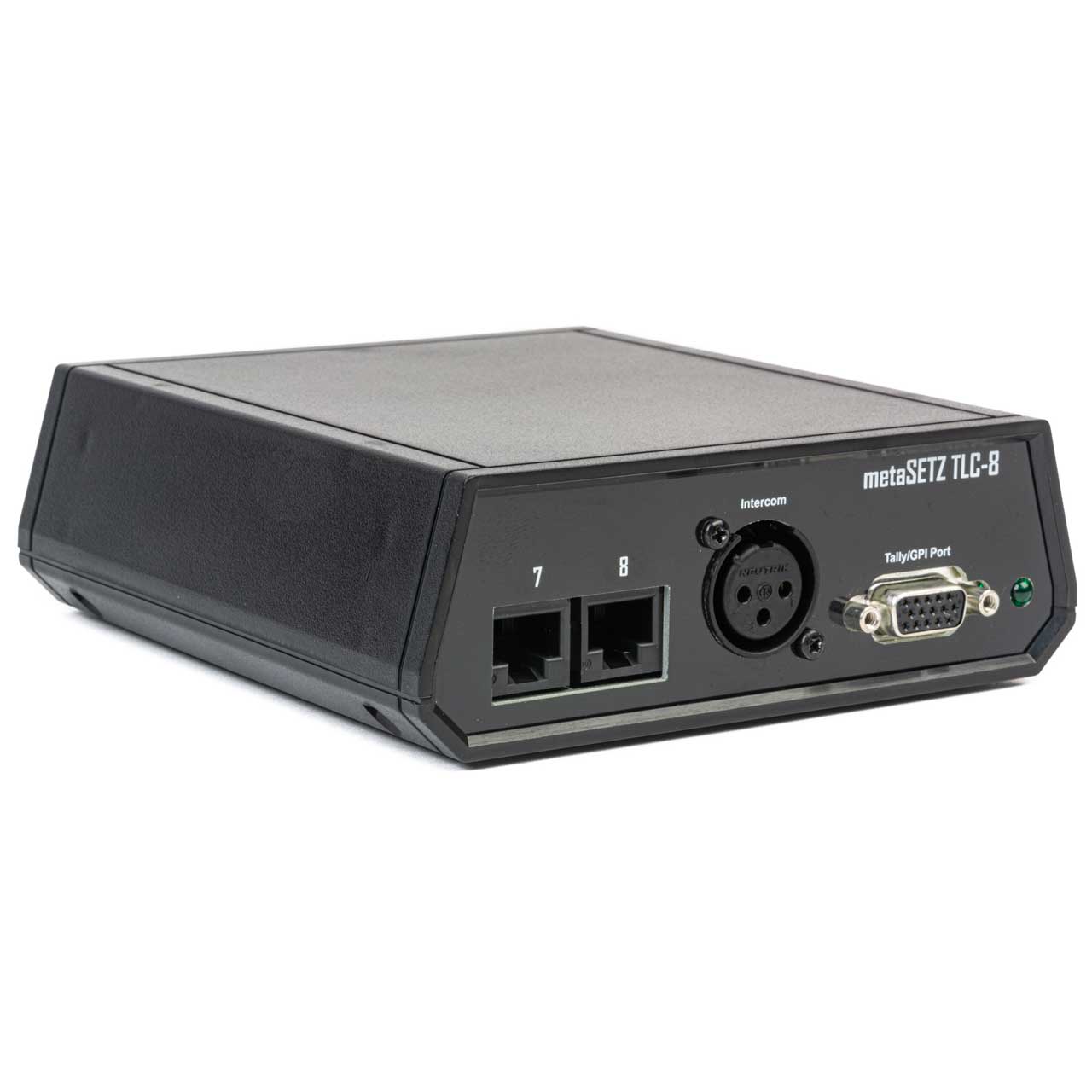

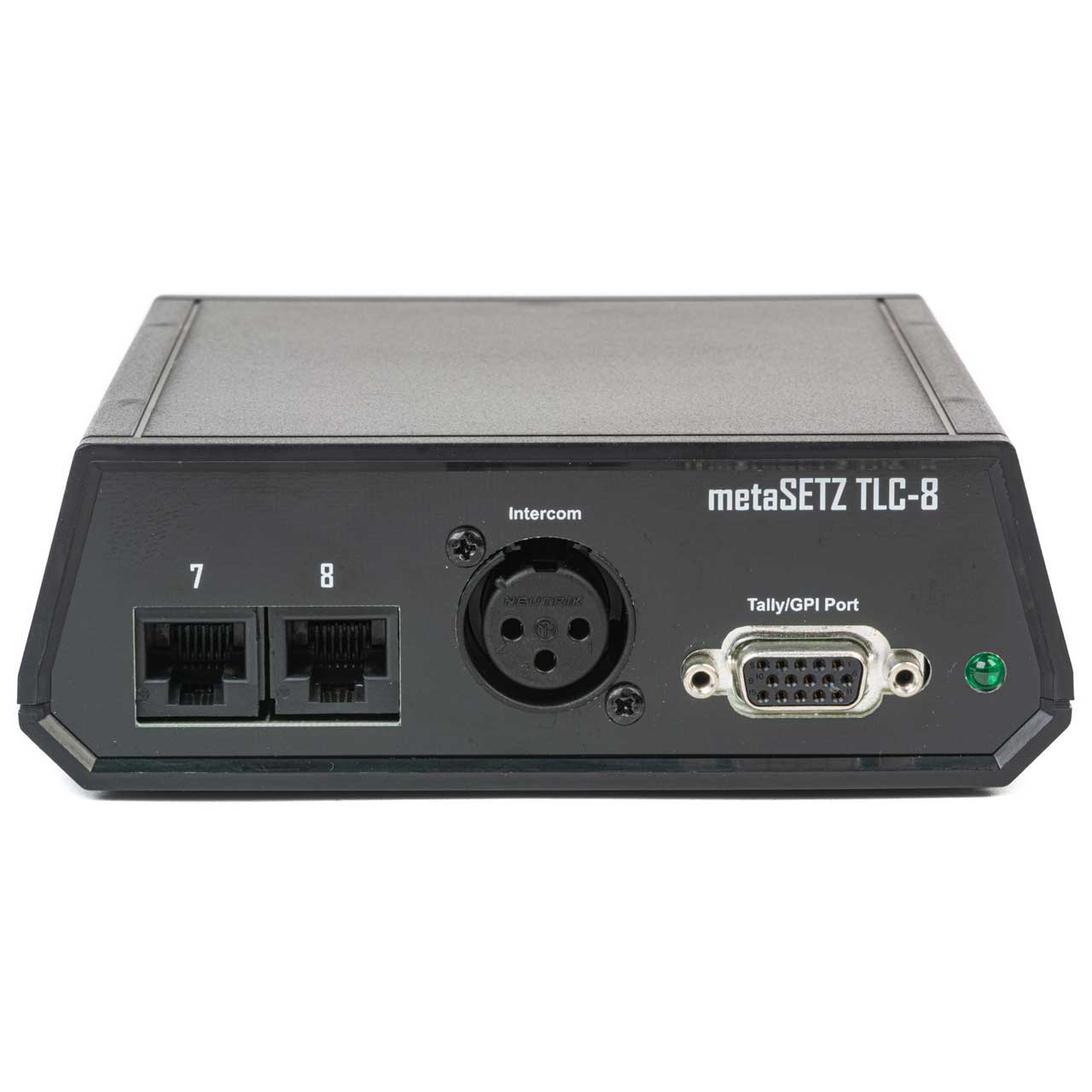

    What sets the TLC-8d apart from a simple adapter cable is the intercom pass through so you can run both tally and intercom on a single Cat5 cable run. Connect your intercom base station into the xlr on the TLC-8 then connect your beltpacks to the multi-purpose port on the tally lights.

    The TLC-8d is also upgradeable to full microprocessor functionality. In the event NewTek releases a software developers kit for the '850 we can upgrade your controller and provide additional features like preview/effects tally and GPI I/O.

    • Features:

      • Compact, rugged ABS construction
      • 8 tally outputs
      • XLR intercom pass through connection
      • Compatible with TL-1 , TL-2 and TL-XD lights
      • Dealer/factory upgradable for additional functionality
      • Powered via USB - no wall wart
    • GTIN:
