    SWTALGPI8 - Overview

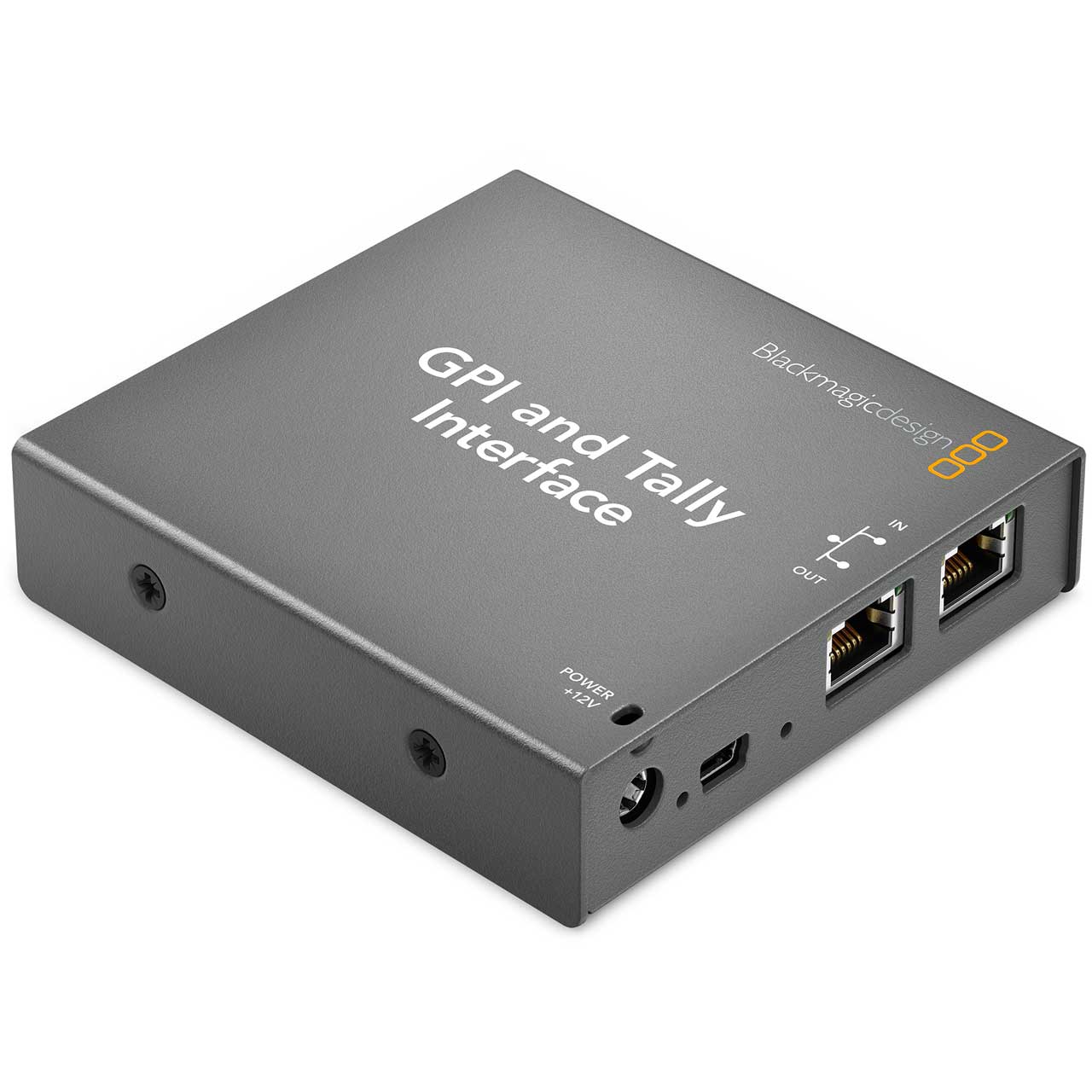

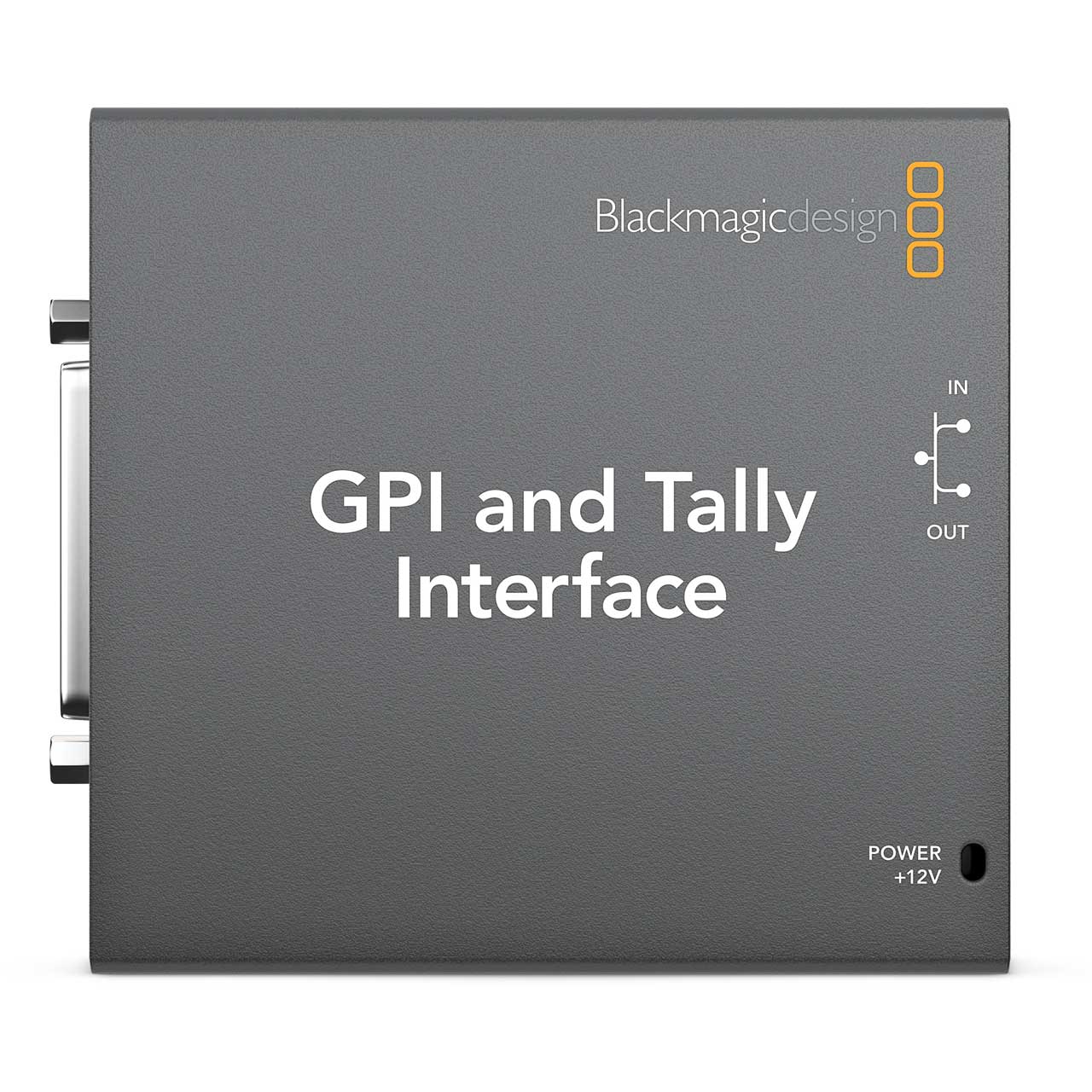

    The Blackmagic Design BMD-SWTALGPI8 GPI and Tally Interface provides 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers. Tallies will be displayed when connected to an ATEM switcher to indicate their "on-air" status and you can even connect multiple interfaces together to increase the number of inputs and outputs. GPI and Tally Interface also works as a Videohub control panel without buttons and LEDs so you can make your own! Now anyone can connect to Videohub routers to control cross-points!

    • Features:

      • Displays Tallies for Video Signals
      • Indicates On-air Status
      • For ATEM Switchers / Videohub Routers
      • 8 Contact Closure Inputs & Outputs
      • Connects with Multiple Interfaces
    • Specifications:

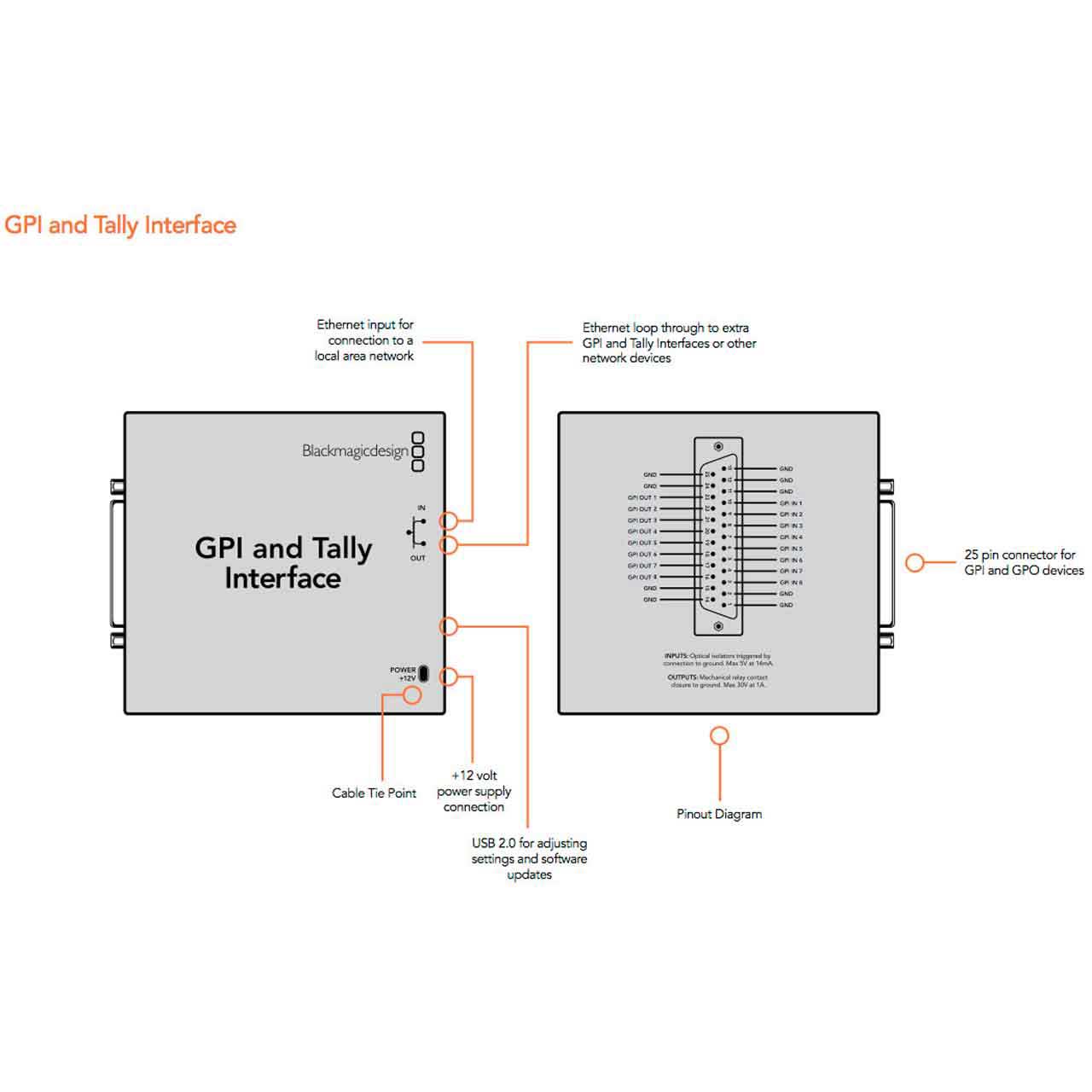

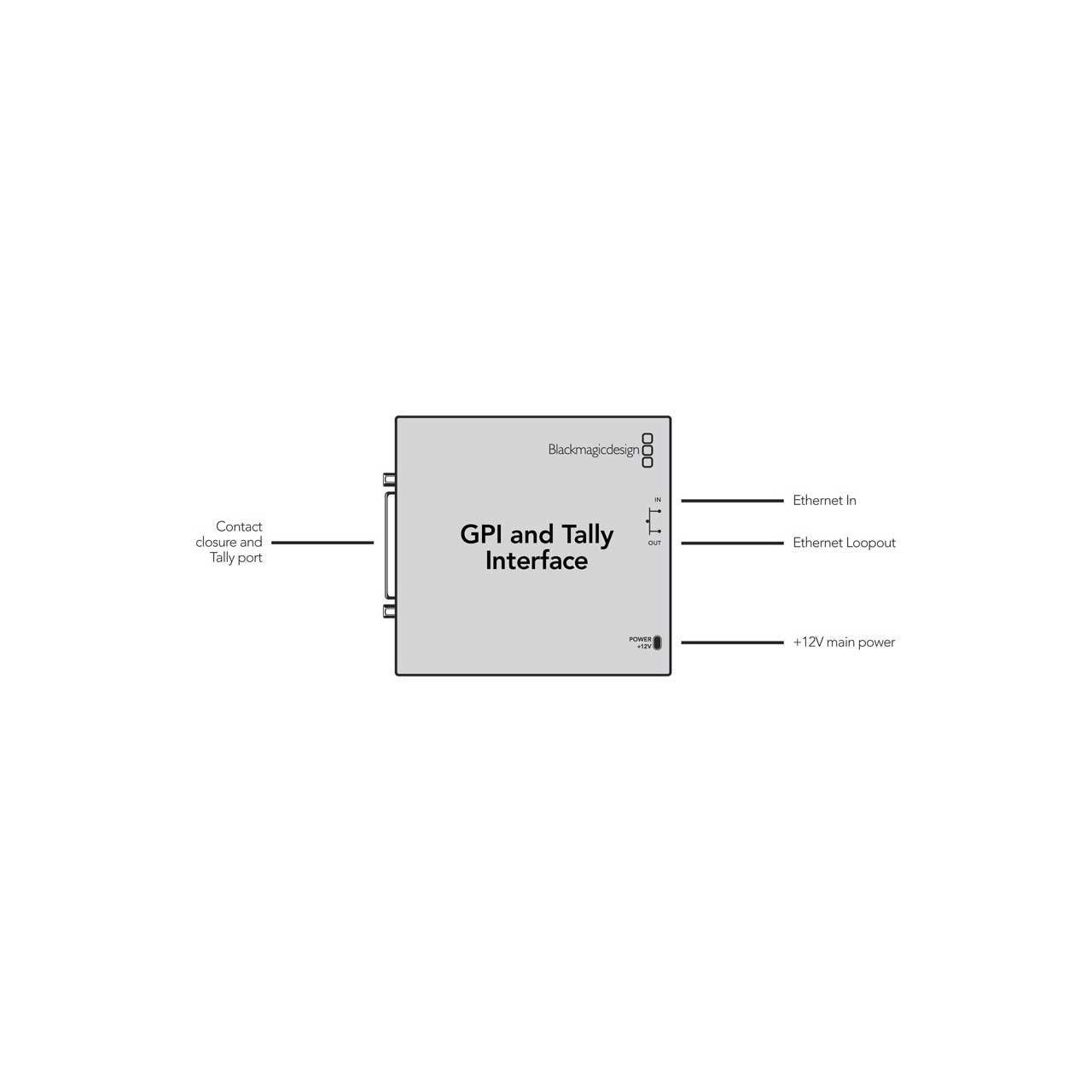

      • Connections:

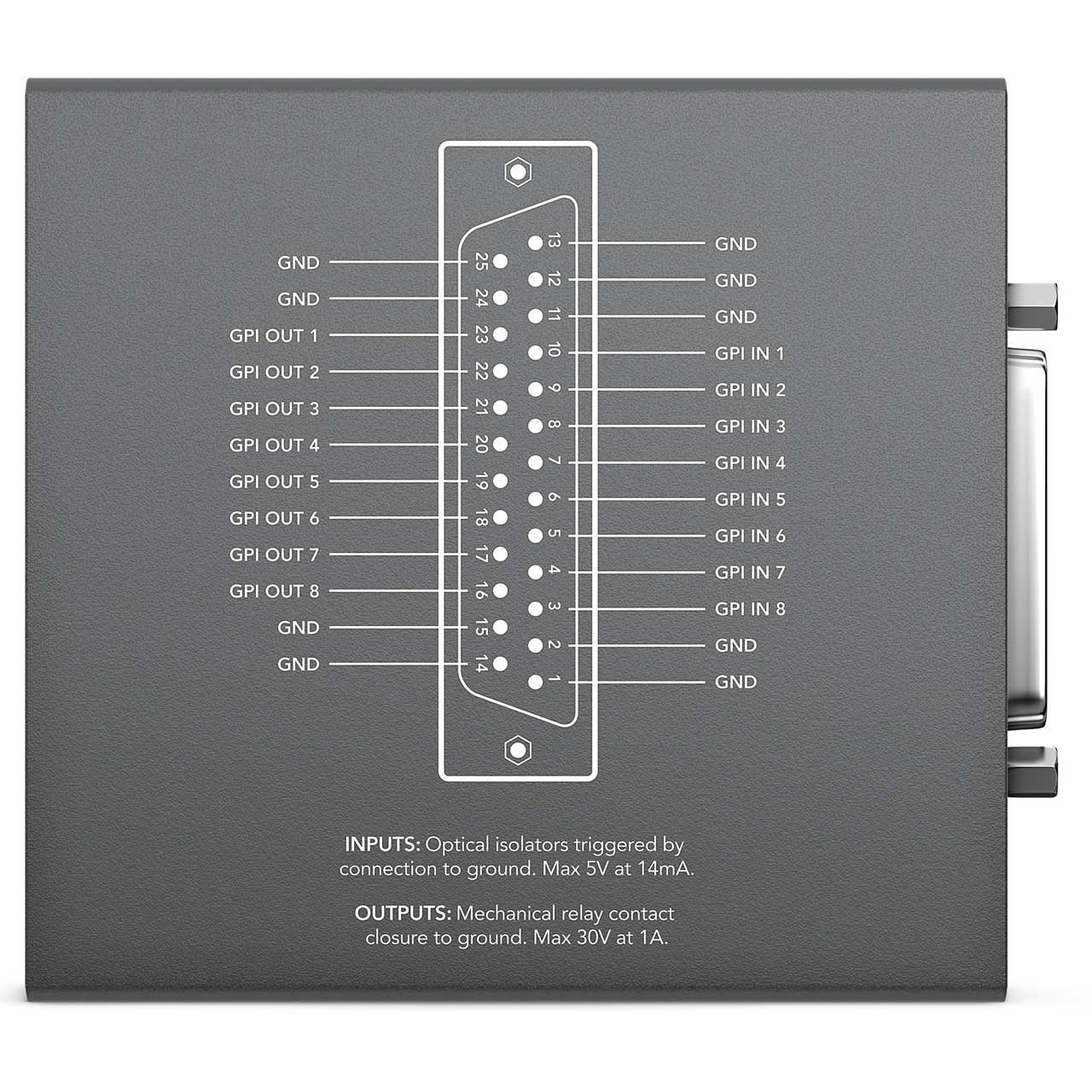

      • Contact Closure 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs
      • Inputs Optical isolators triggered by connection to ground. Max 5V at 14mA.
      • Outputs Mechanical relay contact closure to ground. Max 30V at 1A.
      • Ethernet 10/100 BaseT with loop through for connecting to other ethernet enabled equipment
      • Computer Interface 1 x USB 2.0 high speed interface for configuration and firmware updates
      • Extras:
      • Software Included Configured via ATEM Switcher Utility
      • Internal Software Upgrade Firmware built into software driver. Loaded at system startup or via updater software
      • Operating System Microsoft Windows 7 and Apple Mac OS X
      • Power Supply 12V power supply included with international socket adaptors for all countries
      • Product Warranty 12 Months Limited Manufacturer's Warranty
    • Item Includes:

      • Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
      • 12 V Power Supply
      • 1-Year Limited Warranty
