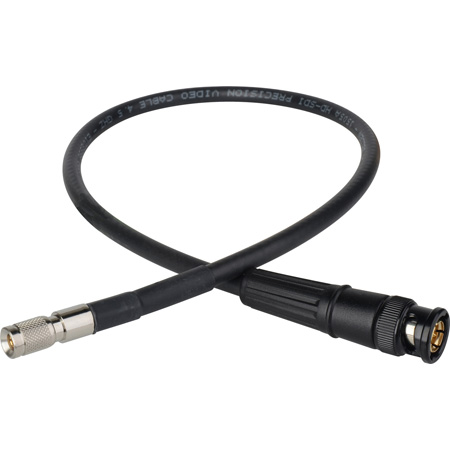

Laird Belden 1505A RG59 3G-SDI DIN 1.0/2.3 to BNC Male Video Adapter Cable - 1 Foot

ITEM #: DIN1505-B-1 MFG #: DIN1505-B-1

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$32.95

Our Price:

$28.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    DIN1505-B-1 - Overview

    3G SDI Amphenol DIN1.0/2.3 to Kings Black & Gold BNC Video Adapter Cable Featuring Belden 1505A Coax. DIN 1.0/2.3 cables are finding their way into the latest new products in the broadcast market whether it be on a Red One camera or a Harris X50 router. There are many advantages to using the DIN technology for high speed and space savings. Some industry brands such as AJA, Nevion, Harris, MIRANDA, 3COM, CISCO and RED ONE to name a few have incorporated these new connectors. Our shop has designed DIN video cables for transmitting 3G-SDI using Amphenol brand DIN1.0/2.3, Kings BNC and Belden 1505A RG59 SDI Coax. The first series are designed and function as adapter cables. Very few video monitors and other equipment include DIN type connector interfaces at this time. These simply convert the DIN RF Video to a BNC for quick-patch connection.

    • Features:

      • Belden 1505A cable
      • Kings 2065-2-9 connectors
      • Amphenol 75 Ohm 1.0/2.3 DIN Plug
      • Supports 3Gb/s at 212 ft. (SMPTE ST 242 ) and 6Gb/s at 287 ft. (SMPTE 2081-1)

    • Specifications:

      • Belden 1505A RG59/20 SDI Coaxial Cable:
      • Number of Coax: 1
      • RG Type: 59/U
      • AWG: 20
      • Stranding: Solid
      • Conductor Material: BC - Bare Copper
      • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
      • Outer Shield Material Trade Name: Duofoil
      • Outer Shield Material: Dual Shield - Bonded Duofoil/TC - Tinned Copper
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Plenum (Y/N): N
      • Plenum Number: BL-1506A
      • Nom. Characteristic Impedance: 75 +/- 1.5O
      • Applications: Precision Video Cable for Analog and Digital, Broadcast Coax, Precision Video Cable for Analog and Digital, HDTV/SDI, Coax Cables

    • Warranty:

      • 1 Year
