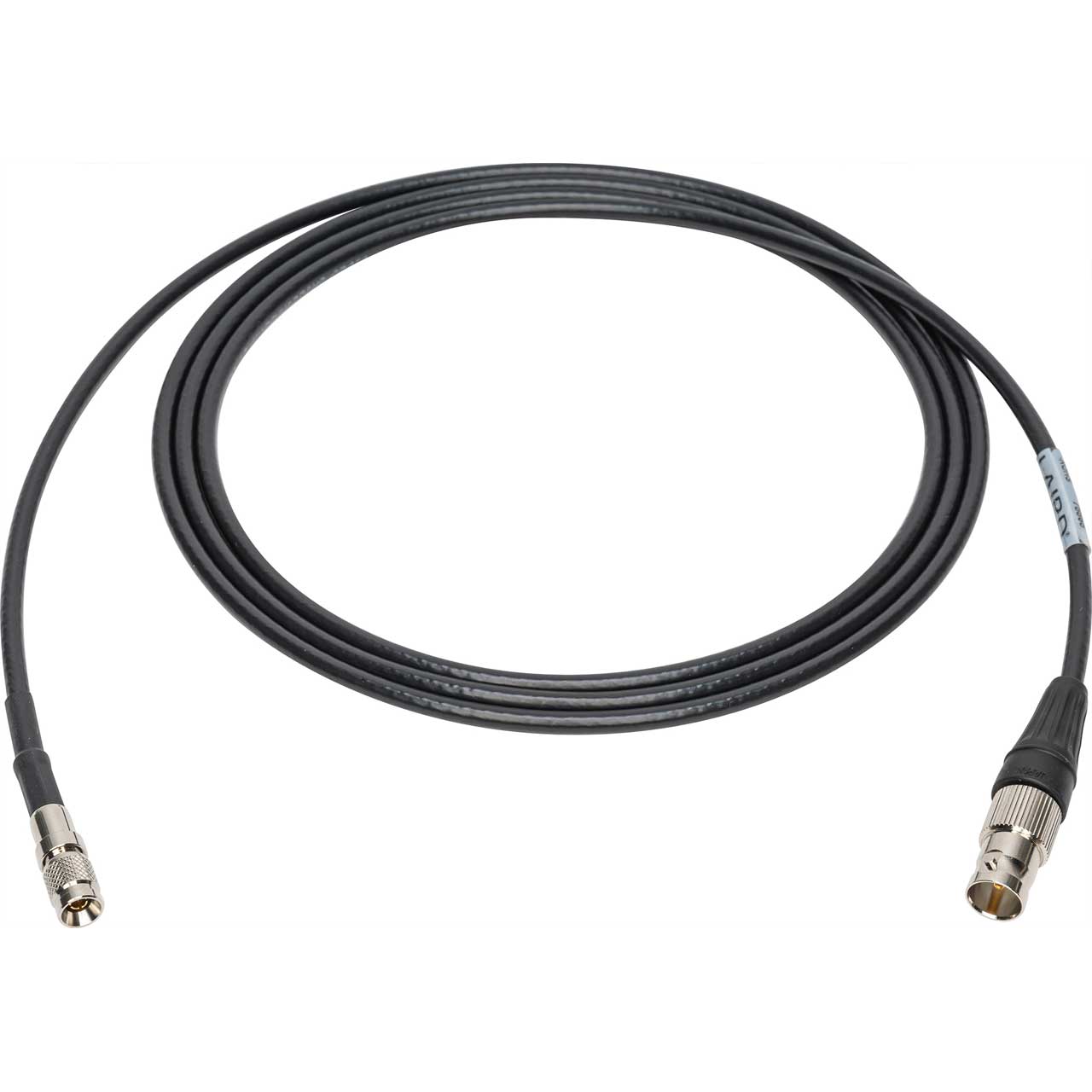

Laird 3G SDI DIN1.0/2.3 to BNC-F Video Adapter Cable w/Belden 1855A 18 Inches

ITEM #: DIN1855-BF-18IN MFG #: DIN1855-BF-18IN

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$31.49

Our Price:

$27.49

Availability: In Stock
iAvailability Description Popup


    DIN1855-BF-18IN - Overview

    3G SDI Laird DIN1.0/2.3 to BNC Video Adapter Cable Featuring Belden 1855A Coax. DIN 1.0/2.3 cables are finding their way into the latest new products in the broadcast market whether it be on a Red One camera or a Harris X50 router. There are many advantages to using the DIN technology for high speed and space savings. Some industry brands such as AJA, Nevion, Harris, MIRANDA, 3COM, CISCO and RED ONE to name a few have incorporated these new connectors. Our shop has designed DIN video cables for transmitting 3G-SDI using Laird brand DIN1.0/2.3 and Kings Electronics BNC Male connectors. This series also utilizes Belden 1855A SDI Mini RG59 Coax which is perfect for large bays and ENG trucks because of its light weight and thin design. The first series are designed and function as adapter cables. Very few video monitors and other equipment include DIN type connector interfaces at this time. These simply convert the DIN to a BNC for quick-patch connection.

    • Features:

      • Belden 1855A CMR Rated 6G-SDI Mini-RG59 Cable
      • Amphenol & Connectronics Connectors
      • Flexible cable sleeve provides abrasion resistance & its high quality connectors provide strain relief
      • SMPTE ST-2081 6G-SDI standards

    • Specifications:

      • Number of Coax: 1
      • RG Type: Sub-miniature 59/U
      • AWG: 23
      • Stranding: Solid
      • Conductor Material: BC - Bare Copper
      • Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
      • Outer Shield Material Trade Name: Duofoil
      • Outer Shield Material: Dual Shield - Duofoil/TC - Tinned Copper
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Plenum (Y/N): N
      • Nom. Characteristic Impedance: 75 +/- 1.5Ω

    • Warranty:

      • 1 Year
