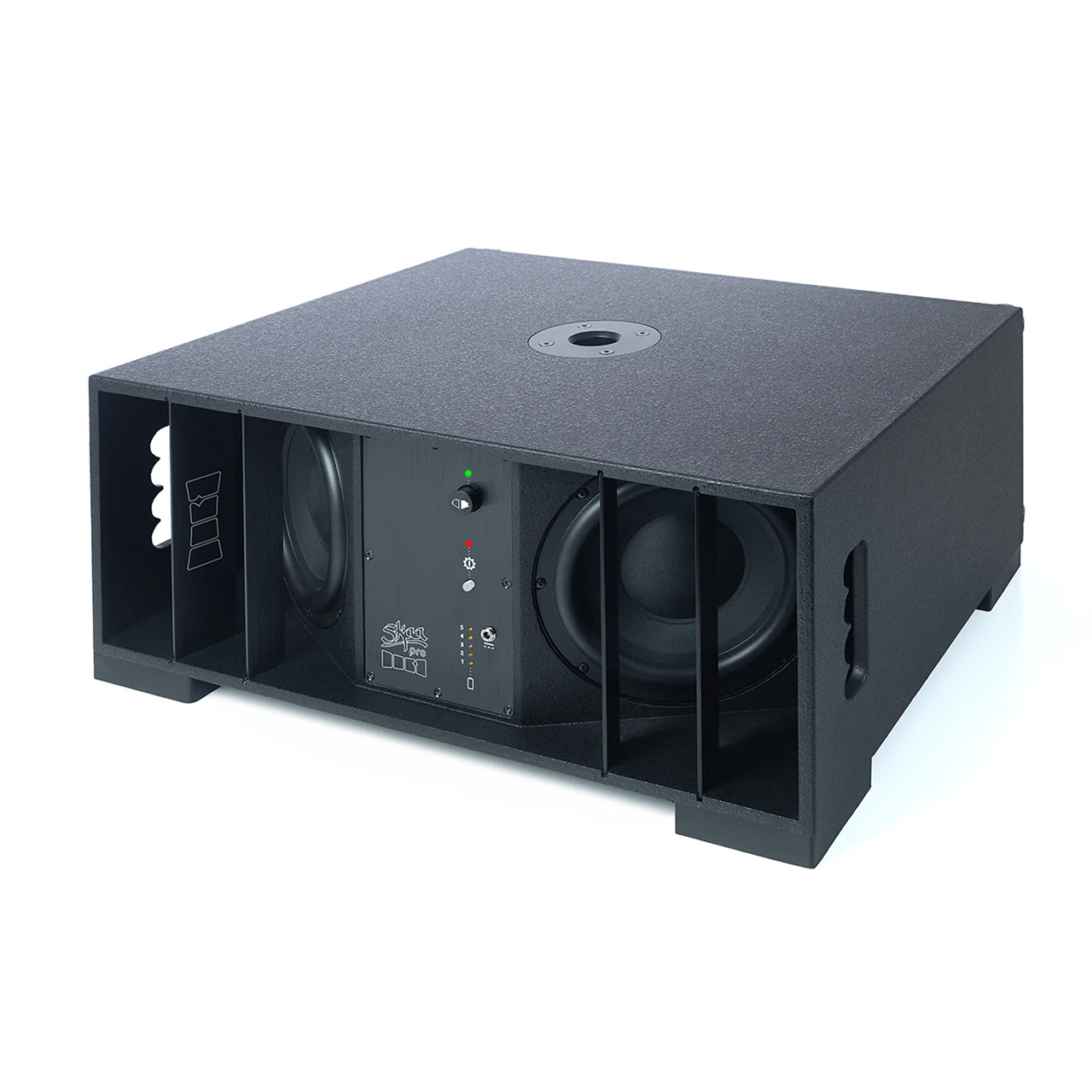

Dillinger Labs Death From Below Mk2 SKAA/SKAA Pro 2x8-Inch Portable Subwoofer with up to 164ft/50m Range

ITEM #: DLN-PL5586 MFG #: PL5586

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$899.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Item restricted to Contiguous United States ground shipment only.


PL5586 - Overview

The Dillinger Labs Death From Below Mk2 is built and optimized from the ground up to be a battery powered speaker. In the world of battery speakers, bags of Watts is actually a bad thing. Imagine how long a 115 Wh battery would power a 3600 W speaker..115/3600 = 0.03 hours. Even once you consider crest factor, you still end up at at around 0.13 hours (8 minutes).

Dillinger Labs started by making the volume work more intuitively. Now you can crank the volume to the top and still have clean bass. Dillinger Labs didn't use brute force. Dillinger Labs didn't just throw watts at it. That means they also didn't compromise battery life or weight. None of the refinements involved adding dynamics compression in the DSP. But they did carefully sculpt the EQ presets to make Mk2 sound even sweeter. Exactly zero people complained DFB didn't have enough bells & whistles, so Dillinger Labs didn't add any.

In total they made 50 refinements to the DFB Mk2. Some were foundational, such as the enhancements they made to the ports and acoustic chamber. Others were little things, like making the power button white so you can easily find it in a dark room. The lion's share of the refinements add up to an extra 6 dB SPL of clean bass. Mk2 is way louder, and it's also way clearer.

The SKAA® standard for wireless audio guarantees compatibility between all products bearing the SKAA Compatible Badge. It also guarantees product antenna performance by verifying reliable operating distance minimums have been met. SKAA transmitters work with iOS & Android mobile devices, Mac & Windows computers, televisions and any product having a line output, S/PDIF output or a headphone jack.

  • Features:

    • Feed DFB from Dani transmitters, Soundboks 3, 4 & Go speakers, other SKAA Nadja Hub speakers, as well as any of the many types of SKAA/SKAA Pro transmitters
    • Pro-grade SKAA wireless audio. 100% Bluetooth-free. 100% WiFi free.
    • Use up to 4 SKAA receivers (any combination of Death from Below and any other SKAA receivers) at the same time with any one SKAA transmitter
    • Remembers up to 10 of your favorite sources
    • Low latency - great for live performance
    • Choose from 6 epic EQ presets including one specifically tuned for use with popular Soundboks speakers
    • Configure DFB's audio routing from the front panel. Select from LEFT, RIGHT or MONO MIX audio. Set up two DFBs as stereo subs if that's what you want.
    • DFB remembers your EQ and audio routing setups - they'll be active until you change them again
    • A built-in hybrid bank of ultra-fast film capacitors and low-ESR capacitors jacks up DFB's performance by giving its amps instant access to energy when needed; that is, by ensuring the amps are never starved for power - the resulting enhanced impulse response is what's behind DFB's extra-ballsy punch.
    • Time Align function includes a phase flip option plus a selection of delays you can choose from
    • Dual tuned ports extend DFB's bass response down to 25 Hz while maximizing SPL output

  • Specifications:

      Connectivity
    • Inputs: SKAA/SKAA Pro (auto switching; automatically follows the transmitter class)
    • Works with all SKAA/SKAA Pro sources including Dani Pro transmitters and all SKAA Hub speakers (for example, Soundboks 3, 4, & Go)
    • Wireless Range: Up to 164ft (50m) reliable range (actual range will depend also on the antenna implementation in the transmit-side device)

      Audio
    • Woofer: 2x 8" Low Frequency Drivers, each with dedicated amplifier
    • Amplifier Type: 2x Multilevel Class D
    • Amplifier Power: 144 WRMS (2 x 72W Infineon Merus Ultra-Efficient Multi-Level D-amps)
    • Amp Heat Sink: Direct connect 215 x 130 x 3 external aluminum plate
    • Volume: 30-step local control plus global control
    • Punch Enhancement: 3x Film Capacitors + 5x Low ESR Electrolytic Capacitors
    • 6x EQ Presets (with 1 tuned specifically for popular Soundboks full-range speakers)
    • Dual Bass Reflex Ports
    • DSP: Analog Devices DSP provides filtering, EQ and pop-free live switching of user EQ presets
    • Frequency Response @ 3dB: 25Hz - 180Hz

      Interface
    • Power/Gear button
    • Power LED
    • Bond Button
    • Bond Indicator
    • 30-step Volume rotary encoder
    • Battery Fuel Gauge (5 LED stack)
    • EQ preset select (Wide, Outdoor, SB++, Punch, Tight, Bottom)
    • Audio Routing select (L, R or Mono Mix)
    • Time Alignment select (Phase Flip, 2ms, 4ms, 7ms, 11ms delays)
    • Works with (optional) SKAA cmd (free app) when used with Diz, Ursula, and Cassandra Transmitters

      Power
    • Internal Battery: 115 Wh, 12-cell 18650 Li-ION
    • Battery Life: Up to 50 Hours at regular listening volume
    • Charge Time: Charge from empty to full in 2.5 Hours
    • Brick Power Supply: 26V 125W (included)
    • Charge the battery and play DFB at full volume at the same time

      Cabinet
    • Build: 1/2" (12mm) Birch Plywood
    • Pole Bushing: 1-3/8" (35mm) x 4" deep welded steel (pole not included)
    • Weight: 34lbs (15.5kg)
    • Dual monkey grip handles
    • 4x Self-levelling honeycomb-cell soft rubber feet
    • 4x Rear wall rubber feet
    • Dimensions (HxWxD):
      - With Feet: 10.8" x 24.3" x 19.5" (27.4cm x 61.7cm x 49.5cm)
      - Without Feet: 9.8" x 24.3" x 18.7" (25cm x 61.7cm x 47.5cm)

  • Item Includes:

    • 1x Dillinger Labs Death From Below Mk2 SKAA/SKAA Pro 2x8" Portable Subwoofer with up to 160-Foot Range
