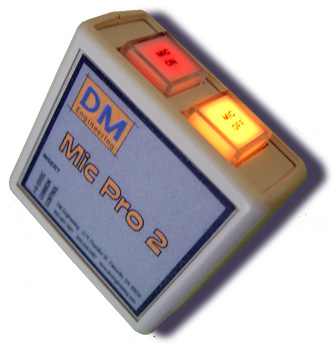

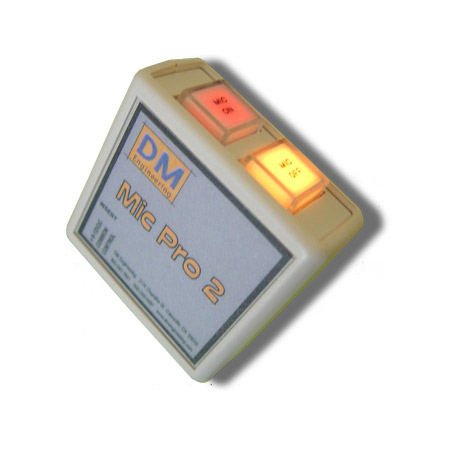

DM Engineering MIC PRO 2 Stand Alone Microphone Switching Control


free ship

Our Price:


Availability: More on the Way
iAvailability Description Popup

    MIC PRO 2 - Overview

    The "MIC PRO 2" ON/OFF LED lighted and silent switching module will upgrade a low cost production mixing board to have the microphone switching features of a professional broadcast console. High reliability and silent LED lighted "MIC ON" and "MIC OFF" buttons enable and disable the mic channel so the mic level control can be left at its optimum setting.

    As many microphone channels as your production board has "Insert" jacks for can now be individually controlled by it's own "MIC PRO 2", and is ideal for home studio applications and professional studio control of individual microphones for round table, interview room, or conference room applications where a single operator or multiple guests can control their own microphones.

    Each "MIC PRO 2" also provides a logic low output for interfacing with the DM Engineering Studio SLAVE Auxiliary Relay Pack and Studio Solid State Relay Pack or the HE Superelay if desired. The "MIC PRO 2" outputs may be paralleled from multiple "MIC PRO 2" modules to control one SLAVE Relay Pack or Solid State Relay Pack for controlling studio muting and ON AIR/ RECORDING sign functions, and is a great choice for expanding existing MIC PRO/SLAVE systems.

    The "MIC PRO 2" is powered by either the supplied DC power module, the DM Engineering Studio SLAVE Auxiliary Relay Pack or Superelay, if used. As many as 5 "MIC PRO 2" switching modules can be powered by one power supply module, Studio SLAVE or Superelay.

    The "MIC PRO 2" may be attached to the to the side of the production board as shown or it may also be secured to table tops or any other location desired using the supplied hook and loop fastener system, or for a more permanent solution, the supplied double sided tape. Each "MIC PRO 2" is supplied with a standard 6 foot "Insert" cable, and 12 foot cables are supplied as an option at an additional cost. Optional "Y" cable assembles are available for interfacing the "MIC PRO 2" with applications where the "Insert" jack is already being used by processing equipment.

    Complementary button labeling is available if the standard MIC ON and MIC OFF is not desired. A limit of 2 lines of 6 characters each (including spaces) is allowed. Specify the exact lettering and orientation when ordering.

    MIC PRO 2 - Required Accessories

      MIC PRO 2 - Recommended Accessories
