Denon DN-312X 12-Channel Mixer with Mic Priority
  • Denon DN-312X 12-Channel Mixer with Mic Priority
  • Denon DN-312X 12-Channel Mixer with Mic Priority

Questions? Ask a Markertek Expert:
800-522-2025 Email

Denon DN-312X 12-Channel Mixer with Mic Priority

Manufacturer: Denon Professional

Item #: DN-312X   •   MFG #: DN-312X




Our Price:$199.00

free ship


Availability:
In Stock
i
Item is Available for immediate shipping from our warehouse.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

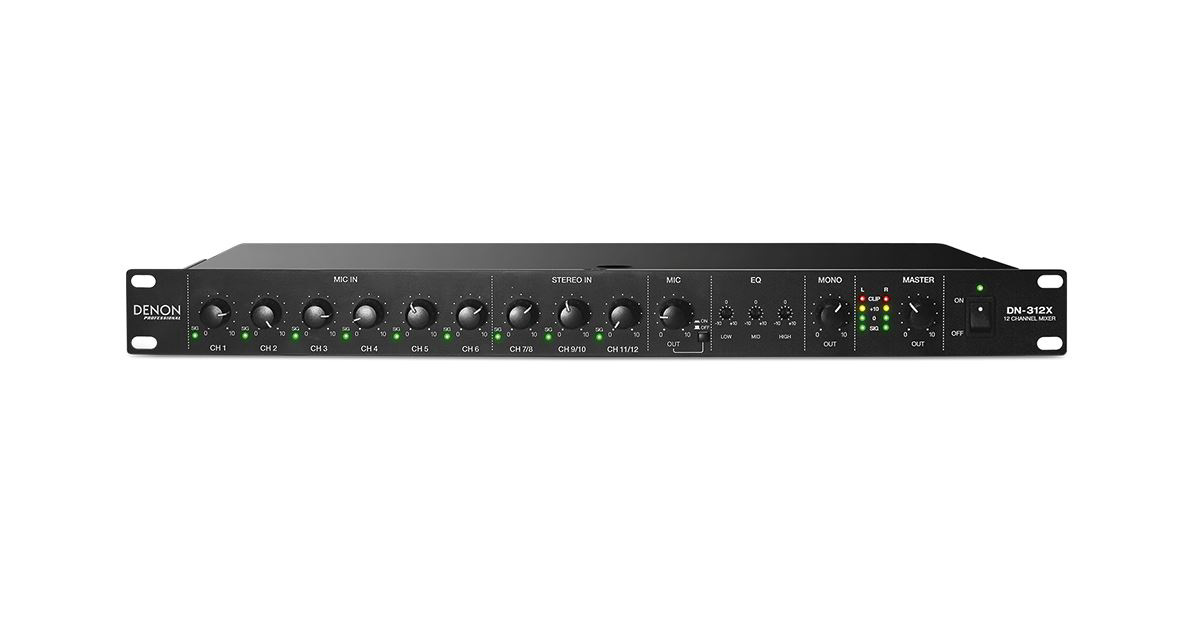

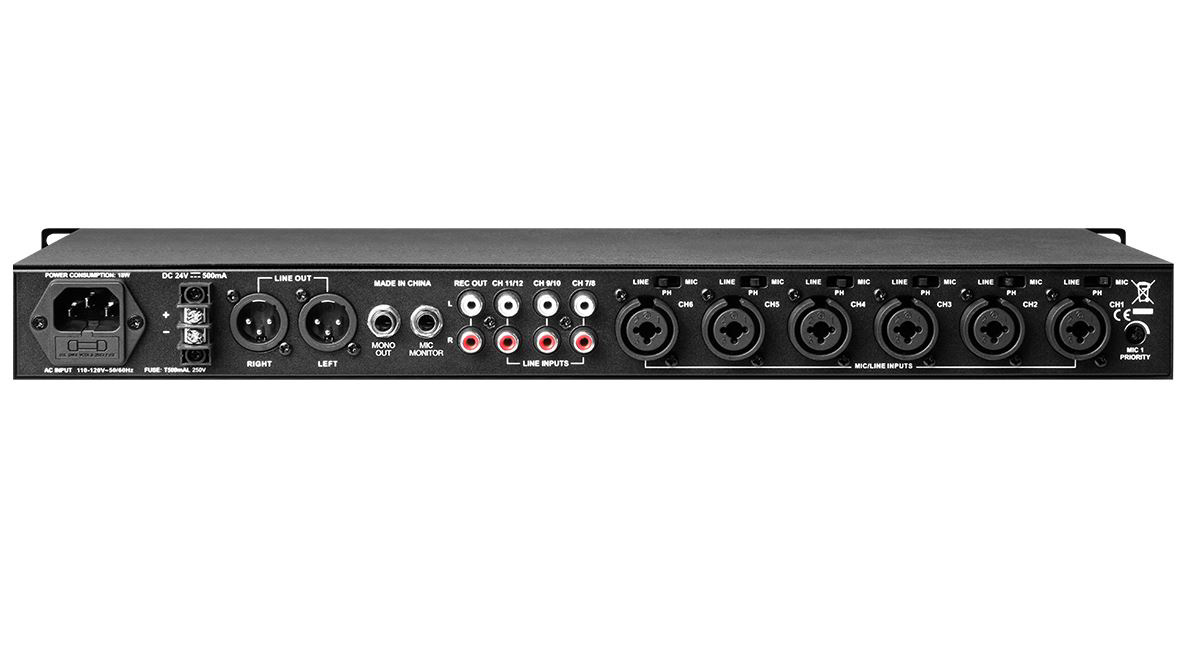

    The DN-312X is a 1U rack-mounted 12-channel mixer that can solve countless audio challenges. It features 6 mic/line combination inputs (HDHQ™ Denon-Marantz proprietary mic pre's) each with switchable phantom power and 6 additional line-level inputs. It has balanced XLR outputs, a 1/4-inch (6.3mm) mono output that can be used to connect the DN-312X to a remote mixer, a pair of RCA stereo outputs to connect to a remote recording device, and 1/4-inch (6.3mm) mic monitoring port that can be used to monitor the mics' signals.

    The DN-312X provides individual level control for all inputs in addition to level control for the mono output port and a master level control. Rounding off the feature set, It has a 3-level equalizer and a controlled priority for Mic/Line 1. It can be powered from standard AC or a 24V DC power source, inviting it to be used in a variety of applications; everything from a classroom to a tour bus.


    • Features

      • 6 HDHQ™ Combination inputs with MIC, Phantom and Line selector switches
      • 6 mono (3 stereo) RCA Inputs
      • Mic monitor 1/4" output for private listening of all mic inputs
      • Balanced XLR line outputs
      • Mono 1/4" line output can be used to feed audio to external recording device
      • AC or 24V DC power inputs
      • Mic 1 Priority Control
      • Master and Individual level controls
      • 1U rack mountable

    • Specifications

      • Input Channels
      • Microphone/Line Input: 6 Balanced XLR Connectors (Channels 1-6)
      • Frequency Response: 20 Hz - 22 kHz
      • THD+N: < 0.03% @ 1 kHz
      • Sensitivity: -40 dBu
      • Maximum Input: -19 dBu
      • Maximum Voltage Gain: 60 dB (Mic Input to Line Out, Mic Out & Mono Out); 50 dB (Mic Input to Rec Out)
      • Signal-to-Noise Ratio: > 103 dB
      • Phantom Power: 18-21 V, switch control
      • Sensitivity: 0 dBu
      • Maximum Input: +21 dBu
      • Maximum Voltage Gain: 20 dB (Mic Input to Line Out, Mic Out & Mono Out); 10 dB (Mic Input to Rec Out)
      • Line Inputs: Stereo Balanced RCA Connectors (Channels 7/8-11/12)
      • Sensitivity: +10 dBu
      • Maximum Input: +21 dBu
      • Maximum Voltage Gain: 10 dB (Line Input to Line Out); 0 dB (Line Input to Rec Out); 4 dB (Line Input to Mono Out)

        Impedance
      • Mic/Line Input: 1.4 kΩ
      • Line Input: > 10 kΩ
      • All Outputs: 120 Ω

        Equalizer
      • High: +15 dB @ 12 kHz
      • Mid: +12 dB @ 2.5 kHz
      • Low: +15 dB @ 80 Hz

        Main Mix Output
      • Line Output: 0 dBu (+2 dBu), balanced
      • Mic Output, Mono Output: 0 dBu (+2 dBu), unbalanced
      • Maximum Output: +21 dBu balanced/unbalanced, 1/4" (6.35 mm) jacks
      • Noise (Bus): < -83 dB @ 20 Hz - 22 kHz

        General
      • Power connection: IEC
      • Input Voltage: 100V~, 110-120V~, 50/60Hz; 220-240V~, 50/60Hz or DC24V
      • Dimensions (W x D x H): 19.0" x 7.7" x 1.7"
      • Weight: 6.4 lbs

    • Item Includes

      • DN-312X Mixer
      • IEC Cable
      • User Gide
      • Safety and Warranty Manual

    • GTIN:

      0694318019399
