QSC MP-M40 Music and Paging Mixer - 8 Inputs and 6 Outputs

ITEM #: QSC-MP-M40 MFG #: MP-M40

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$1,410.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    MP-M40 - Overview

    The MP-M Series music and paging mixers offer unprecedented capabilities for processing and routing high-quality foreground/ background audio for multi-zone retail and hospitality applications, and provides live mixing functionality for business applications that also require live speech reinforcement, including fitness clubs, hotel meeting rooms, banquet halls etc.

    Hardware
    The MP-M80 has eight mic/line inputs, eight line inputs and eight zone outputs while the MP-M40 has four mic/line inputs, four line inputs and four zone outputs. Each line input features dual phono jacks (summed to mono) for easy connection to the sources typically found in business music installations.

    Both models are equipped with cue bus outputs for auditioning zones and tracks, a USB port for storing and recalling design files, presets and scenes (beyond the mixer’s internal memory), both conveniently located on the front panel. They also include two general purpose inputs for external control triggers, and an Ethernet port for connection to a wireless router to allow your system to gain access to the designer and end user control apps (MP Install and MP Manage.)

    Processing
    Input processing: All inputs feature comprehensive processing including high and low-pass filters, 4-band parametric EQ, a gate and a dynamics processor that may be configured as an automatic gain control (AGC) or a compressor. The processing is responsive and musical.

    Output Processing: Any combination of input channels may be designated as sources for any output zone. Two input channels may be designated as priority sources that will ‘duck’ the selected input channel for paging/ announcements or to allow a higher-priority source to take over. There are also processing blocks for auto-loudness, equalization (1/3 octave GEQ) and limiting. All output channels include 12 anti-feedback notch filters with a wizard to assist in setting the filters.

    • Features:

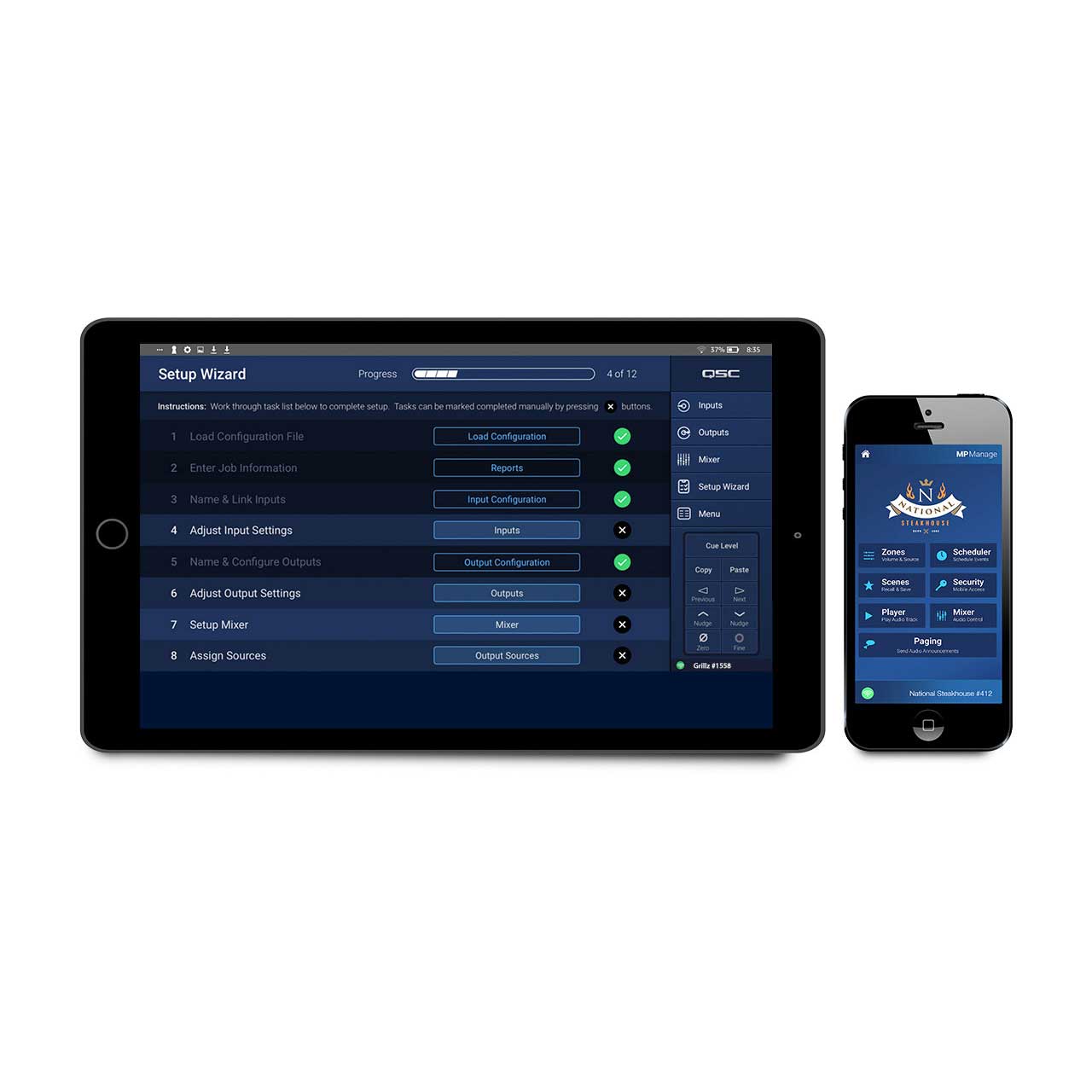

      • Easy configuration and design: MP Install app gives you an attractive graphic user environment with an intuitive workflow and controls that make it simple to manage all the inputs and outputs.
      • Workflow Wizard: Helps the installer keep track of tasks and easily navigate the mixer.
      • QSC loudspeaker voicings: Apply Intrinsic Correction™ (factory FIR/IIR presets) to QSC loudspeakers to maximize the performance and value of the system.
      • Customized control level: Fine tune controls to allow as much or as little as the installation requires on the available MP-M Series control peripherals.
      • Wired/wireless control options:
      • Complimentary aesthetics: MP-M Series mixers match the appearance aesthetic of the QSC MP-A Series music and paging amplifiers for an installation that looks as good as it sounds.

    • Specifications:

      • Inputs
      • Total: 8
      • Mic/Line: 4 (Euroblock)
      • RCA: 4 (mono-summed RCA pairs)

        Outputs
      • Total: 6
      • Line: 4 (Euroblock, balanced)
      • Music on Hold: 1 (Euroblock, transformer balanced)
      • Cue (phones): 1 (3.5 mm, stereo)

        Input Processing
      • EQ: 4-band parametric EQ with high/low shelving option, variable 24/octave HPF and LPF
      • Dynamics: Gate, choice of Auto Gain Control (AGC) or Compressor

        Output Processing
      • EQ: 1/3 octave GEQ
      • Anti-feedback Filters: 12-band variable notch filters
      • Dynamics: Comp/limiter, ducker, loudness
      • Delay: 100 msec
      • Loudspeaker tunings: Factory: Intrinsic Correction™ voicing for QSC loudspeakers
      • User: 6-band parametric EQ, HPF & LPF (Linkwitz-Riley or Butterworth; 12, 18 or 24 dB/octave)

        Effects & RTA
      • Effects: 1 multi-effects processor
      • RTA: 1/3 octave RTA
      • Control Accessories
      • MP-MFC: Optional wall controller
      • MP Install app: For configuration/design functions (for iOS/Android tablets, Windows and Mac OS PCs)
      • MP Manage app: For end user control functions (for iOS/Android tablets and smartphones)

        Other Connections
      • Ethernet: 1 x RJ45 for connection to Wi-Fi router (user supplied)
      • MP-MFC ports: 2 x RJ45
      • GPI: 2 Inputs (Euroblock)

        Power & Indicators
      • Phantom Power: All microphone inputs (+12 volts)
      • Power Requirements: TBD W, 100-240 VAC, 50-60 Hz, universal supply, IEC inlet
      • Indicators: Blue POWER LED, blue STATUS LED

        Dimensions
      • Net Dimensions (HWD): 1.75-inch x 19-inch x 14-inch (4.5 cm X 48.3 cm X 35.6 cm)
      • Weight - Shipping: 11.0 lb (5.0 kg)
      • Weight - Net: 7.0 lb (3.2 kg)

    • GTIN:

      0684284070791


    MP-M40 - Required Accessories

      MP-M40 - Recommended Accessories
