DNF EB-44-RV Control Buddy 4 Ethernet Buttons with 4 GPI (in/out) & Serial Port - Vertical Mount Fits 3ru panel

ITEM #: DNF-EB-44-RV MFG #: EB-44-RV

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$1,212.00

Our Price:

$1,179.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    EB-44-RV - Overview

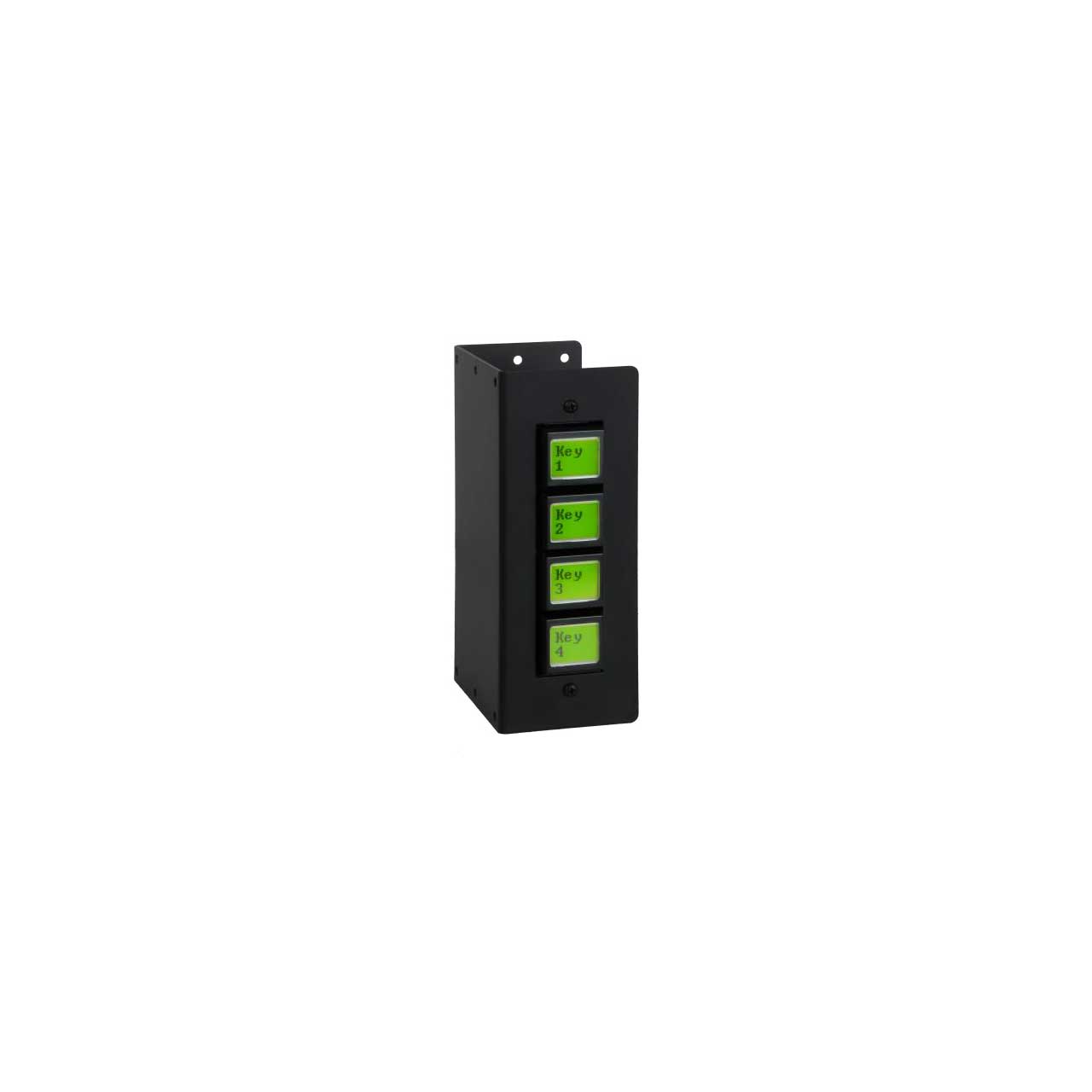

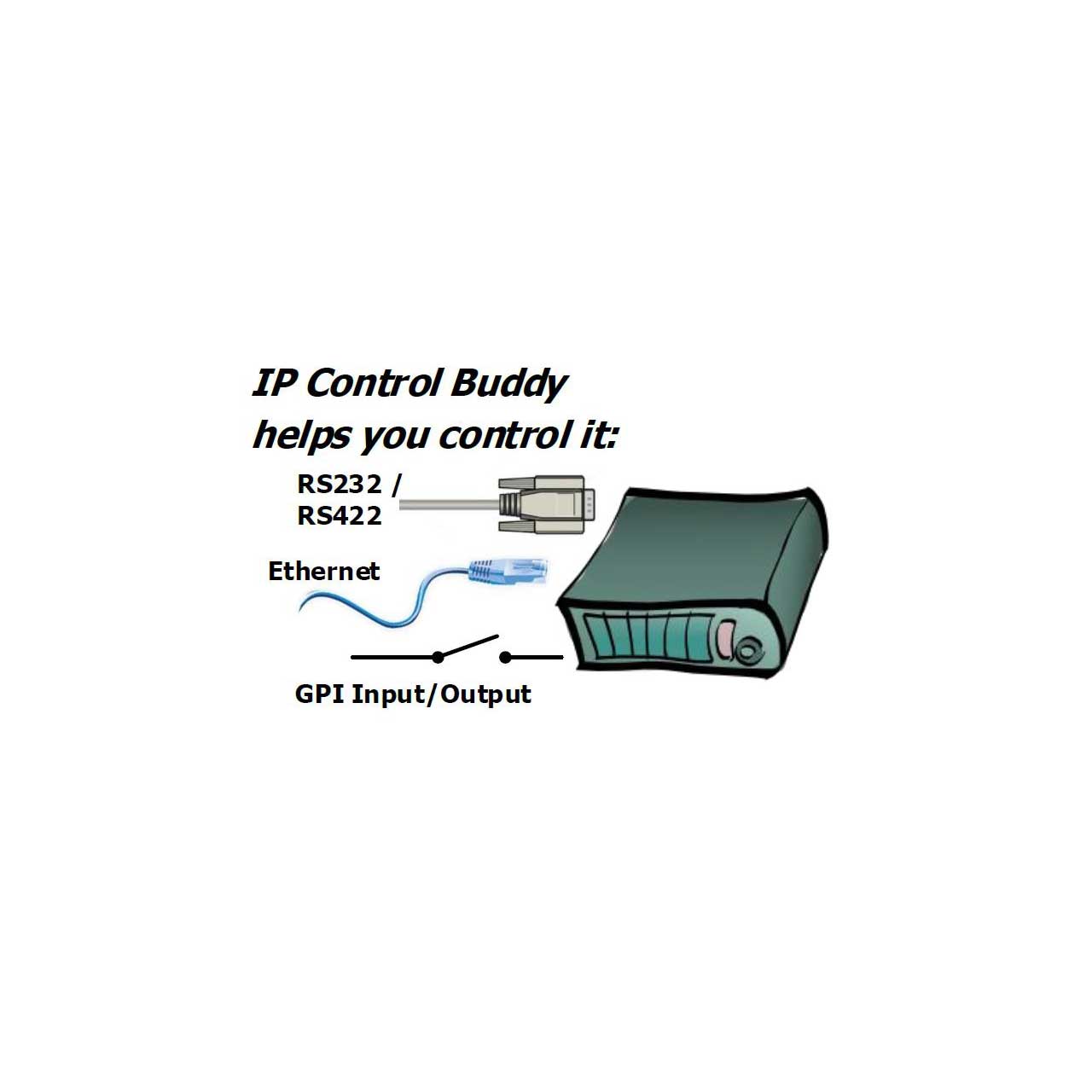

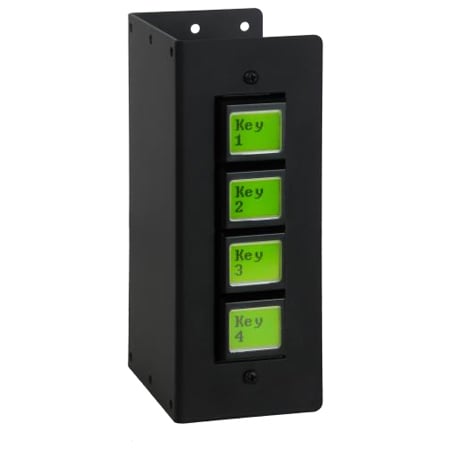

    DNF Controls EB-41RV is a compact 1 button (LCD) control panel with vertical installation. Use it standalone or integrated with a larger 3rd party control system, to quickly and cost-effectively get the job done. The IP Control Buddy allows you to control GPI/O, Serial and IP enabled devices, located anywhere, from a single button push.

    The IP Control Buddy can perform simple or complex functions and is perfect for flyaway kits, small production tasks and one button applications, The IP Control Buddy can simultaneously control multiple devices and is powered by either Power over Ethernet (PoE) or an external power supply.

    The IP Control Buddy can be combined with other
    devices to manage sources and signal paths under conditions where space is at a premium. The panel's "programmer-free" web browser based configuration tools makes it easy to configure IP Control Buddy for specific control and monitoring applications.

    Use the Tally Assignment Table web page to configure the LCD screen on the face of each key for application & tally specific text legends and background screen colors.

    One button press can:
    Turn a GPI Output On or Off
    Transmit a Serial Command
    Transmit an Ethernet TCP, UDP, SNMP, or HTTP command
    Receive a Serial & Ethernet
    Command to turn a GPI On or Off or tally a key

    • Features:

      • Power Over Ethernet (POE)
      • Optional External Power Supply
      • Mounts in a 1-RU panel, desktop, or control surface

    • Specifications:

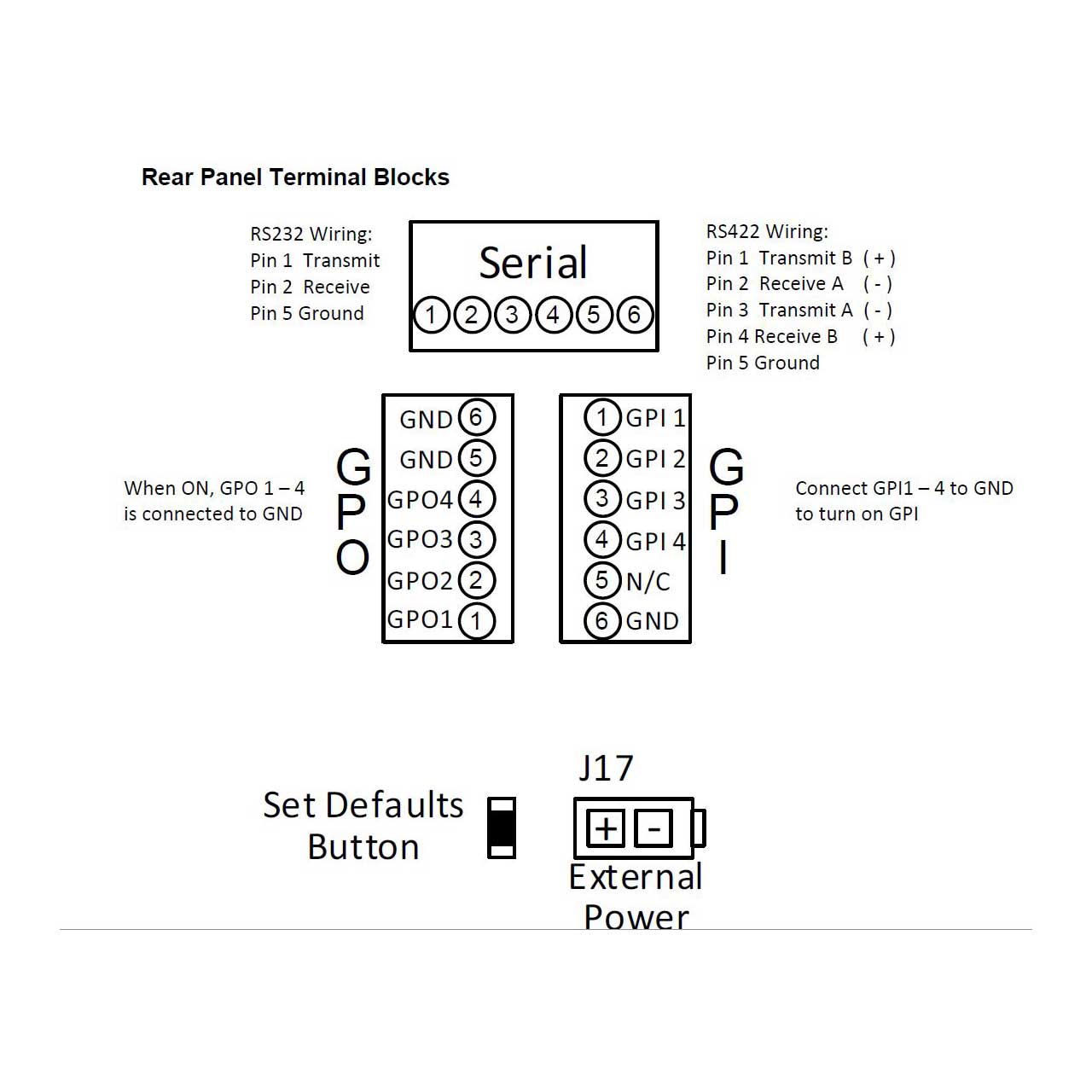

      • LCD Buttons: 4x
      • GPI Inputs: 4x
      • GPI Outputs: 4x
      • Serial Port: 1x RS422/RS232/RS422
      • Power: +12V DC, 1.0Amps, Power Over Ethernet (Optional)
      • Ethernet: RJ45 100baseT, Full Duplex
      • Dimensions (D x W x H): 2.00 x 4.75 x 1.50"

    • Item Includes:

      • 1x IP Control Buddy - 4 button (LCD) control panel - I/O: Serial (RS232/RS422), 4xGPI, 4xGPO, Vertical installation.
