DNF SW2X1-GPI Electronic GPI A/B Switch Card - Requires SW2X1 Housing

ITEM #: DNF-SW2X1-GPI MFG #: SW2X1-GPI

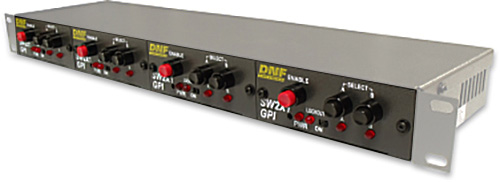

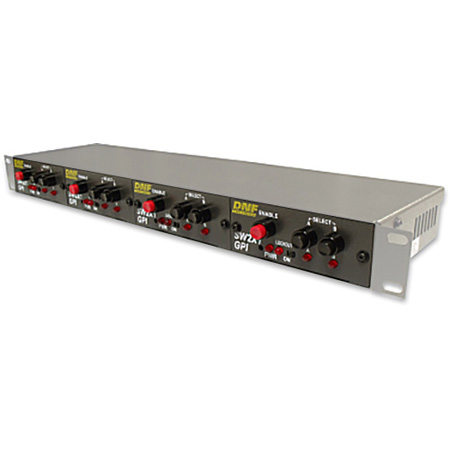

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DNF-SW2X1-GPI

SW2X1-GPI - Overview

Introducing the SW2X1-GPI model card for the DNF Controls - Model Electronic A/B Switch. Now you can easily Switch both GPIs and RS422 singals using the Industry standard - DNF Model SW2X1 Electronic A/B Switch! You can use the new SW2X1-GPI card to switch between A and B groups of 4 GPI Inputs to 4 GPI Outputs. The SW2X1-GPI card has Opto-isolated GPI Inputs for isolation between the Inputs and utilized Relay Contact Closure outputs, which enables the complete isolation of each of the Outputs. You can easily switch between WET or DRY jumper selectrions for the GPI Inputs. Chose "DRY" for Input isolation or choose "WET" to use internal power supply and provide only an external switch to "Common". You can also Mix GPI and RS422 cards in the same SW2X1 housing.

  • Features:

    • Now you can easily Switch both GPIs and RS422 singals using the Industry standard - DNF Model SW2X1 Electronic A/B Switch
    • You can use the new SW2X1-GPI card to switch between A and B groups of 4 GPI Inputs to 4 GPI Outputs
    • The SW2X1-GPI card has Opto-isolated GPI Inputs for isolation between the Inputs and utilized Relay Contact Closure outputs, which enables the complete isolation of each of the Outputs
    • You can easily switch between WET or DRY jumper selectrions for the GPI Inputs. Chose "DRY" for Input isolation or choose "WET" to use internal power supply and provide only an external switch to "Common."
    • You can also Mix GPI and RS422 cards in the same SW2X1 housing
    • In the event of a power failure, the "A" Inputs are automatically switched to the Output, which provides a "default" position to maintain complete control of default devices

  • Specifications:

    • Power: 90 VAC to 265 VAC adapter supplied with IEC connector
    • Size: (H" x W" x D") 1.75" x 19" x 4.25"
    • Weight: 6 lbs.

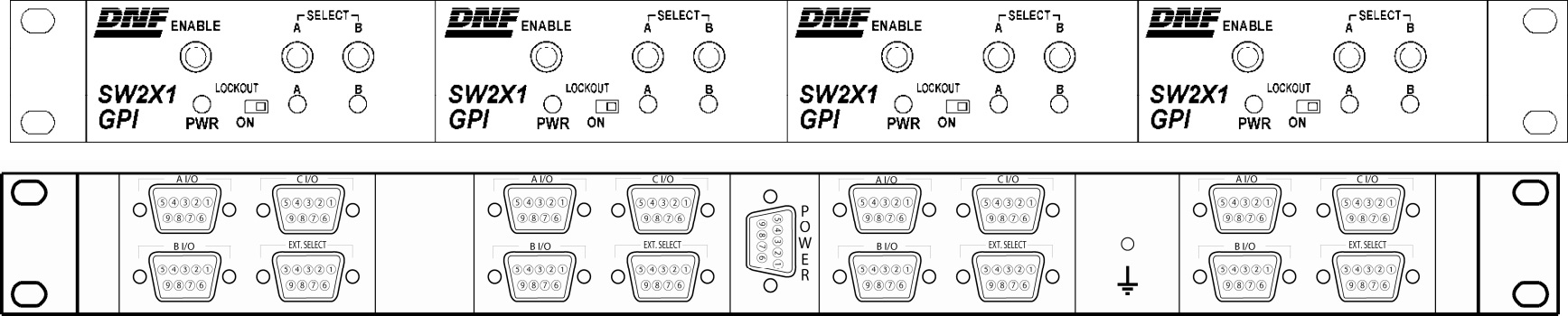

    • Rear Panel Connectors: INPUT A, INPUT B (D9F); OUTPUT, EXT. SELECT (D9F); Power (D9M); Ground #6-32 threaded stud
    • Front Panel Controls: Enable, Select A, Select B (All pushbutton switches). Lockout ON/OFF (Recessed slide switch)
    • Front Panel Indicators: Power, Lockout On, A, B. All red LEDs
