DOT-AN8.IO-ESS - Overview

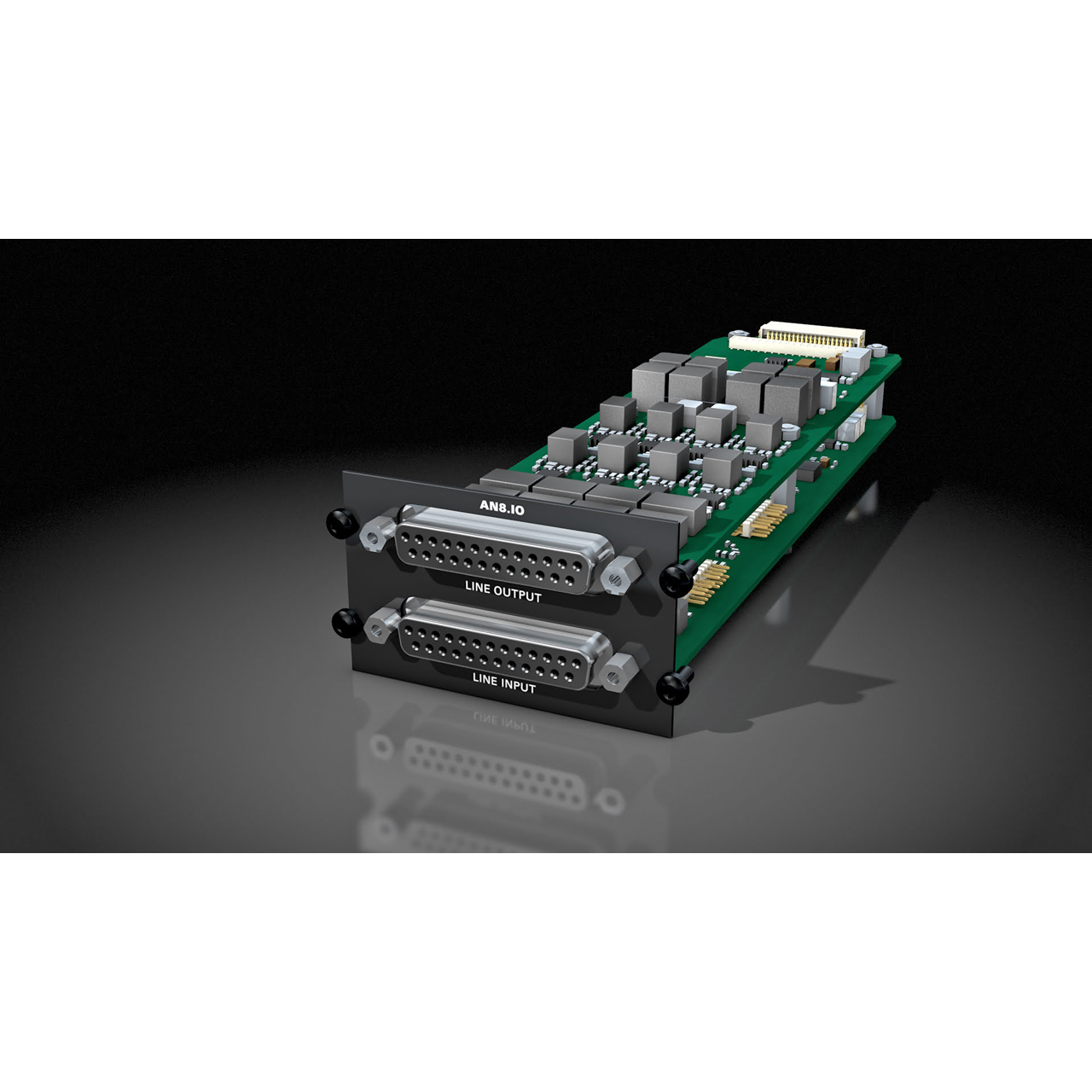

AN8.IO is a converter module for is a converter module for PRODIGY.MC, PRODIGY.MP and MAVEN.A.

Eight analog audio input and output channels are interfaced via two DSUB-25 connectors.

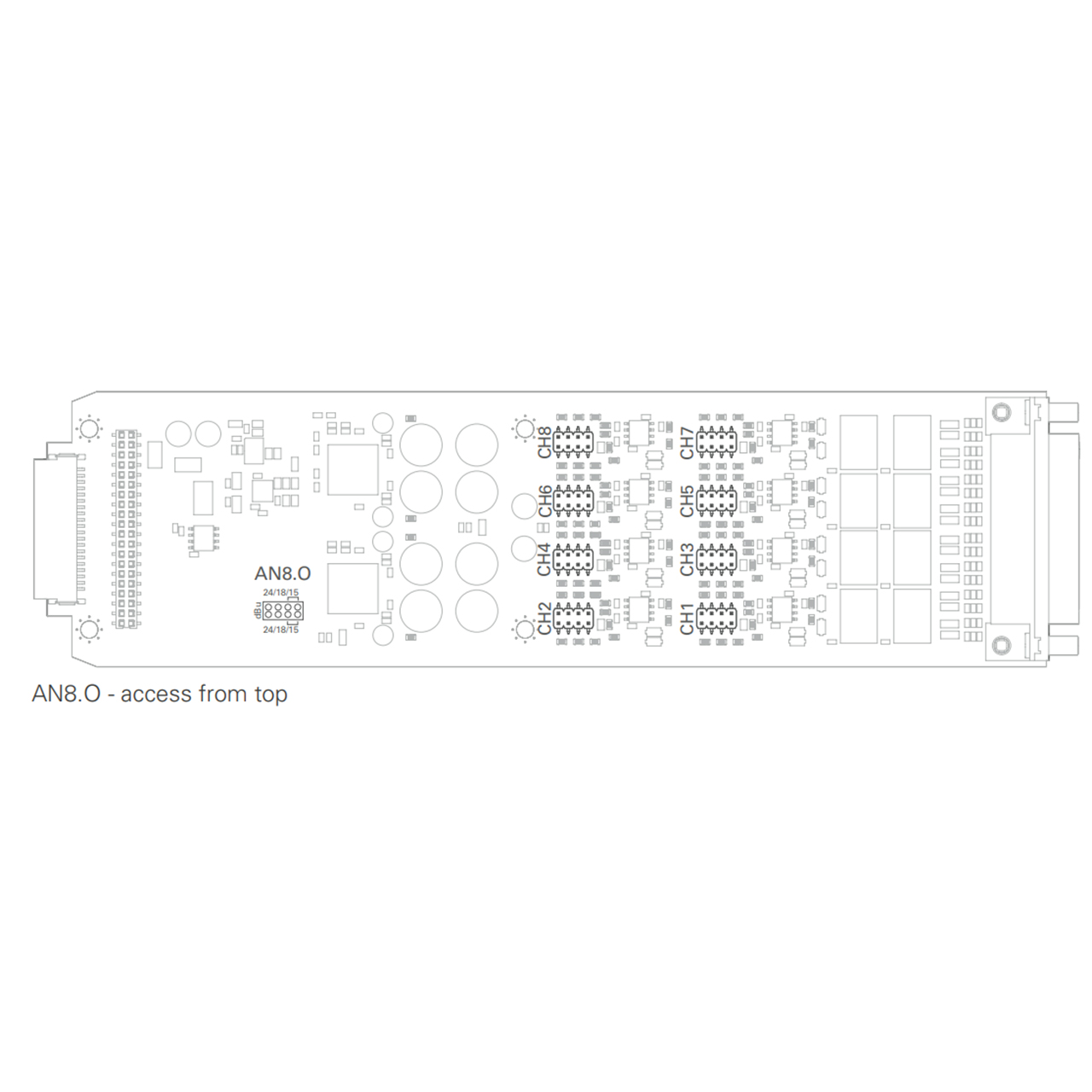

The line inputs and outputs are balanced and the reference level can be adjusted to either +15 / +18 or +24 dBU via jumper - individually per channel and per input or output.

Specifications:
- 8 channels line Input/Output
- Reference Levels: +15/+18/+24 dBu via jumper

  A/D
- SNR: < -117.6dB RMS (20Hz - 20kHz)/-119.9dB(A)
- THD @ -1dBFS: < -119dB
- Frequency Response: < -0.15dB (10Hz)/-0.15dB (20kHz)

  D/A
- SNR: -116.8dB RMS (20Hz - 20kHz)/-119.5dB(A)
- THD @ -1dBFS: -109dB
- Frequency Response: -0.5dB (10Hz)/-0.15dB (20kHz)
- 2x DSUB-25 connector (input/output)*, according to AES59
