ANNA-LISA - Overview

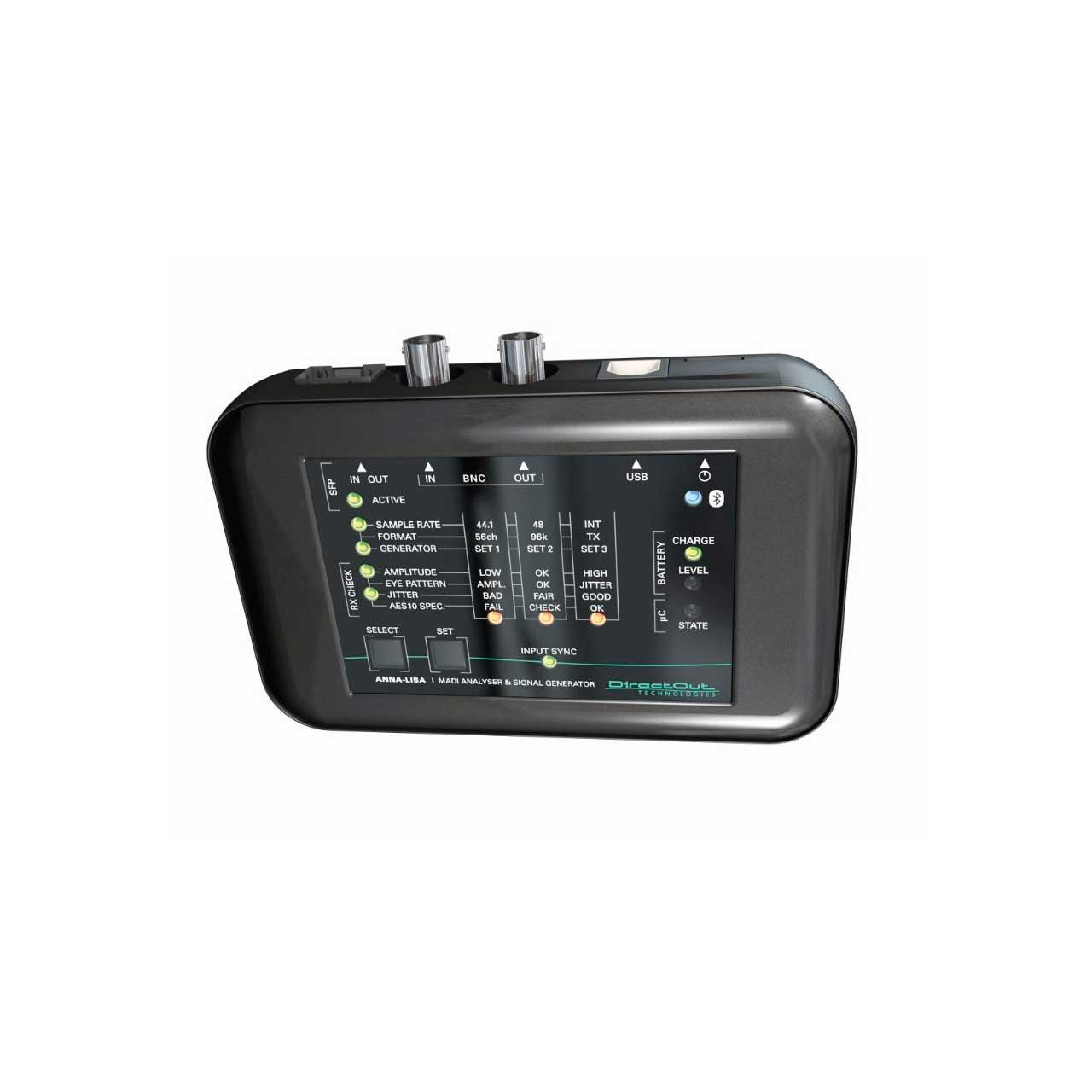

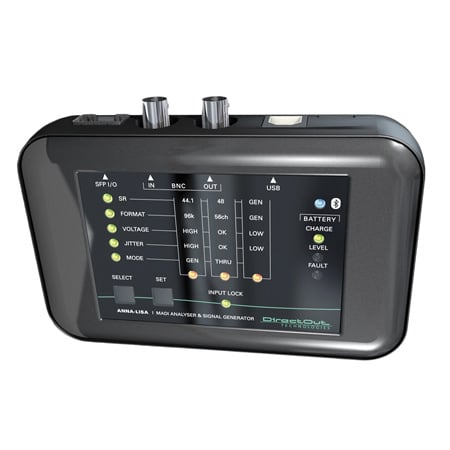

ANNA-LISA is a small, handheld MADI analyser and signal generator equipped with BNC and SFP MADI I/Os that provides straightforward, immediate analysis of any MADI input. Signal condition, input level and jitter can be monitored directly at the device. More detailed information, such as protocol and user bit checks, is accessible through an external application via USB and Bluetooth. The integrated signal generator makes ANNA-LISA a convenient, all-round tool for any MADI environment. The device is powered by an integrated battery and chargeable via USB.

How it Works
The signal of the selected input is analysed. Analysis results are displayed on the device itself via simple `traffi c light' LEDs, detailed information can be obtained with a remote software that connects Bluetooth.

Standard MADI streams can be confi gured on the device itself. Three presets store detailed settings for signal sources (white/pink noise, sine waves, routing of incoming channels), gains and MADI settings.

Over the past five years, DirectOut has acquired an excellent reputation as an audio transport specialist providing all kinds of converters, routers and little problem solvers for MADI environments. ANNA-LISA is a comprehensive yet compact measurement tool to enable mobile quality control and error tracking for engineers working with MADI out in the field.

  • Features:

    • Inspect Compatibility Issues Between Different MADI Transceivers
    • Ensures Stable Signal Connections
    • Detectc Cabling Issues (poor signal condition)
    • Line Check Pre-Installed Cables

  • Specifications:

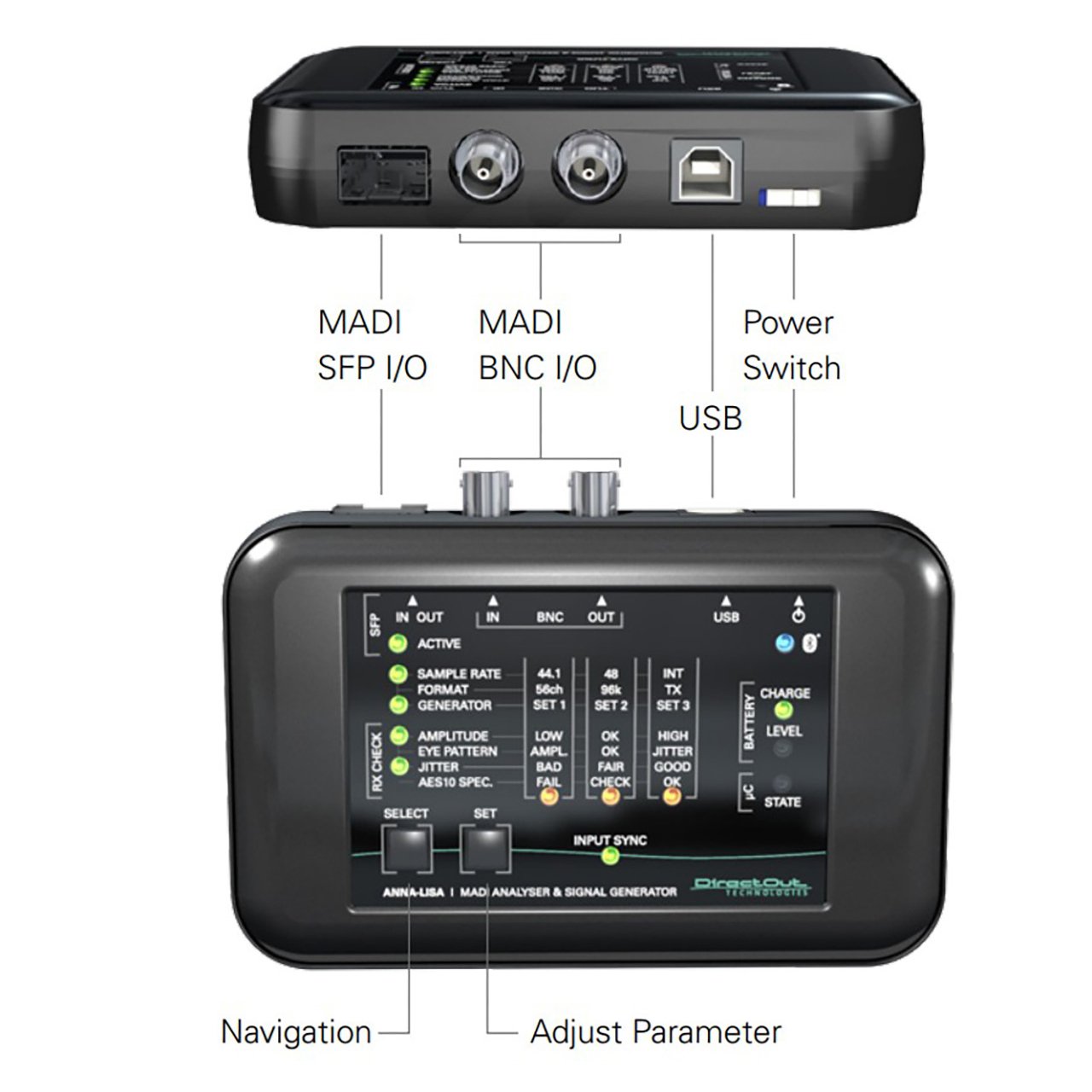

    • MADI ports (I/O): 1 x coaxial BNC, 75 Ohm, 1 x SFP (empty cage without module).
    • USB Port: USB 2.0 (B) for charging, firmware updates and remote software.
    • Bluetooth: connection to mobile devices running remote software.
    • Power supply: battery powered - charging via USB.
    • Dimensions: Width 120 mm.
    • Height 21 mm.
    • Depth 76 mm.
