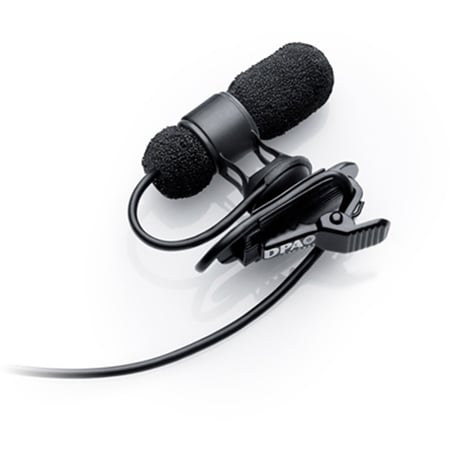

DPA 4080 CORE+ IP58 Cardioid Lavalier Mic with Normal SPL and MicroLock - Black

ITEM #: DPA-4080-DP-DB90 MFG #: 4080-DP-D-B90

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$750.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


4080-DP-D-B90 - Overview

Cardioid Lavalier Mic Optimized for Chest Placement
The DPA 4080 CORE+ Cardioid Lavalier captures the human voice with an unusually high degree of definition. This mic offers maximum side rejection and excellent sonic focus on the subject. It is designed for broadcast, conference and other live performances both in the studio and in the field.

The mic is acoustically pre-equalized, offering a 4dB presence boost, which matches the mic's chest placement perfectly. This makes the voice more distinguishable and improves speech intelligibility. Professionals will appreciate that it is lightweight and offers excellent speech reproduction.

This cardioid condenser lavalier microphone is delivered with a pre-mounted black pop filter in a holder with an integrated shock mount, fixed on a clip. An additional white pop filter is also included. Because of the flexible and practical mounting solution, the mic can easily be turned in all directions so it fits both left- and right-buttoned shirts.

CORE+ is a revolutionary leap ahead in microphone design, blurring the lines between what is and isn't acoustically possible. This technology neutralizes distortion across the entire dynamic range of the microphone making any residual distortion imperceptible to the naked ear and virtually unmeasurable.

  • Features:

    • Excellent speech reproduction
    • Discreet, compact design
    • Fits both left and right buttoned shirts
    • Delivered with both black and white pop filters
    • Modular adapter system fits most professional wireless systems

  • Specifications:

    • Directional Pattern: Cardioid
    • Principle of Operation: Pressure gradient
    • Cartridge Type: Pre-polarized condenser
    • Frequency Response: 20Hz - 20kHz
    • Effective Frequency Range ±2dB: 250Hz - 17kHz with typ. 4dB soft boost at 4kHz - 6kHz (-5dB at 100Hz)
    • Sensitivity, Nominal, ±3dB at 1kHz: 20mV/Pa; -34dB re. 1V/Pa
    • Equivalent Noise Level, A-weighted: Typ. 23dB(A) re. 20μPa (max. 26dB(A))
    • Distortion, THD < 0.5%: 127dB SPL RMS, 130dB SPL peak
    • Distortion, THD < 1%: 128dB SPL RMS, 131dB SPL peak
    • Dynamic Range: Typ. 108dB
    • Max. SPL, THD 10%: 134dB SPL peak
    • Rated Output Impedance: 30Ω - 40Ω
    • Cable Drive Capability: Up to 984ft (300m) with DAD9001 XLR Adapter
    • Power Supply (for full performance): For wireless systems Min. 5V - max. 10V through DPA adapter. With DAD9001: P48 (Phantom Power). Will work from 12V
    • Current Consumption: Typ. 1.5mA (microphone). 3.5mA with DAD9001 XLR Adapter

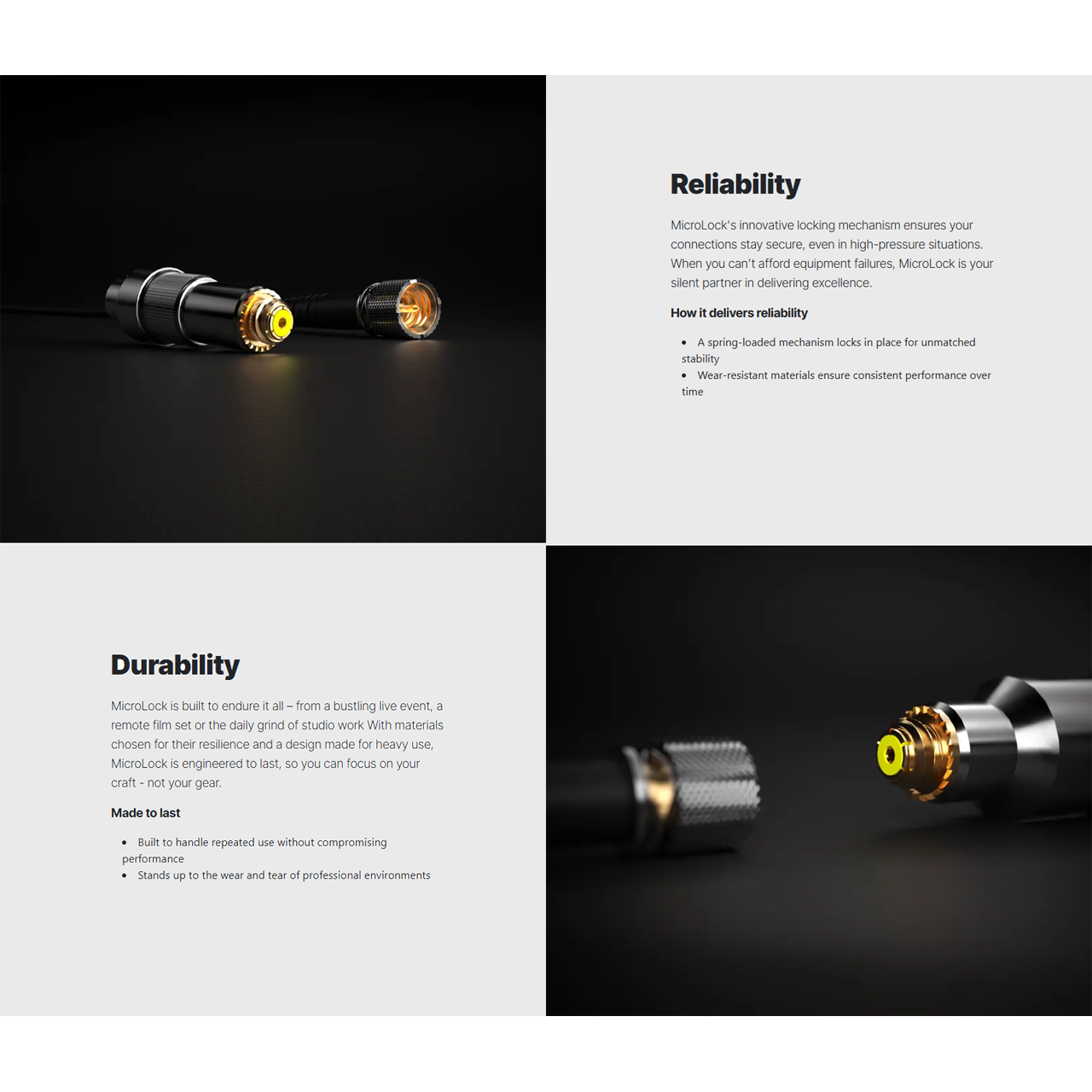

    • Connector: MicroLock
    • Weight: 0.5oz (15g) incl. Cable and MicroLock connector
    • Microphone Diameter: 0.22" (5.7mm)
    • Microphone Length: 1.2" (30mm)
    • Cable Length: 3.9ft (1.2m)
    • Cable Diameter: 0.06" (1.6mm)
    • Polarity: Positively increasing sound pressure produces positive going voltage on MicroLock pin
    • Temperature Range: -40°F - 113°F (-40°C - 45°C)
    • Relative Humidity (RH): Up to 90%

  • Item Includes:

    • 1x DPA 4080 CORE+ IP58 Cardioid Lavalier Mic with Normal SPL and MicroLock - Black

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    5713055031992
