DPA 4088-DC-A-C00-LH 4088 CORE Directional Headset Microphone - Brown - Microdot

ITEM #: DPA-4088DCAC00LH MFG #: 4088-DC-A-C00-LH

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$885.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


4088-DC-A-C00-LH - Overview

DPA's classic 4088 Directional Headset Microphone is the industry standard in professional headset mics. It offers an open and natural sound making it ideal for both spoken word and vocal performance applications.

This mic provides excellent off-axis rejection in high-SPL situations. It efficiently suppresses distant sound sources making it perfect for demanding live performance environments where background noise and feedback are concerns. In high-SPL events, or when feedback is a concern, this microphone will tackle these challenges with ease. The bass response is designed for optimal linearity at 2-3 cm (1 inch) from the sound source. This means that the bass roll-off will be relatively prominent at a greater distance - a paramount factor when it comes to rejection of background noise and in the fight to avoid feedback.

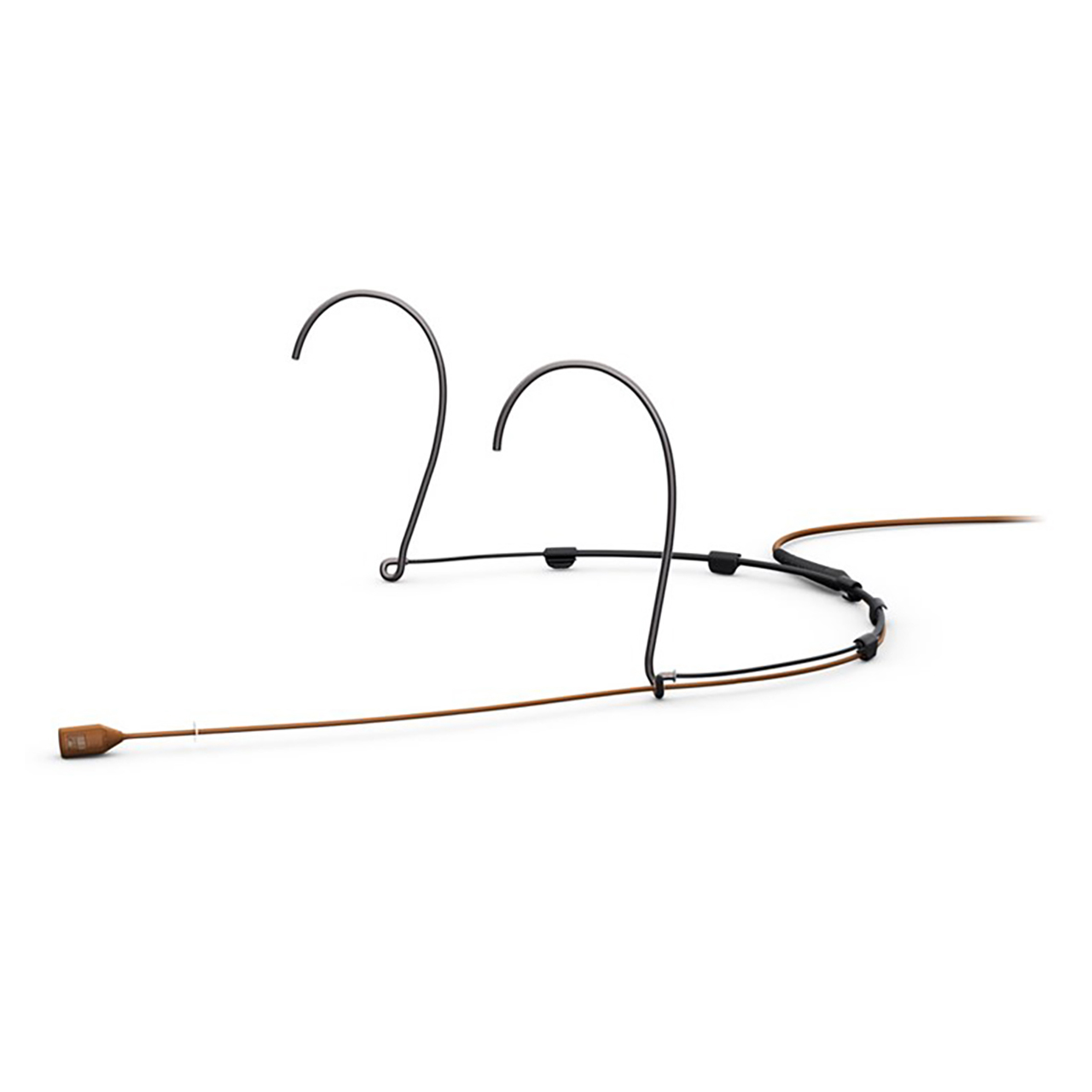

The smooth and elegant design of the 4088 Directional Headset Microphone makes it the most invisible head-worn true cardioid microphone in the world. This microphone has a secure, dual-ear design that can be used for various performing talent applications. It has a small .64 cm (.25 in) diameter, which allows for discreet use. It only weighs 14 g (.5 oz) and is very comfortable when worn for long periods. The microphone can be mounted on the right or left side.

The boom is 3 cm (1 in) longer than on the omnidirectional version, which matches the need for placement at the corner of the mouth. To avoid "popping", the capsule should not be placed directly in front of the mouth.

  • Features:

    • Pristine audio quality
    • Lightweight and flexible
    • Easy mounting to the left or right
    • Resistant to humidity
    • Flexible adapter system fits most professional wireless systems

  • Specifications:

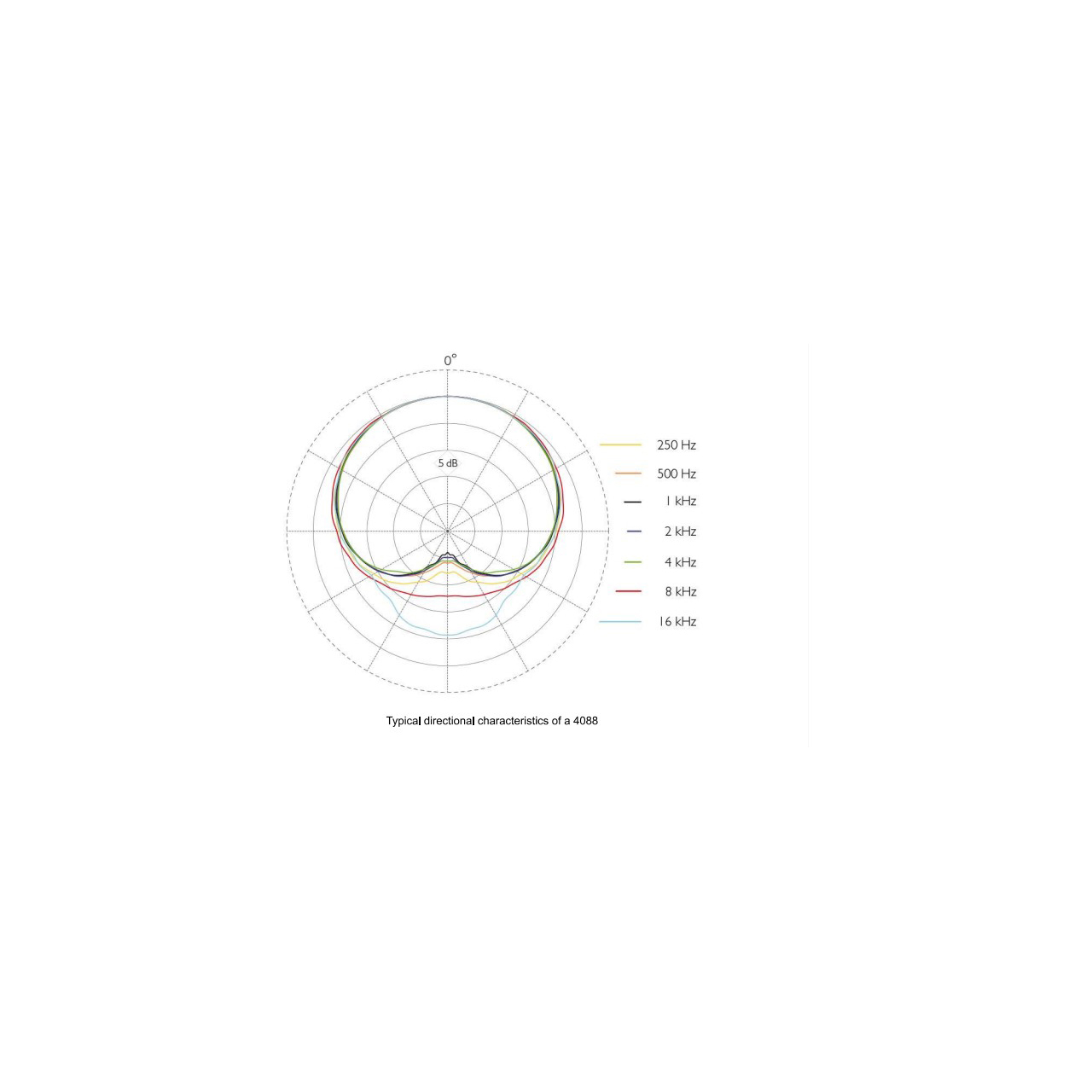

    • Directional Pattern: Cardioid
    • Principle of Operation: Pressure gradient
    • Cartridge Type: Pre-polarized condenser

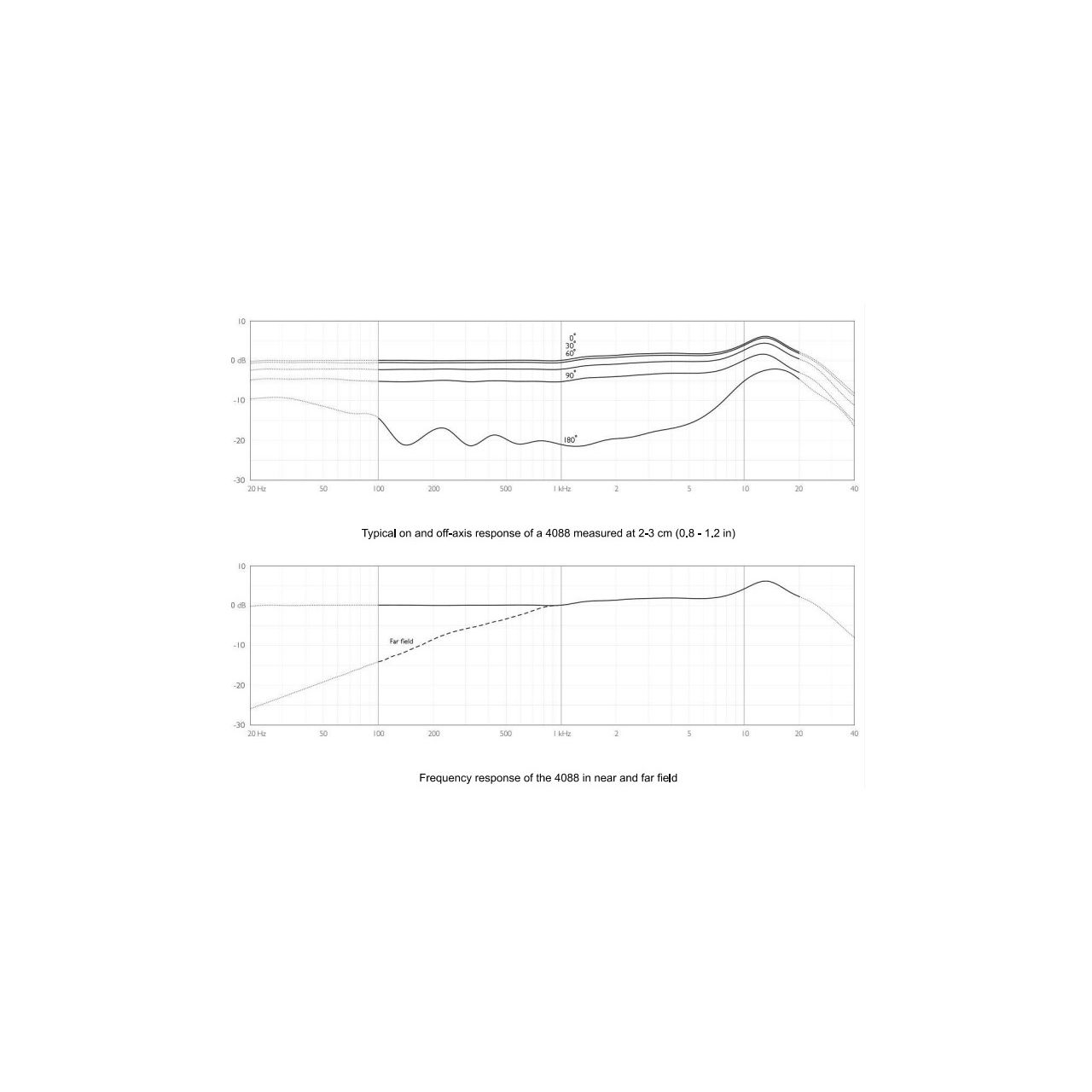

    • Frequency Response: 20Hz - 20kHz
    • Effective Frequency Range, ±2dB, Near field 2-3cm (0.8" - 1.2"): 100Hz - 20kHz (4 - 6dB soft boost at 15kHz)
    • Sensitivity, Nominal, ±3dB @ 1kHz: 6mV/Pa; -44dB re. 1V/Pa
    • Equivalent Noise Level, A-weighted: Typ. 26dB(A) re. 20μPa (max. 28dB(A))
    • Equivalent Noise Level, ITU-R BS.468-4: Typ. 38dB (max. 40dB)
    • Distortion, THD < 1%: 134dB SPL RMS, 137dB SPL peak
    • Dynamic Range: Typ. 111dB
    • Max. SPL, THD 10%: 144dB SPL peak
    • Rated Output Impedance: 30Ω - 40Ω
    • Cable Drive Capability: Up to 984' (300m) with DAD6001-BC XLR Adapter
    • Power Supply (for full performance):
      - For wireless systems Min. 5V - max. 10V through DPA adapter
      - With DAD6001-BC: P48 (Phantom Power). Will work from 12V
    • Current Consumption: Typ. 1.5mA (microphone). 3.5mA with DAD6001-BC XLR Adapter
    • Connector: MicroDot
    • Weight: 0.5oz (14g) incl. Cable and MicroDot connector
    • Microphone Diameter: 0.21" (5.4mm)
    • Microphone Length: 0.5" (11mm)
    • Cable Length: 3.9' (1.2m)
    • Cable Diameter: 0.06" (1.6mm)
    • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
    • Temperature Range: -40°F - 113°F (-40°C - 45°C)
    • Relative Humidity (RH): Up to 90%
