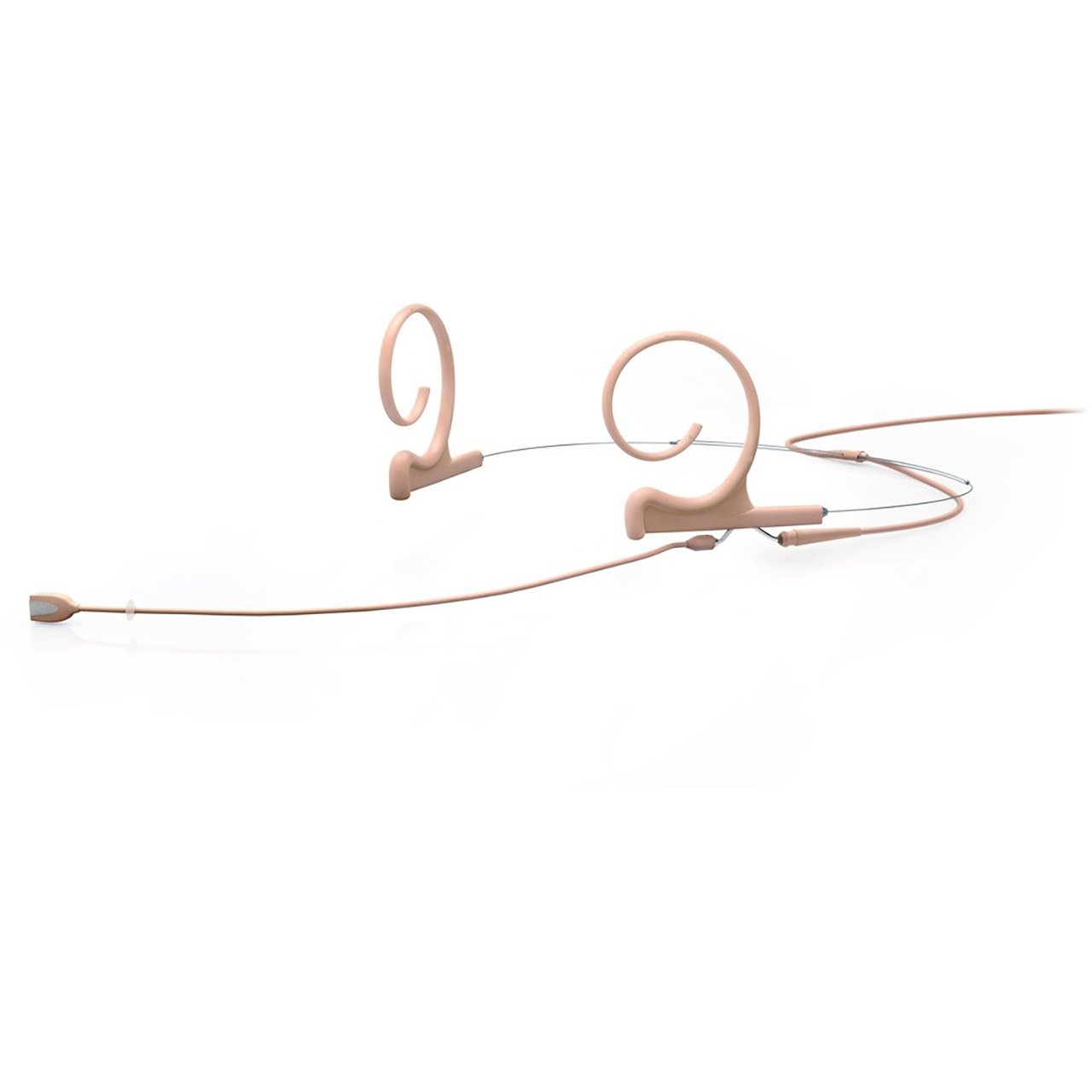

DPA 4166 CORE+ IP58 Omni Flex Headset Mic with 110mm Boom and MicroLock - Beige

ITEM #: DPA-4166OPFF90LH MFG #: 4166-OP-F-F90-LH

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$1,035.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


4166-OP-F-F90-LH - Overview

The DPA 4166 CORE+ Earset Mic combines the Slim Omni Capsule on the Flex earset. It features the same capsule as the 4060 Omnidirectional Miniature Microphone, but in a different housing. It delivers sound on par with the legacy 4060 on a lightweight and flexible system.

CORE+ is a revolutionary leap ahead in microphone design, blurring the lines between what is and isn't acoustically possible. This technology neutralizes distortion across the entire dynamic range of the microphone making any residual distortion imperceptible to the naked ear and virtually unmeasurable.

Removing these remnants of distortion allows sound engineers to capture a new level of audio clarity easily and efficiently, so they can shape an extraordinary listening experience for the audience.

Microphones with CORE+ deliver crystal clear, distortion-free sound across the entire dynamic range of the microphone. Anyone seeking the highest possible sound quality will appreciate CORE+.

Whether recording or amplifying content, the sound will remain clear and completely undistorted by the microphone, even when the talent speaks or sings at louder volumes.

Especially at higher sound pressure levels and with multiple microphones on stage, the elimination of distortion will enhance the overall clarity and transparency of the entire sound image.

For miniature microphones in particular, sound professionals in theatres and film industry are the primary beneficiaries.

  • Features:

    • CORE+ technology
    • Pristine audio quality
    • Lightweight and flexible
    • Easy mounting to the left or right
    • Minimal visual impact
    • Resistant to humidity
    • Flexible adapter system fits most professional wireless systems

  • Specifications:

    • Directional Pattern: Omnidirectional
    • Principle of Operation: Pressure
    • Cartridge Type: Pre-polarized condenser
    • Frequency Response: 20Hz - 20kHz
    • Effective Frequency Range ±2dB: 40Hz - 20kHz with 3dB soft boost at 8kHz - 15kHz
    • Sensitivity, Nominal, ±3dB at 1kHz: 6mV/Pa; -44dB re. 1V/Pa
    • Equivalent Noise Level, A-weighted: Typ. 26dB(A) re. 20µPa (max. 28dB(A))
    • Equivalent Noise Level, ITU-R BS.468-4: Typ. 38dB (max. 40dB)
    • Distortion, THD <0.5%: 133dB SPL RMS, 136dB SPL peak
    • Distortion, THD <1%: 136dB SPL RMS, 139dB SPL peak
    • Dynamic Range: Typ. 113dB
    • Max. SPL, THD 10%: 144dB SPL peak
    • Rated Output Impedance:
      - From MicroLock: 30Ω - 40Ω
      - From DAD9001: 100Ω
    • Cable Drive Capability: Up to 984ft (300m) with DAD9001 XLR Adapter
    • Output Balance Principle: Signal balanced with DAD9001 XLR Adapter
    • Common Mode Rejection Ratio (CMRR): > 60dB from 50Hz - 15kHz with DAD9001 XLR Adapter
    • Power Supply (for full performance):
      - For wireless systems Min. 5V - max. 10V through DPA adapter
      - With DAD9001: P48 (Phantom Power). Will work from 12V
    • Current Consumption:
      - Typ. 1.5mA (microphone)
      - 3.5mA with DAD9001 XLR Adapter
    • Connector: MicroLock
    • Weight:
      - Microphone boom: 0.03oz (0.8g)
      - Earhook: 0.04oz (1.1g)
      - Cable: 0.23oz (6.6g)
      - Total: 0.30oz (8.5g)
    • Microphone Diameter: 0.21" (5.4mm)
    • Microphone Boom Length:
      - Normal: 4.7" (120mm)
      - Medium: 3.9" (100mm)
    • Cable Length: 4.3ft (1.3m)
    • Cable Diameter: 0.06" (1.6mm)
    • Polarity: Positively increasing sound pressure produces positive going voltage on MicroLock pin
    • Electromagnetic Compatibility (EMC): Fully compatible
    • Temperature Range: -40°F - 113°F (-40°C - 45°C)
    • Relative Humidity (RH): Up to 90%

  • Item Includes:

    • 1x DPA 4166 CORE+ IP58 Omni Flex Headset Mic with 110mm Boom and MicroLock - Beige

  • GTIN:

    0571305503157
