DPA 4188-DC-F-F00-LE CORE Slim Directional Flex Earset Microphone - 120mm Boom - Beige - MicroDot Only

ITEM #: DPA-4188DCFF00LE MFG #: 4188-DC-F-F00-LE

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$890.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    4188-DC-F-F00-LE - Overview

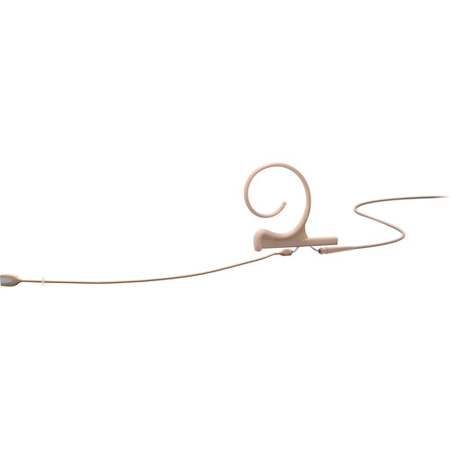

    The beige d:fine Core 4188 Slim Directional Flex Earset Mic, 120mm Boom with MicroDot from DPA combines the sound of the d:fine 4088 directional capsule and Core amplifier in a lightweight and flexible one-ear earset. It can be used when miking needs to be fast, easy, and where the person wearing the microphone won't feel the presence of it such as in conference, speech, and active live performance applications.

    The cardioid polar patterned Core 4188 gets a 14 dB increase in dynamic range than the Legacy version and is ergonomically designed to fit comfortably. It easily adjusts to fit any ear size and head shape while at the same time, it mounts securely and is hardly visible. By rotating the boom and the ear hook, the microphone can be used on either the left or the right ear. In addition, the connector splits the cable from the microphone boom allowing you to swap broken cables and / or wireless connectors quickly. Finally, it includes a makeup filter, four windscreens, ID rings with cover, and a clothing clip.

    • Features:

      • Pristine audio quality
      • Lightweight and flexible
      • Easy mounting to the left or right
      • Minimal visual impact
      • Resistant to humidity
      • Flexible adapter system fits most professional wireless systems

    • Specifications:

      • Directional pattern: Cardioid
      • Principle of operation: Pressure gradient
      • Cartridge type: Pre-polarized condenser
      • Frequency response: 20 Hz - 20 kHz
      • Effective frequency range, ±2 dB: Near field 2-3 cm (0.8 - 1.2 in)100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)
      • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
      • Equivalent noise level, ITU-R: BS.468-4: Typ. 38 dB (max. 40 dB)
      • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
      • Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak
      • Dynamic range - Legacy: Typ. 97 dB
      • Dynamic range - CORE: Typ. 111 dB
      • Max. SPL, THD 10%: 144 dB SPL peak
      • Rated output impedance: 30 - 40 Ω
      • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
      • Output balance principle: Signal balanced with DAD6001-BC XLR Adapter
      • Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
      • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter
      • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
      • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
      • Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
      • Color: Beige
      • Weight: Single Ear: 10 g (0.35 oz)
      • Microphone diameter: 5.4 mm (0.21 in)
      • Microphone length: 12.7 mm (0.5 in)
      • Cable length: 1.3 m (4.3 ft)
      • Cable color: Black, beige or brown
      • Cable diameter: 1.6 mm (0.06 in)
      • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
      • Temperature range: -40°C to 45°C (-40°F to 113°F)
      • Relative humidity (RH): Up to 90%

    • Item Includes:

      • 1x DPA Microphones d:fine Core 4188 Slim Directional Flex Earset Mic, 120mm Boom with MicroDot (Beige)
      • 4x Foam Windscreens
      • 1x ID Rings and Cover
      • 1x Clothing Clip
      • 1x Makeup Filter

    • Warranty:

      • Limited 2 Year Warranty

    • GTIN:

      5713055016562
