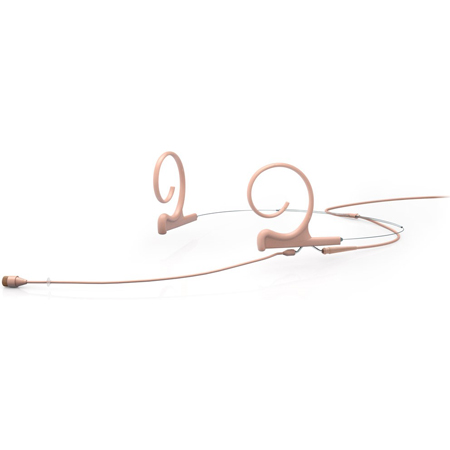

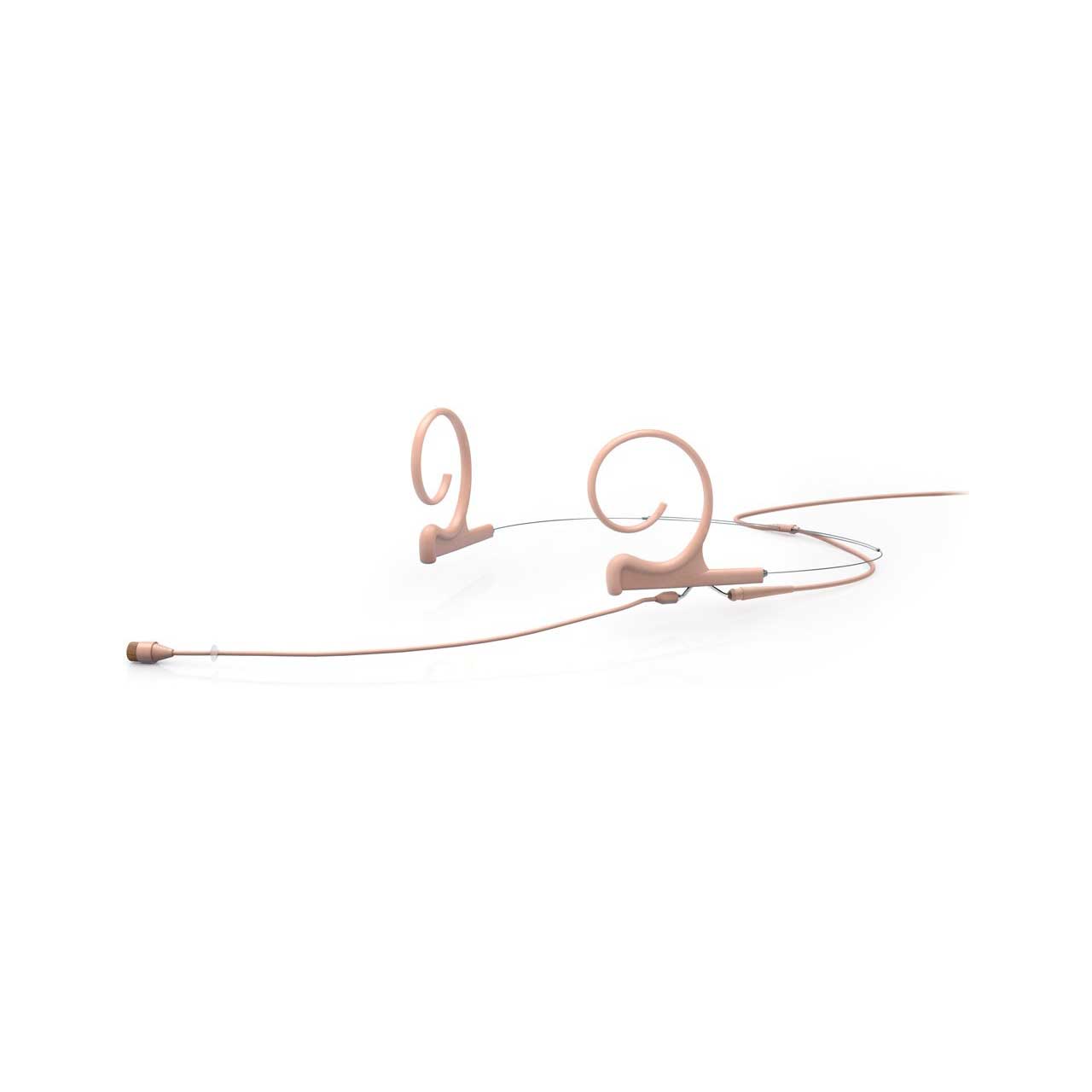

DPA 4266-OC-F-F34-LH CORE 4266 Omni Flex Headset Mic - 110mm Boom - Mini-Jack - Beige

4266-OC-F-F34-LH - Overview

• Features:

  • Pristine audio quality
  • Lightweight and flexible
  • Easy mounting to the left or right
  • Minimal visual impact
  • Resistant to humidity
  • Flexible adapter system fits most professional wireless systems


• Specifications:

  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range +2 dB: Soft boost grid: 40 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 40 Hz - 20 kHz, 10 dB boost at 12 kHz
  • Sensitivity, nominal, +3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
  • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
  • Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak
  • Dynamic range - Legacy: Typ. 97 dB
  • Dynamic range - CORE: Typ. 111 dB
  • Max. SPL, THD 10%: 144 dB SPL peak
  • Rated output impedance: 30 - 40 ω
  • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter. With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
  • Connector: Mini-Jack
  • Color: Beige
  • Microphone diameter: 0.21 in (5.4 mm)
  • Microphone length: 0.5 in (12.7 mm)
  • Cable length: 4.3 ft (1.3 m)
  • Cable diameter: 1.6 mm (0.06 in)
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%


• Item Includes:

  • 1x 4266-OC-F-F34-LH CORE 4266 Omni Flex Headset Mic


• Warranty:

  • 2-Year Limited Warranty
