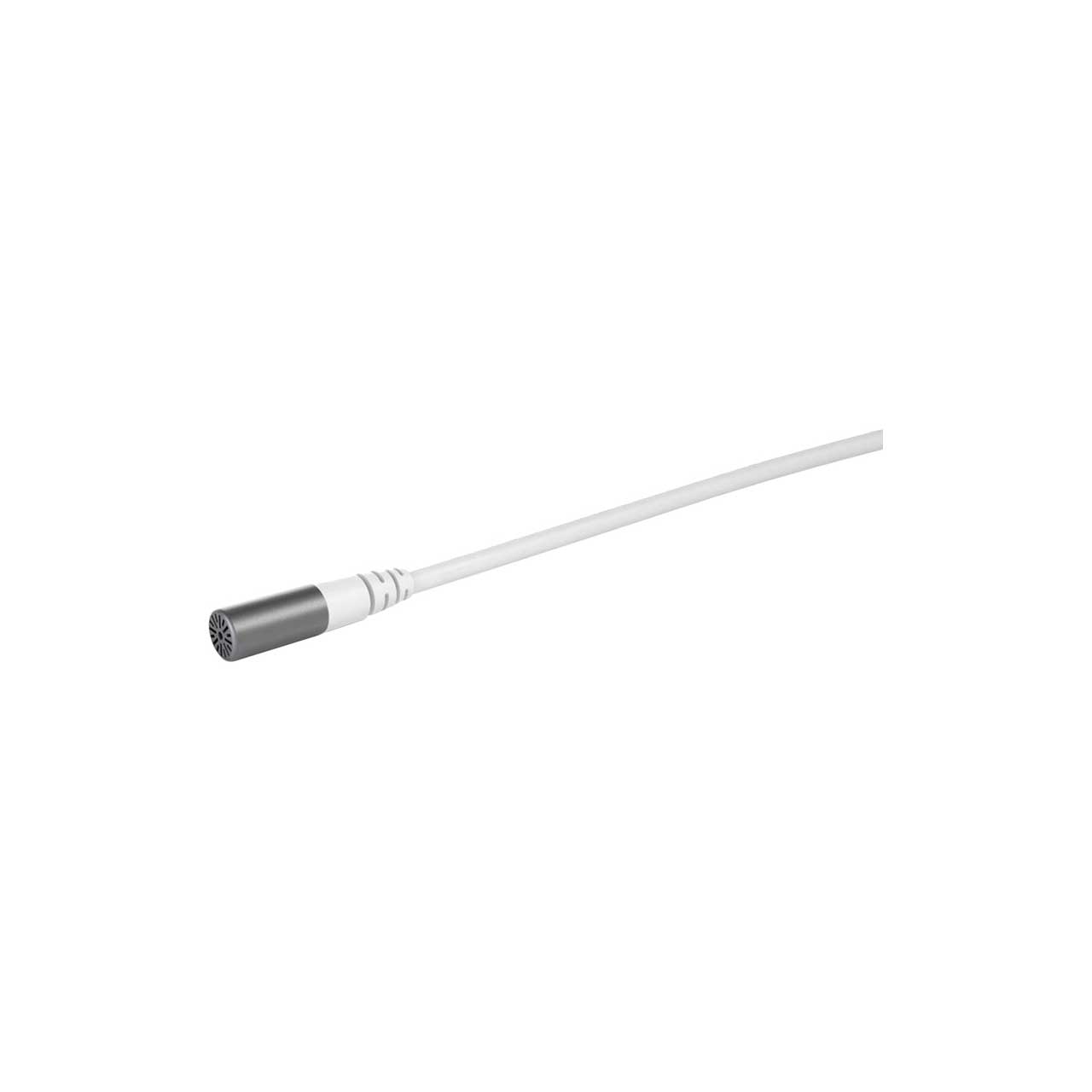

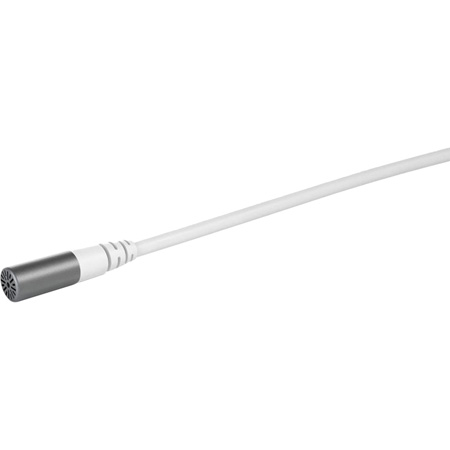

DPA 6060-OC-U-W10 6060 CORE Omni Submini Lav Microphone - Normal SPL - White - TA4F Mini-XLR

6060-OC-U-W10 - Overview

• Features:

  • Amazing 3 mm CORE capsule technology
  • Renowned DPA sound in a 60% smaller package
  • Stainless steel, PVD-coated mic housing
  • Modular adapter system fits most professional wireless systems


• Specifications:

  • Directional Pattern: Omnidirectional
  • Principle of Operation: Pressure
  • Cartridge Type: Pre-polarized condenser
  • Effective Frequency Response: 20 Hz - 20 kHz
  • Frequency Range, ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
  • Sensitivity, Nominal, ±3 dB at 1 kH: z20 mV/Pa; -34 dB re. 1 V/Pa
  • Equivalent Noise Level, A-weighted: Typ. 24 dB(A) re. 20 æPa (max. 26 dB(A)) Distortion, THD < 1%123 dB SPL RMS, 126 dB SPL peak
  • Dynamic Range: Typ. 102 dB
  • Max. SPL, THD 10%: 134 dB SPL peak
  • Rated Output Impedance: From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω
  • Cable Drive Capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
  • Power Supply (for full performance): Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V
  • Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Color: Black or beige
  • Weight: 8 g (0.29 oz) incl. Cable and MicroDot connector
  • Microphone Head Size (h x w x d): 3.4 / 14.4 mm (0.13 / 0.57 in)
  • Capsule Diameter: 3 mm (0.12 in)
  • Cable Length: 1.8 m (5.9 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Temperature Range: -40°C to 45°C (-40°F to 113°F)
  • Relative Humidity (RH): Up to 90%
