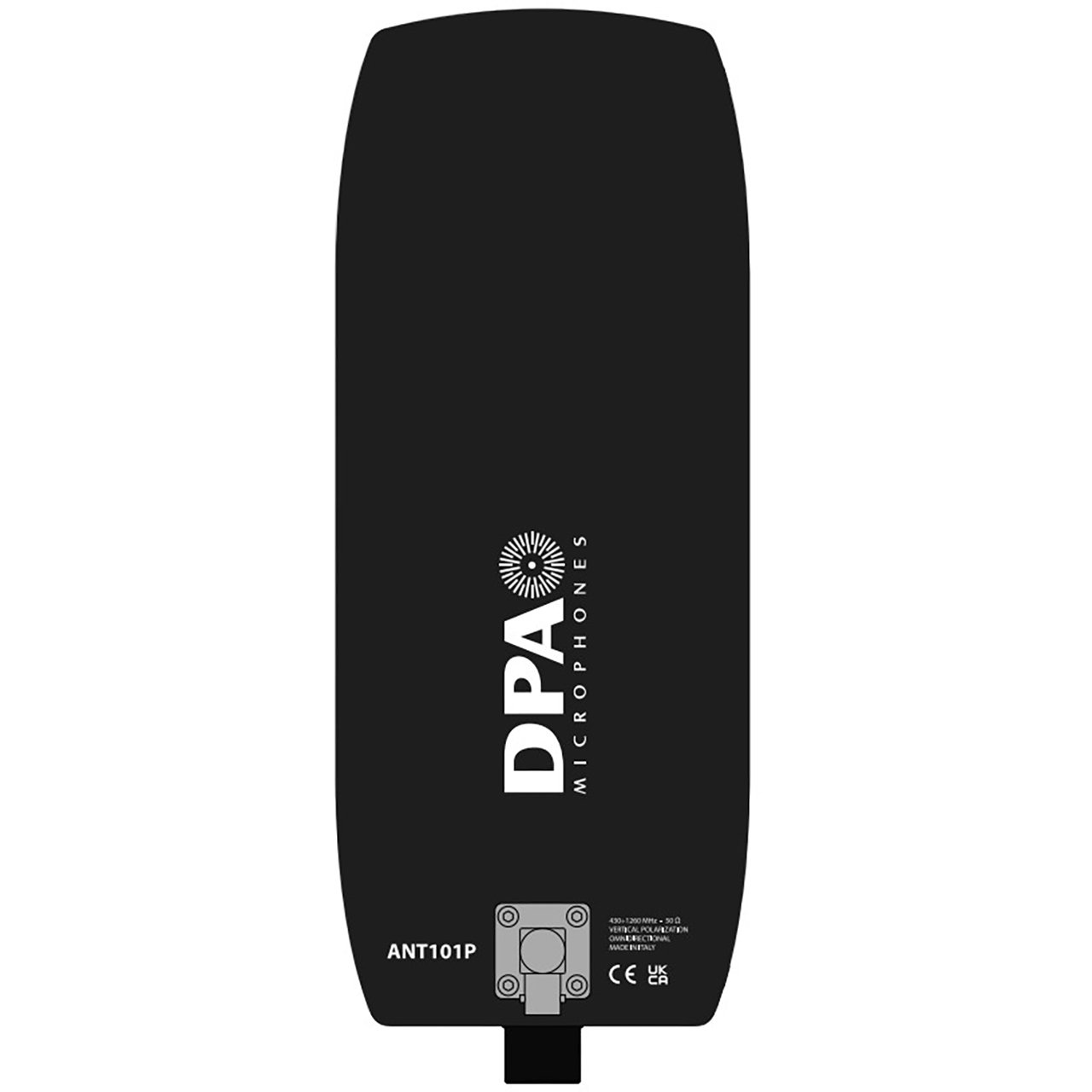

DPA N-Series ANT101P Omnidirectional Passive Antenna with BNC - 430MHz - 1260MHz

ANT101P - Overview

• Features:

  • Working bandwidth of 430MHz - 1160MHz
  • Sturdy metal body construction
  • Epoxy protection on cable joints
  • Optimized 3.2dB gain


• Specifications:

  • Rated Output Impedance: 50Ω
  • RF Frequency Range: 430MHz - 1160MHz
  • SWR:
    - < 1:1.5 in the range 430MHz ÷ 960MHz
    - < 1:1.9 in the range 430MHz ÷ 1160MHz
  • Polarization: Vertical
  • Radiation: Omnidirectional
  • Connector: BNC
  • Material: Epoxy Fiberglass (Copper - Clad)
  • Finishing: Black matte textured weather resistance coating
  • Mounting: ⅝" & ⅜" thread (metal support and mounting base)
  • Dimension (HxWxD): 11" x 4.4" x 1.1" (290mm x 111mm x 28mm)
  • Weight: 0.5lbs (245g)


• Item Includes:

  • 1x ANT101P Omnidirectional Passive Antenna


• Warranty:

  • 1 Year Limited Warranty
