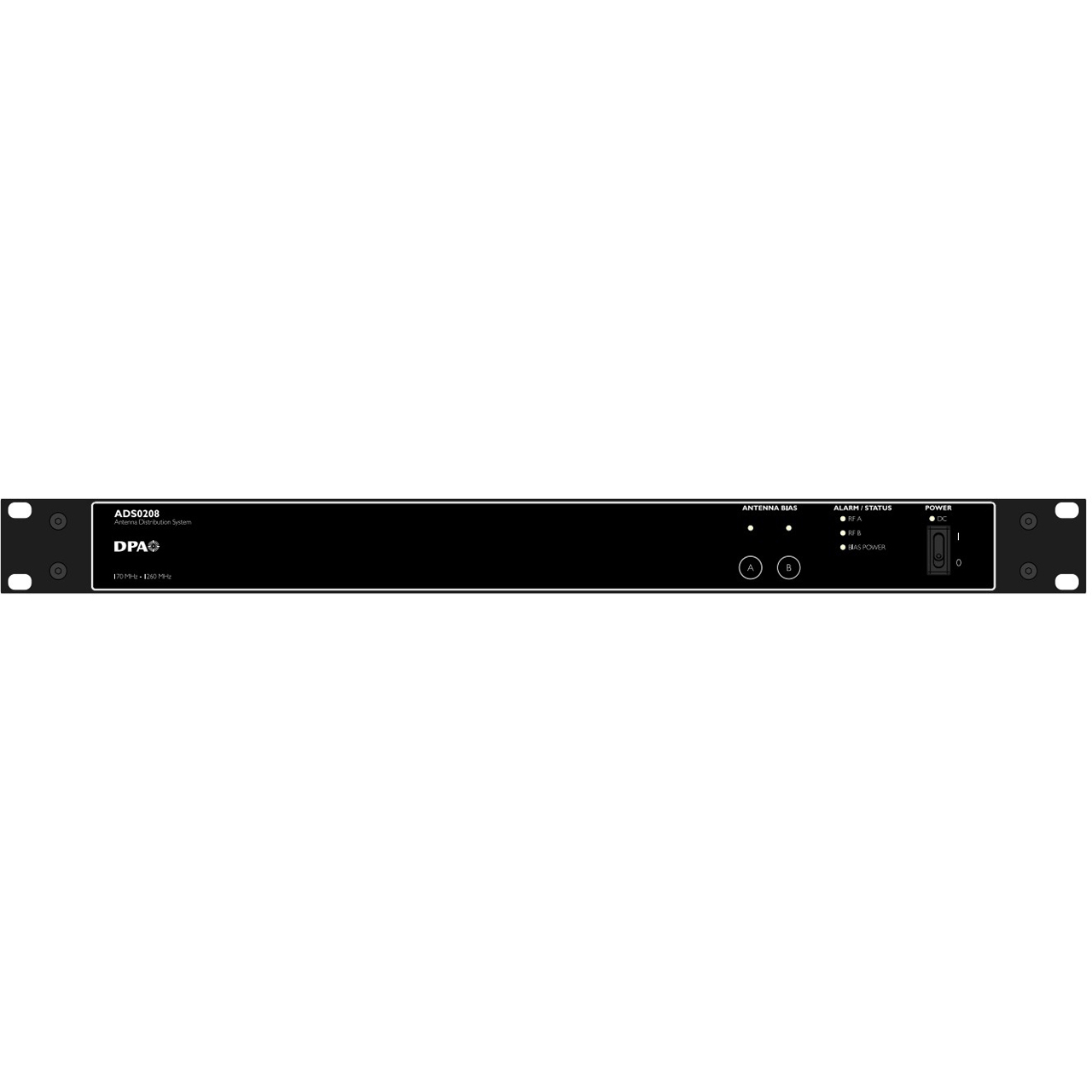

DPA N-Series ADS0208 Active Wideband Antenna Splitter with Eight Outputs and Cascade

ADS0208 - Overview

• Features:

  • Active wideband diversity splitter (170MHz - 1260MHz)
  • Eight diversity outputs for multiple receivers
  • Dedicated cascade outputs for system expansion
  • Ensures clean, consistent RF distribution


• Specifications:

  • Frequency Range: 170MHz - 1260MHz
  • Input/Output Gain: +5dB approx.
  • Input/Cascade Gain: +1.5dB approx.
  • Amplifier Linearity: ±1dB (typ.)
  • Noise Figure: 7.5dB
  • Antenna Booster Powering: +12V DC, max 300mA (for each BNC-female input connector A & B)

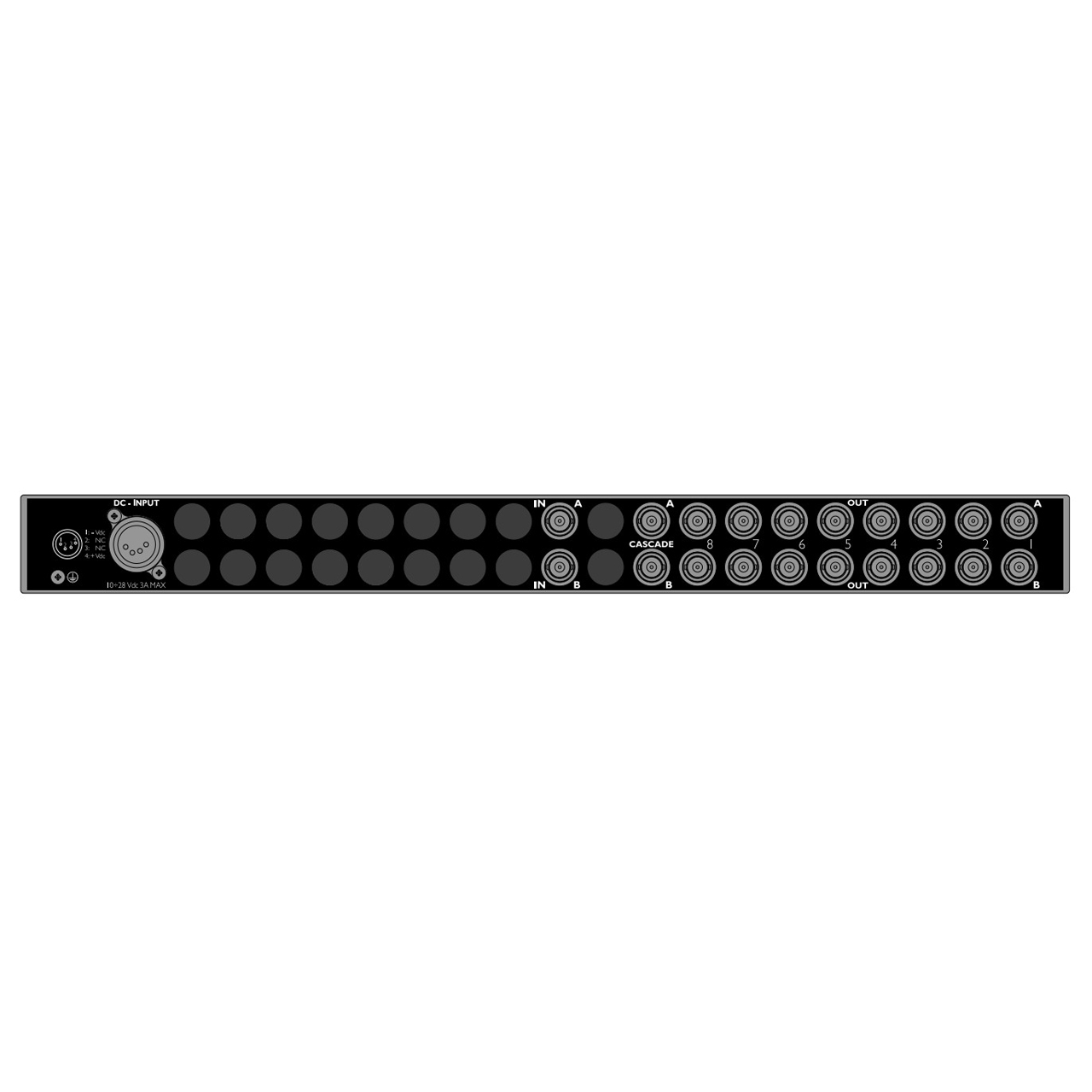

  • Connectors:
    - Input: 2x BNC-F
    - Output: 8x BNC-F
    - Cascade: 2x BNC-F
  • Impedance: 50Ω
  • Power Supply: 10V - 28V DC, max 3A
  • Power Consumption: Max 30W
  • Dimensions (HxWxD): 1.7" x 19.0" x 13.8" (44mm x 483mm x 351mm)
  • Weight: 6.61lbs (3kg)


• Item Includes:

  • 1x ADS0208 Active Wideband Antenna Splitter


• Warranty:

  • 1 Year Limited Warranty
