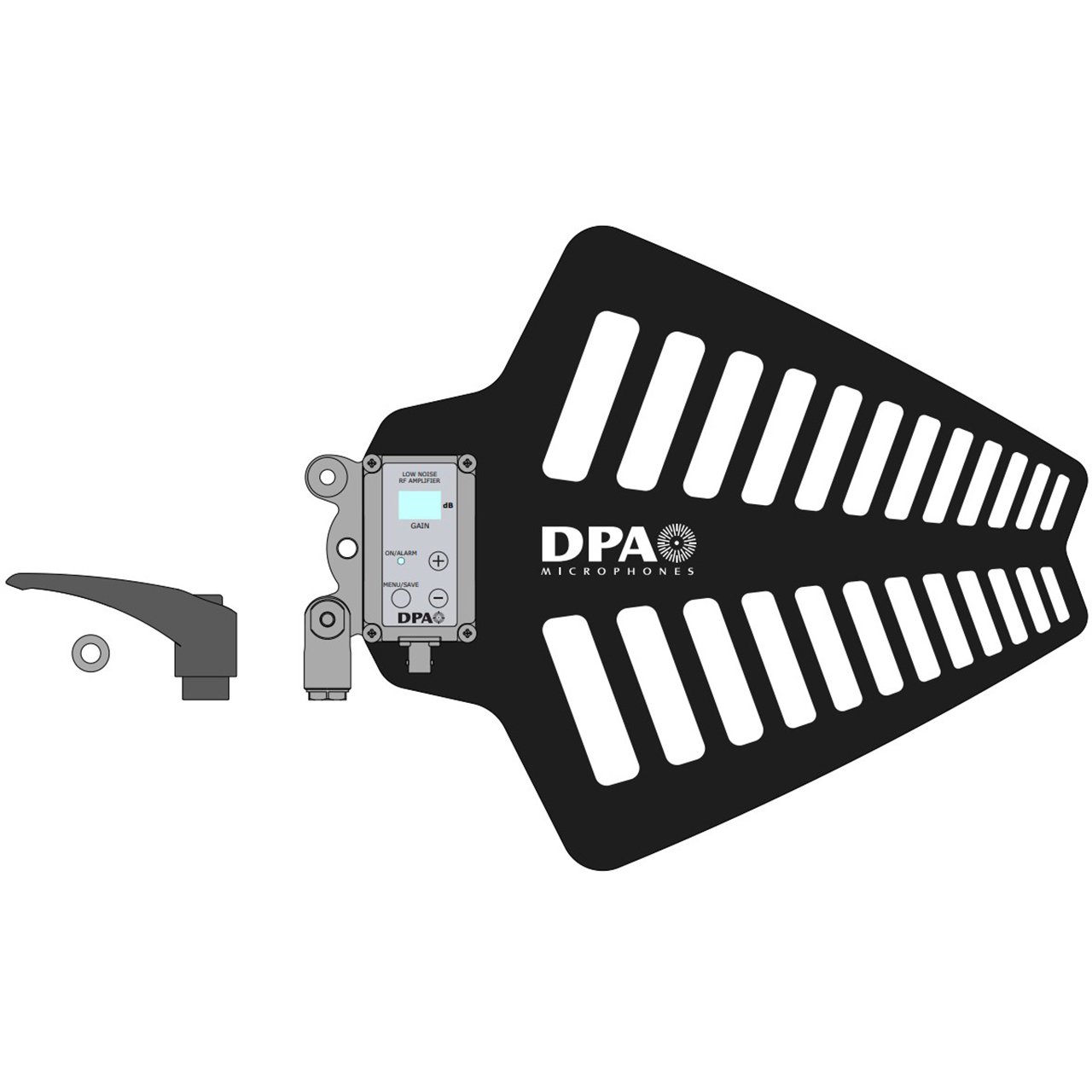

DPA N-Series ANT202A Directional Active Antenna with BNC - 470MHz - 960MHz

ANT202A - Overview

• Features:

  • Working bandwidth of 470MHz - 870MHz
  • LED display & function buttons
  • Sturdy metal body construction and epoxy protection on cable joints
  • Optimized 6dB gain with a typical beam-width of 90°
  • Very high linear booster (OIP3 40dBm) with 15dB gain settable in one step dB step


• Specifications:

  • Rated Output Impedance: 50Ω
  • RF Frequency Range: 470MHz - 870MHz (420MHz - 1300MHz bypassed)
  • SWR: < 1:1.5; typ. = 1:1.4
  • Polarization: Vertical
  • Radiation: Directional
  • Connector: BNC
  • Booster Gain: 0dB - 15dB (typical), selectable in step of 1dB (+/- button)
  • Booster Gain Flatness: ±1dB, in the whole working window
  • OIP3: +43dBm (Output 3° order Intercept Point) typical
  • Material: Epoxy fiberglass (copper - clad)
  • Finishing: Black matte
  • Mounting: ⅝" with worth or ⅜" with adapter
  • Dimensions (HxWxD): 10.9" x 13.2" x 2.4" (276mm x 336mm x 61mm)
  • Weight: 1.2lbs (535g)
  • Power Supply: +12V, 100mA


• Item Includes:

  • 1x ANT202A Directional Active Antenna with BNC


• Warranty:

  • 1 Year Limited Warranty
