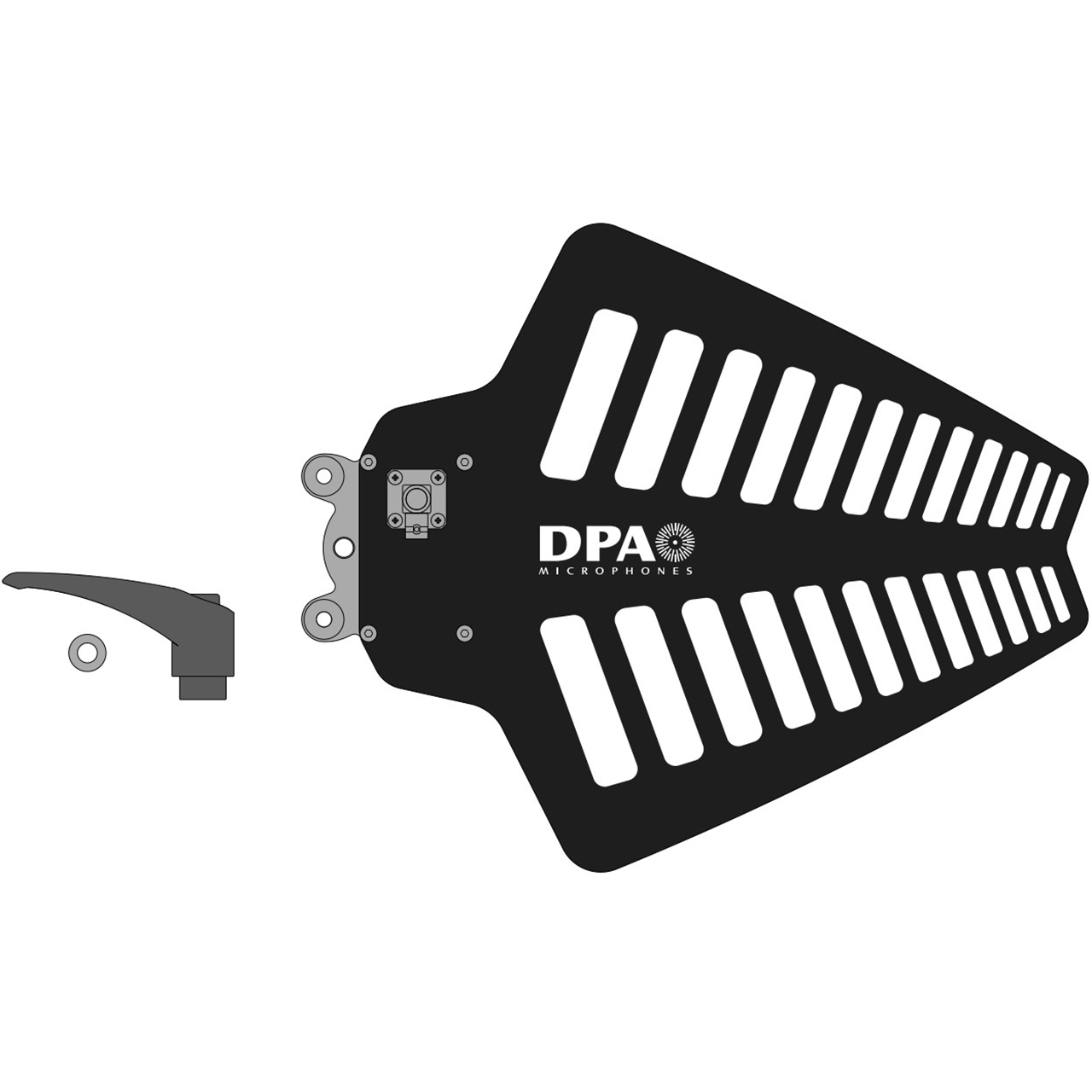

DPA N-Series ANT202P Directional Passive Antenna with BNC - 420MHz - 1300MHz

ANT202P - Overview

• Features:

  • Skeletal Design for Minimal Wind Loading
  • Bend elements for maximal directionality with minimum size (6dBi gain)
  • Future proof huge reception bandwidth 420MHz - 1300MHz
  • Robust metal support with fine slope tuning
  • Full metal support and mounting base (¼" & ⅜")
  • Textured Weather-Resistant Coating
  • Waterproof with gasket sealing


• Specifications:

  • Rated Output Impedance: 50Ω
  • RF Frequency Range: 420MHz - 1300MHz
  • SWR: < 1:1.5; typ. = 1:1.4
  • Polarization: Vertical
  • Radiation: Directional
  • Connector: BNC
  • Material: Epoxy Fiberglass (Copper - Clad)
  • Finishing: Black matte
  • Mounting: ⅝" with worth or ⅜" with adapter
  • Dimension (HxWxD): 10.9" x 13.2" x 2.4" (276mm x 336mm x 61mm)
  • Weight: 1.1lbs (500g)


• Item Includes:

  • 1x ANT202P Directional Passive Antenna


• Warranty:

  • 1 Year Limited Warranty
