DPA KIT-4060-OC-SMK CORE Stereo Microphone Kit with Omnidirectional Lavalier Mic and Accessories

ITEM #: DPA-KIT4060OCSMK MFG #: KIT-4060-OC-SMK

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$1,320.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    KIT-4060-OC-SMK - Overview

    DPA has collected their award-winning miniature microphones in specialized kits that contain the mics and accessories you need to capture fantastic sound no matter what you need.

    Used with the vast array of complimentary accessories, the miniature microphones are ideal for a broad range of applications. Whether reproducing the voice or an instrument in film, theater, television or other close-miking settings, these mics will not disappoint.

    4060 Stereo Microphone Kit
    This Stereo Microphone Kit is a cost-effective and flexible stereo recording solution aimed at project studios and for discreet mic setup on stage. It contains a complete stereo pair; two handpicked omnidirectional condenser microphones, selected on sensitivity within Ý1.5 dB.

    It combines two 4060 Miniature Omnidirectional Microphone, Normal SPL, with a variety of mounting accessories. These include the BLM6000 Boundary Layer Mount, which can be used in conjunction with our 4060, 4061, 4062 and 4063 Miniature Microphones to place on a reflective boundary such as a floor, wall, ceiling, piano lid etc. This enables the mics to capture the ambient sound of the area. The sound captured from this “pressure zone” has higher sensitivity, clarity and intelligibility compared to the sound captured from the "free air". This solution serves as a kind of acoustical zoom.

    There are many accessories included in the kit. One of them is the DMM0007 Universal Surface Mount. This mount allows all kinds of instruments, from acoustic guitar through grand piano and drums, to be mounted in the best-sounding position. The mount uses special non-marking adhesive discs for attachment.

    • Features:

      • Extremely rugged and reliable
      • Exceptional audio quality
      • Low noise and high sensitivity
      • Large selection of accessories
      • Modular adapter system fits most professional wireless systems

    • Specifications:

      • Directional pattern: Omnidirectional
      • Principle of operation: Pressure
      • Cartridge type: Pre-polarized condenser
      • Frequency response: 20 Hz - 20 kHz
      • Effective frequency range ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20
        Hz - 20 kHz, 10 dB boost at 12 kHz
      • Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
      • Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
      • Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
      • Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
      • Distortion, THD < 1% - CORE: 126 dB SPL RMS, 129 dB SPL peak
      • Dynamic range - Legacy: Typ. 100 dB
      • Dynamic range - CORE: Typ. 106 dB
      • Max. SPL, THD 10%: 134 dB SPL peak
      • Rated output impedance: 30 - 40 ?
      • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
      • Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter
      • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
      • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
      • Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
      • Color: Black, beige, brown or white
      • Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
      • Microphone diameter: 5.4 mm (0.21 in)
      • Microphone length: 12.7 mm (0.5 in)
      • Cable length: 1.8 m (5.9 ft)
      • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
      • Temperature range: -40°C to 45°C (-40°F to 113°F)
      • Relative humidity (RH): Up to 90%
      • Sensitivity selection tolerance (at 1 kHz): ±1.5 dB

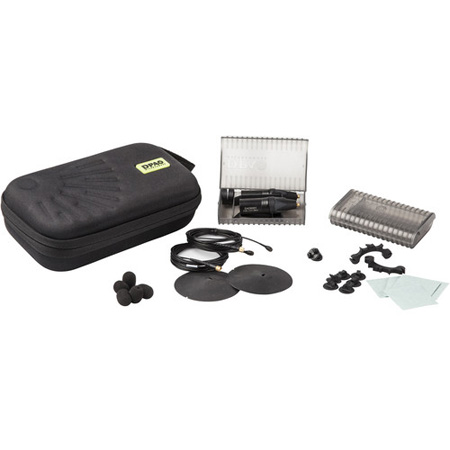

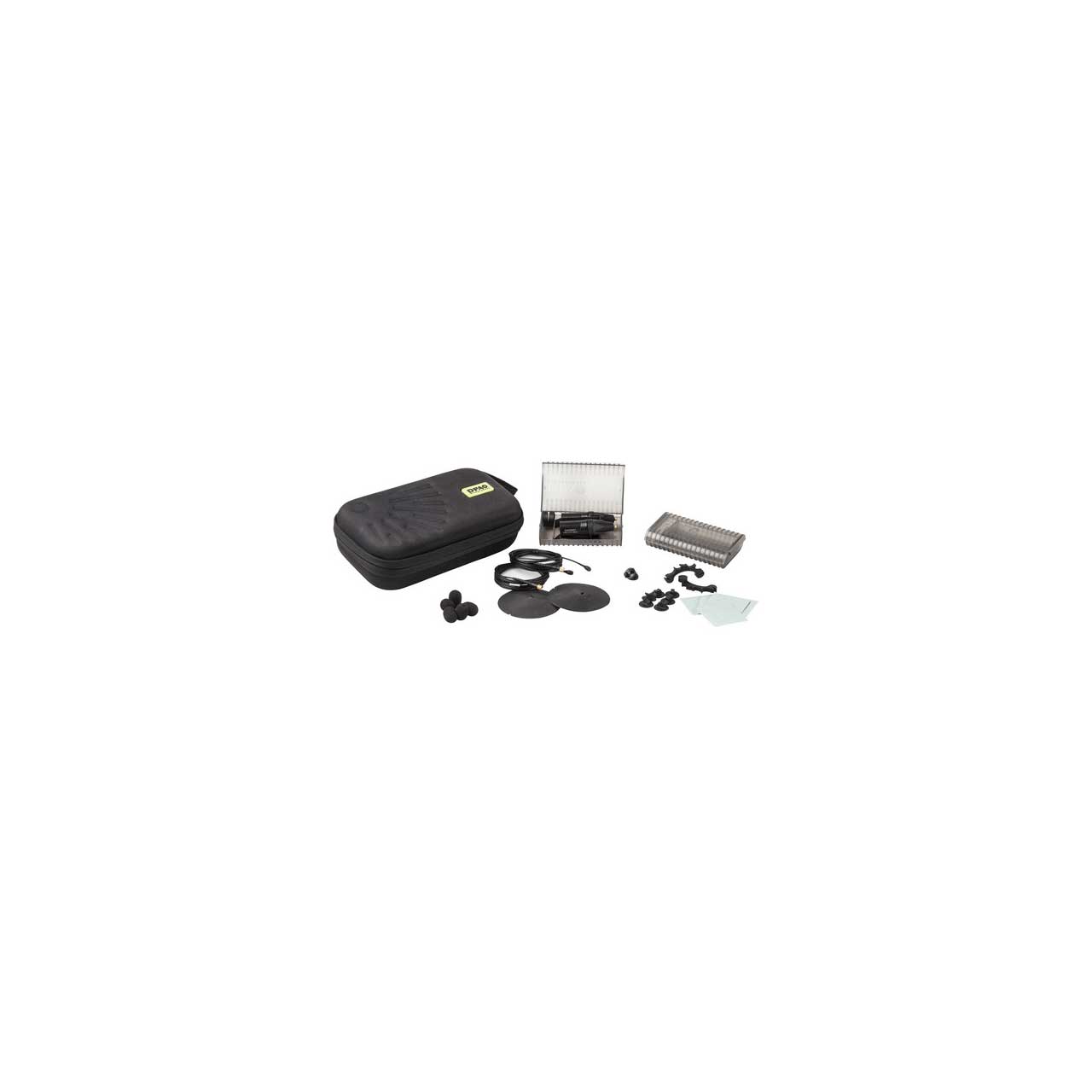

    • Item Includes:

      • 1x DPA Microphones 4060 CORE Normal-Sensitivity Omni Lavalier Microphone Stereo Instrument Kit with Accessories (Black)
      • 2x DPA Microphones DAD6001 Microdot to 3-Pin XLR Adapter with Belt Clip
      • 2x High-Boost Protection Grids
      • 2x Mounts for Stringed Instruments
      • 2x Boundary Layer Mounts
      • 2x Surface Mounts with Double-Sided Adhesive Tape
      • 5x Foam Windscreens
      • 1x Plastic Interior Case
      • 1x Zippered Case

    • Warranty:

      • Limited 2 Year Warranty

    • GTIN:

      5713055017255
