DPA ST4006A 4006A Stereo Omni Mic Pair with Clips and Windscreens in Pelican Case

ITEM #: DPA-ST4006A MFG #: ST4006A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
DPA Microphones
Free Shipping with $49 Minimum Order

Our Price:

$5,400.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    ST4006A - Overview

    The ST4006A wide and versatile pencil mic series is legendary in the high-end recording and film production industry. Delivering clean, accurate sound, the mics in this series are used by professionals, who understand sound and insist on only using the best.

    DPA has collected their award-winning recording microphones in specialized stereo pairs that are matched within either ±0.5 dB, ±1 dB ±1.5 dB, depending on the pair you choose.

    Comes complete with DPA's MMP-A Standard Preamps

    • Features:

      • Modularity - interchangable capsules and preamplifiers
      • Up to 120 dB dynamic range
      • RF rejection between >60 and >40 dB
      • Linear frequency response
      • High SPL
      • Superior gain before feedback


    • Specifications:

      • Directional Pattern: Omnidirectional
      • Principle of Operation: Pressure
      • Cartridge Type: Pre-polarized condenser
      • Frequency Response: 10 Hz - 20 kHz
      • Effective Frequency Range ±2 dB: 10 Hz - 20 kHz
      • Sensitivity, Nominal, ±2 dB at 250 Hz: 40 mV/Pa; -28 dB re. 1 V/Pa
      • Equivalent Noise Level, A-weighted: Typ. 15 dB(A) re. 20 æPa (max. 17 dB(A))
      • Equivalent Noise Level, ITU-R BS.468-4: Typ. 27 dB (max. 29 dB)
      • Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
      • Dynamic Range: Typ. 124 dB
      • Max. SPL, THD 10%: 146 dB SPL peak
      • Switchable Attenuator, Filters etc.: 0 dB / -20 dB
      • Rated Output Impedance: 200 Ω
      • Minimum Load Impedance: 2 kΩ
      • Cable Drive Capability: 100 m (328 ft)
      • Output Balance Principle: Impedance balancing with Active Drive
      • Common Mode Rejection Ratio (CMRR): > 60 dB
      • Power Supply (for Full Performance): P48 (Phantom Power)
      • Current Consumption: 2.8 mA
      • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
      • Color: Matte black
      • Weight: 163 g (5.7 oz)
      • Microphone Diameter: 16 - 19 mm (0.6 - 0.75 in)
      • Capsule Diameter: 16 mm (0.6 in)
      • Microphone Length: 170 mm (6.7 in)
      • Maximum Output Voltage, RMS: 8 V
      • Polarity: +V at pin 2 for positive sound pressure
      • Temperature Range: -40°C to 45°C (-40°F to 113°F)
      • Relative Humidity (RH): Up to 90 %
      • Matching Tolerance (Frequency Response and Sensitivity): ±0.5 dB
      • Phase Deviation for Kit: < 5°


    • Item Includes:

      • 2 x DPA Microphones 4006A Omnidirectional Microphones
      • 2 x Microphone Holders
      • 2 x Windscreens
      • 2 x Diffuse Field Grid
      • 2x Free Field Grid
      • 2x Close Miking Grid

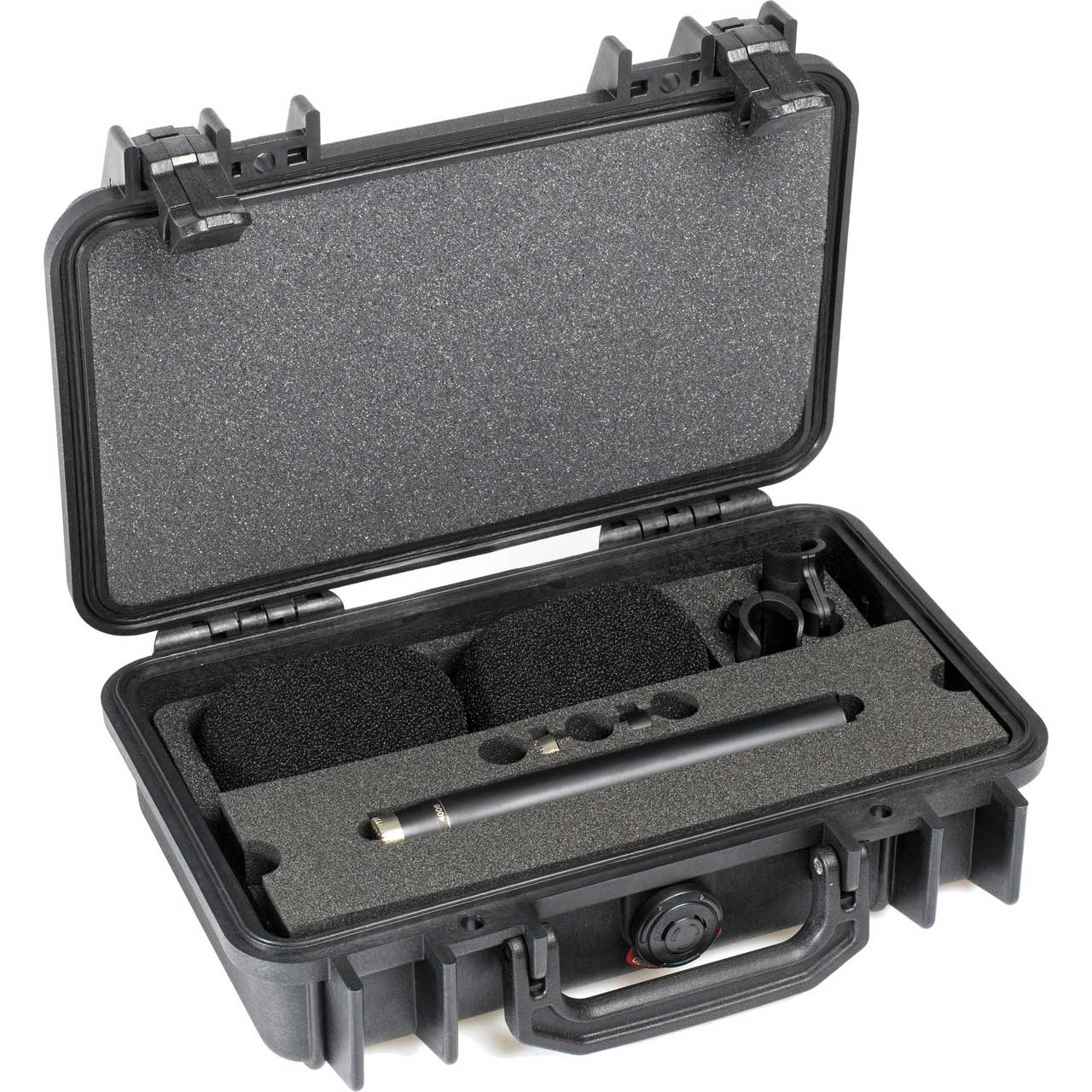

      • 1x Pelican Case


    • GTIN:

      5713055000202
