DPA ST4011A Stereo Pair with 4011A Cardioid Microphones wind Clips & Windscreens in Pelican Case

ITEM #: DPA-ST4011A MFG #: ST4011A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$4,220.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ST4011A - Overview

    4011 Cardioid Stereo Pair

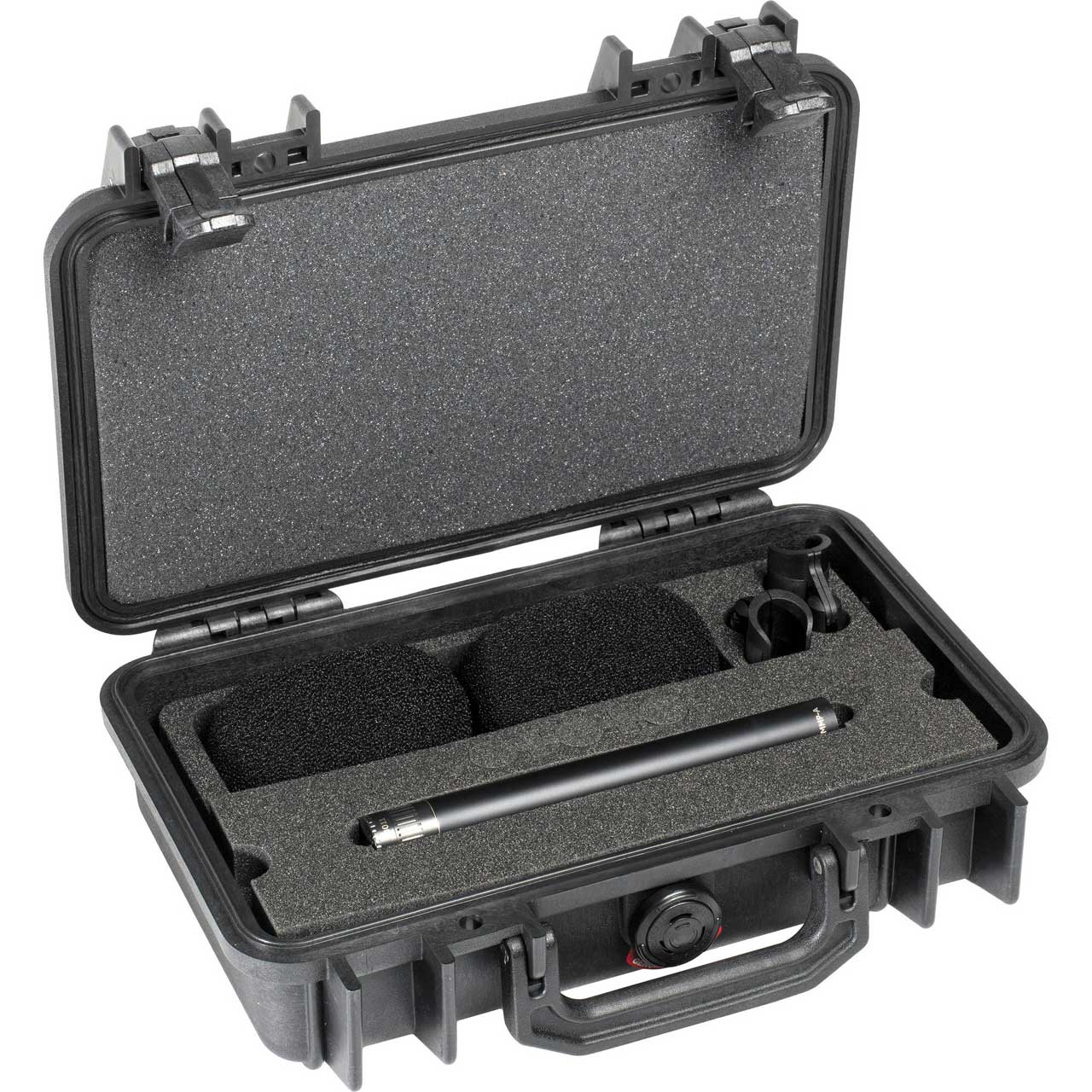

    Even though the standard tolerances on our recording microphones are extremely low, a stereo match is even closer. These specially selected 4011A Cardioid Microphones are matched within ±1 dB on both frequency response and sensitivity. The pair comes in a heavy-duty PeliT Case for safe transportation and easy access to the microphones and accessories.

    The 4011 Cardioid Microphone
    The principal appeal of the 4011 Cardioid Microphone is its directional quality and attention to detail. This mic makes everything sounds like the original. The first-order cardioid pickup pattern provides superb separation between sound sources.

    It is equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments and vocals as it is for spot-miking symphonies. It can handle incredibly high sound levels and even includes a 20 dB pad switch in the center of the XLR connector to attenuate the output of the microphone.

    A flat on-axis frequency response and excellent phase response deliver a totally faithful reproduction of the original sound. The off-axis response is similarly smooth so that any leakage is an accurate reflection of the original, though attenuated according to the true first-order cardioid pickup pattern.

    ST4011A Stereo Pair
    This condenser microphone is renowned in recording studios and live applications around the world as an exceptional mic. State-of-the-art components have been carefully selected to provide optimal neutrality, accuracy and extremely low distortion.

    • Features:

      • Modularity - interchangable capsules and preamplifiers
      • Up to 120 dB dynamic range
      • RF rejection between >60 and >40 dB
      • Linear frequency response
      • High SPL
      • Superior gain before feedback

    • Specifications:

      • Directional Pattern: Cardioid
      • Principle of Operation: Pressure gradient
      • Cartridge Type: Pre-polarized condenser
      • Frequency Response: 20 Hz - 20 kHz
      • Effective Frequency Range, ±2 dB, at 30 cm (11.8 in): 40 Hz - 20 kHz
      • Sensitivity, Nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
      • Equivalent Noise Level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
      • Equivalent Noise Level, ITU-R BS.468-4: Typ. 25 dB (max. 27 dB)
      • Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
      • Dynamic Range: Typ. 121 dB
      • Max. SPL, THD 10%: 159 dB SPL peak
      • Switchable Attenuator, filters etc.: 0 dB / -20 dB
      • Rated Output Impedance: 200Ω
      • Minimum Load Impedance: 2 kΩ
      • Cable Drive Capability: 100 m (328 ft)
      • Output Balance Principle: Impedance balancing with Active Drive
      • Common Mode Rejection Ratio (CMRR): > 60 dB
      • Power Supply (for Full Performance): P48 (Phantom Power)
      • Current Consumption: 2.8 mA
      • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
      • Color: Matte black
      • Weight: 158 g (5.6 oz)
      • Microphone Diameter: 19 mm (0.75 in)
      • Capsule Diameter: 19 mm (0.75 in)
      • Microphone Length: 170 mm (6.7 in)
      • Maximum Output Voltage, RMS: 8 V
      • Polarity: +V at pin 2 for positive sound pressure
      • Temperature Range: -40°C to 45°C (-40°F to 113°F)
      • Relative Humidity (RH): Up to 90%
      • Matching Tolerance (Frequency Response and sensitivity): ±1 dB
      • Phase Deviation for Kit: < 10°

    • GTIN:

      5713055000394
