Draper 139032L Access FIT 116-Inch HDTV Projection Screen Matte White XT1000E

ITEM #: DR-139032L MFG #: 139032L

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DR-139032L

139032L - Overview

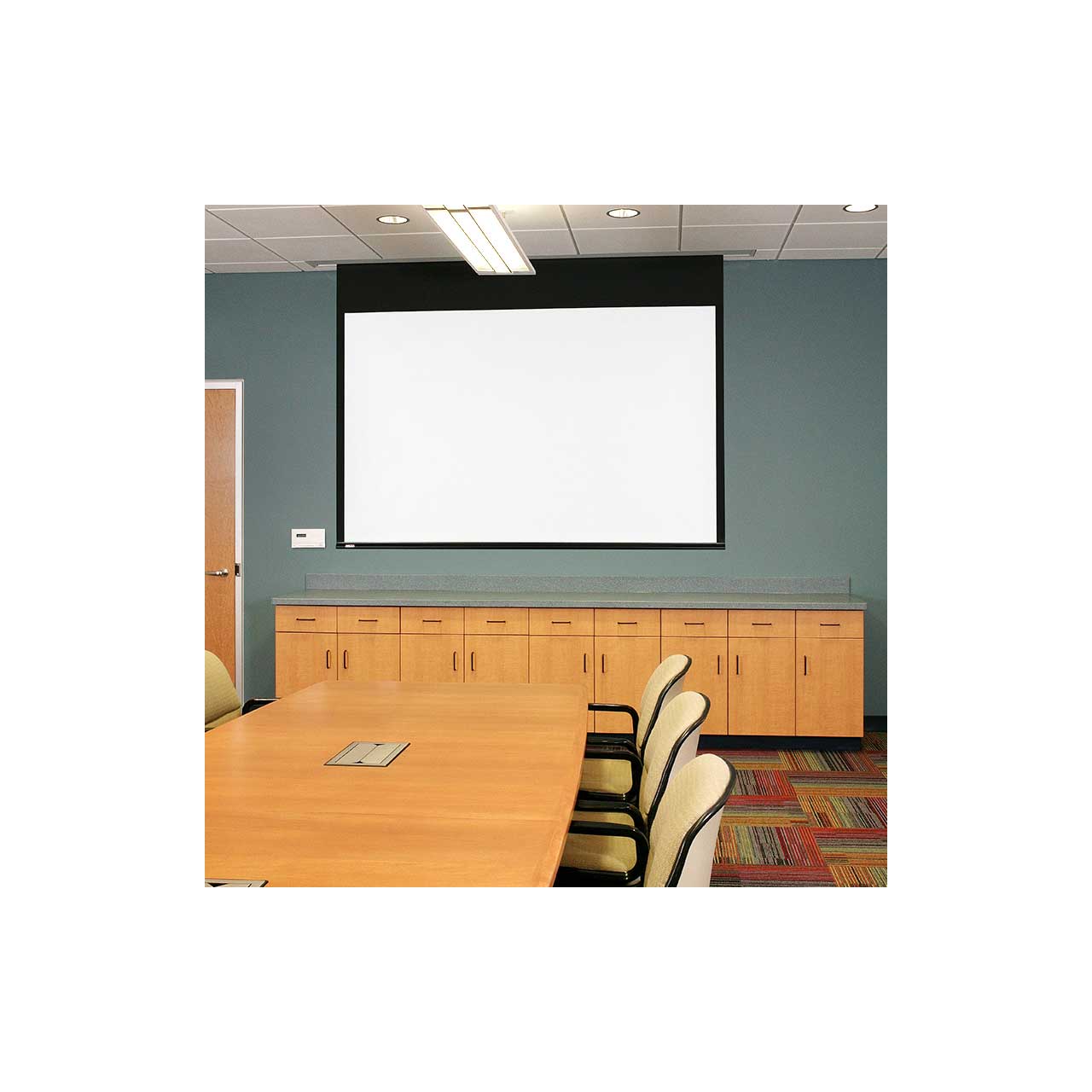

Engineered with compact housing less than 6" tall, the Draper 139032L Access FIT E electric projection screen fits tighter ceiling spaces making it ideal for boardrooms, training rooms, universities, and churches. Free-hanging screens maintain flatness due to the weight of the screen and bottom dowel. Placement of the ceiling-recessed case during the initial phase of construction eliminates job site damage and allows for installation of the screen at a later time. The bottom access panel provides easier service and maintenance.

  • Features:

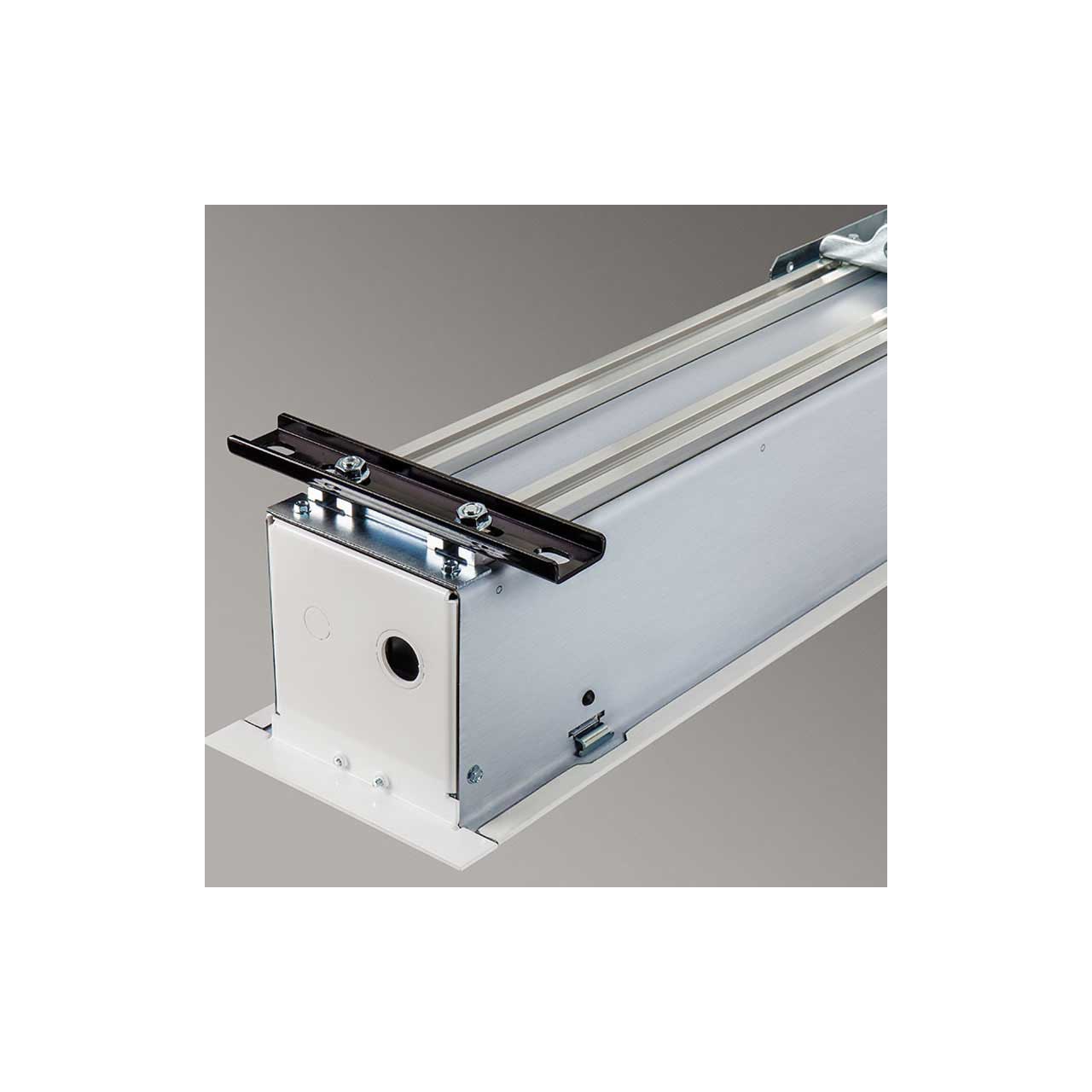

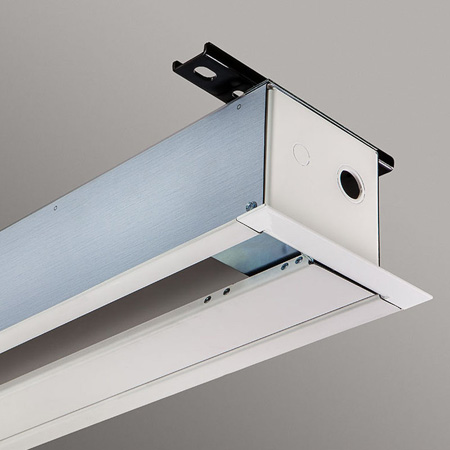

    • Case dimensions are 5-11/16" high x 6-7/16" deep (14 cm x 16 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
    • Access Fit is recommended when space is at a premium. The standard Access is a good alternative whenever the above-ceiling space permits.
    • Maximum image width up to 120" (305 cm) wide, depending on surface selection.
    • NTSC, HDTV AND 16:10 format have image area framed with black on all fours sides. Black side borders are available on request for AV format Screens.
    • Adjustable or removable hoisting brackets included for easy lifting during installation.

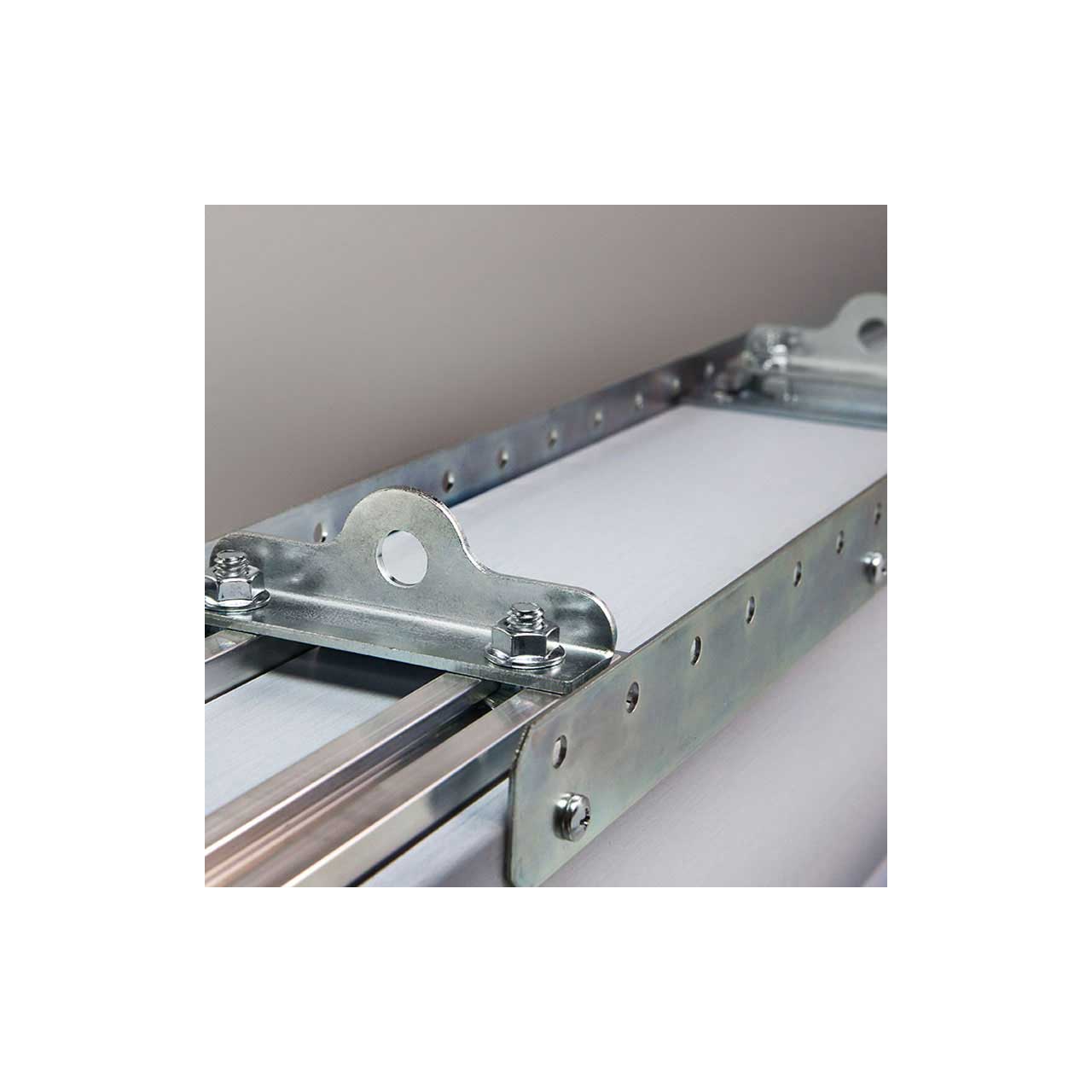

    • Sliding brackets on top of the case allow for adjustments for mounting.
    • Sliding brackets inside case accommodate different size screens.
    • Bottom closure panel detachable or hangs in place with "T" bracket to provide accessibility for service or maintenance.
    • Quick-connect wiring allows for early installation of the case with the addition of the screen later.
    • Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
    • Low-voltage, video interface or other controls can be built into housing for below ceiling access.
    • White case standard, black available upon request.
    • Custom sizes available.


  • Specifications:

    • Surface Material: Matt White XT1000E
    • Image Format: HDTV
    • Diagonal Size: 133"
    • Image/Viewable Area: 65" x 116"
    • Overall Size: 69" x 120"
    • Case Length: 135 ½"
    • Product Weight: 87 pounds
    • Shipping Weight: 109 pounds
