Dracast DR90ACK-G 90WH Gold Mount Battery and Gold Mount Dual Battery Charger

ITEM #: DR-DR90ACK-G MFG #: DR90ACK-G

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$410.29

Our Price:

$359.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


DR90ACK-G - Overview

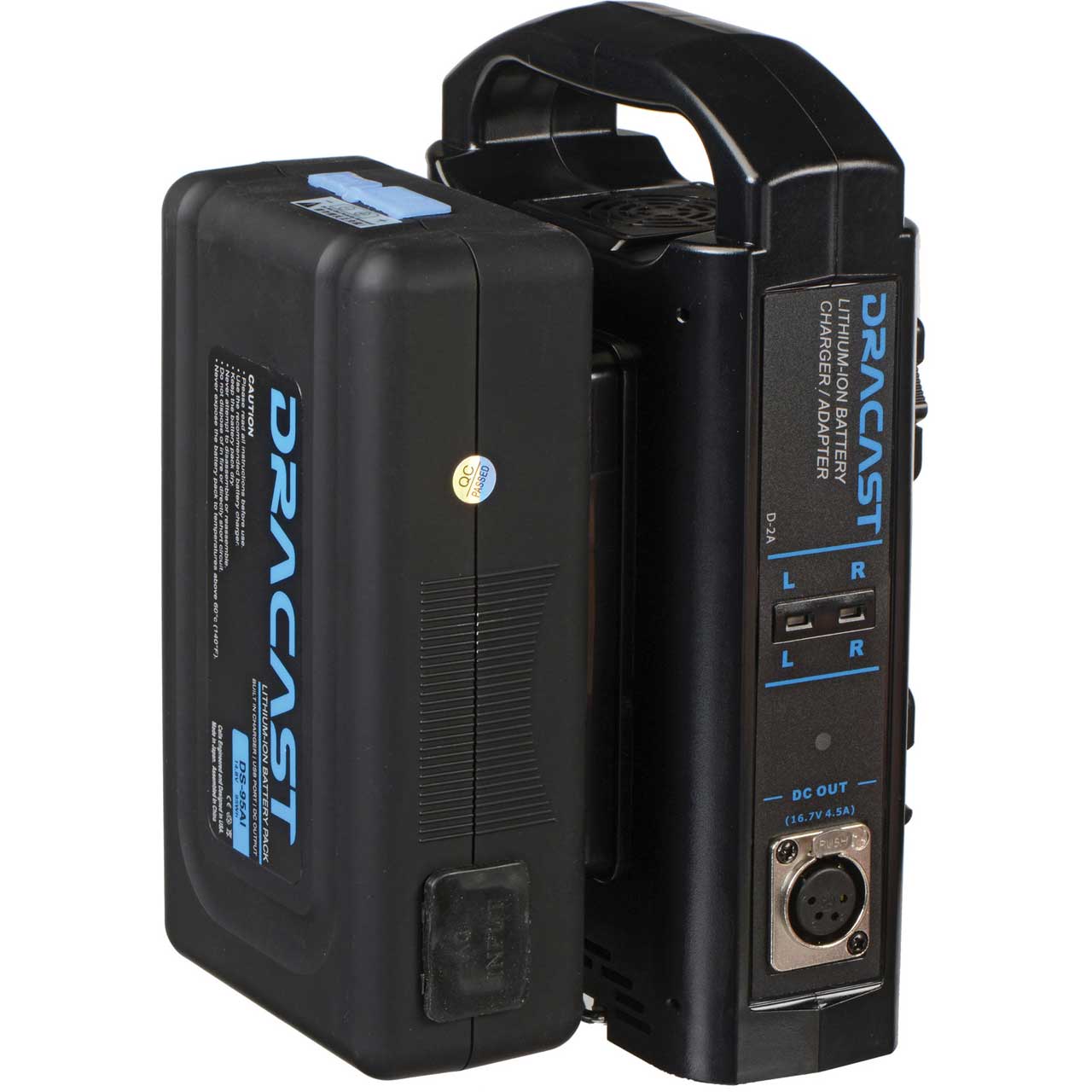

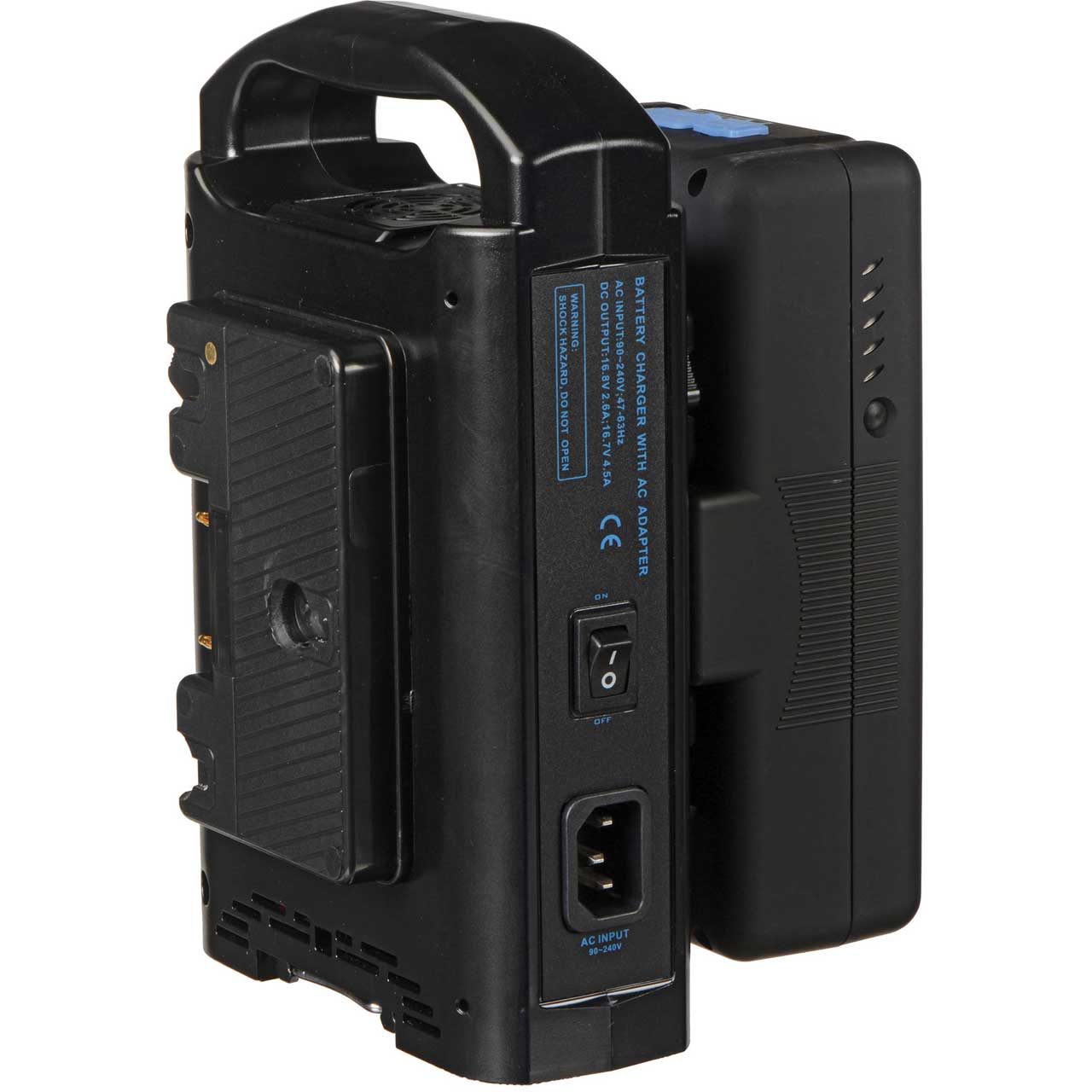

The Dracast DR90ACK-G 1x 90A Gold Mount Battery with 1x Charger Kit includes a 90Wh Lithium-Ion Gold Mount Battery and CH-2A Gold Mount Dual Battery Charger. Both the charger and battery can be used virtually anywhere to power your supplies. The battery features a 5-LED status indicator, and a D-Tap power outlet that provides power to accessories. The Gold Mount Battery provides 14.8V of power to devices compatible with Gold Mount accessories. The CH-2A Battery Charger is a portable charger that can charge two batteries simultaneously.

Dracast 90Wh 14.8V Li-Ion Gold Mount Battery
The Dracast 90Wh 14.8V Li-Ion Gold Mount Battery is a memory-effect-free battery for professional camera systems. It features built-in electronics to protect the battery during charging and use, charger is not included with the battery. The 5-LED battery system provides an indicator that shows you how much capacity the battery has left before it needs to be charged. It incorporates a D-tap power outlet, so you can power accessories directly, instead of through your camera's electronics. With an operating temperature range of -4 to 122° F, the battery will keep working even in deep cold and extreme heat.

Dracast DR-CH2A Dual Gold Mount Battery Charger
The portable DR-CH2A Dual Gold Mount Battery Charger from Dracast allows you to simultaneously charge two Gold Mount batteries (or a single battery) from 90 to 240 VAC sources. It features a top handle for easy transport and built-in capacity management system to ensure fast charging. The charger will automatically shutdown once the batteries reach their full charge. Additionally, the charger can function as a portable AC to DC power adapter, taking the AC power input and outputting 15 VDC at 4A via a 4-pin XLR connector. The output is only active when no batteries are attached.

  • Features:

    • 90Wh 14.8V Li-Ion Gold Mount Battery
    • Built-In Charging Protection System
    • 5-LED Battery Status Display
    • D-Tap Output
    • 90Wh Li-ion professional mount battery pack does not suffer from memory effect, common to NiCd batteries
    • Fits camera and lighting units with Gold Mount battery bracket
    • The built-in LED battery gauge provides you with a clear visual confirmation of the battery's capacity
    • The built-in D-tap connector allows you to power accessories directly from the battery, protecting your camera's electronics from potential damage due to power hungry accessories
    • The battery incorporates electronic protection from over-charging, over-discharging, over-current-draw, external short-circuits, and non-equilibrium between its power cells

  • Specifications:

    • Dracast 90Wh 14.8V Li-Ion Gold Mount Battery Specs
    • Mount/Series Type: Gold Mount
    • Chemistry: Lithium-Ion
    • Capacity (Wh): 90 Wh
    • Output Voltage: 14.8 VDC
    • Accessory Port: 1 x D-Tap
    • Operating Temperature: -4 to 122°F / -20 to 50°C
    • Dimensions (WxHxD): 6.69 x 3.94 x 1.85" (170 x 100 x 47mm)
    • Weight: 1.8Lbs (0.8kg)

      Dracast DR-CH2A Dual Gold Mount Battery Charger Specs
    • Mount/Series Type: Gold Mount

      Electrical
    • AC Input Power: 90 to 240 VAC, 50 / 60 Hz
    • Output Voltage: 15 VDC at 4 A
    • Chemistry: Lithium-Ion
    • Maximum Wattage: 50 W

      General
    • Indicator: LED
    • Dimensions: 4.6 x 8.9 x 5.5" (11.7 x 22.6 x 14cm)
    • Weight: 2.2Lbs (1kg)

  • GTIN:

    0787907720780
