Dracast DRX3500BNH LED500 X-Series Bi-Color LED 3-Light Kit with Injection Molded Travel Case


  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    DRX3500BNH - Overview

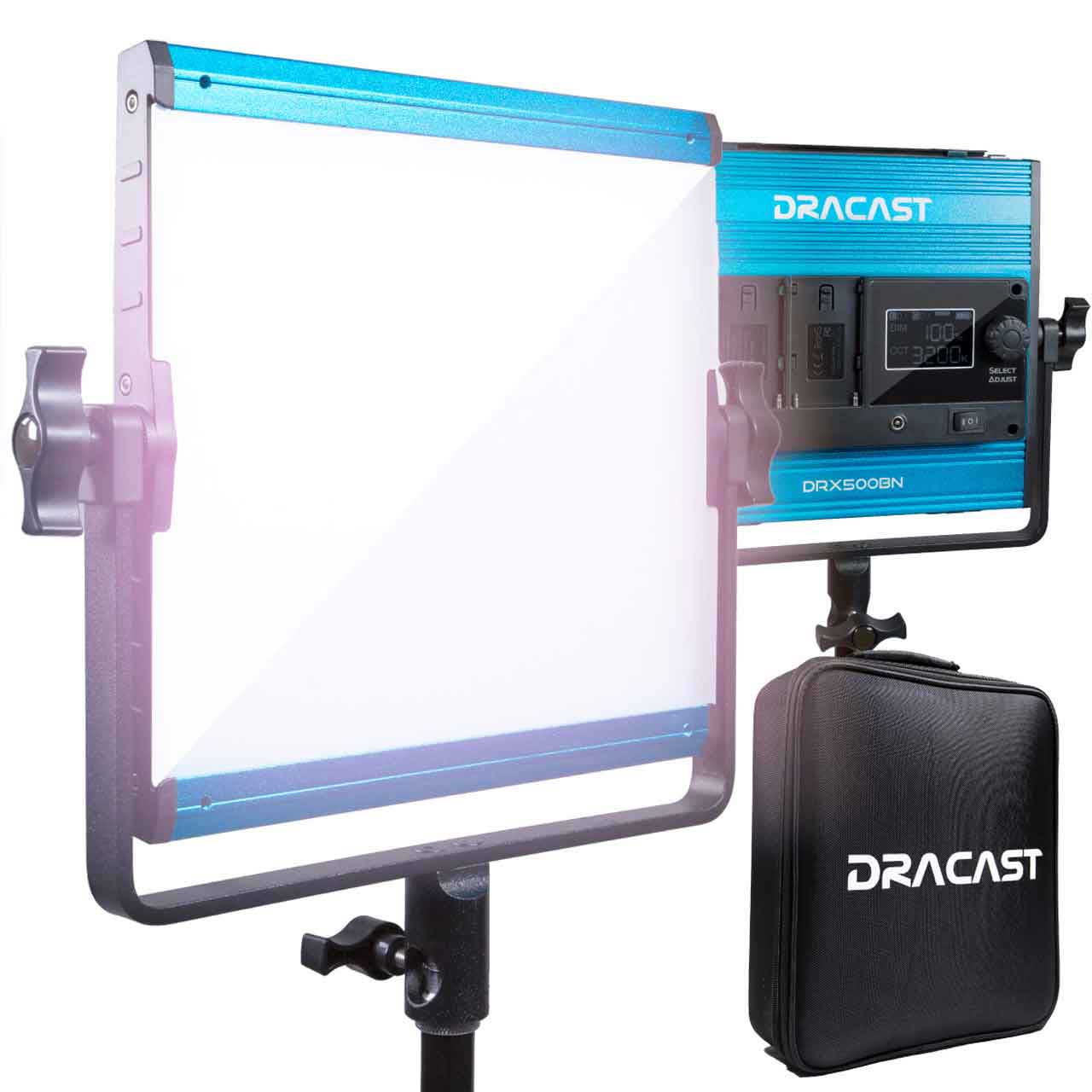

    Dracast DRX3500BNH X Series is the newest compact LED panel light from Dracast. Weighing just 3.0 lbs, the X Series is designed with portability in mind. The panel includes an installed mounting yoke with a 5/8" baby pin receiver for fast and easy mounting on compatible light stands or C clamps. The X Series features adjustable white color temperature from 3200K to 5600K CCT.

    The light can be adjust manually via the control panel on the back of the fixture, or by using the new free Dracast DRX companion app available for iOS and Android smartphones and tablets.

    Using the DRX companion app, all of the features of the light can be easily controlled along with the added ability to control multiple X Series lights simultaneously. The DRX app is the perfect companion to give you the look you need quickly and accurately.

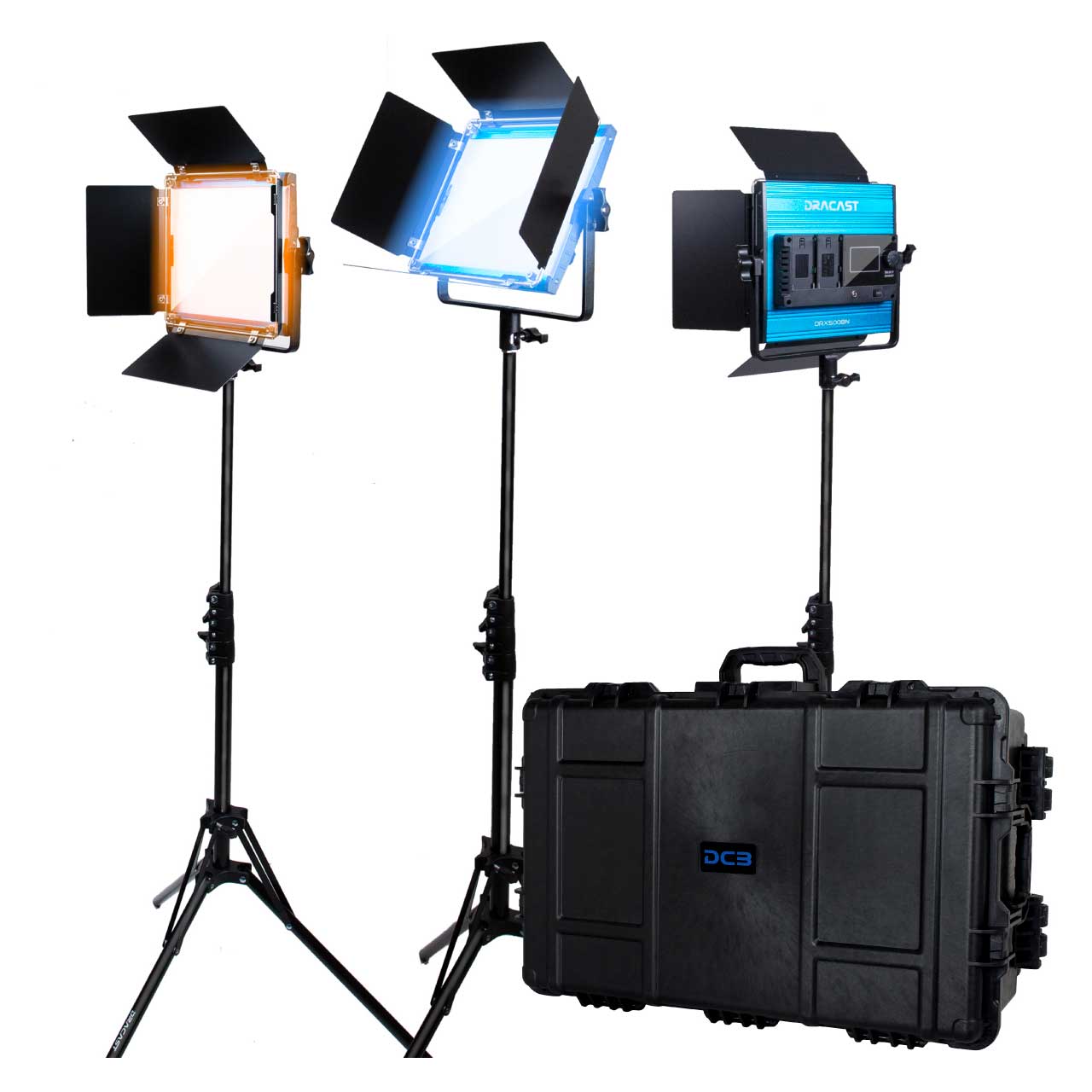

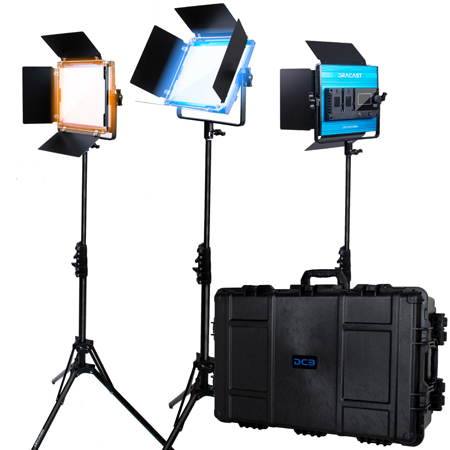

    The X Series 3 Light Kit includes lights, barn doors, light stands, and a resin-reinforced injection molded plastic travel case. Other accessories are available and sold separately.

    App Remote Control
    Full control of your Dracast X Series lights. Using the new Dracast DRX app available for iOS and Android, you can control your light or groups of X Series lights simultaneously. Control dimmer, CCT, RGB, HSI, special effects and more right from your phone or tablet.

    0% - 100% Dimming
    Dracast X Series lights can be manually dimmed via the onboard controls for quick and easy light adjustment. Smoothly increase or decrease your light output from full output to total blackout with zero dimmer stepping.

    Battery Power
    Maximum portability. All Dracast X Series lights come battery ready. X Series Panels have dual NP-F battery slots while X Series On-Camera lights have a single NP-F battery slot. X Series Tube Lights include a 2600 mAh rechargeable battery pack built into the handle, so that your lights can easily be used on location.

    Variable Color Temperature
    Adjust the color temperature from 2800K - 6500K to match other light sources or ambient light in your shooting environment. Match subject skin tone easily and quickly without the need for color correction filters

    Full Spectrum RGB
    Add full color spectrum RGB to your lighting kit. Millions of color options available with RGB, HSI, CIE and more. Preset color gel presets allows for quick color settings based on popular color gel options. Create dramatic lighting designs with bright, rich color output. Control RGB color manually, or with the DRX app. (Full spectrum RGB available only on RGB models)

    Special Effects
    Dracast X Series lights feature special effects including strobe, flash, pulse, color chase, fireworks, police car, paparazzi, and more. Effects can be adjusted and customized to get the perfect look for your scene. Effects can be controlled manually, via DMX, or with the X app. (Color effects only available on RGB models)

    Soft Diffusion Built In
    Dracast X Series lights include soft diffusion filters built in, giving you an incredibly soft wash of light right out of the box.

    • Features:

      • App Remote Control
      • 0% - 100% Dimming
      • Battery Power
      • Variable Color Temperature
      • Full Spectrum RGB
      • Special Effects
      • Soft Diffusion Built In
    • Specifications:

      • Optical System: 256 SMD LED chips in 16x 16 arrangement
      • Light Aperture: 8 x 8 inches (203mm x 203mm)
      • Beam Angle: 45 degrees
      • Weight: 3 lbs (1.36 kg)
      • Handling: Aluminum Yoke, Dual Locking Tilt Control
      • Mounting: Baby 5/8" Pin
      • Tilt Angle: +/- 180 degrees
      • Voltage Input: 12 V DC
      • Power Consumption: 35W
      • Power Connection: Barrel connector, 100 - 240 VAC, 50 - 60 Hz, 4.0 A
      • Battery Connection: Dual NPF Battery Plate (included)
      • Battery DC Voltage: 7.4V * 2 DC
      • Battery Light Output: 100% of Total Output
      • Color Temperature: 3200K - 5600K (Variable or fixed color temperature depending on model)
      • Color Rendition: 96+ CRI
      • Dimming: 0% - 100% Continuous
      • Controls: Local On-Board Manual Controls, App Control, Group Master / Slave Control
      • Housing Color: Anodized Blue / Black
      • Housing Build: Aluminum / Plastic
      • Est. LED Lifetime: 50,000 Hours
      • Weight: 40 lbs
      • Dimensions: 32 x 18 x 18 in

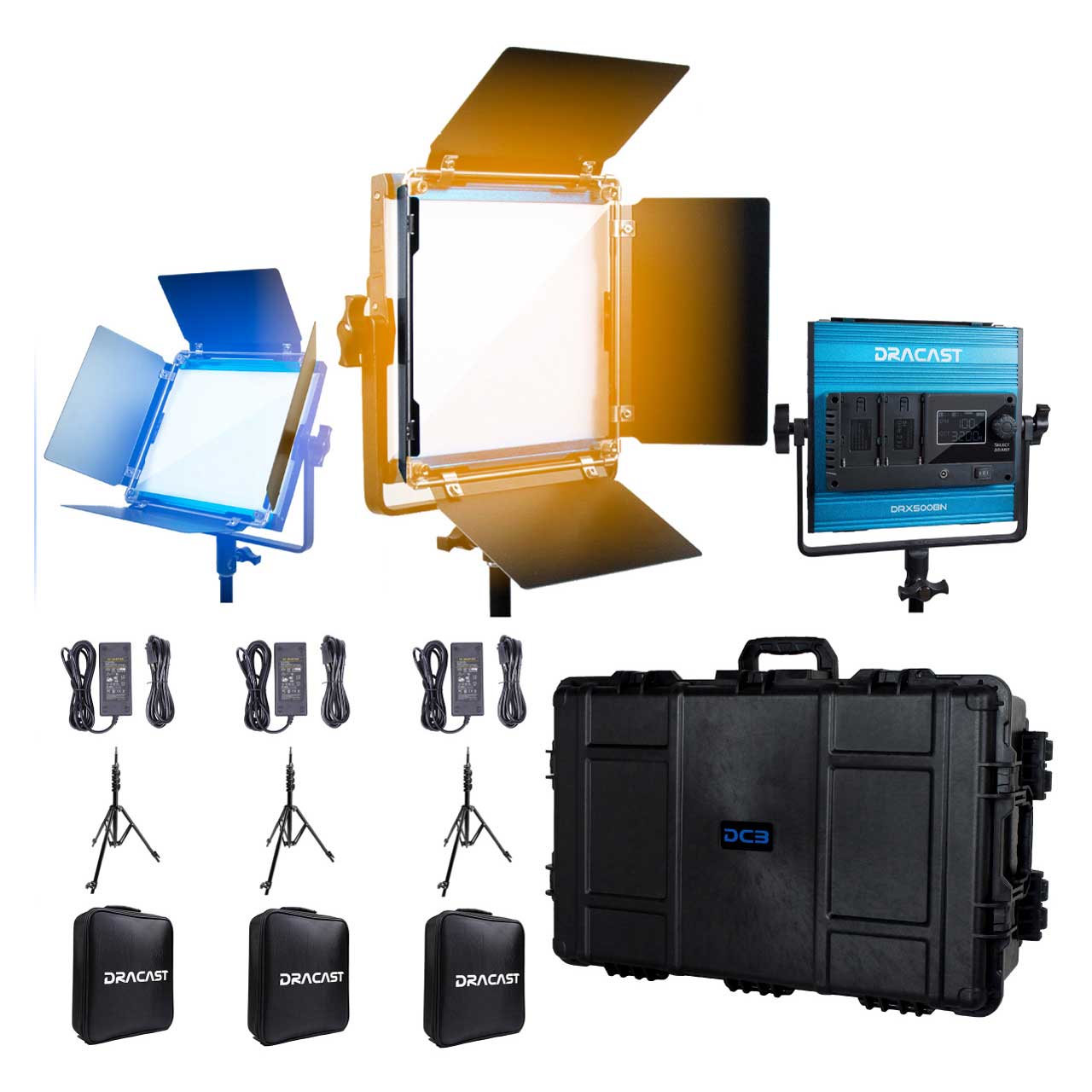

    • Item Includes:

      • 3x Dracast X Series LED500 Bi-Color LED Panel with Dual NP-F Battery Plate
      • 3x Carry Case
      • 3x Diffusion Filter
      • 3x Light Stands
      • 3x AC Power Adapter with power cord
      • 3x Instruction Manual
      • 1x Injection Molded Travel Case
      • 3x Barn Doors
