DRX500DN - Overview

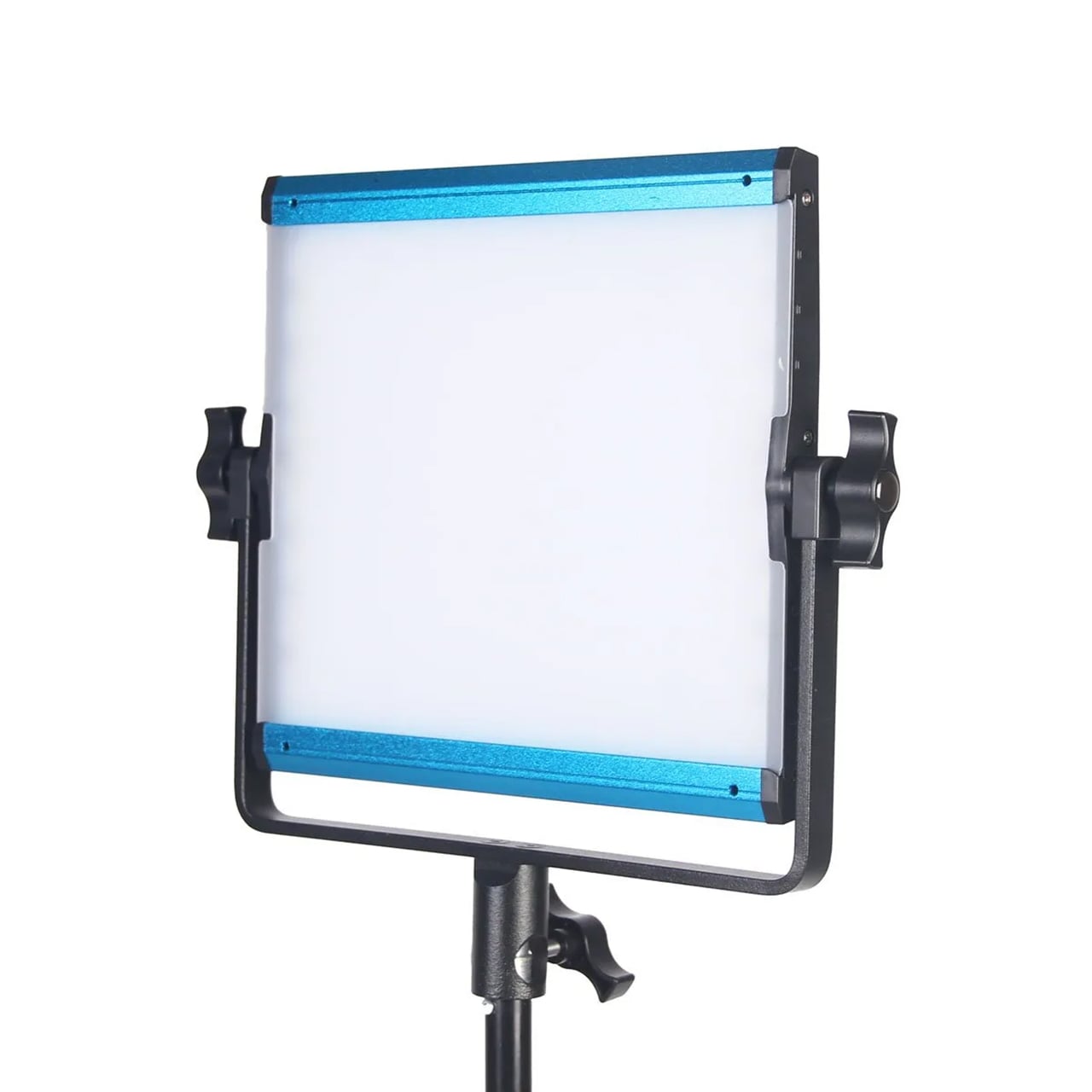

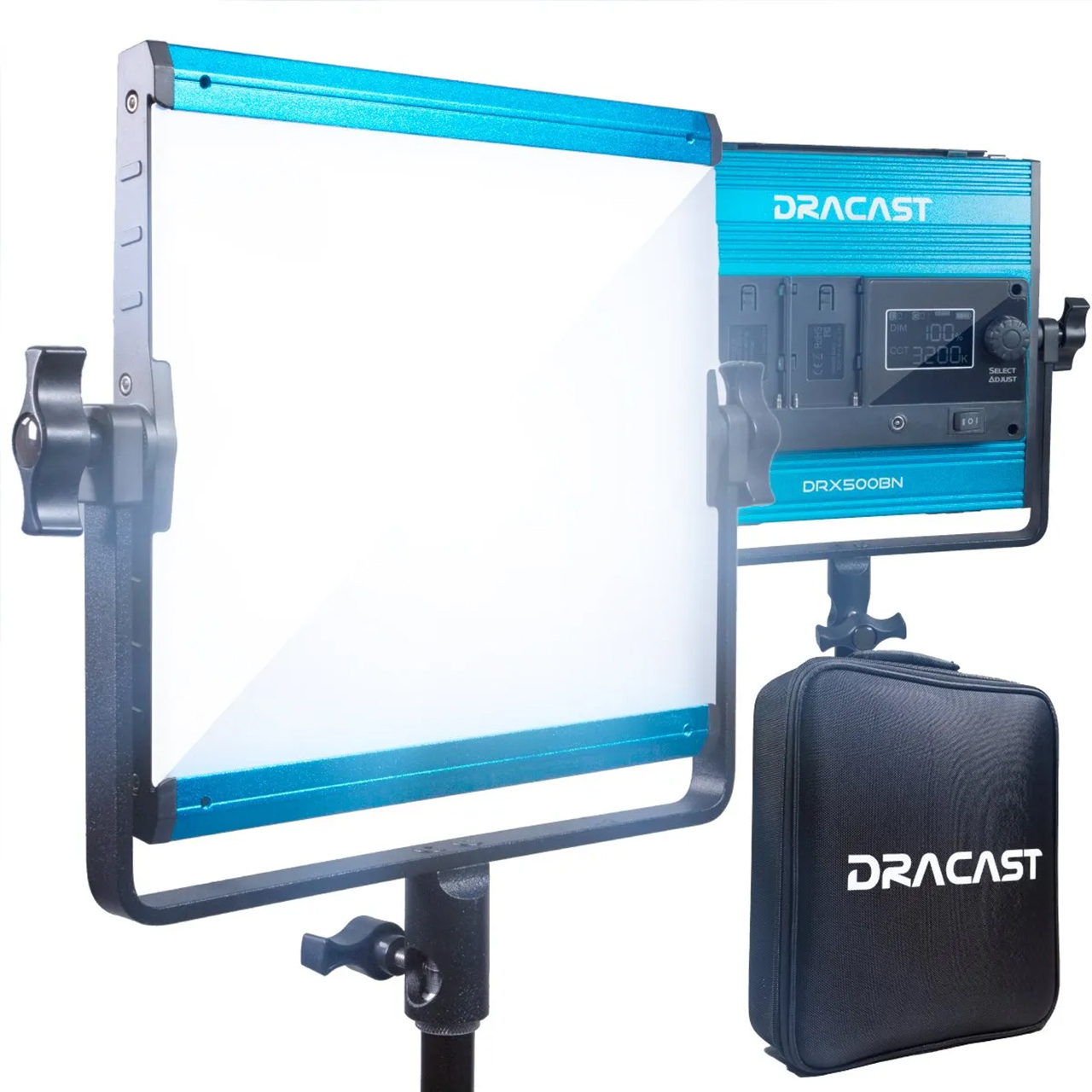

The Dracast DRX500DN is part of the X Series, the newest compact LED light panels from Dracast, designed with portability in mind. The panel includes an installed mounting yoke with a 5/8" baby pin receiver for fast and easy mounting on compatible light stands or C clamps. The X Series features high output 5600K Daylight balanced color temperature.

The light can be adjust manually via the control panel on the back of the fixture, or by using the new free Dracast DRX companion app available for iOS and Android smartphones and tablets.

Using the DRX companion app, all of the features of the light can be easily controlled along with the added ability to control multiple X Series lights simultaneously. The DRX app is the perfect companion to give you the look you need quickly and accurately.

Available (sold separately) accessories include barn doors, soft boxes, light stands, batteries, and battery chargers.

High Output, Ultra Bright 5600K Color Temperature
High output lighting for interviews, studios, live streaming, video conferencing, and more! 96+ CRI and TLCI means you get the highest quality light output with excellent white color rendition and no green or pink tint. Excellent for YouTube, Zoom, and on-location lighting where bright, high-output lighting is essential.

Remote Control with the Dracast DRX App
Control one or multiple lights simultaneously from over 100ft using the Dracast DRX App for iOS and Android. Assign groups for multi-light control. Control using HSI sliders or RGB color wheel (RGB models). Quickly select and adjust color gel presets and special effects (Police Car, Fireworks, Candlelight, Strobe, TV Screen, and More). Adjust dimming from 0% - 100% entirely within the app.

Dracast Build Quality and Included Accessories

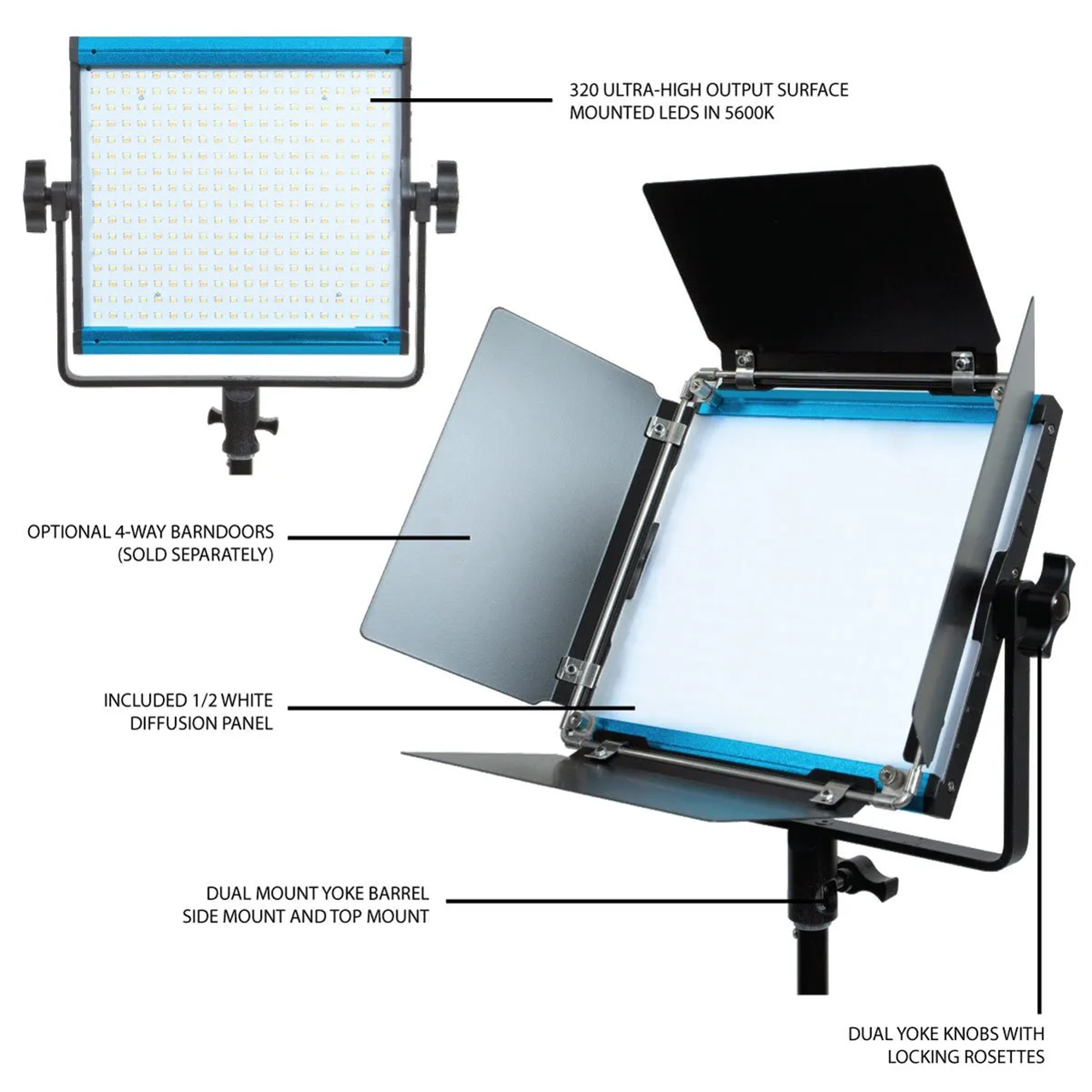

Built with an anodized aluminum metal housing for excellent durability. Quick and easy manual control with the X Series advanced digital user interface. Includes mounting yoke with 5/8" baby pin adapter and pre-installed diffusion filter for soft, even lighting. Optional four-way barn doors for excellent light output control sold separately. Individual soft carrying case is included for storage and transport.

AC/DC Power Options

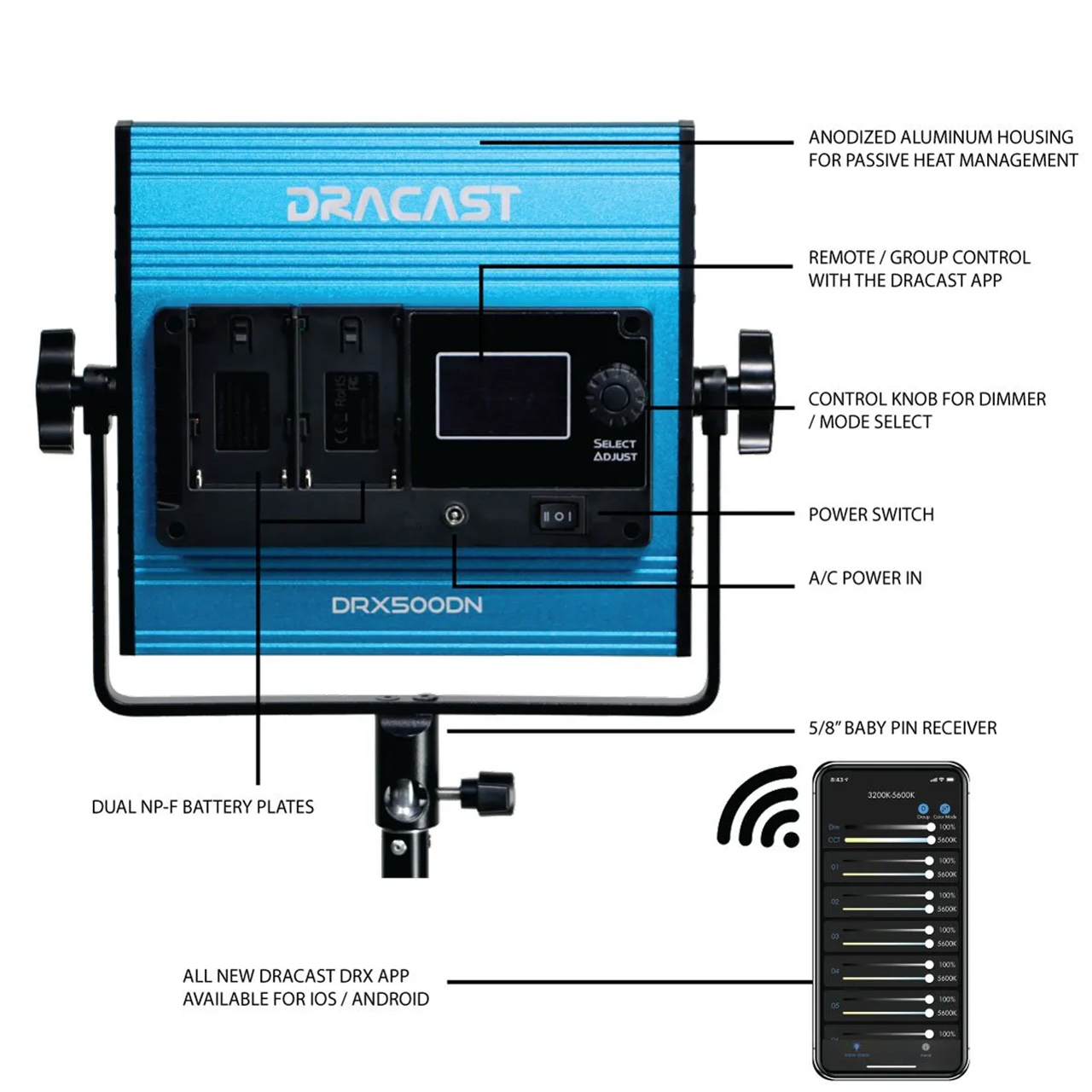

Plug the X Series panel into the wall using the included AC/DC power adapter or take your light on location with battery power. Dracast X Series lights include a dual NP-F battery plate compatible with NP-F style batteries (sold separately). Light can operate for several hours on a full battery charge.

Applications:
• Lights for Video Production
• Interview Lighting
• Lighting for Online Content Creators
• Lights for Green Screen Studios
• Studio Lighting

  • Specifications:

    • Photometric Data
      - 3 Foot (0.9m): 87.05 fc (937 Lux)
      - 6 Foot (1.8m): 24.80 fc (267 lux)
      - 9 Foot (2.7m): 11.89 fc (128 lux)
      - 12 Foot (3.6m): 7.15 fc (77 lux)
    • Optical System: 256 SMD LED chips in 16x 16 arrangement
    • Light Aperture: 8" x 8" (203mm x 203mm)
    • Beam Angle: 45°
    • Handling: Aluminum Yoke, Dual Locking Tilt Control
    • Mounting: Baby 5/8" Pin
    • Tilt Angle: ±180°
    • Voltage Input: 12V DC
    • Power Consumption: 35W
    • Power Connection: Barrel connector, 100V - 240VAC, 50/60Hz, 4.0A
    • Battery Connection: Dual NPF Battery Plate (included)
    • Battery DC Voltage: 7.4V * 2 DC
    • Battery Light Output: 100% of Total Output
    • Color Temperature: 3200K - 5600K (Variable or fixed color temperature depending on model)
    • Color Rendition: CRI > 96
    • Dimming: 0% - 100% Continuous
    • Controls: Local On-Board Manual Controls, App Control, Group Master/Slave Control
    • Housing Color: Anodized Blue/Black
    • Housing Build: Aluminum/Plastic
    • Est. LED Lifetime: 50,000 hours
    • Dimensions: 13.6" x 13.5" x 6.4"
    • Weight: 5.5lbs

  • Item Includes:

    • 1x Dracast LED500 X Series LED500 Daylight 5600K LED Video Light Panel with Dual NP-F Battery Plate

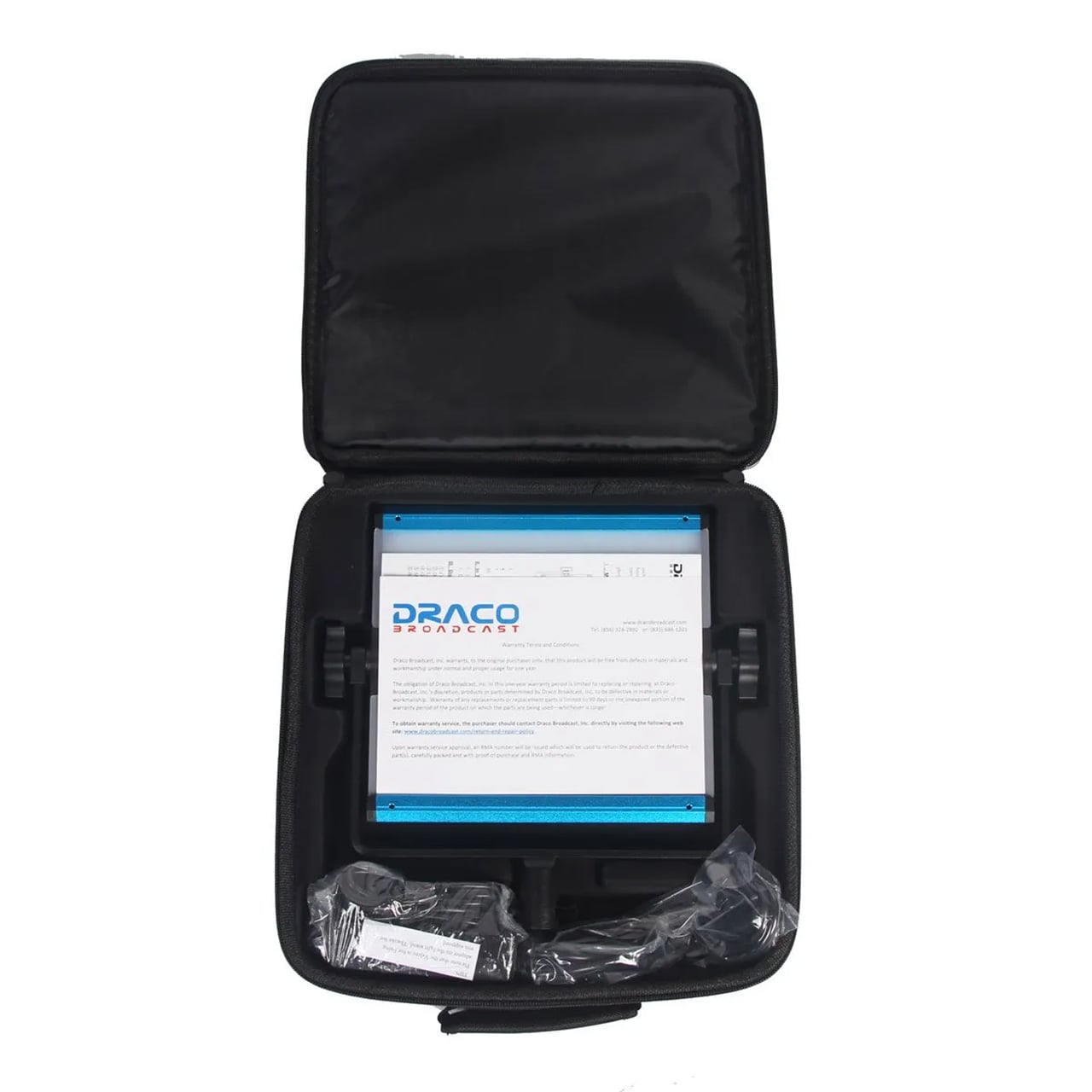

    • 1x Nylon Clamshell Carry Case
    • 1x Integrated Diffusion Filter
    • 1x AC Power Adapter with power cord
    • 1x Instruction Manual

  • Warranty:

    • 1 Year Limited Warranty
