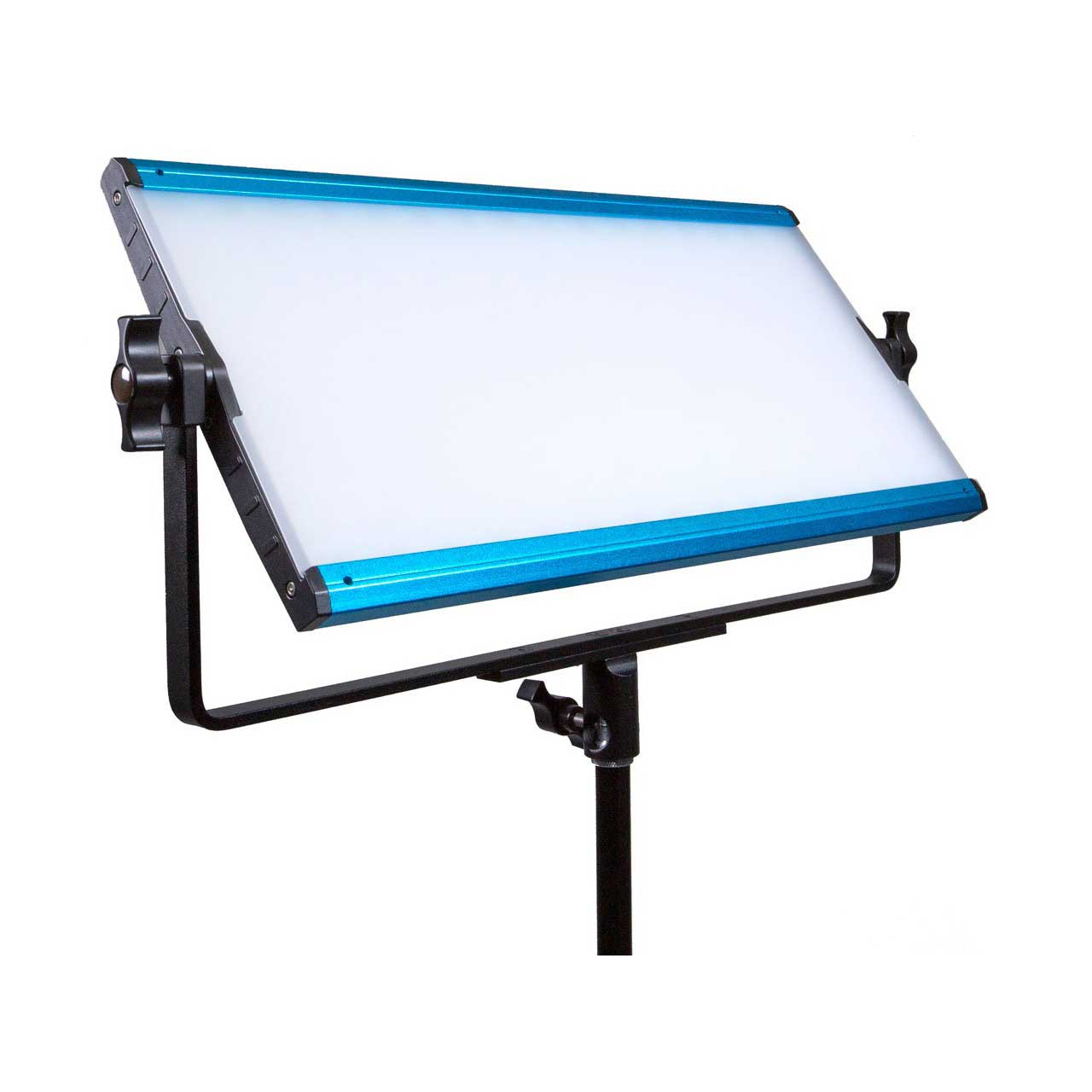

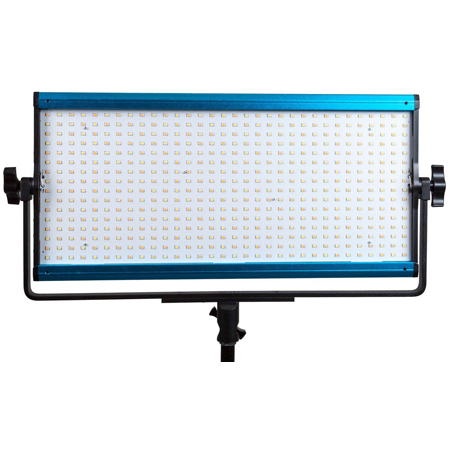

Dracast DRX1000BN LED1000 X Series Bi-Color LED Light with Dual NP-F Battery Plate


  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    DRX1000BN - Overview

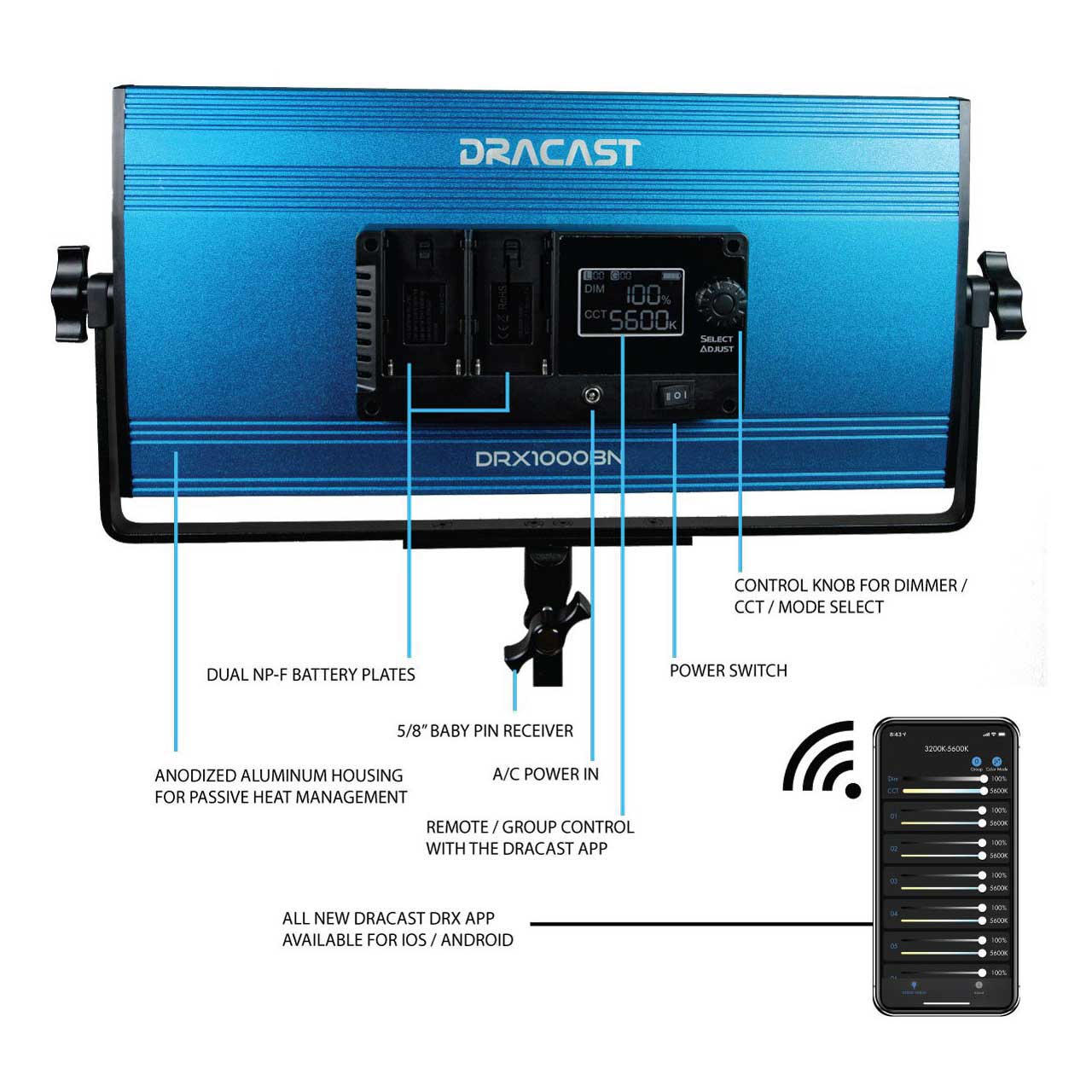

    The Dracast DRX1000BN X Series is the newest compact LED panel light from Dracast. Weighing just 3.5 lbs, the X Series is designed with portability in mind. The panel includes an installed mounting yoke with a 5/8" baby pin receiver for fast and easy mounting on compatible light stands or C clamps. The X Series features adjustable white color temperature from 3200K to 5600K CCT. The light can be adjust manually via the control panel on the back of the fixture, or by using the new free Dracast DRX companion app available for iOS and Android smartphones and tablets. Using the DRX companion app, all of the features of the light can be easily controlled along with the added ability to control multiple X Series lights simultaneously. The DRX app is the perfect companion to give you the look you need quickly and accurately.

    • Features:

      • 3200K-5600K Variable Color Temperature
      • Dual NPF battery plates
      • Remote control via DRX app
      • 45-Degree Beam Angle
      • 100-0% Dimming
      • CRI: 96+
      • 100-240 VAC Power Adapter Included
      • Carry Case
    • Specifications:

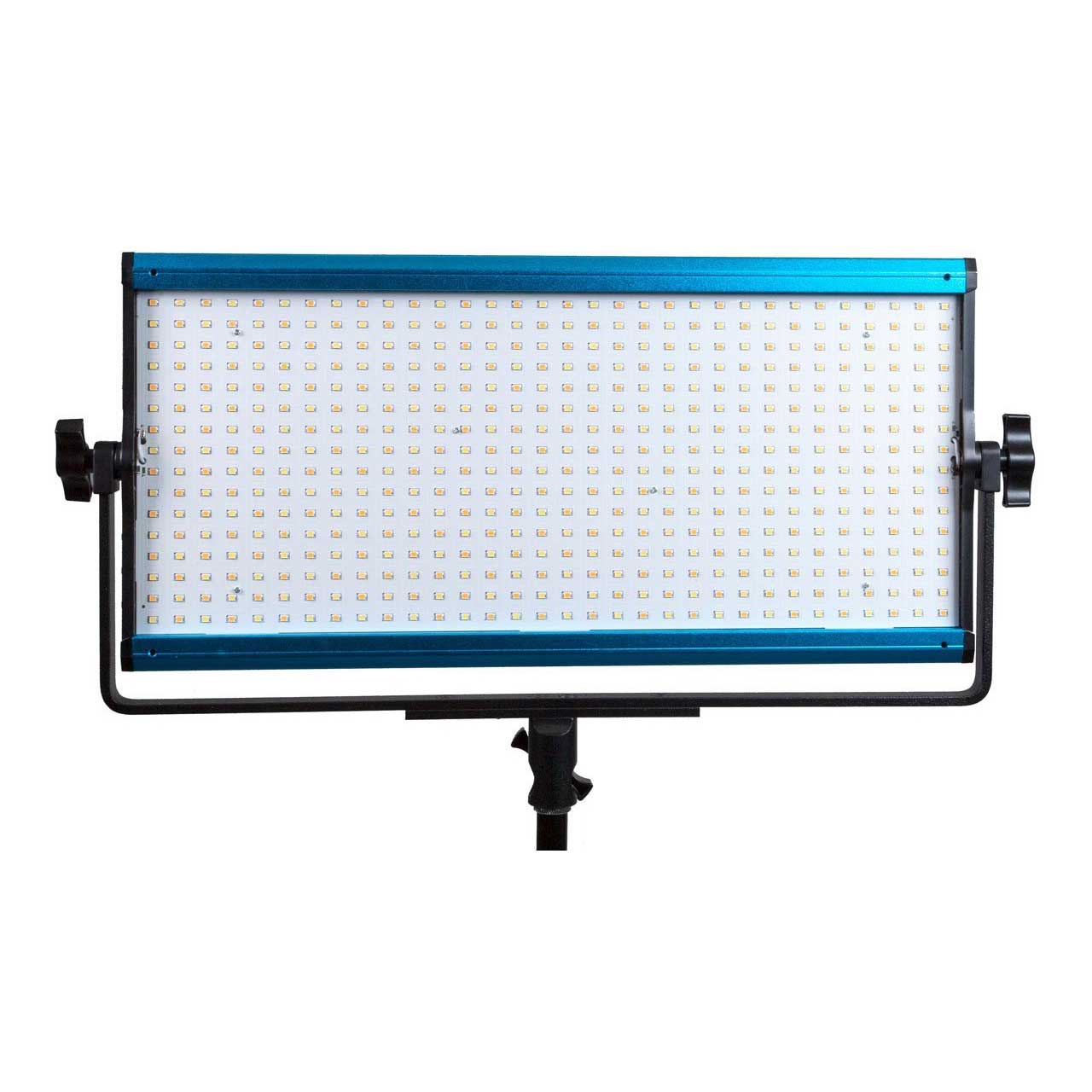

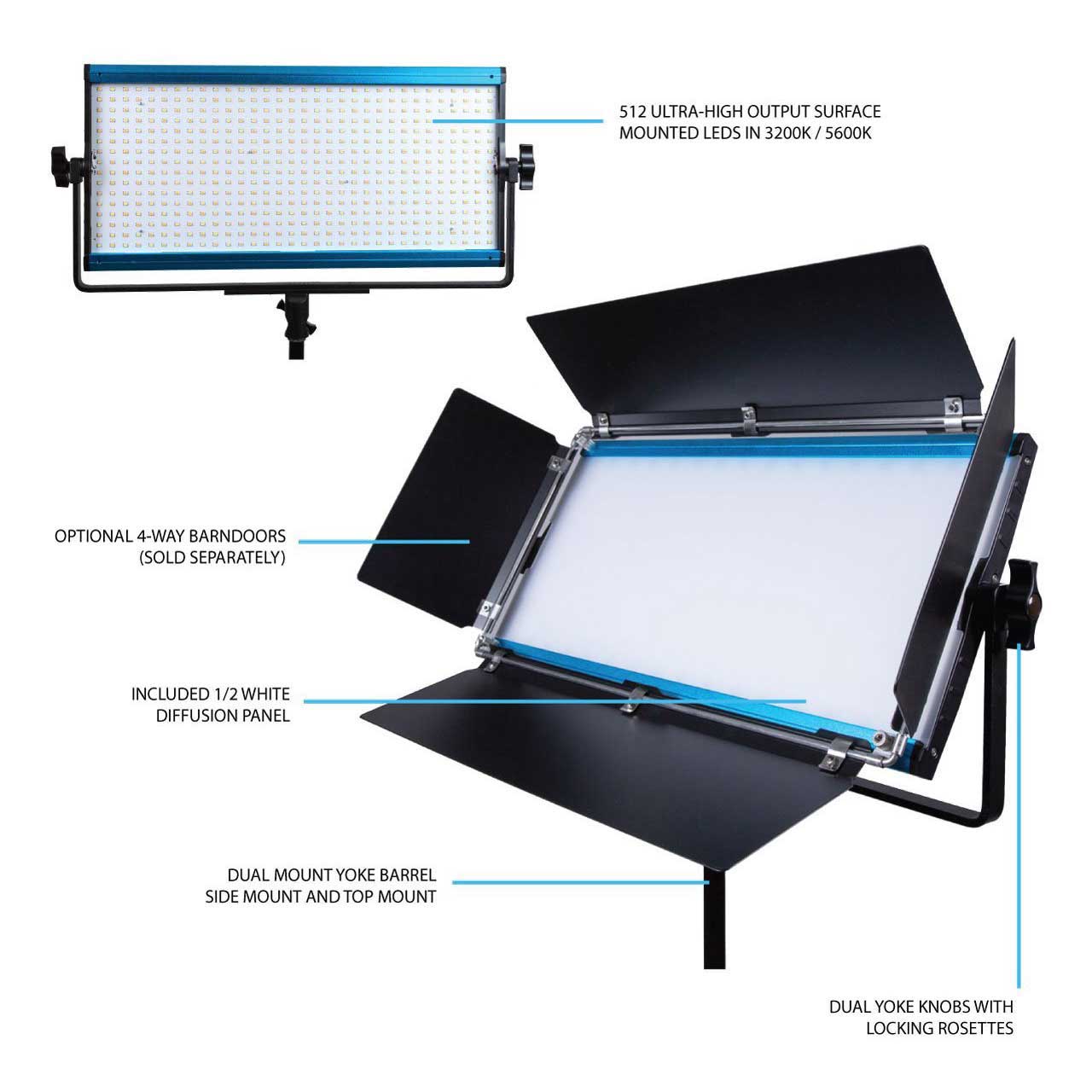

      • Optical System: 512 SMD LED chips in 16x32 rectangle arrangement
      • Light Aperture: 17x8 inches
      • Beam Angle: 120 degrees
      • Weight: 3.50lbs
      • Handling: Aluminum yoke, dual lockting tilt control
      • Mounting: Baby 5/8" pine
      • Tilt Angle: +/- 180 degrees
      • Voltage Input: 12 V DC
      • Power Consumption: 70W
      • Power Connection: Barrel connector, 100-240 VAC, 50-60Hz, 4.0 A
      • Battery Connection: V-Mount or Gold Mount battery plate (included)
      • Battery DC Voltage: 14.8 V DC
      • Battery Light Output: 100% of total output
      • Color Temperature: 3200K-5600K (variable or fixed depending on model)
      • Color Rendition: CRI > 96
      • Dimming: 0%-100% continuous
      • Controls: Local on-board manual controls, app control, group master / slave control
      • Housing Color: Anodized blue / black
      • Housing Build: Aluminum / plastic
      • Est. LED Lifetime: 50,000 hours
    • Item Includes:

      • 1x Dracast LED1000 X Series Bi-Color Panel with Dual NP-F Battery Plate
      • 1x Carry Case
      • 1x Diffusion Filter
      • 1x AC Power Adapter with power cord
      • 1x Instruction Manual
    • Warranty:

      • Limited 1-Year
