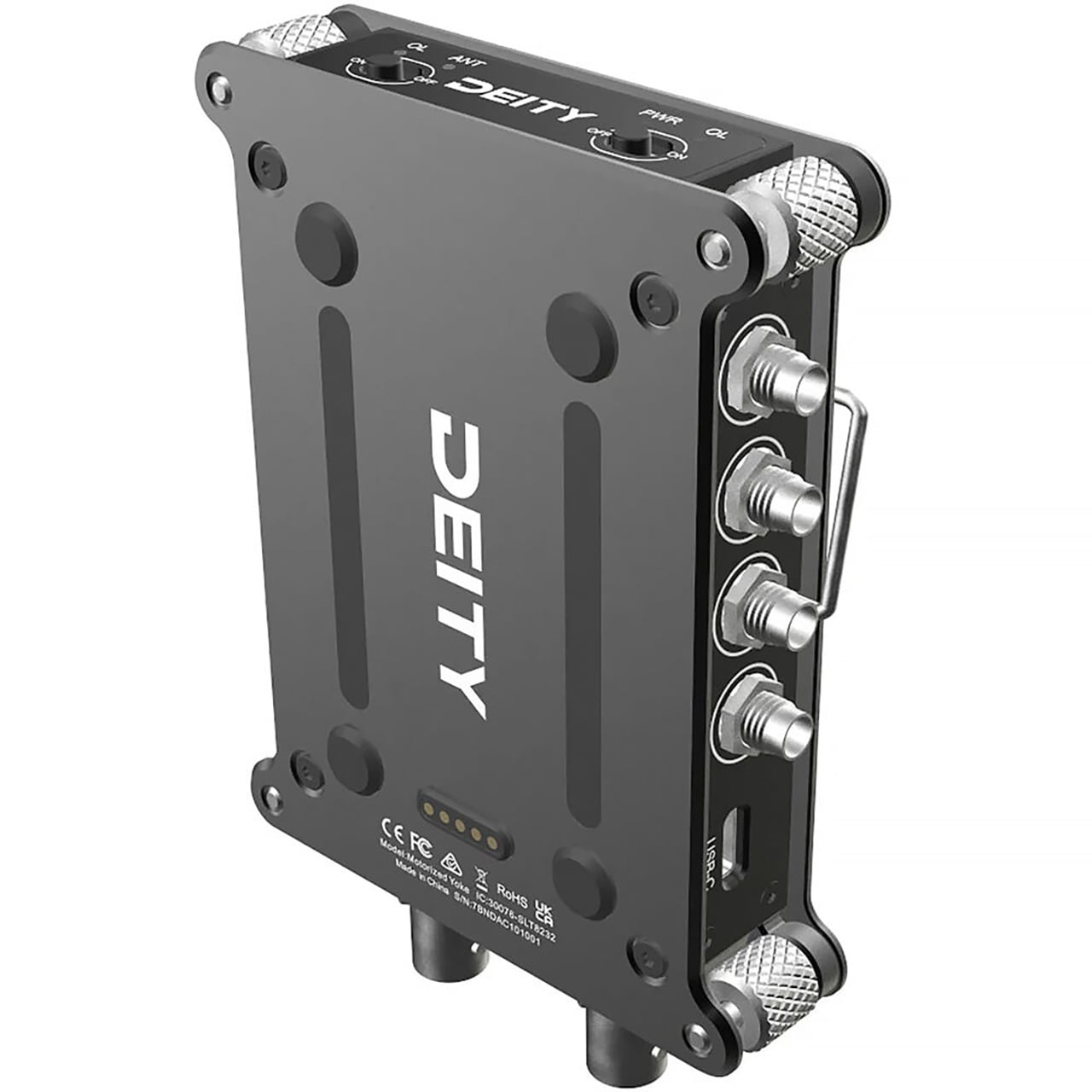

Simplify the management of wireless microphone signals in demanding field conditions with the Deity Microphones SRD-Mini, an ultra-slim, portable 4-channel antenna-distribution system designed specifically for location sound mixers. This RF distro is equipped with two main INs and four OUTs (A and B), for a 2-to-8 split.
Supporting both passive and active antennas, the SRD-Mini features an active splitter that compensates for gain loss, ensuring that your RF signals remain strong and consistent. The unit also supplies power to external antenna circuitry. Each side of the distro (A/B) can have its external power independently toggled on or off. The SRD-Mini is made of CNC aluminum and is ultralightweight. Its slim, ergonomic design makes it easy to place wherever you need it in your sound bag.
Industry Standard Connectors

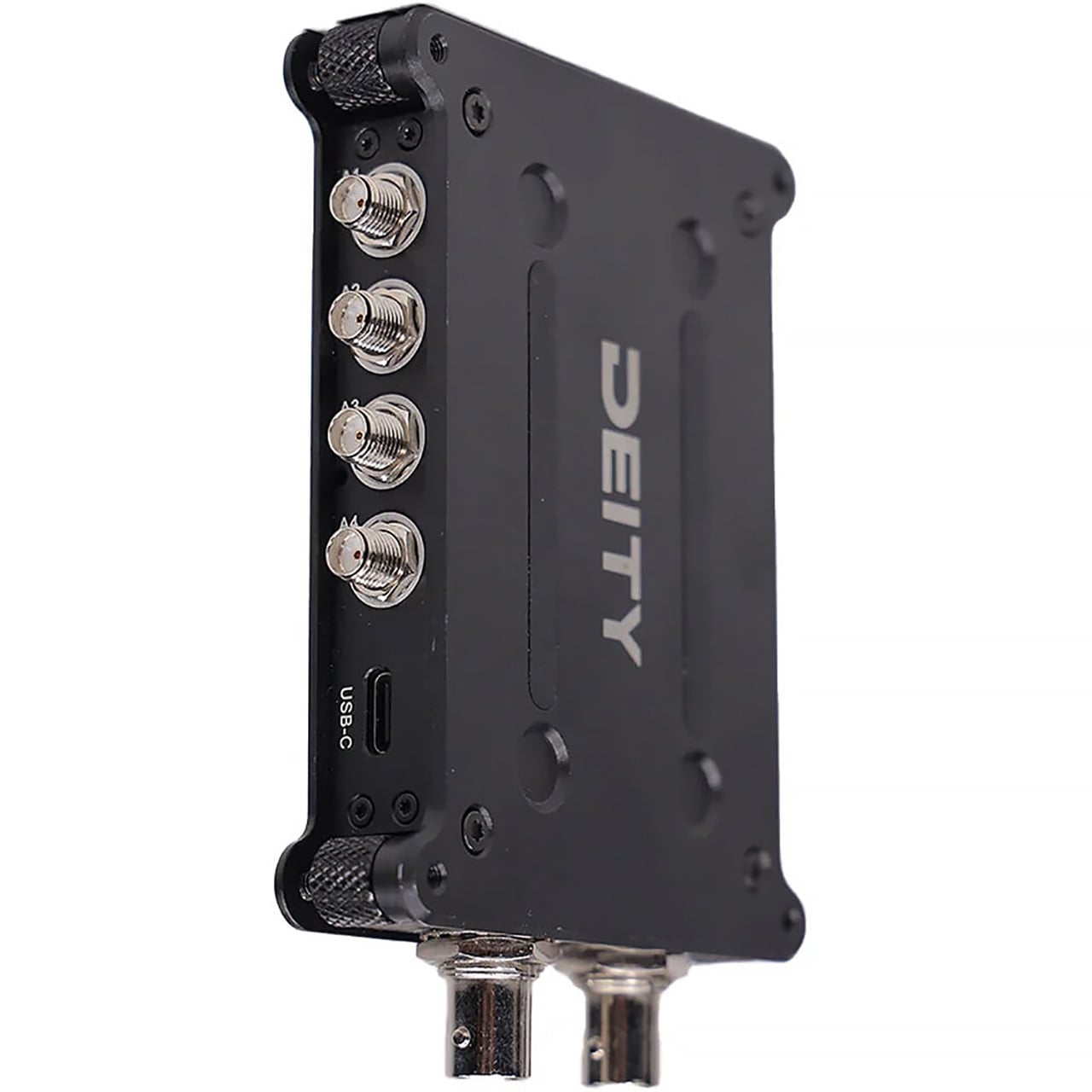

The SRD-Mini utilizes standard connectors for wide equipment compatibility. Two 50-ohm BNC ports act as the A/B inputs. Eight 50-ohm SMA outputs split the incoming signal (1A x 4A/1B x 4B).
Wide Frequency Range
The SRD-Mini operates in the 470MHz to 1GHz range. This allows it to work anywhere in the world and with almost any UHF wireless microphone system you may already own.
Multiple Power Options
The SRD-Mini has traditional power inputs like a 12V - 16.8VDC 4-pin Hirose-compatible connector and a 5VDC USB-C connector. For a cable-less power solution, the unit can also be powered from the SPD-Mini power distributor (available separately) via its pogo pins.
