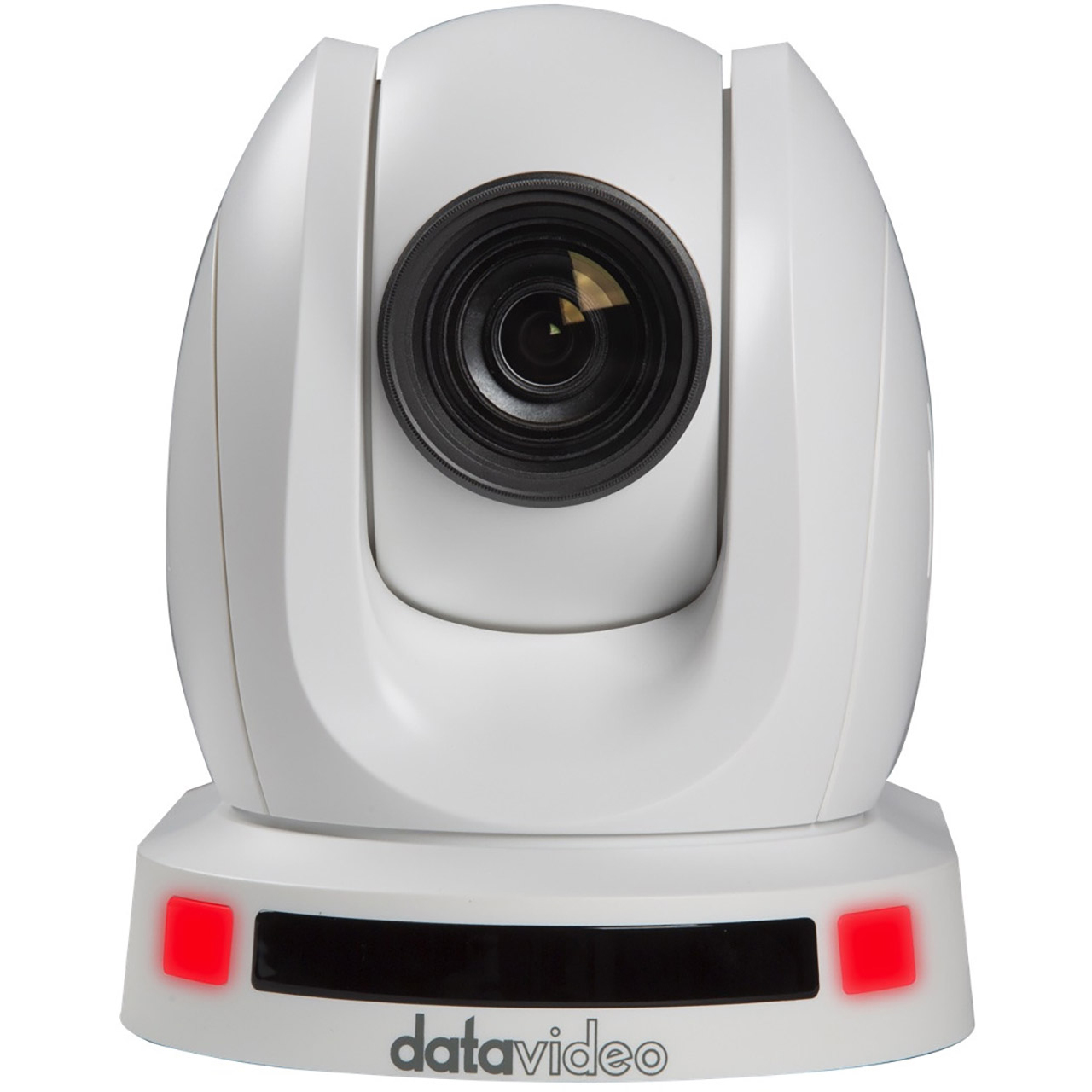

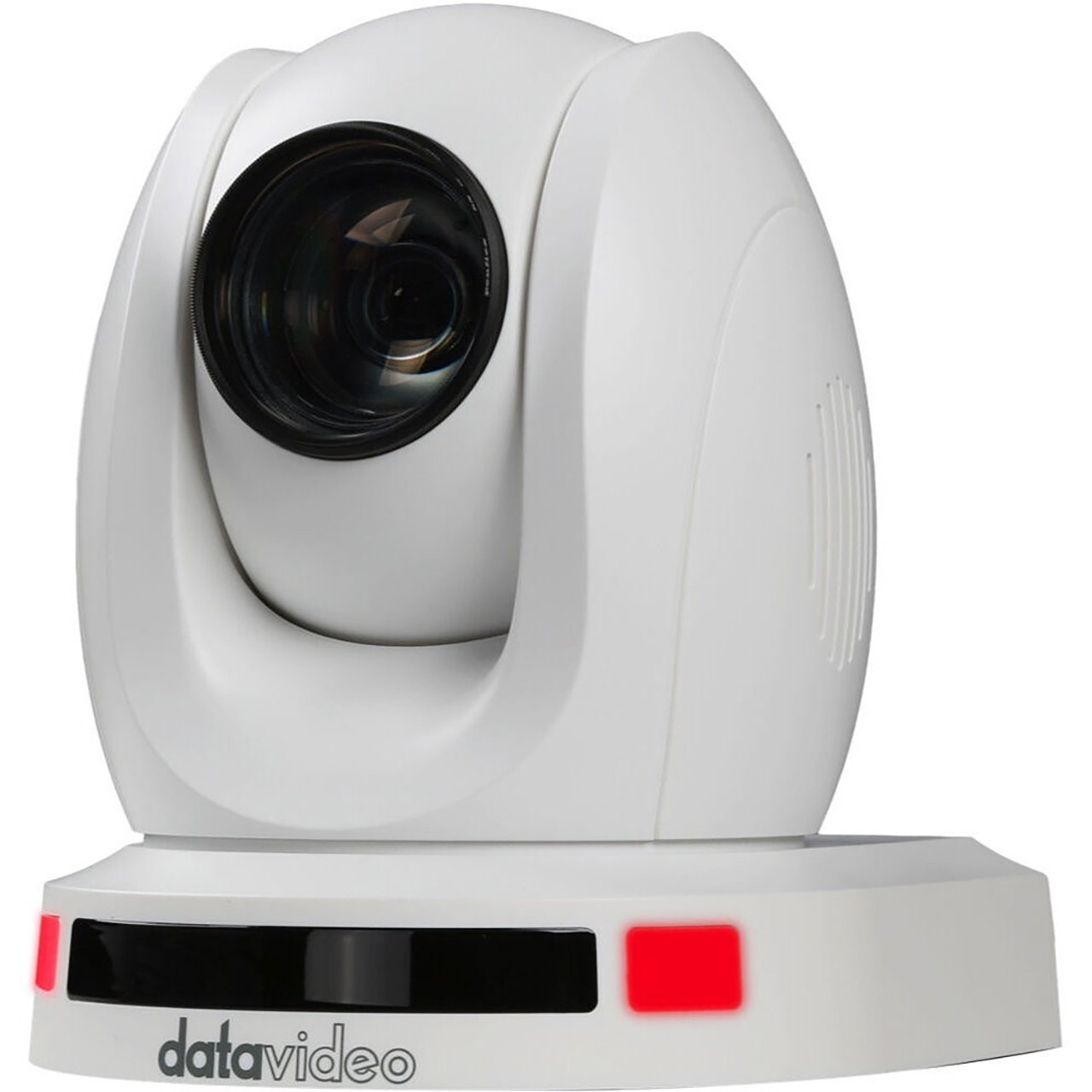

Datavideo DV-PTC-145W PTC-145W w/ AI Designed 1/2.8 Inch CMOS Sensor/20x Optical Zoom - White

ITEM #: DV-PTC-145W MFG #: PTC-145W

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$1,699.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PTC-145W - Overview

Simultaneous Outputs
For added flexibility in your workflow, connect your Data Video PTC-145W to multiple devices simultaneously using its versatile output connection options: HDMI, SDI, and RJ-45 PoE. All of these output options can be active at the same time, ensuring seamless integration into your setup.

Adopts High-Quality and Reliable Sony CMOS Sensor
Datavideo PTZ cameras utilize high-quality Sony CMOS sensors to deliver exceptional image quality and reliability. Renowned for their performance in various lighting conditions, Sony CMOS sensors are widely used in broadcast, cinematic, and professional video cameras. Additionally, these sensors offer lower power consumption, which leads to reduced heat generation and a longer camera lifespan.

20x Optical Zoom, 8x Digital Zoom
The PTC-145's 20x optical zoom and 8x digital zoom allows you to mount it near or far and still get great, sharp shots.

Advanced 3D Noise Reduction Function
The PTC-145 supports advanced digital noise reduction technology, which enables it to capture clear and smooth images even in less-than-perfect lighting conditions. This remarkable feature ensures that your footage remains crisp and vibrant, regardless of the lighting challenges you may encounter.

Quick Access to Camera's Auto Tracking
You will be granted direct access to Auto Tracking via various external controllers such as the supplied RMC-1AT PTZ remote controller and RMC-300A DVIP controller, PTC View Assist App, and the TPC-700, etc. You can choose a suitable controller according to your needs.
In addition to camera controllers, you can also easily enable Auto Tracking on smart switchers, including iCAST mini, SHOWCAST 100, etc.

Simply Enable Auto Tracking with Your IR Remote Control
RMC-1AT PTZ Controller: All you need is a remote control to set and control all four cameras and save the four presets.

  • Features:

    • Seamless switching
    • Multichannel audio mixing
    • Video Streaming
    • Video Recording
    • Character Generation
    • System Control

  • Specifications:

      HD20x PTZ Camera
      Model Number: PTC-145
    • Video format/Resolution:
      -1080p 60/59.94/50/30/29.97/25
      -1080i 60/59.94/50
      -720p 60/59.94/50
    • Image Sensor: Sony 1/2.8" CMOS
    • Effective Pixels(approx.): 2.07 Mega pixels
    • S/N Ratio: >50dB
    • Min. Illumination: 0.5Lux (F1.8, AGC ON)
    • Electronic Shutter: 1/30 ~ 1/10000s
    • Zoom Ratio: 20x Optical Zoom, 8x Digital Zoom
    • Effective Zoom Ratio: 18.12x
    • Iris Control: Auto / Manual
    • Digital Noise Reductions: 3D
    • On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
    • White Balance: Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
    • AGC / Gain Control: Yes
    • Mirror / Flip Image: Yes
    • Focus Mode: Auto / Manual
    • Panning / Tilting Range: Pan: 340° , Tilt: +90° to -30°
    • Panning / Tilting Speed - Pan: 0.1~60°/sec - Tilt: 0.1~30°/sec
    • Preset: 255 Position
    • Focal Length: f = 5.05mm (wide) to 91.49 mm (tele)F1.8(Wide) ~ F2.9(Tele)
    • Field of View (Horizontal, Wide): Approx. 60° (WIDE END) / 3.3°
    • Image Compensation: Backlight Compensation
    • Video Output:
      - HDMI x 1
      - SDI x 1
      - RJ-45 Poe x 1
    • Audio Input: 3.5mm Line in
    • Tally LED: Dual color (Red, Green)
    • Lens Filter: M52.0 x 0.75 Thread with UV Protection
    • Control Protocol: Pelco-D/Pelco-P/VISCA, VISCA over IP, DVIP, ONVIF, NDI
    • Remote Control Interface:
      - IR
      - Web GUI
      - RS-422/RS-232/RS-485(RJ45)
      - DVIP
      - NDI
    • Video Compression Format: H.264/H.265/MJPEG
    • Audio Compression Format: AAC, G711
    • Audio Bitrate: 96Kbps, 128Kbps, 256Kbps
    • HD IP Interface: 10/100/1000M (RJ45)
    • Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT,NDI)(Hx3 (1080p)
    • F/W Update: Via Web GUI
    • IR Control: Yes
    • Camera Control Unit:
      -RMC-2P
      -RMC-180 series
      -RMC-300 series
      -PTZ View Assist APP
    • Tripod Mount: 1/4-20 UNC
    • Optional Accessories: WM-1/ WM-10/ WM-11
    • Color: White
    • Dimension: (LxWxH) 6.14 x 7.24 x 7.322 Inches (156 x 184 x 186mm)
    • Weight: 3.5Ib (1.6kg)
    • Operating Temp Range: 32 to 104°F (0~40°C)
    • Power: DC 12V 14W`
