TLM-700HD - Overview

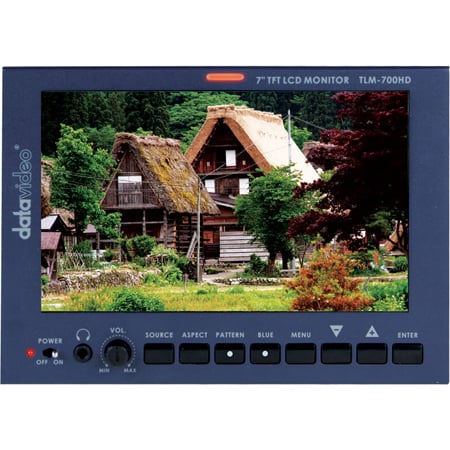

The Datavideo TLM-700HD is a 7 Inch broadcast monitor with a range of both High definition and standard definition connections including HD & SD-SDI, HD & SD YUV, HDMI & Composite Video Inputs. The range of connections and rugged metal design make it a perfect choice for users who work outdoors in the field or in a studio, with HD or SD.

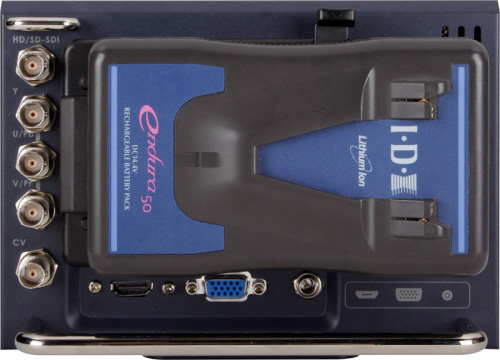

The TLM-700HD can be powered from a standard V-Mount type battery, enabling you to power the monitor using an existing camera battery from a range of manufacturers. The TLM-700HD can also be powered via the supplied mains power adapter.

The monitor provides a range of advanced features including, audio indicator when working with SDI and HDMI, safe area indicators (80%, 90% OFF), VITC time code display, auto detection of NTSC/PAL, aspect ratio: 16:9 / 4:3 / 15:9 switchable and dual colour tally indication.

Adjustment for brightness, contrast, colour and tint (Tint NTSC only).

Internal colour bars and Blue only function enables perfect and precise calibration.

  • Features:

    • 7" 16:9 widescreen LCD panel (also supports 4:3)
      Inputs - HD and SD through SDI, HDMI and component. SD through composite.
      SDI and HDMI support embedded audio
      Image controls - brightness, contrast, saturation and tint
      Tally input and indicator light
      Switchable aspect ratios
      Earphone connector for audio monitoring (with level control)
      Internal color bars and blue signal generator

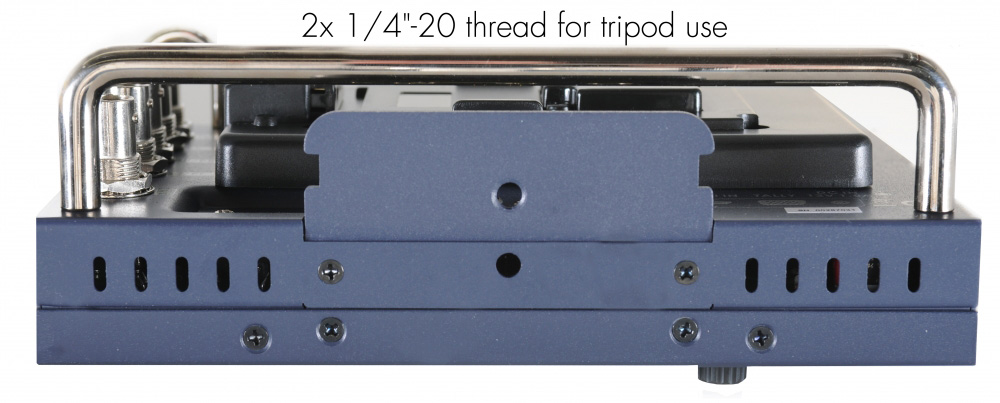

      Threaded hole on bottom for mounting on tripods
      Can be powered by either 12V AC/DC adapter (included) or V-mount battery (not included), available from various manufacturers

  • GTIN:

    0672255001912
