WILLIAMS AV DWS INT 5 400 RCH Digi-Wave 400 Series Interpretation Assisted Listening System for 4 Languages Plus Floor

ITEM #: DWS-INT-5-400RCH MFG #: DWS INT 5 400 RCH

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$23,780.00

Our Price:

$21,403.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    DWS INT 5 400 RCH - Overview

    The Digi-Wave 400 system is a digital spreadspectrum (DSS), simultaneous two-way wireless communication system. The system makes hearing easier in everyday situations by reducing background noise and compensating for poor room acoustics or distance from the sound source. Its frequency-hopping algorithm avoids interference and is a very secure method of communication. Every Digi-Wave System includes at least one two-way transceiver (DLT 400) and one or more receivers (DLR 400 RCH or DLR 400 ALK), depending upon the application. The system is commonly used for intercom, with up to six people able to speak simultaneously and even more listening. It's also ideal as a human interpretation system that supports one floor language and up to 14 translated languages. Digi-Wave systems are also frequently used with guided tours - with one or more tour guides (2-way), with audience participation (2-way) or without audience participation (1-way listen only).

    Applications Include:
    Intercom

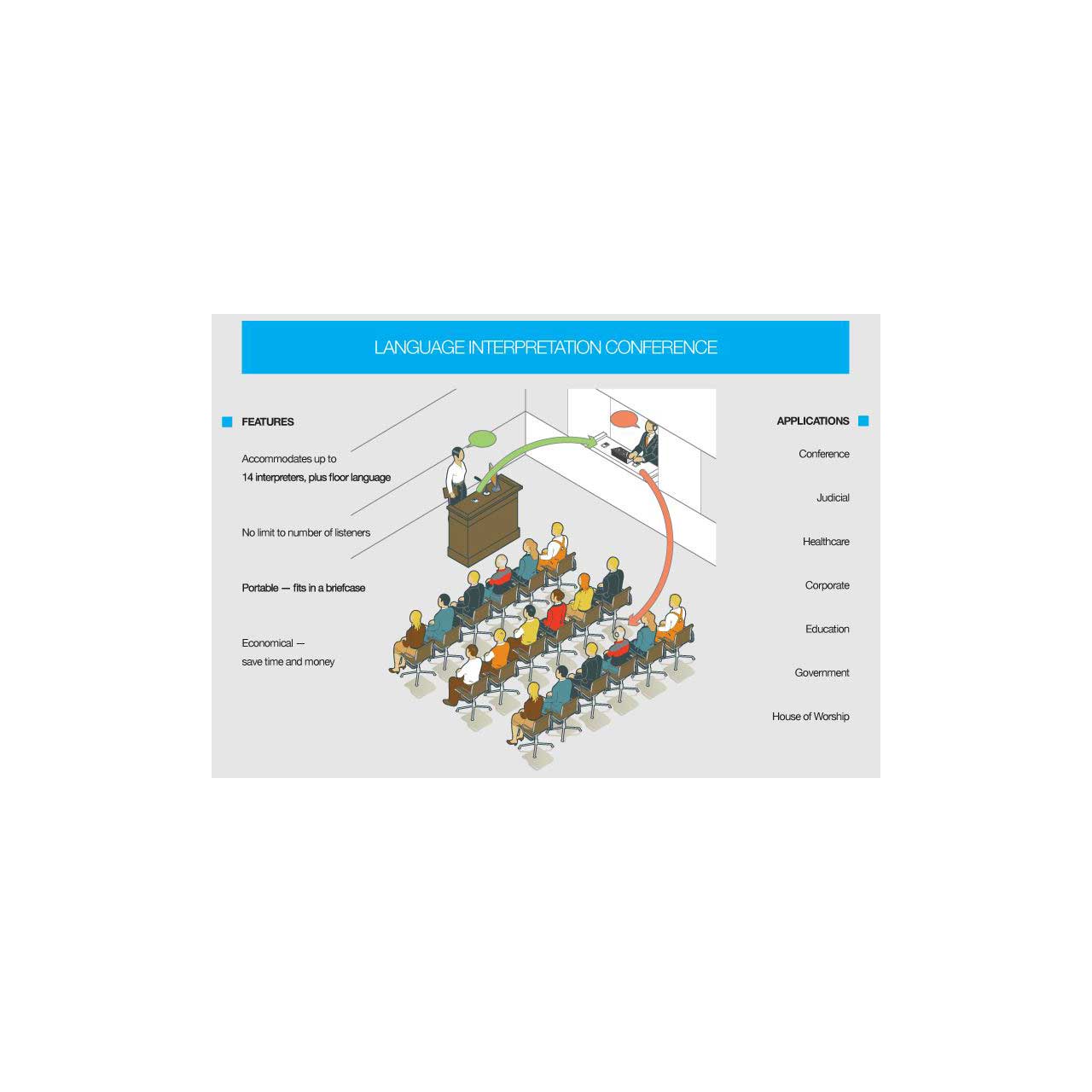

    Language interpretation
    Tours
    Presentations
    Hearing Assistance
    Presentations

    Markets

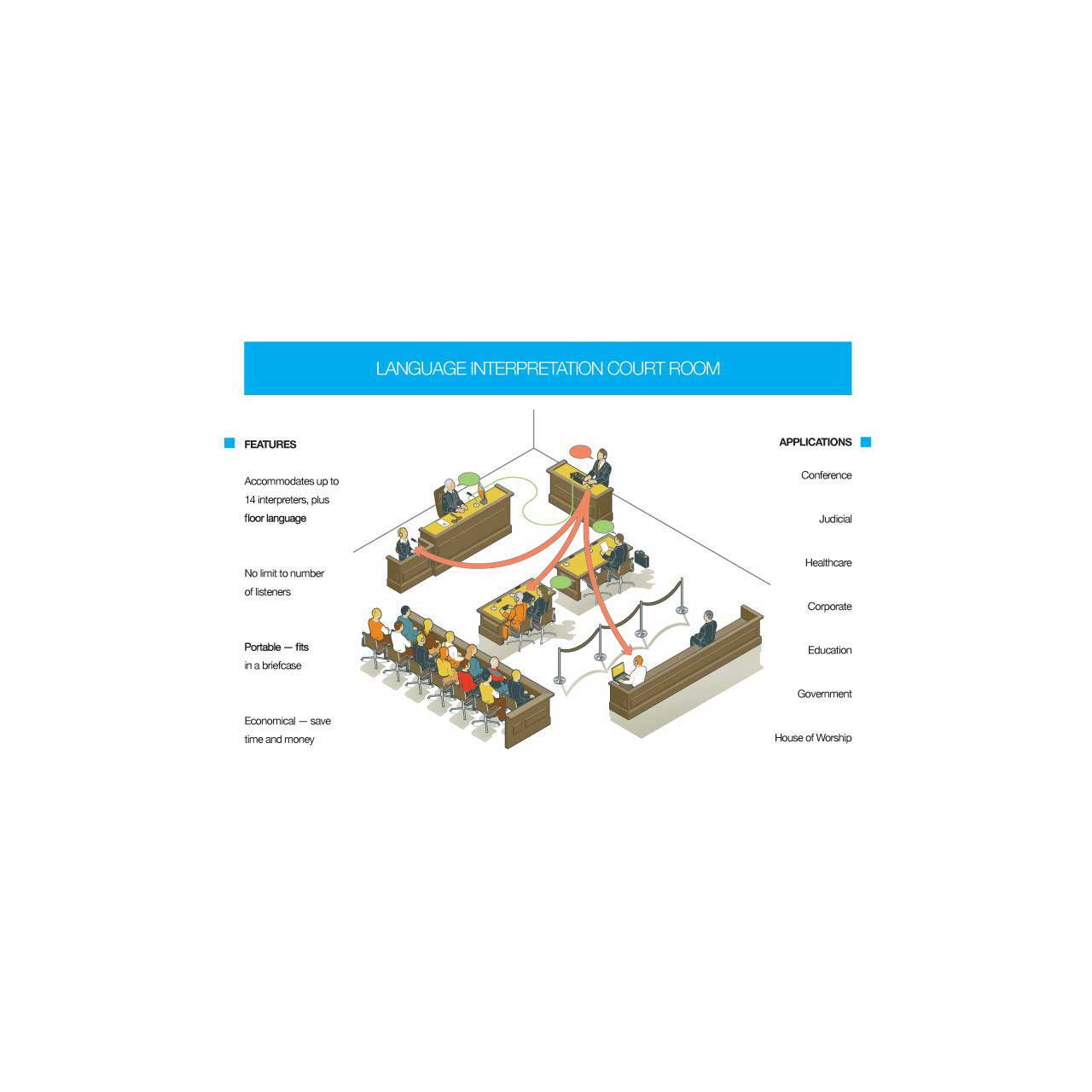

    Government - courtrooms
    Corporate - training, presentation, tours
    Broadcast
    Healthcare - medical centers
    Education - classrooms & lecture halls

    • Features:

      • Portable digital transceiver with built-in mic
      • Completely portable - no base station or rack-mounted components required
      • Crystal-clear digital sound quality
      • Use as a two-way wireless intercom or in one-way mode
      • Accommodates six simultaneous talkers and an unlimited number of listeners
      • Built for security. Optional 128+87 bit encryption, secure key code, lock for settings

    • Specifications:

      • Dimensions 4.22"W x 2.60"H x 0.50"D (107.3 mm x 66 mm x 12.6 mm)
      • Weight Weight 3.3 oz (94 g) including battery
      • Color Black/Silver (Front/Back)
      • Case Material Black ABS plastic
      • Battery Type Lithium Polymer with smart charge built into transceiver; 1800 mAH
      • Battery Life Yp to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx
      • Power Save Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
      • Charge Time 5 hrs. approx.
      • System Voltages OLED 14VDC; RF 5VDC; Logic 3.3 VDC
      • Operating Frequencies 2.4 GHz (ISM band); 2402 - 2476 MHz FHSS
      • Audio Frequency Response
      • (-3dB level)
      • Intercom Mode: 100 - 7,200 Hz
      • Other Modes: 100 - 11,500 Hz
      • SNR 73 dB (A-weighted, default Rx volume with mic input )
      • THD 0.1 % (Default Volume, 1kHz)
      • Microphone Input
      • Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone
      • jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.
      • Line Input USB-C, Adjustable level
      • Headphone Output 3.5 mm TRRS headphone jack; 25 mW, R 32 ohms
      • Audio Output
      • Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB 041)
      • Line: USB-C, Adjustable level
      • Headphone Output 3.5 mm TRRS headphone jack; 25 mW, R 32 ohms
      • Audio Output
      • Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB 041)
      • Line: USB-C, Adjustable level
      • Range Up to 900 ft (274 m) (depending upon environmental conditions)
      • Modulation FSK
      • RF Ouptput 19 dBm Typical
      • Security
      • 87 bit encryption (300 Series Compatible),
      • 128+87 bit encryption, encryption PIN, Lock for settings
      • Side Tone -6 dB below volume, tone variation (Off, Low and High settings available)
      • Indicators OLED
      • LEDs
      • Red LED around Talk button when enabled;
      • Bi-color, changing green and red LED at top
      • Charging Connectors USB-C; Two contacts for use with CHG 412
      • Compatible Receiver
      • DLR 400 RCH, DLR 400 ALK,
      • DLT 300 with some limitations and DLR 360 with some limitations
      • Operating Temperature Range 14§ to 113§F (-10§ to 45§C)
      • Approvals FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki

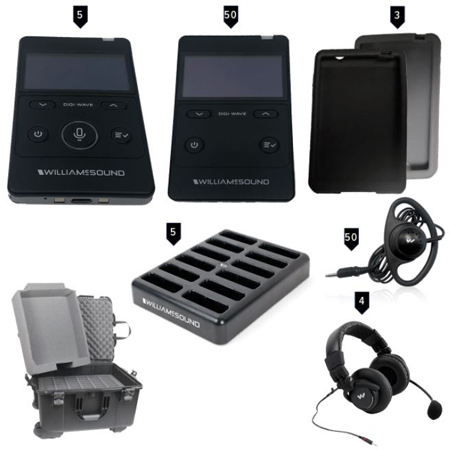

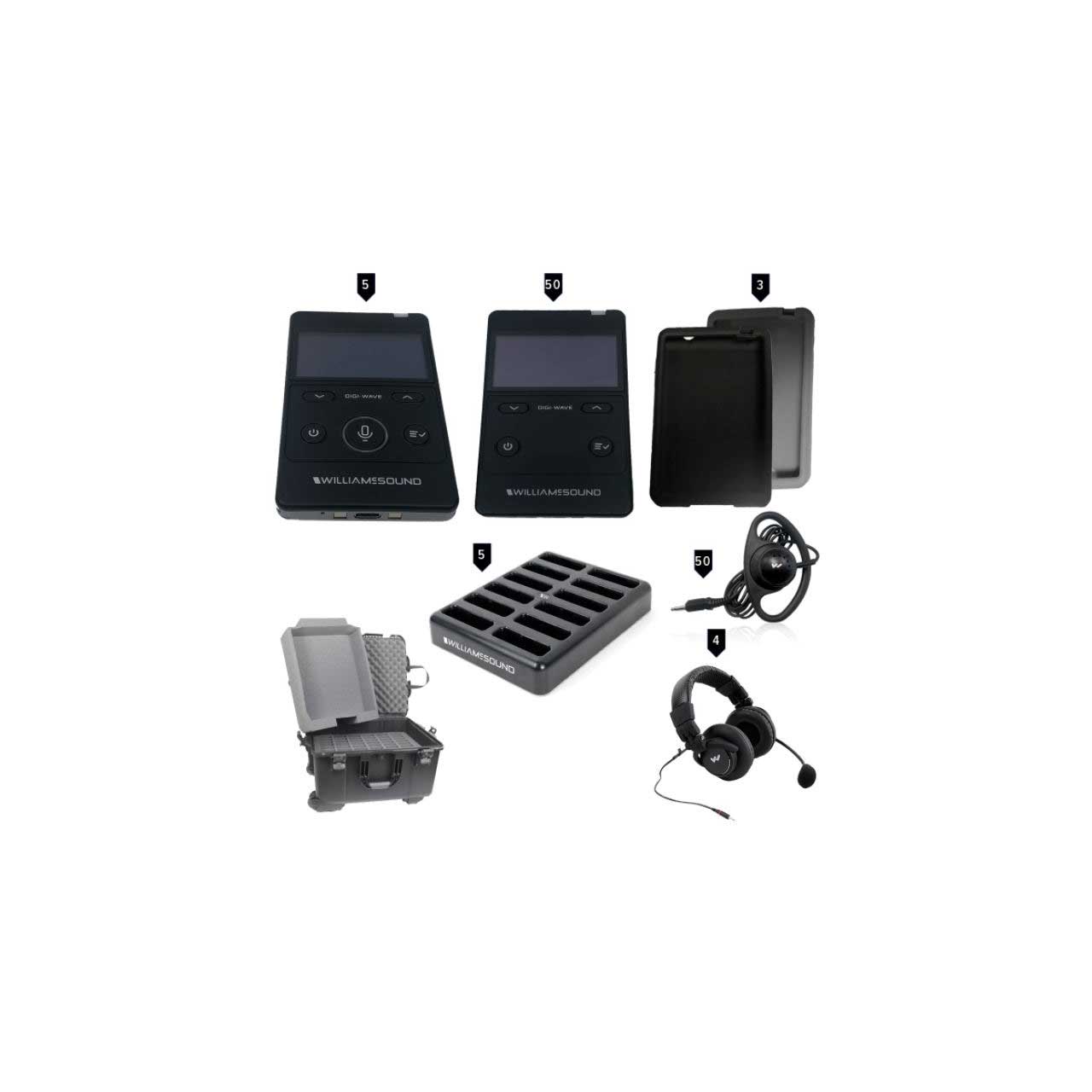

    • Item Includes:

      • (5) DLT 400 transceivers
      • (50) DLR 400 RCH receivers
      • (4) MIC 158 headset microphones
      • (50) EAR 022 surround earphones
      • (5) CHG 412 12-bay charger
      • (1) CCS 054 carry case
      • (4) CCS 061 GR grey silicone skin
      • (1) CCS 061 BK black silicone skins
