WILLIAMS AV PPA VP 37-00 Large Area Portable FM Assistive Listening System includes 1x Transmitter and 4x Receivers

PPA VP 37-00 - Overview

• Features:

  • PPA T27 transmitter
  • Up to 1000' operating range
  • Transmitter is FCC Part 15 compliant
  • Great for portable use
  • Flexible 3.5mm mic and RCA line-level inputs
  • Lifetime PLUS Limited Warranty. 90 days on accessories.
  • Transmitter is FCC Part 15 compliant


• Specifications:

  • WCA 013
  • Description: Single RCA - RCA audio cable
  • Used with: PPA T27, PPA T45, PPA T45NET audio input cable
  • Connector type: RCA - RCA
  • Cable type: Two-conductor
  • Impedance: N/A
  • Length: 3 ft

    IDP 008
  • 10-3/8" (L) x 6-1/4" (W) x 1/8" (H)

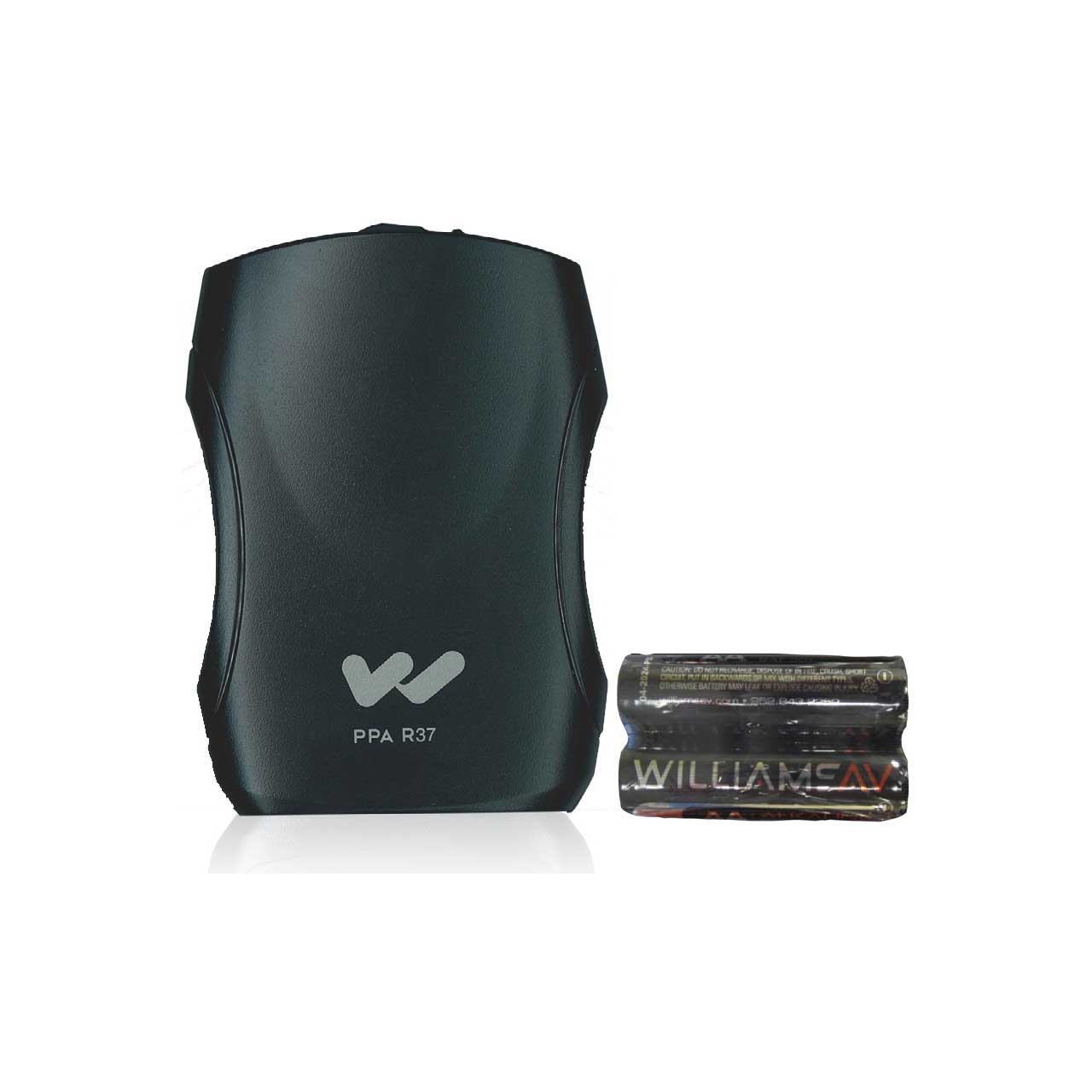

    PPA R37
  • Dimensions: 4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
  • Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries
  • Color: Black
  • Battery Type: (2) AA Alkaline or 2 x AA NiMH
  • Battery Life: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs
  • (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
  • Current Consumption: 52mA nominal
  • Temperature Range: - 0 to 50C
  • Channels 17, accessed via seek button in battery compartment
  • Operating Freq.: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
  • Intermediate Freq.: 75 kHz
  • FM Deviation: 75 kHz
  • De-Emphasis: 75 æS
  • LED Indicator: Power: Green; Low Battery: Flashes Green
  • AFC Range: ± 120 kHz
  • Sensitivity: 2 æV at 12 dB Sinad with squelch defeated
  • Input Overload: 100 mV
  • Frequency Response: 200 - 15 kHz
  • Modulation: FM, +/- 75 kHz peak deviation
  • Signal-to-Noise Ratio: 65 dB min @ 100 uV
  • Receive Antenna: Integral with earphone/headphone cord
  • Audio Output: 35 mW max, peak into 16 ohms
  • Output Connector: 3.5 mm stereo/mono phone jack

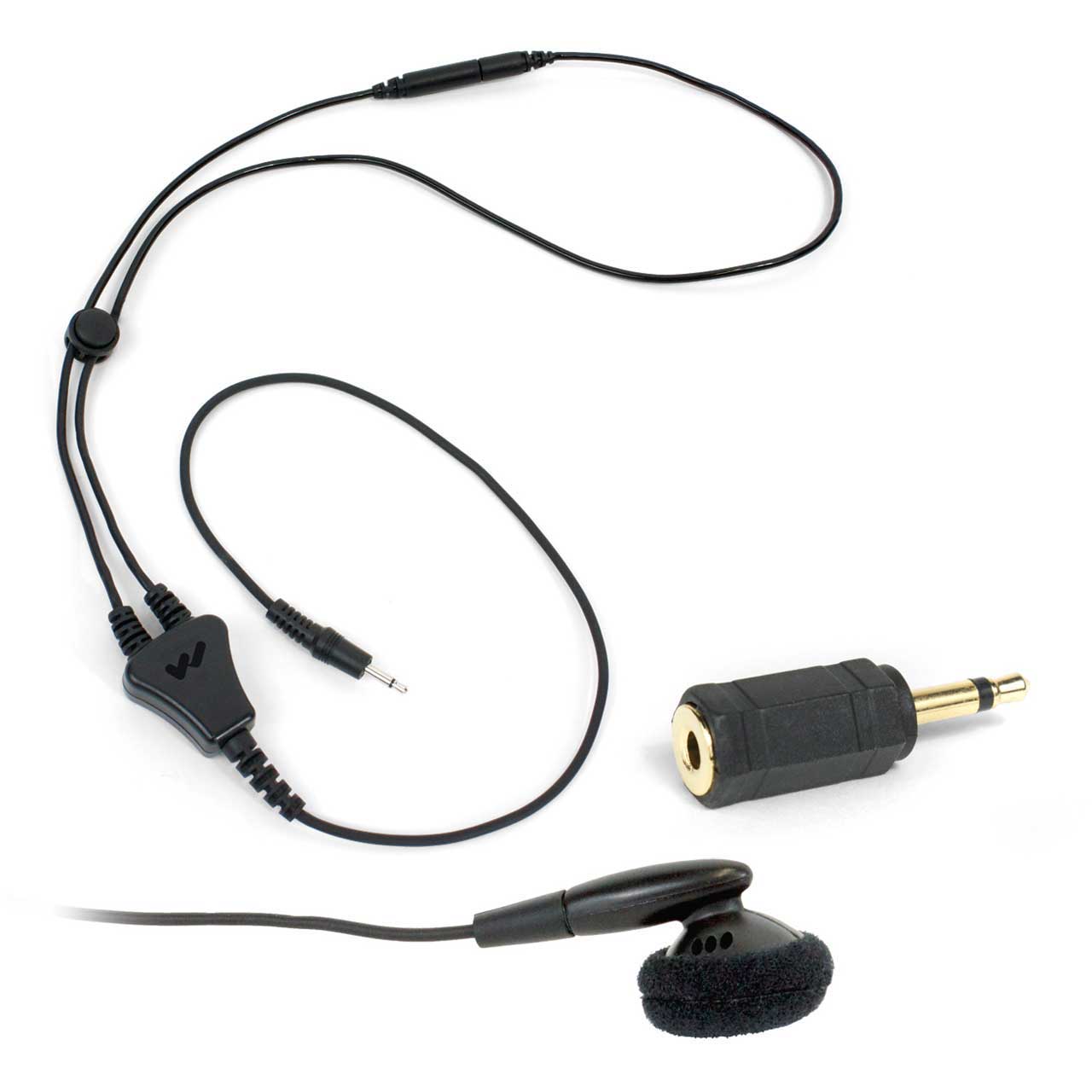

  • Earphone: Earbud-type with foam cushion, 3.5 mm plug, 32 Ω
  • Auto Shut-off Enters sleep mode after approx 6 mins of no RF signal
  • Approvals: FCC, Industry Canada, RoHS, WEEE
  • Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories.

    PPA T27
  • Dimensions [&] Weight: 4.1" W x 6.1" L x 1.3" H (104.1 mm x 154.9 mm x 33 mm)
  • 7.8 oz. (221 g)
  • Color: Black
  • Power (U.S./Canada): 105-130 VAC, 50-60 Hz, 3.2 W at 120 VAC
  • Operating Frequencies: 72-76 MHz*: 72.1 (CH A), 72.2 (CH K), 72.3 (CH B), 72.4 (CH N), 72.5 (CH C), 72.6 (CH O), 72.7 (CH D), 72.8 (CH P), 72.9 (CH E), 74.7 (CH I), 75.3 (CH J), 75.4 (CH R), 75.5 (CH F), 75.6 (CH S), 75.7 (CH G), 75.8 (CH T), 75.9 (CH H)
  • Frequency Selector: External switches, 17 channels (lockable)
  • RF Field Strength: Does not exceed 80mV/m @ 3m
  • Nominal Range: Up to 1000 feet (305 m) w/standard ANT 021 "rubber duckie" antenna or optional ANT 005 coaxial antenna.
  • Modulation: FM, 75 kHz deviation (wide-band) max.
  • Stability: ± .005% over 0-50°C
  • Pre-Emphasis: 75 æS
  • Frequency Response: 85Hz - 14kHz ±3dB
  • Distortion: 1% Max. THD
  • Signal to Noise Ratio: 65 dB with R35 Receiver
  • Microphone Input: 3.5mm mini phone jack, supplies +DC for electret mics
  • Mic Input Level: 1-10 mV, nominal
  • Line-Level Input: RCA Jack, Hi Z, unbal.
  • Line Input Level: .1-1 Vrms, nominal
  • Input Attenuator: Pot, screwdriver-adjustable
  • Antenna Outputs: Thread mount for ANT 021 "rubber duckie" antenna or ANT 025 telescoping antenna RF connector for ANT 024 dipole or ANT 005 coaxial antenna

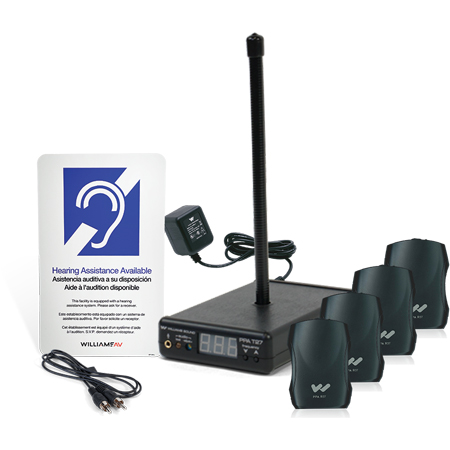

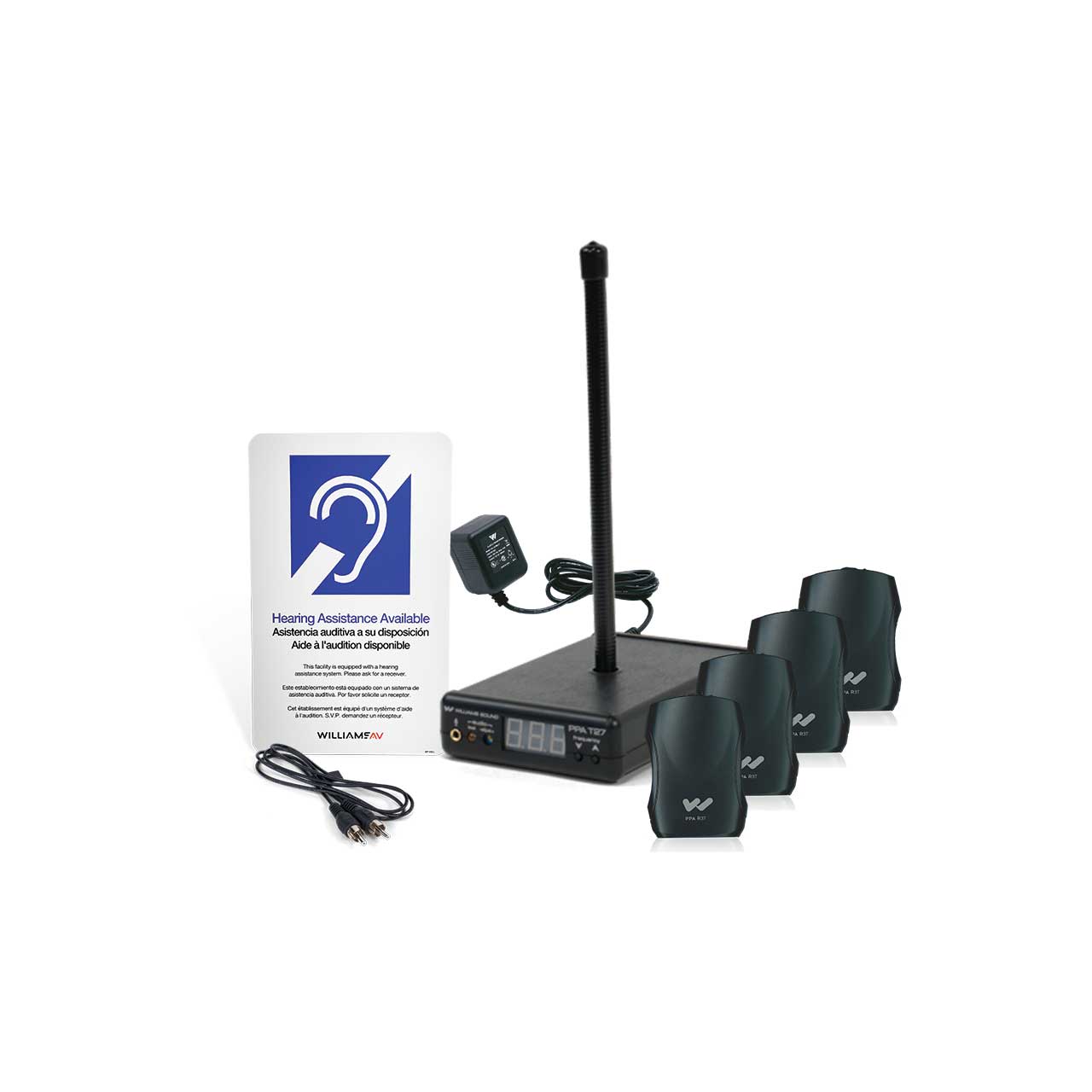

• Item Includes:

  • 1x PPA T27 Transmitter
  • 4x SELECT PPA R37 Receivers
  • 4x BAT 001-2 AA batteries
  • 1x IDP 008 Wall Plaque
  • 1x WCA 013 Audio Cable
  • 1x ANT 021 Antenna
  • 1x TFP 036 Power Supply
