Dynacord Powermate PM600-3 8-Channel Powered Mixer 4 Mic/Line + 4 Mic/Stereo Line Channels - USB Audio Interface

ITEM #: DYN-PM600-3-MIG MFG #: PM600-3

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$3,259.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    PM600-3 - Overview

    The PowerMate compact power mixers incorporate profound know-how, based on our research, development and inter-communication with our customers in the professional audio market, for decades.

    It incorporates not less than six dedicated audio devices into one compact frame: mixing console, two effects units, graphic equalizer, USB audio interface and power amplifier. Each of them is on the highest quality level as you would expect from a stand-alone device. The PowerMate is a real all-rounder for almost all applications with maximum feature set at minimum size.

    The mixing section starts with 6 lowest noise, discrete microphone preamps. 3 auxiliary busses, one of them switchable pre/post fader, allow high flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate-reverbs. Further, each preset can be edited and stored to 20 User memories.

    The built in USB audio interface shares 4 playback and 4 recording channels simultaneously with a PC or Mac, please see information on available drivers, following studio standard 24-bit / 96 kHz. An additional MIDI interface allows integration of instruments, such as keyboards. A license for Steinbergs Cubase software is part of the package.

    The 9 band stereo graphic equalizer allows precise tone control for speakers and room matching.

    The amplifier is extremely powerful with 2 x 1000 W / 4 Ohms (RMS). Due to modern switching mode power supply technology and a class-D output stage, it's very efficient and lightweight, too. An optional speaker protection allows limitation of long-term power without giving up dynamics.

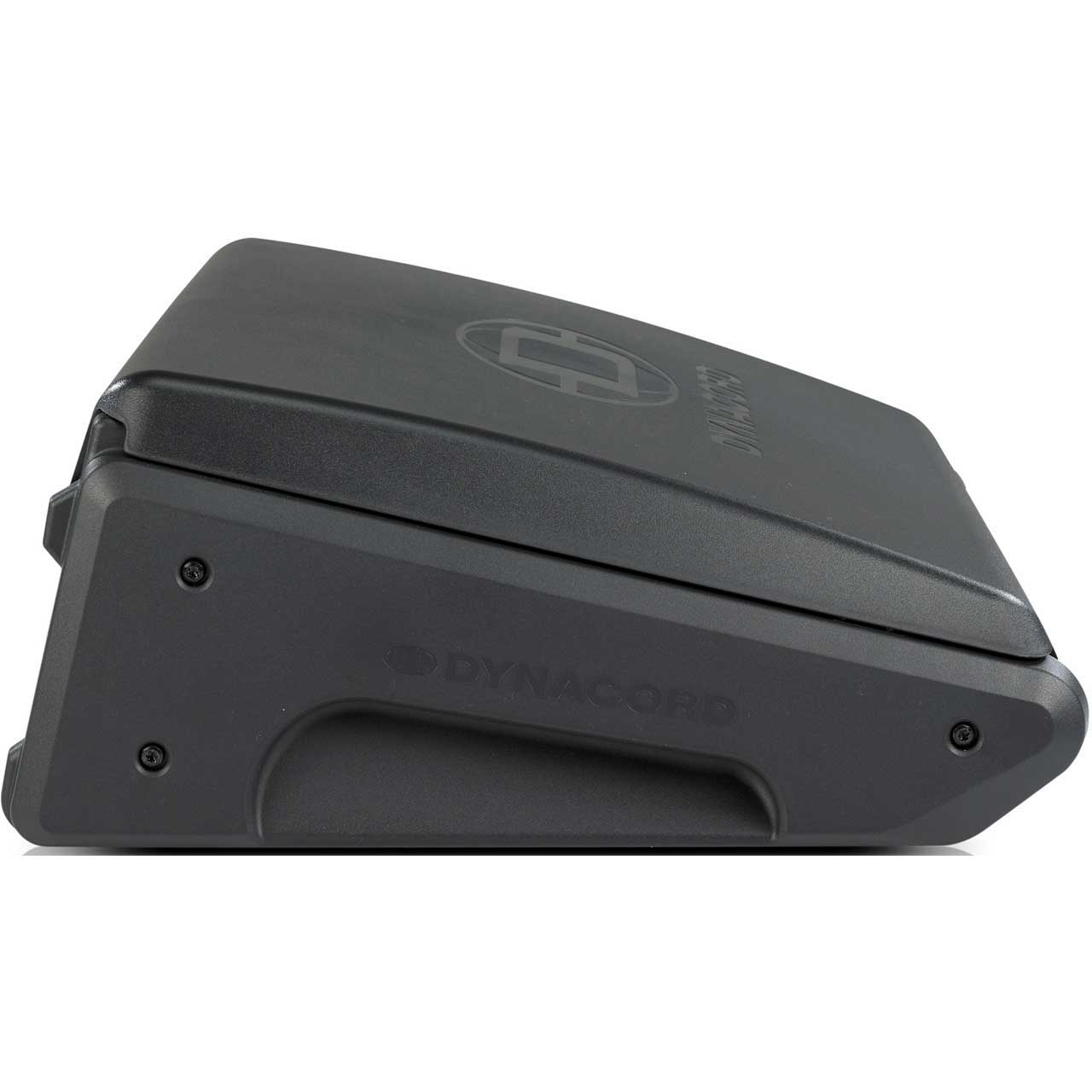

    Finally, the slim housing is protected by a rugged plastic lid, hold by strong snap in magnets.

    • Features:

      • Mixer with 8 input channels (4 Mic/Line + 2 Mic/Stereo-USB + 2 Stereo-Line)
      • Very powerful and reliable amplifier with 2 x 1.000 Watts / 4 Ohms
      • 2 High-Quality editable effects, 100 factory and 20 user presets
      • Professional 4x4 24-bit / 96 kHz USB interface with MIDI, please see information on available drivers
      • Lightweight (9.5 kg) road-ready package with extra robust cover-lid

    • Specifications:

      • Channels (Mono + Stereo): 4 + 4
      • Microphone Inputs (XLR): 6
      • Auxiliarys (MON, FX, AUX): 1 Pre, 1 Post, 1 Pre/Post switchable

        Max. Single Channel Output Power, Dynamic-Headroom, IHF-A
      • into 2.66 Ω: 2 x 1600 W
      • into 4 Ω: 2 x 1250 W
      • into 8 Ω: 2 x 675 W

        Max. Single Channel Output Power, Continuous, 1 kHz, THD = 1%
      • into 2.66 Ω: 2 x 1350 W
      • into 4 Ω: 2 x 1150 W
      • into 8 Ω: 2 x 650

        Maximum Midband Output Power, 1 kHz, THD = 1%, Dual Channel
      • into 2.66 Ω: 2 x 1350 W
      • into 4 Ω: 2 x 1000 W
      • into 8 Ω: 2 x 600 W

        Rated Output Power, 20 Hz to 20 kHz, THD < 0.5%, Single Channel
      • into 4 Ω: 2 x 900 W
      • into 8 Ω: 2 x 450 W

      • Maximum Output Voltage, of power amplifier, 1 kHz, no load: 74 Vrms. THD, at 1 kHz, MBW = 80 kHz
      • MIC input to Master A L/R outputs, +16 dBu, typical: < 0.005%
      • POWER AMP INPUTS to Speaker L/R outputs: < 0.075%
      • DIM 30, power amplifier, 3.15 kHz, 15 kHz: < 0.05%
      • IMD-SMPTE, power amplifier, 60 Hz, 7 kHz: < 0.15%
      • Frequency Response: -3 dB, ref. 1 kHz
      • Any input to any Mixer output: 15 Hz to 70 kHz
      • Any input to Speaker L/R output: 20 Hz to 30 kHz
      • Channels: 4 In / 4 Ωut
      • AD/DA Conversion: 24-bit
      • Sampling Rate: 44.1 / 48 / 88.2 / 96 kHz
      • PC Interface: USB2.0, Female Type B
      • Supported OS: See documentation
      • Peak Display: 6 dB before Clip
      • MIDI Interface: 5-pin DIN connector, In / Out
      • Output Power Control (Speaker Protection): Adjustable longterm RMS Limiter
      • Mixer Outputs, relay controlled: AUX, MON, MASTER A L/R
      • Amplifier: Audio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-on Delay, Back EMF
      • Switching Mode Power Supply (µC controlled): Inrush Current Limiters, Mains Over/Undervoltage, Mains Over Current, High Temperature
      • Cooling: Continuous speed controlled Fans
      • Phantom Power, switchable: 48 V DC
      • Power Requirements (SMPS with auto range mains input): 100 V to 240 V AC, 50 Hz to 60 Hz

    • Item Includes:

      • 1 PowerMate
      • 1 Owner's Manual (this document)
      • 1 Mains Cord (2 meters)
      • 1 Warranty Certificate including Safety Instructions
      • 1 Instruction card for Steinberg Cubase LE
      • 1 Software license sheet for Steinberg Cubase LE
