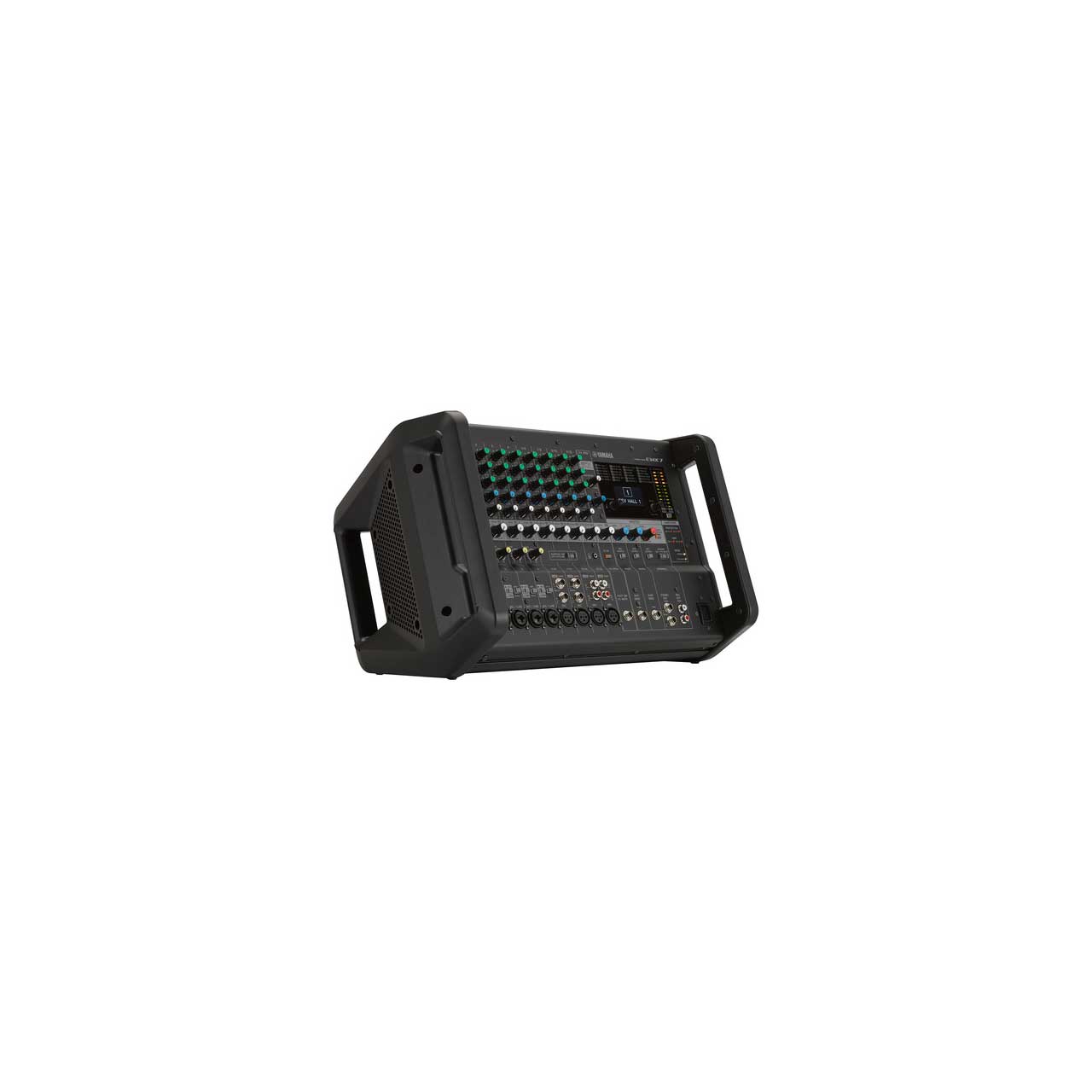

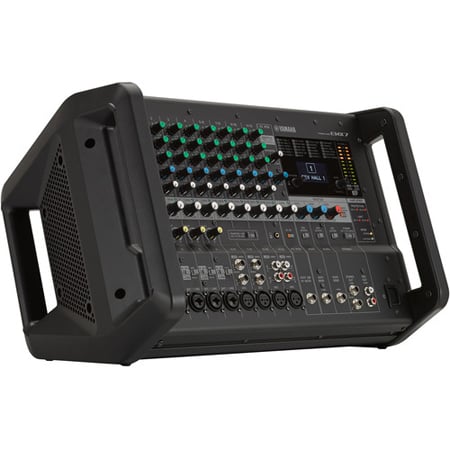

Yamaha EMX7 12-Input Stereo Powered Audio Mixer with Flex 9 Graphic Equalizer

ITEM #: YMH-EMX7 MFG #: EMX7

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Yamaha Corporation
Free Shipping with $49 Minimum Order

List Price:

$1,198.00

Our Price:

$899.99

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    EMX7 - Overview

    Get Serious About Your Sound
    The Yamaha EMX7 was designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Despite their compact construction, only speakers and a microphone are required to configure a fully functioning, extremely portable, and reliable sound system with all the tools you need to mix, process, and deliver your audio just the way you want, anywhere you want.

    Box-type robust and portable powered mixer featuring high efficiency power amplifier of 710W and mixer with comprehensive effects, Flex 9 Graphic Equalizer, speaker preset and built-in feedback suppressor.

    Powerful & High Efficiency Class-D Amplifier
    The EMX7 features a built-in high-efficiency power amplifier of 2 x 710W, 2 x 630W of output power respectively. Despite their low power consumption, these amps are capable of very high volume output, yet still manage to remain surprisingly lightweight. Both models also come equipped with an onboard overload protection function to improve reliability and prolong component life and performance quality.

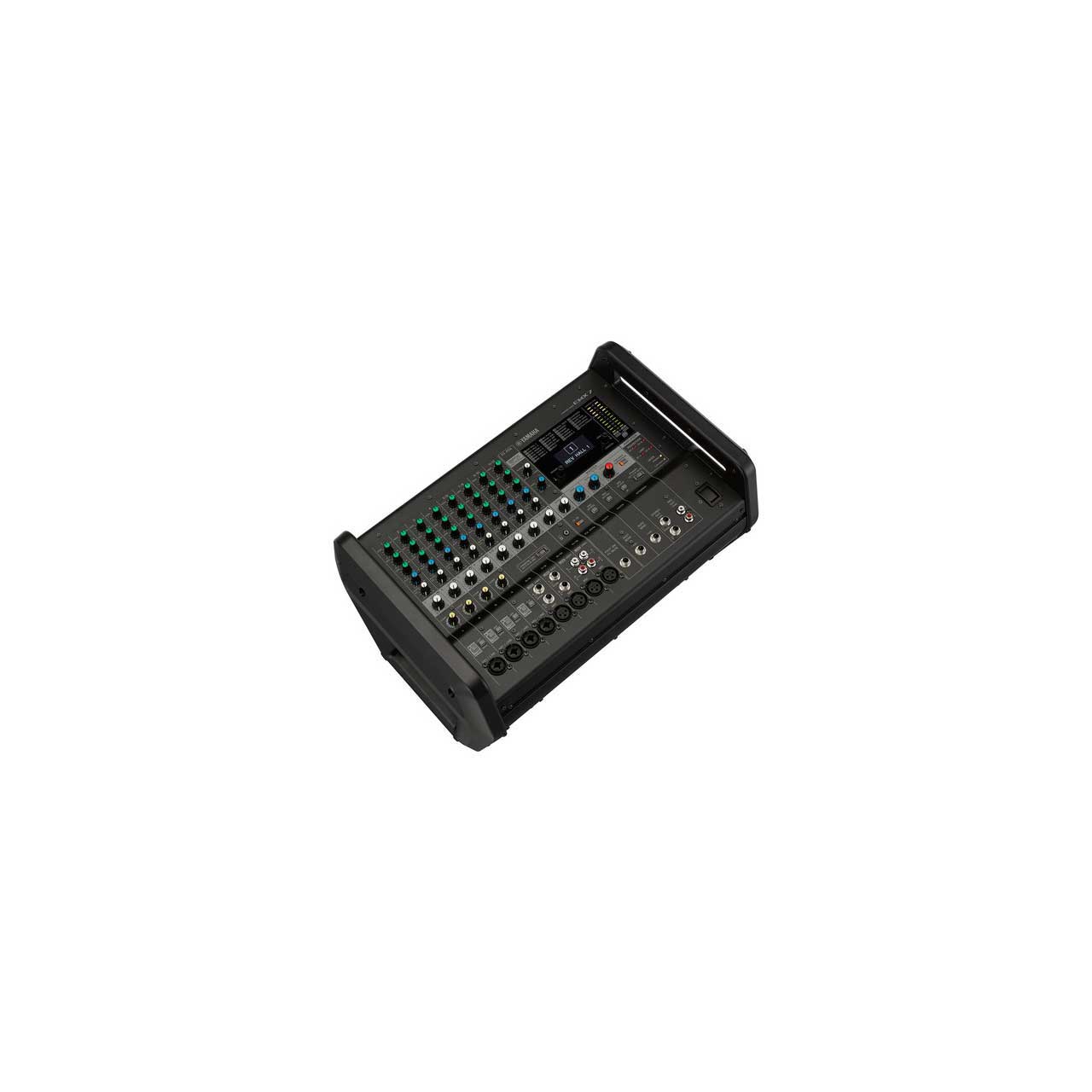

    Robust But Extremely Portable Design
    The EMX7 and EMX5 benefit from a robust and portable design with a rugged, impact-resistant, powder-coated metal chassis geared towards extended operation and road usage. Large handles on the front and back of the enclosure make it extremely portable, and also help to protect knobs and terminals on the surface of the chassis from impact or pressure during transport.

    Easy Setup, Easy Operation
    With their intuitive, user-friendly architecture, the EMX7 and EMX5 can be setup and operated quickly and easily by users with a fundamental understanding of sound reinforcement. Their versatile enclosure design allows users to choose from a variety of vertical or horizontal placements depending on the type of application. From a tabletop, floor, or installation environment no matter used on a tabletop or from a seated position with the mixer placed on the floor.

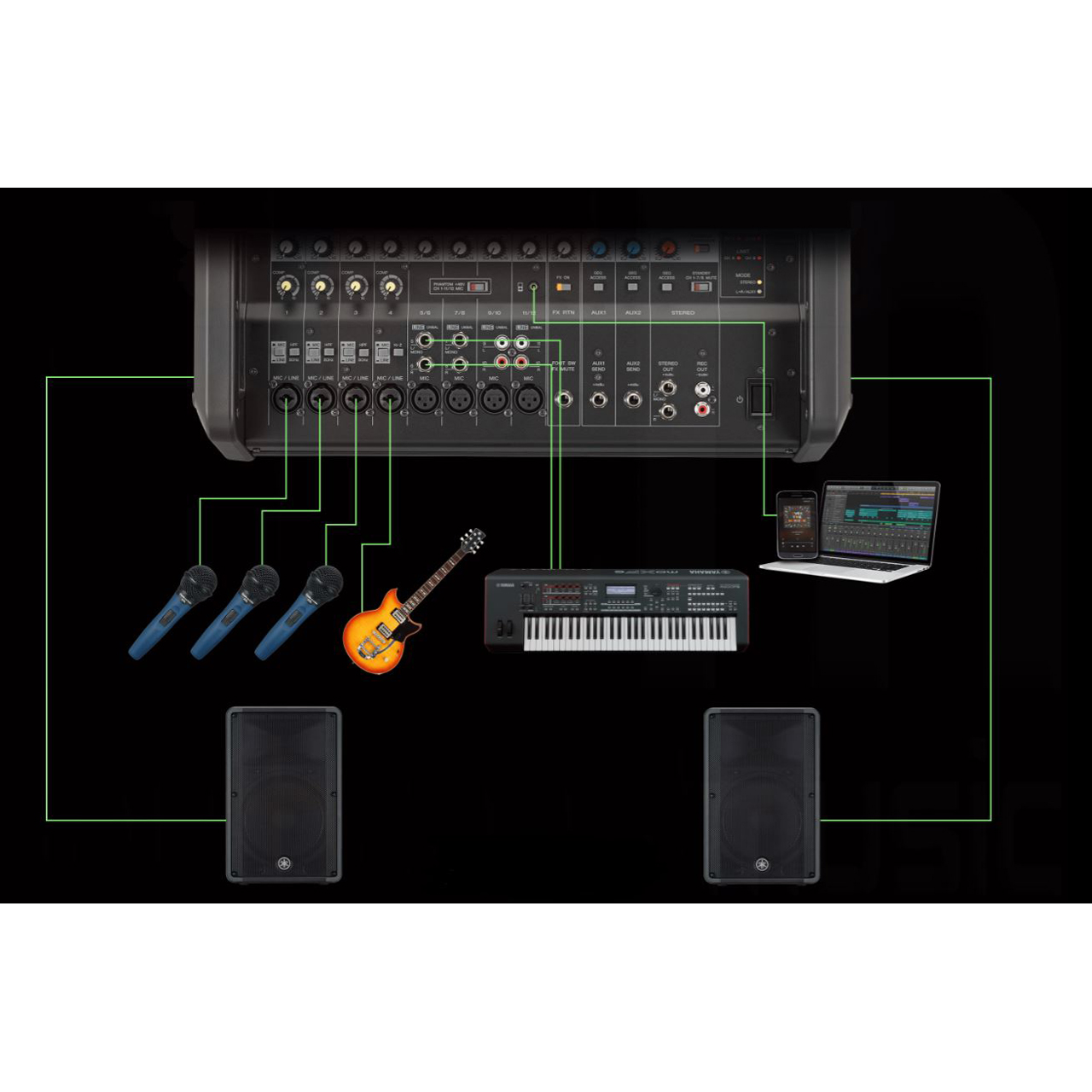

    Complete Range of Input & Output Channels
    Both the EMX7 and EMX5 are equipped with four mono input channels and four mono/stereo input channels, allowing up to 8 microphones, and line-level devices such as keyboards and portable playback device to be connected to each channel. In addition, channel 4 can be used with Hi-Z inputs to connect instruments such as guitars or basses directly. Each model is also equipped with 2 AUX SEND connections for a monitoring system or external effect devices, REC OUT unbalanced RCA pin output jacks to connect an external recorder, and STEREO OUT TRS phone jacks to output the mixed stereo signal.

    • Features:

      • Integrated 1420 W Power Amplifier
      • 8 Mono Mic/Line Inputs
      • Four Stereo Inputs
      • Hi-Z Input on Channel 4
      • Two Aux Sends w/ Dedicated Outputs
      • 3-Band EQ on Each Channel
      • Master EQ for Music Playback or Speech
      • Integrated Feedback Suppressor
      • Built-In SPX Multi-Effects
      • Compatible with 4 and 8 Ohm Speakers


    • Specifications:

      • Analog Input Characteristics
      • Input Connectors: Channels 1-4: 4x Combo XLR-1/4" / 6.35 mm
      • Channels 5/6: 1x XLR, 2x 1/4" / 6.35 mm
      • Channels 7/8: 1x XLR, 2x 1/4" / 6.35 mm
      • Channels 9/10: 1x XLR, 2x RCA
      • Channels 11/12: 1x XLR, 2x RCA, 1x 1/8" / 3.5 mm stereo mini-jack

        Load Impedance
      • Channels 1-4 (XLR Mic/Line): 3 kOhms actual, 50-600 Ohms nominal with mics
      • Channels 1-4 (1/4" Mic/Line): 8 kOhms, 600 Ohms line
      • Channel 4 (1/4", Hi-Z Engaged): 1 MOhms actual, 10 kOhms lines nominal
      • Channels 5-12 (XLR): 2 kOhms actual, 50 - 600 Ohms lines nominal
      • Channels 5-12 (1/4", RCA, 1/8"): 10 kOhms actual, 600 Ohms nominal

        Input Level Sensitivity
      • Channel 1-4 (XLR, Mic): -60 dBu (0.775 mV)
      • Channel 1-4 (XLR, Line): -30 dBu (24.5 mV)
      • Channel 1-4 (1/4", Mic): -50 dBu (2.45 mV)
      • Channel 1-4 (1/4", Line): -20 dBu (77.5 mV)
      • Channel 4 (Hi-Z Engaged, Mic): -50 dBu (2.45 mV)
      • Channel 4 (Hi-Z Engaged, Line): -20 dBu (77.5 mV)
      • Channels 5-12 (XLR): -60 dBu (0.775 mV)
      • Channels 5-8 (1/4"): -20 dBu (77.5 mV)
      • Channels 9-12 (RCA, 1/8"): -8 dBu (316 mV)

        Nominal
      • Channel 1-4 (XLR, Mic): -43 dBu (5.48 mV)
      • Channel 1-4 (XLR, Line): -13 dBu (173 mV)
      • Channel 1-4 (1/4", Mic): -33 dBu (17.3 mV)
      • Channel 1-4 (1/4", Line): -3 dBu (548 mV)
      • Channel 4 (Hi-Z Engaged, Mic): -33 dBu (17.3 mV)
      • Channel 4 (Hi-Z Engaged, Line): -3 dBu (548 mV)
      • Channels 5-12 (XLR): -43 dBu (5.48 mV)
      • Channels 5-12 (1/4", RCA, 1/8"): -3 dBu (548 mV)

        Maximum Before Clip
      • Channel 1-4 (XLR, Mic): -15 dBu (138 mV)
      • Channel 1-4 (XLR, Line): +15 dBu (4.36 V)
      • Channel 1-4 (1/4", Mic): -5 dBu (436 mV)
      • Channel 1-4 (1/4", Line): +25 dBu (13.8 V)
      • Channel 4 (Hi-Z Engaged, Mic): -5 dBu (436 mV)
      • Channel 4 (Hi-Z Engaged, Line): +20 dBu (7.75 V)
      • Channels 5-12 (XLR): -15 dBu (138 mV)
      • Channels 5-12 (1/4", RCA, 1/8"): +25 dBu (13.8 V)

        Analog Output Characteristic
      • Output Connectors: Stereo Out (L/R): 2x 1/4" / 6.35 mm balanced
      • Aux Sends (1/2): 2x 1/4" / 6.35 mm balanced
      • Rec Out (L/R): 2x RCA unbalanced
      • Impedance: Stereo Out (L/R): 600 Ohms actual, 10 kOhms Lines
      • Aux Sends (1/2): 600 Ohms actual, 10 kOhms Lines
      • Rec Out (L/R): 600 Ohms actual, 10 kOhms Lines
      • Output Level: Stereo Out (L/R): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping
      • Aux Sends (1/2): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping
      • Rec Out (L/R): -10 dBV (0.308 V) nominal, +18 dBV (7.75 V) max before clipping

      • Output Power:
      • 1 kHz THD+N < 10% (CEA2006): 710 W + 710 W (4 Ohms), 500 W + 500 W (8 Ohms)
      • 1 kHz THD+N < 1%: 600 W + 600 W (4 Ohms), 400 W + 400 W (8 Ohms)


    • Item Includes:

      • 1x Yamaha EMX7 12-Input Powered Mixer
      • 1x AC Power Cord


    • GTIN:

      0889025106245
