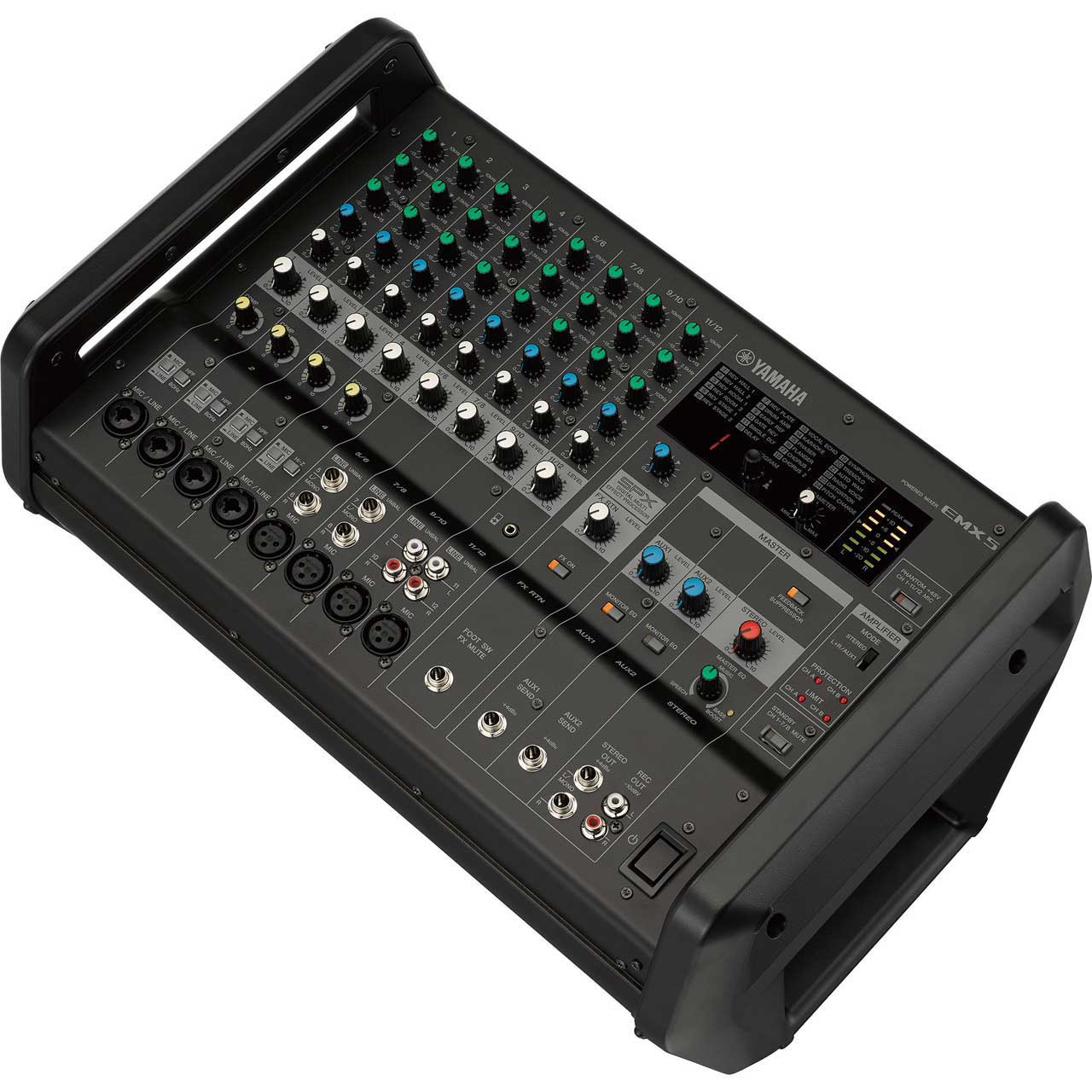

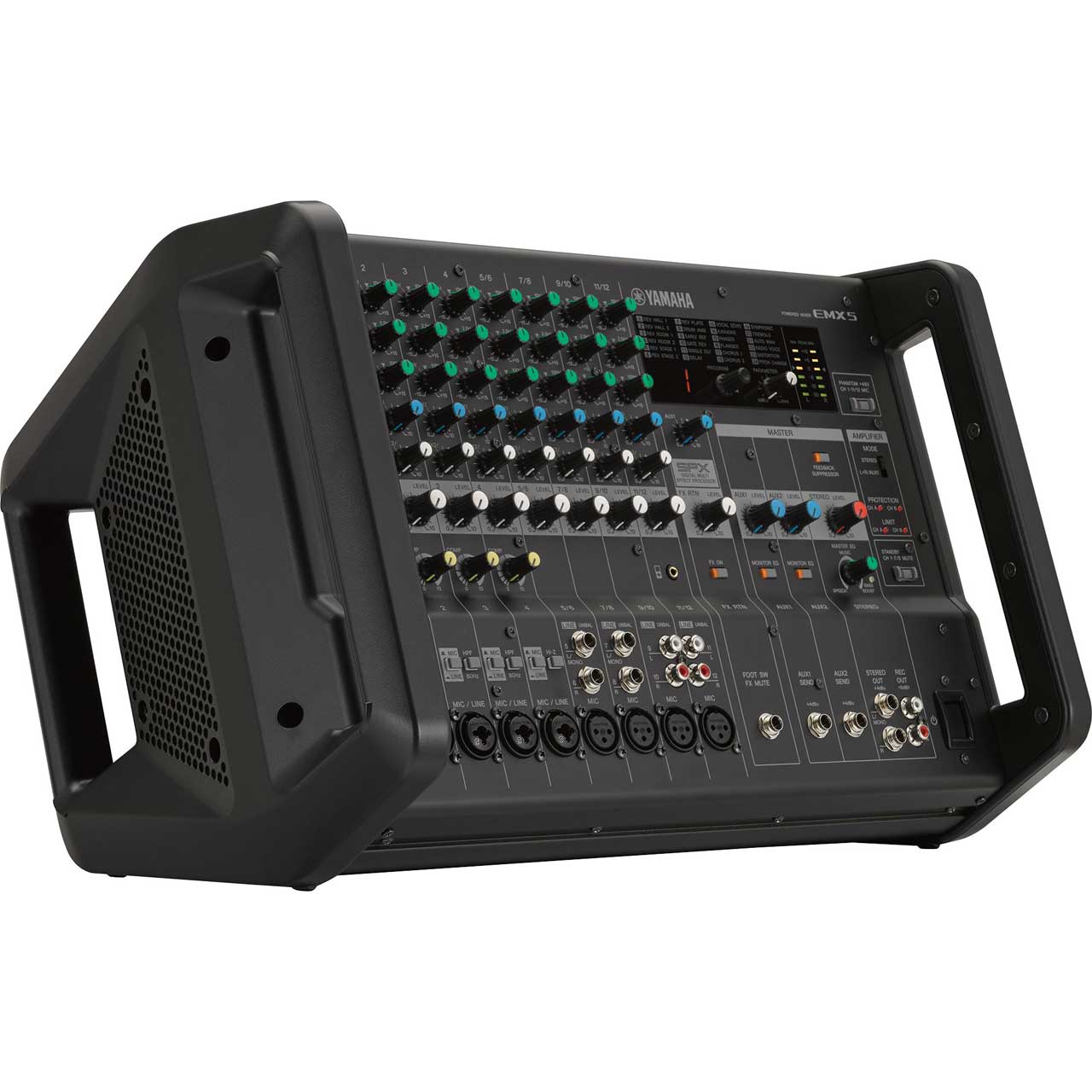

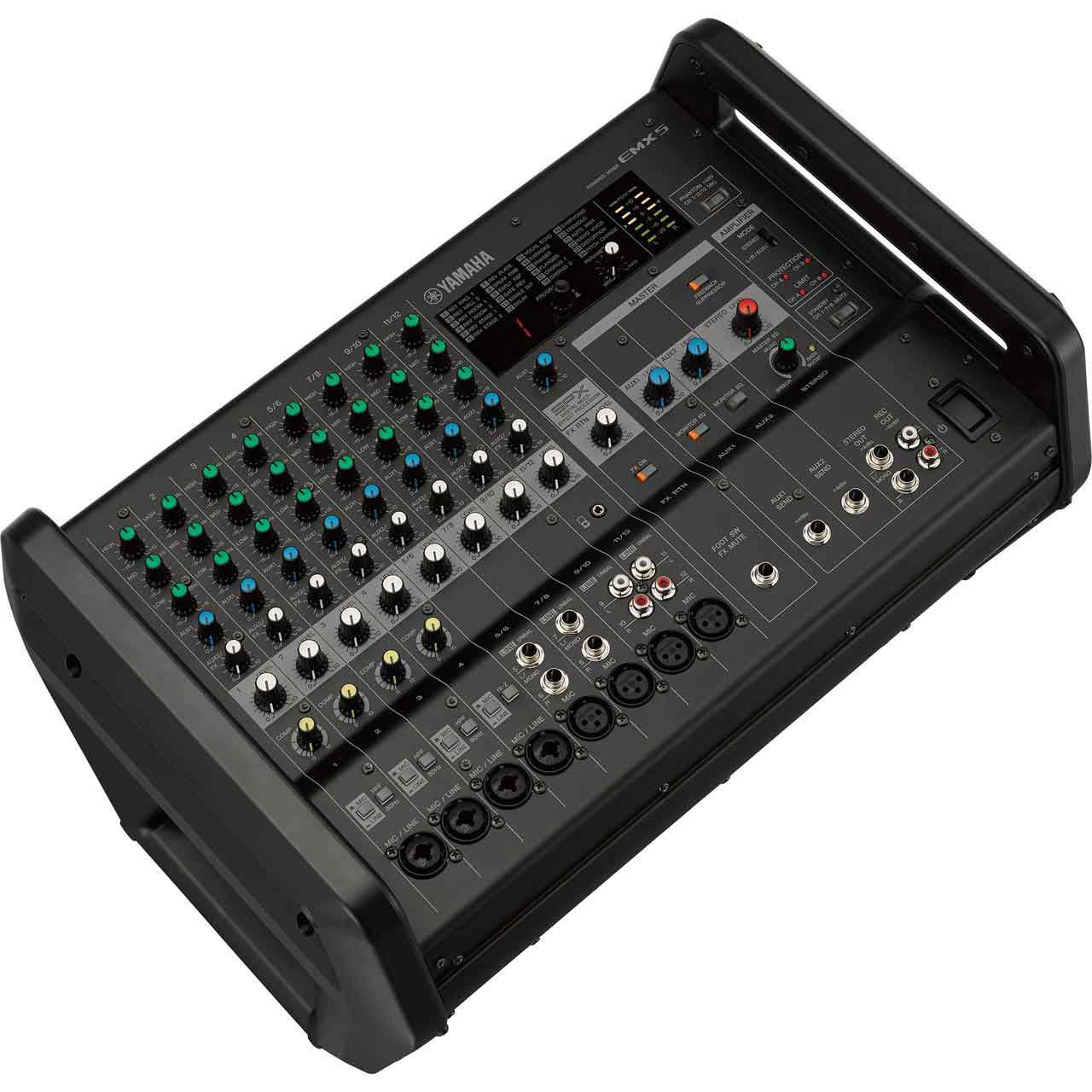

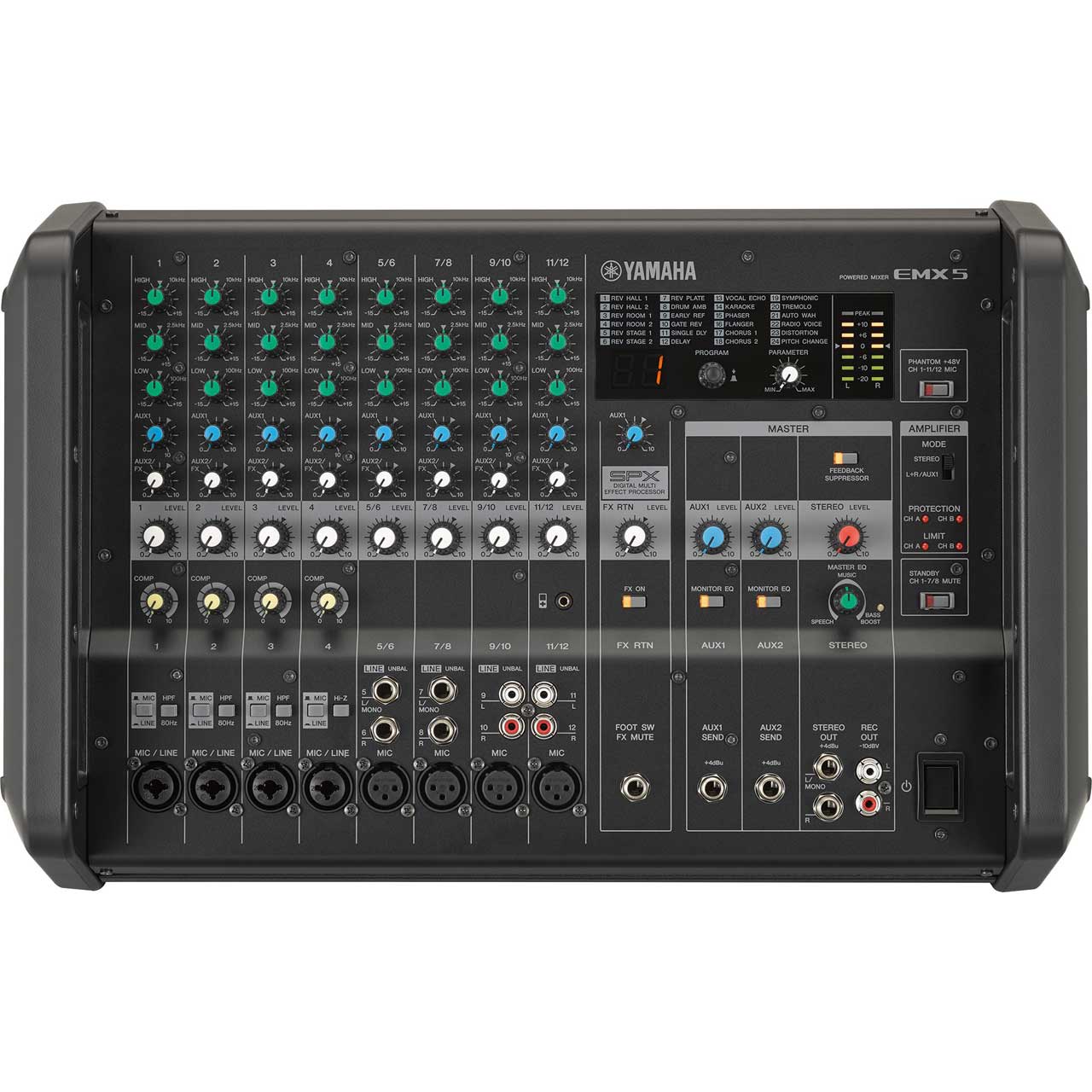

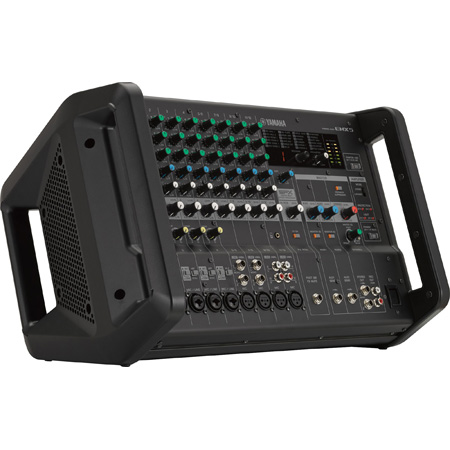

Yamaha EMX5 12-Input Stereo Powered Mixer - 24 SPX DSP - 200W Plus 630W at 4Ω

ITEM #: YMH-EMX5 MFG #: EMX5

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Yamaha Corporation
Free Shipping with $49 Minimum Order

List Price:

$932.00

Our Price:

$699.99

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    EMX5 - Overview

    The Yamaha EMX 5 is a 12-input powered mixer with an integrated 1260W amplifier, eight mic/line inputs, four stereo line inputs, and two Aux sends. The mixer features a Hi-Z guitar input on channel four and each channel offers a 3-band EQ for custom tailoring your sound. Channels 1-4 offer XLR-1/4" combo jacks. Channels 5 through 12 provide mono XLR inputs, with channels 5-8 offering 1/4" inputs and 9-12 offering an additional set of stereo RCA inputs. Channels 11/12 also include an 1/8" stereo mini-jack for connecting portable music players.

    The EMX 5 includes a single knob compressor on channels 1-4, an integrated feedback suppressor, and a built-in multi-effects processor with SPX series algorithms. Additionally, the mixer offers a Master EQ, which provides a single knob to control the level of low end. At the far left, the speech setting cuts low frequencies, while the middle position is neutral for music playback. The far right setting provides a Bass Boost to enhance music playback. Optional accessories available include a foot switch for effects bypass and a rack-mount kit. The EMX 5 ships with a standard IEC power cord.

    • Features:

      • 1260-watt power amplifier for versatility in a wide variety of performance applications
      • Compatible with 4 Ohm and 8 Ohm speakers
      • 12-channel mixer with four mono mic/line and four mono/stereo line input channels, supporting a wide range of inputs
      • Channels 1-4 offer a single knob compressor
      • Channels 1-3 offer an 80 Hz high-pass filter to reduce microphone rumble
      • Channel 4 offers a Hi-Z input for guitar
      • Two Aux sends via balanced 1/4" outputs. Aux 2 also sends to internal effects engine
      • Yamaha's high-quality SPX multi-effects, providing optimum processing for instruments or vocals
      • Feedback Suppressor, which automatically cuts and prevents undesirable feedback noise
      • Independent three-band equalizer on each channel for tonal adjustment and sound control
      • Master EQ with setting for speech and music playback
      • Stereo Output: Two balanced 1/4" outputs for connecting to powered speakers or an additional amplifier
      • Recording Output: Stereo RCA for connecting to a recorder


    • Specifications:

      • Analog Input Characteristics
      • Input Connectors: Channels 1-4: 4x Combo XLR-1/4" / 6.35 mm
      • Channels 5/6: 1x XLR, 2x 1/4" / 6.35 mm
      • Channels 7/8: 1x XLR, 2x 1/4" / 6.35 mm
      • Channels 9/10: 1x XLR, 2x RCA
      • Channels 11/12: 1x XLR, 2x RCA, 1x 1/8" / 3.5 mm stereo mini-jack

        Load Impedance
      • Channels 1-4 (XLR Mic/Line): 3 kOhms actual, 50-600 Ohms nominal with mics
      • Channels 1-4 (1/4" Mic/Line): 8 kOhms, 600 Ohms line
      • Channel 4 (1/4", Hi-Z Engaged): 1 MOhms actual, 10 kOhms lines nominal
      • Channels 5-12 (XLR): 2 kOhms actual, 50 - 600 Ohms lines nominal
      • Channels 5-12 (1/4", RCA, 1/8"): 10 kOhms actual, 600 Ohms nominal

        Input Level Sensitivity
      • Channel 1-4 (XLR, Mic): -60 dBu (0.775 mV)
      • Channel 1-4 (XLR, Line): -30 dBu (24.5 mV)
      • Channel 1-4 (1/4", Mic): -50 dBu (2.45 mV)
      • Channel 1-4 (1/4", Line): -20 dBu (77.5 mV)
      • Channel 4 (Hi-Z Engaged, Mic): -50 dBu (2.45 mV)
      • Channel 4 (Hi-Z Engaged, Line): -20 dBu (77.5 mV)
      • Channels 5-12 (XLR): -60 dBu (0.775 mV)
      • Channels 5-8 (1/4"): -20 dBu (77.5 mV)
      • Channels 9-12 (RCA, 1/8"): -8 dBu (316 mV)

        Nominal
      • Channel 1-4 (XLR, Mic): -43 dBu (5.48 mV)
      • Channel 1-4 (XLR, Line): -13 dBu (173 mV)
      • Channel 1-4 (1/4", Mic): -33 dBu (17.3 mV)
      • Channel 1-4 (1/4", Line): -3 dBu (548 mV)
      • Channel 4 (Hi-Z Engaged, Mic): -33 dBu (17.3 mV)
      • Channel 4 (Hi-Z Engaged, Line): -3 dBu (548 mV)
      • Channels 5-12 (XLR): -43 dBu (5.48 mV)
      • Channels 5-12 (1/4", RCA, 1/8"): -3 dBu (548 mV)

        Maximum Before Clip
      • Channel 1-4 (XLR, Mic): -15 dBu (138 mV)
      • Channel 1-4 (XLR, Line): +15 dBu (4.36 V)
      • Channel 1-4 (1/4", Mic): -5 dBu (436 mV)
      • Channel 1-4 (1/4", Line): +25 dBu (13.8 V)
      • Channel 4 (Hi-Z Engaged, Mic): -5 dBu (436 mV)
      • Channel 4 (Hi-Z Engaged, Line): +20 dBu (7.75 V)
      • Channels 5-12 (XLR): -15 dBu (138 mV)
      • Channels 5-12 (1/4", RCA, 1/8"): +25 dBu (13.8 V)

        Analog Output Characteristic
      • Output Connectors: Stereo Out (L/R): 2x 1/4" / 6.35 mm balanced
      • Aux Sends (1/2): 2x 1/4" / 6.35 mm balanced
      • Rec Out (L/R): 2x RCA unbalanced
      • Impedance: Stereo Out (L/R): 600 Ohms actual, 10 kOhms Lines
      • Aux Sends (1/2): 600 Ohms actual, 10 kOhms Lines
      • Rec Out (L/R): 600 Ohms actual, 10 kOhms Lines
      • Output Level: Stereo Out (L/R): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping
      • Aux Sends (1/2): +4 dBu (1.228 V) nominal, +20 dBu (7.75 V) max before clipping
      • Rec Out (L/R): -10 dBV (0.308 V) nominal, +18 dBV (7.75 V) max before clipping


    • GTIN:

      0889025106221
