Eartec EVADE EVX1055-CM Full Duplex Dual Channel Wireless Intercom System w/ 5 Single 5 Dual-Ear Headsets

ITEM #: EAR-EVX1055-CM MFG #: EVX1055-CM

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$4,630.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    EVX1055-CM - Overview

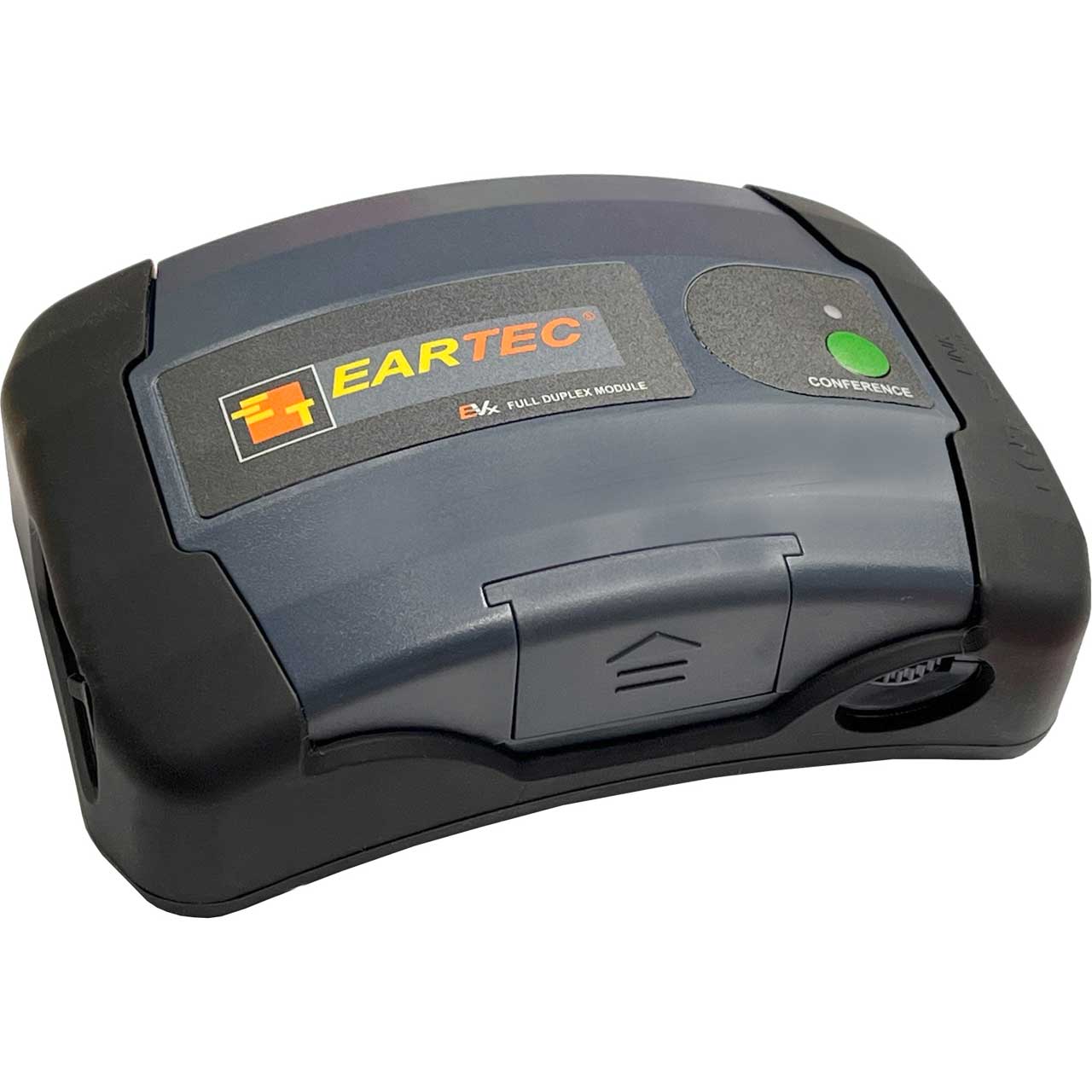

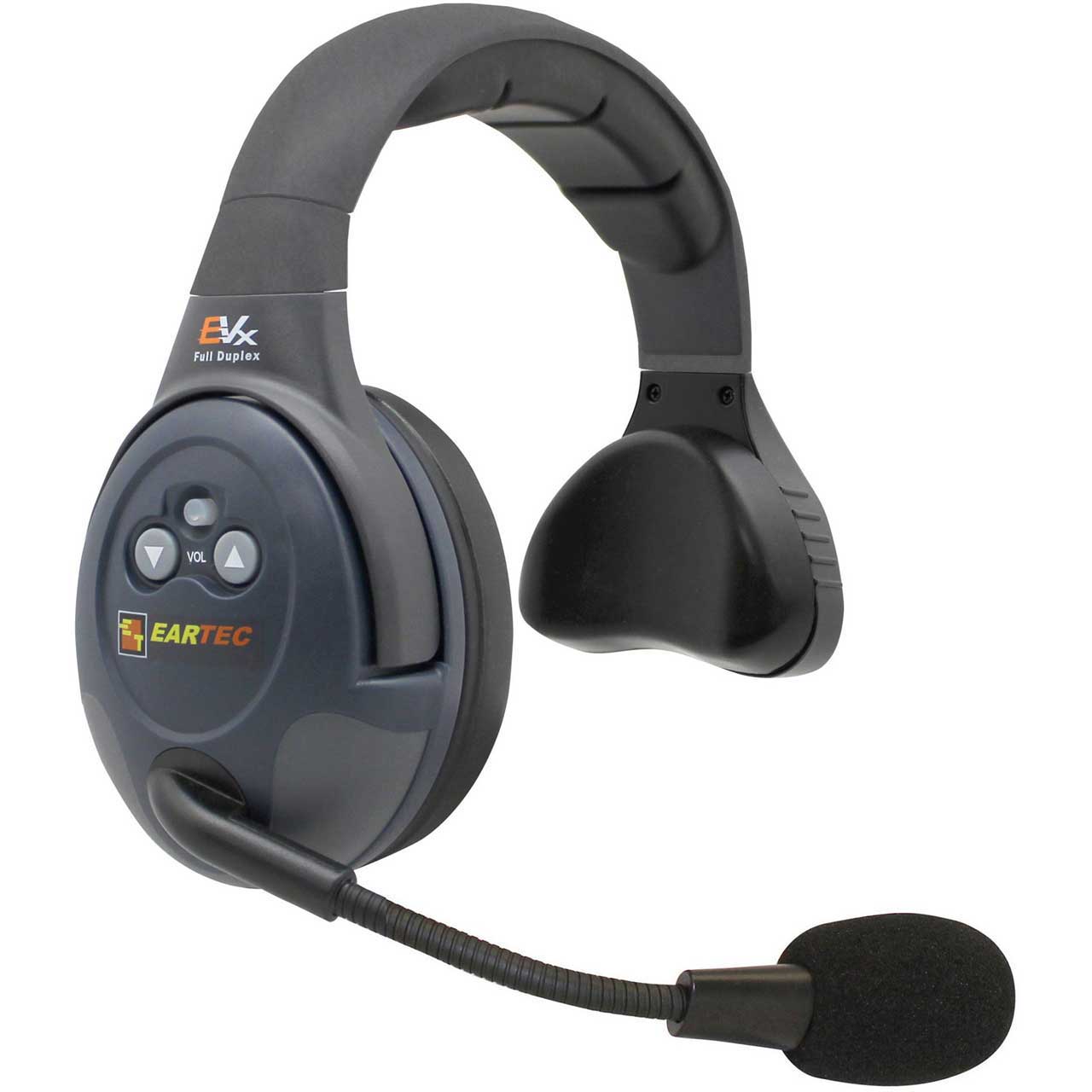

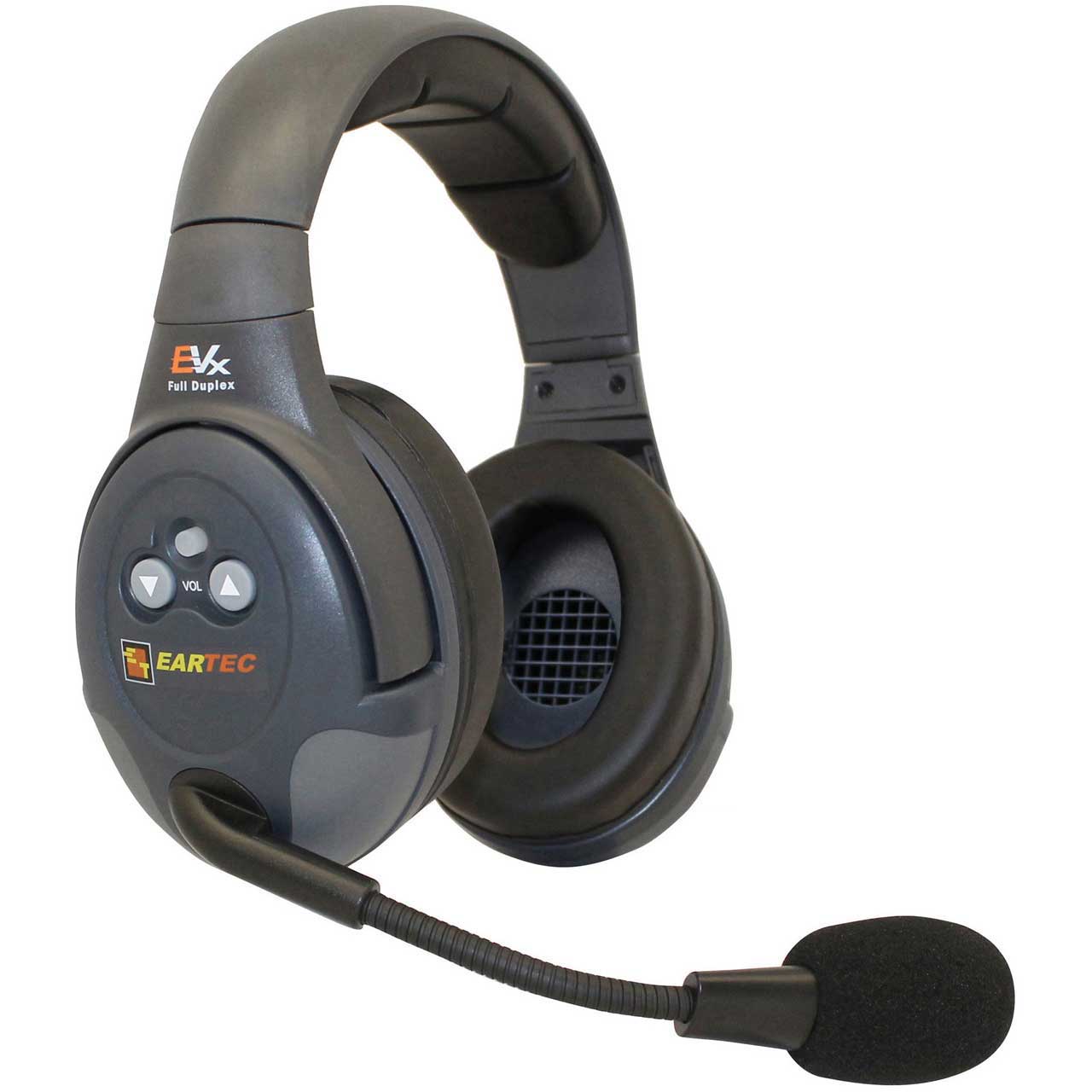

    The EVADE Custom Series includes both Single and Double full duplex wireless headsets. There may be situations where individuals on a production team require one ear free to closely monitor what is happening around them while others focus solely on the staff conversation and need both ears covered. The EVADE Custom Series accommodates this and any other scenario where a combination of dual and single ear headsets are required. All EVADE full duplex team communication intercoms allow users to talk simultaneously and hands free within a 1/2 mile range. They include a specialty "MAIN" headset that relays the digital signals transmitted by up to eight "Remote" units. To operate EVADE intercoms simply turn the headsets "ON" and talk, no tuning or base station required. EVADE headsets utilize Frequency Hopping technology automatically switching channels to dodge or "evade" interference. They also include Eartec's Auto Mute Mic boom that cuts off transmit gain when set to the UP position and swivels 270 degrees to be worn on either left or right. The Conference Module (included) provides a staff conference with a single touch of a button. The Conference Module is a compact wireless repeater that expands the capacity of any EVADE system from 9 to 16 users. This lightweight digital transceiver can either belt worn or placed centrally on location and features dual channels allowing two separate crews to talk privately. Pressing the conference button on the Module face connects the entire team, and tapping the button again re-separates the groups. Two Conference Modules can also be interlinked doubling system capacity to 32 users all connected in full duplex mode. Field programmable, smaller set-ups can and be easily expanded to meet your changing needs without factory programming or re-tuning.

    • Features:

      • Excellent performance - Range up to 1/2 mile Radio installed inside earcup, no wires or beltpacks
      • Li-Poly Batteries - Provide continuous 8 hr operation and are field replaceable
      • Auto Mute Boom - Mute when in UP position
      • Volume Control - Simple up / down push button adjustment Sealed for use outdoors in inclement conditions
      • Light Industrial Design - Wear comfortably for an 8 hour work shift
      • Field Programmable - Start small and add to your system as needed

    • Specifications:

      • Frequency Range: 2407MHz-2475MHz
      • Data Rate: 1MBPS
      • Bandwidth: 150KHz
      • Channel Spacing: 1MHz
      • Modulation Type: GFSK
      • Gain of Antenna: 0db
      • Duplexing: Time Division Duplex (TDD)
      • Speech Encoding: ADPCM/16kbit/s
      • RF Accessing: Time Division Multiple Access (TDMA)
      • Power Supply: Rechargeable Li-polymer Battery @ 3.7v/1000mAH
      • RF Output Power: 80mw
      • Operating Temperature: 0 - +50° C
      • Operating Relative Humidity Range: 30% - 90%
      • Operation Current: 110mA
      • Operation Time: 8h
      • Range: 1/2 mile (open field)

    • Item Includes:

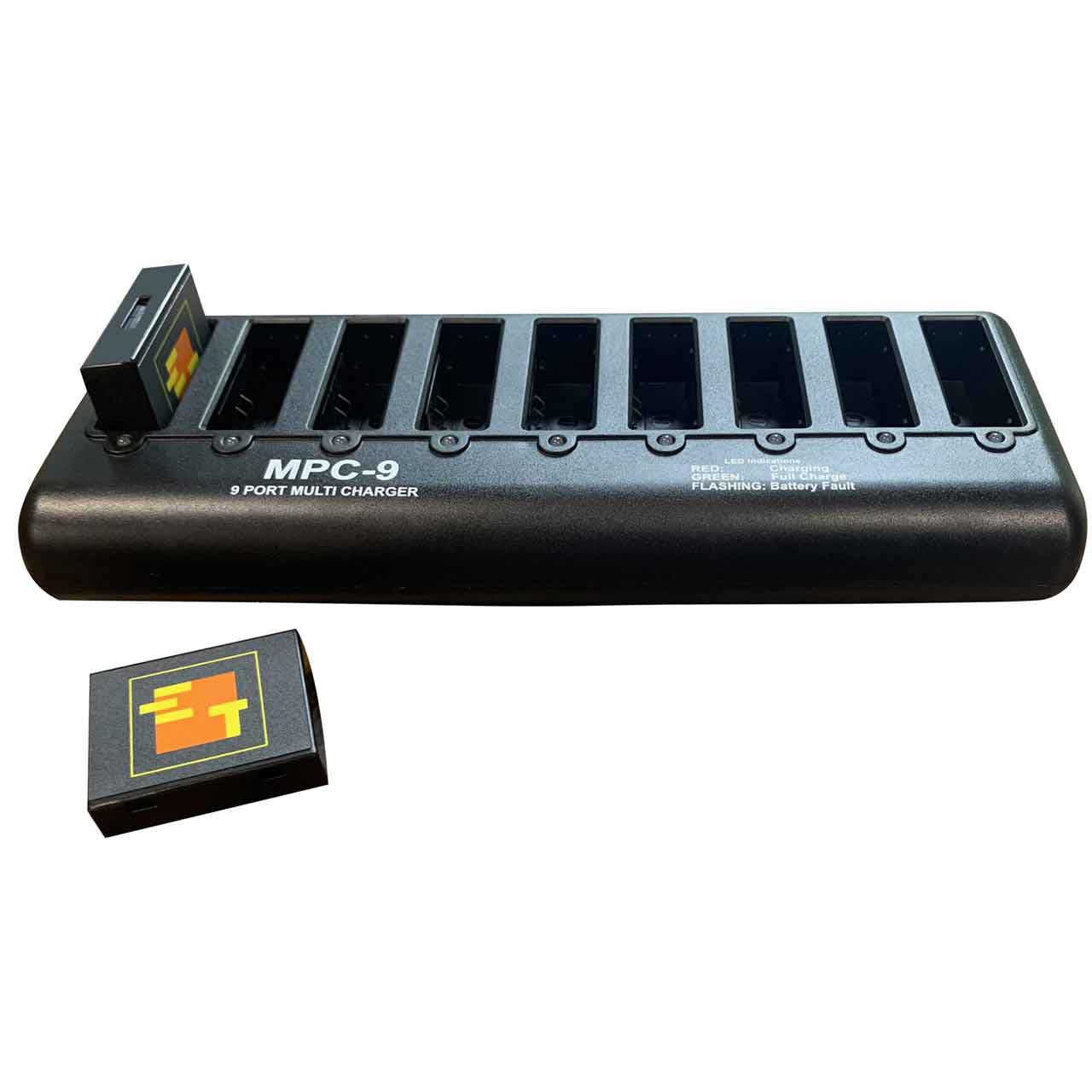

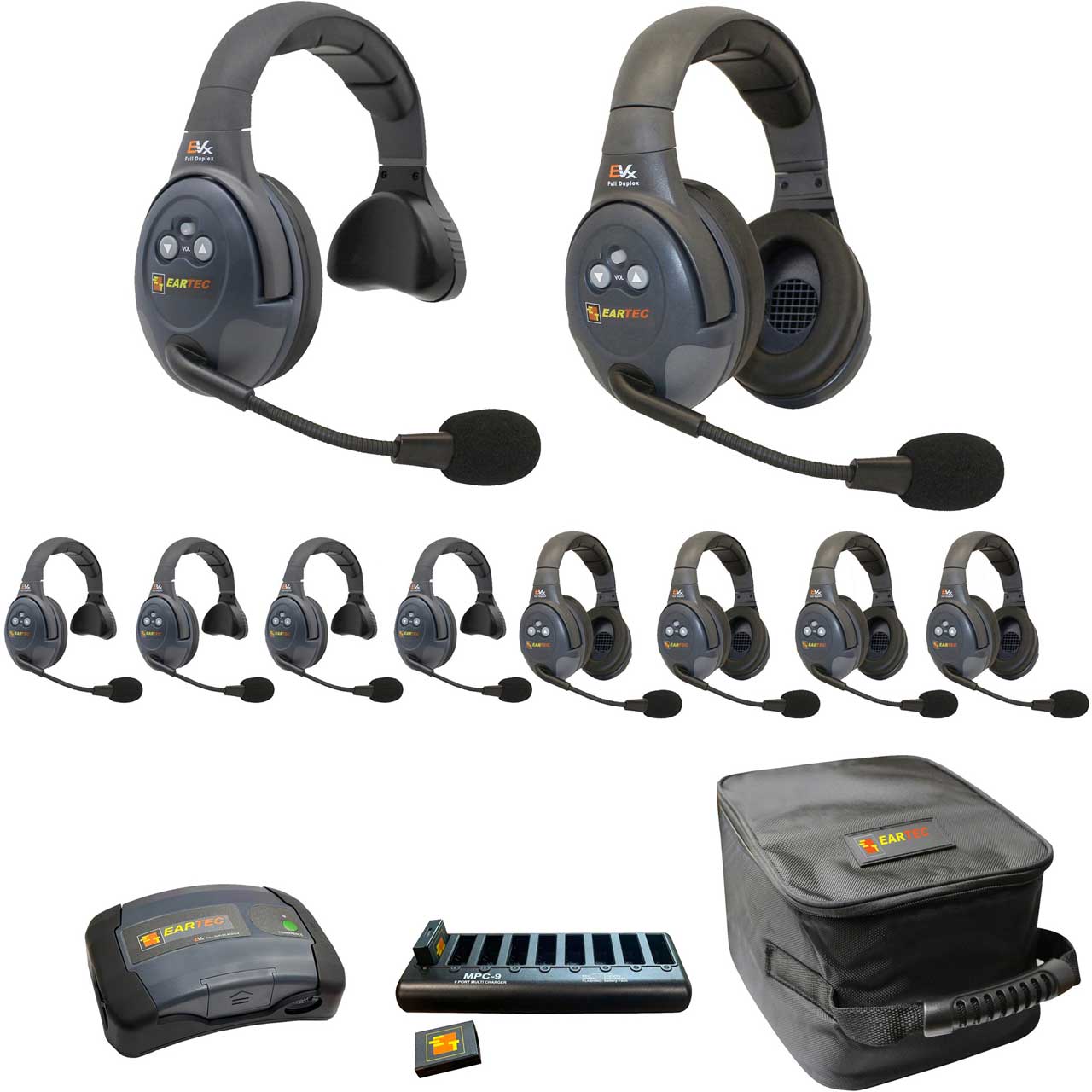

      • 1x EVADE C-MOD 2x EVADE Single-Ear Main Headset 4x EVADE Single-Ear Remote Headset 4 EVADE Double-Ear Remote Headsets 2x 9-Port Charger w/ Adapter 2 Extra large Soft Padded Case 10x Lithium-Polymer Batteries

    • Warranty:

      • 1 Year
