Eartec EVADE EVX9D-CM Full Duplex Dual Channel Light Industrial Wireless Intercom System w/ 9 Dual-Ear Headsets

ITEM #: EAR-EVX9D-CM MFG #: EVX9D-CM

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$4,235.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    EVX9D-CM - Overview

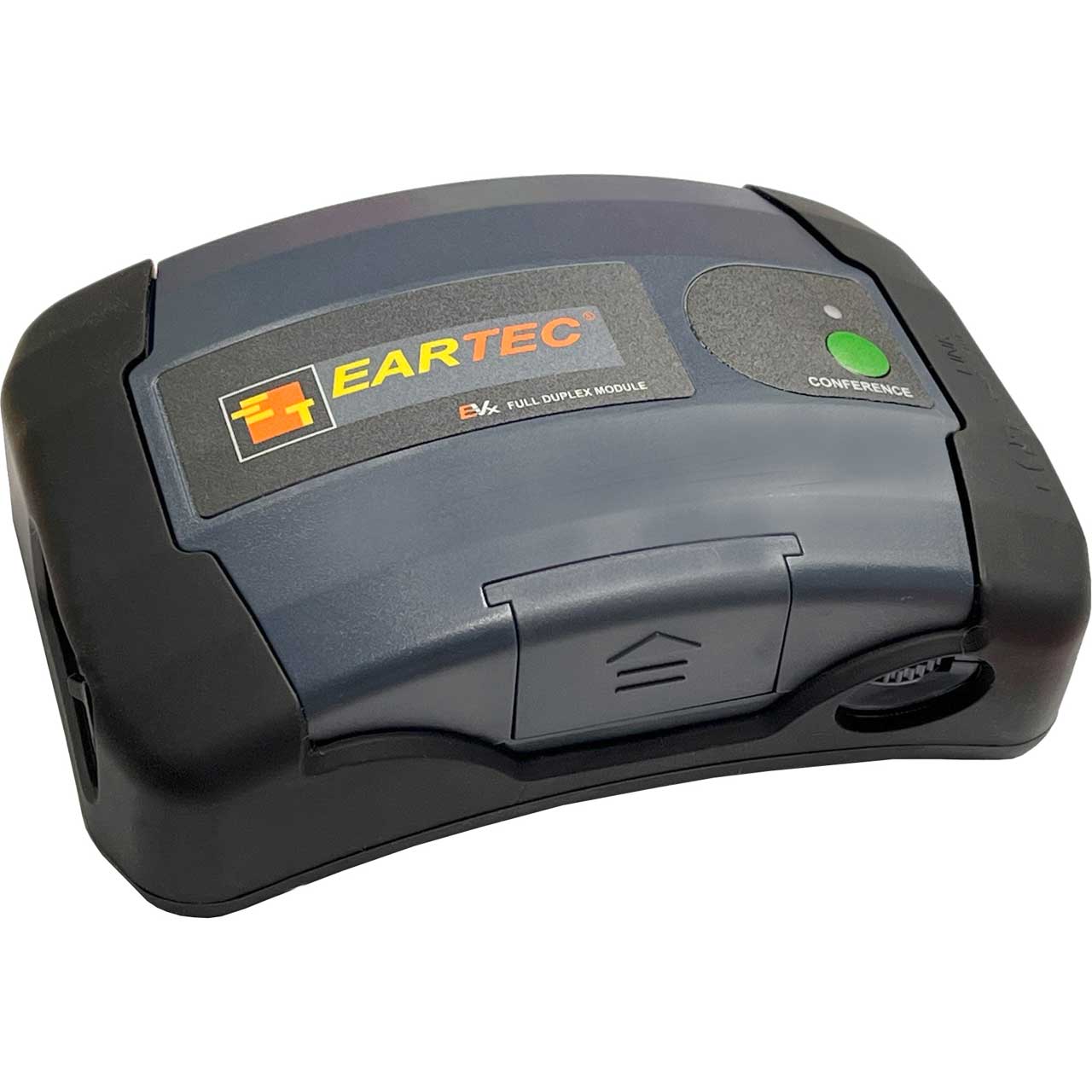

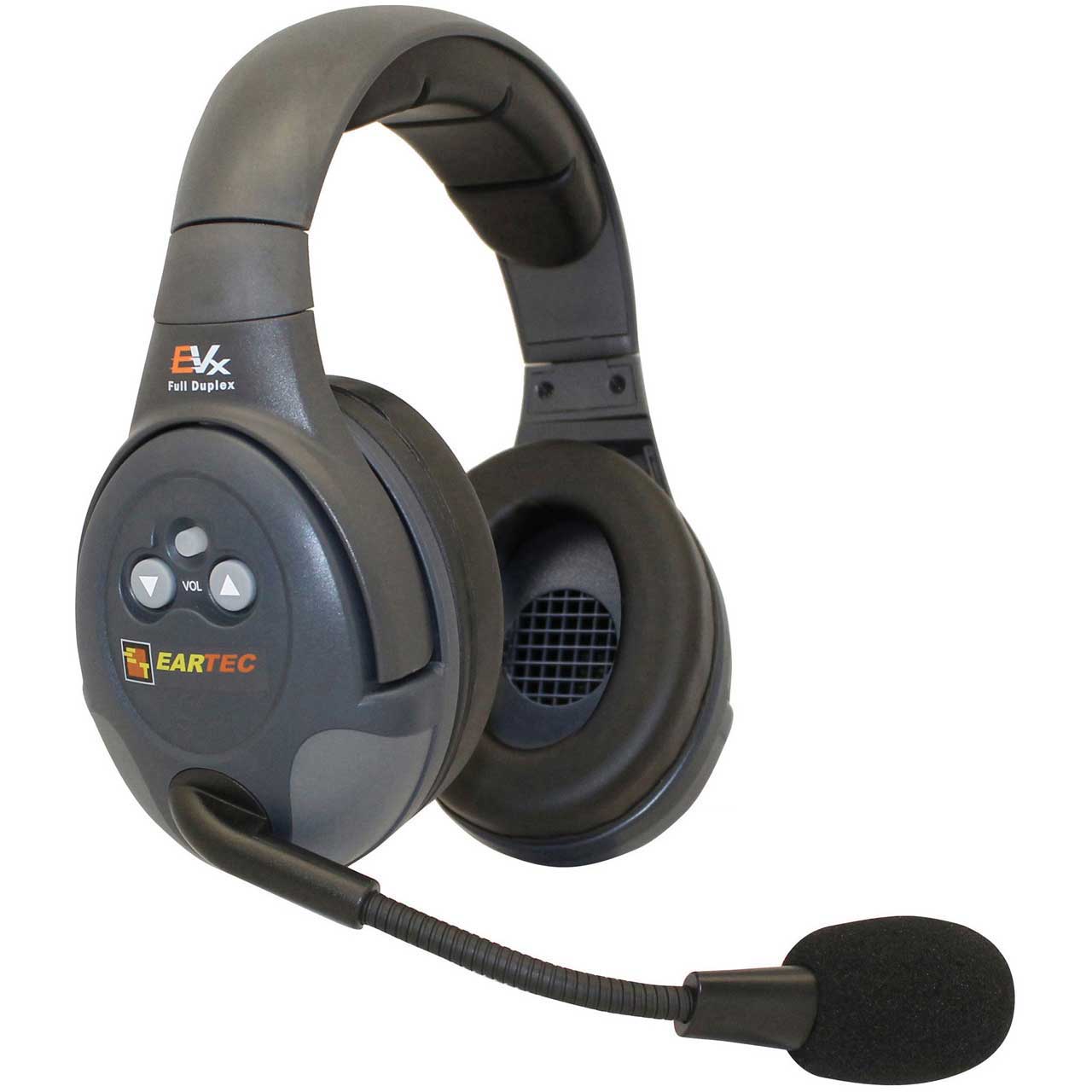

    The EVADE Double is the ultimate full duplex wireless headset in comfort and performance. Totally self-contained they feature Light Industrial design that provides a simultaneous talk, open line of team communication for up to 32 crew. EVADE Double are a dream to wear covering both ears with extra wide deluxe padding and do not require a cable, belt pack transceiver or even a base station. This smart engineering makes the EVADE series easy to operate, reliable, and affordable. Operation of the EVADE Double is controlled by a digital operating system known as Frequency Hopping. From the instant they are powered up the compact full duplex radio installed in the earcups continuously monitors the environment and automatically switches to channels that are clear to avoid interference. Frequency Hopping is digital wireless technology that provides crystal clear communication by circumventing or "evading" other wireless systems. The Conference Module (included) provides a staff conference with a single touch of a button. The Conference Module is a compact wireless repeater that expands the capacity of any EVADE system from 9 to 16 users. This lightweight digital transceiver can either belt worn or placed centrally on location and features dual channels allowing two separate crews to talk privately. Pressing the conference button on the Module face connects the entire team, and tapping the button again re-separates the groups. Two Conference Modules can also be interlinked doubling system capacity to 32 users all connected in full duplex mode. Field programmable, smaller set-ups can and be easily expanded to meet your changing needs without factory programming or re-tuning.

    • Features:

      • Excellent performance - Range up to 1/2 mile Radio installed inside earcup, no wires or beltpacks
      • Li-Poly Batteries - Provide continuous 8 hr operation and are field replaceable
      • Auto Mute Boom - Mute when in UP position
      • Volume Control - Simple up / down push button adjustment Sealed for use outdoors in inclement conditions
      • Light Industrial Design - Wear comfortably for an 8 hour work shift
      • Field Programmable - Start small and add to your system as needed

    • Specifications:

      • Frequency Range: 2407MHz-2475MHz
      • Data Rate: 1MBPS
      • Bandwidth: 150KHz
      • Channel Spacing: 1MHz
      • Modulation Type: GFSK
      • Gain of Antenna: 0db
      • Duplexing: Time Division Duplex (TDD)
      • Speech Encoding: ADPCM/16kbit/s
      • RF Accessing: Time Division Multiple Access (TDMA)
      • Power Supply: Rechargeable Li-polymer Battery @ 3.7v/1000mAH
      • RF Output Power: 80mw
      • Operating Temperature: 0 - +50° C
      • Operating Relative Humidity Range: 30% - 90%
      • Operation Current: 110mA
      • Operation Time: 8h
      • Range: 1/2 mile (open field)

    • Item Includes:

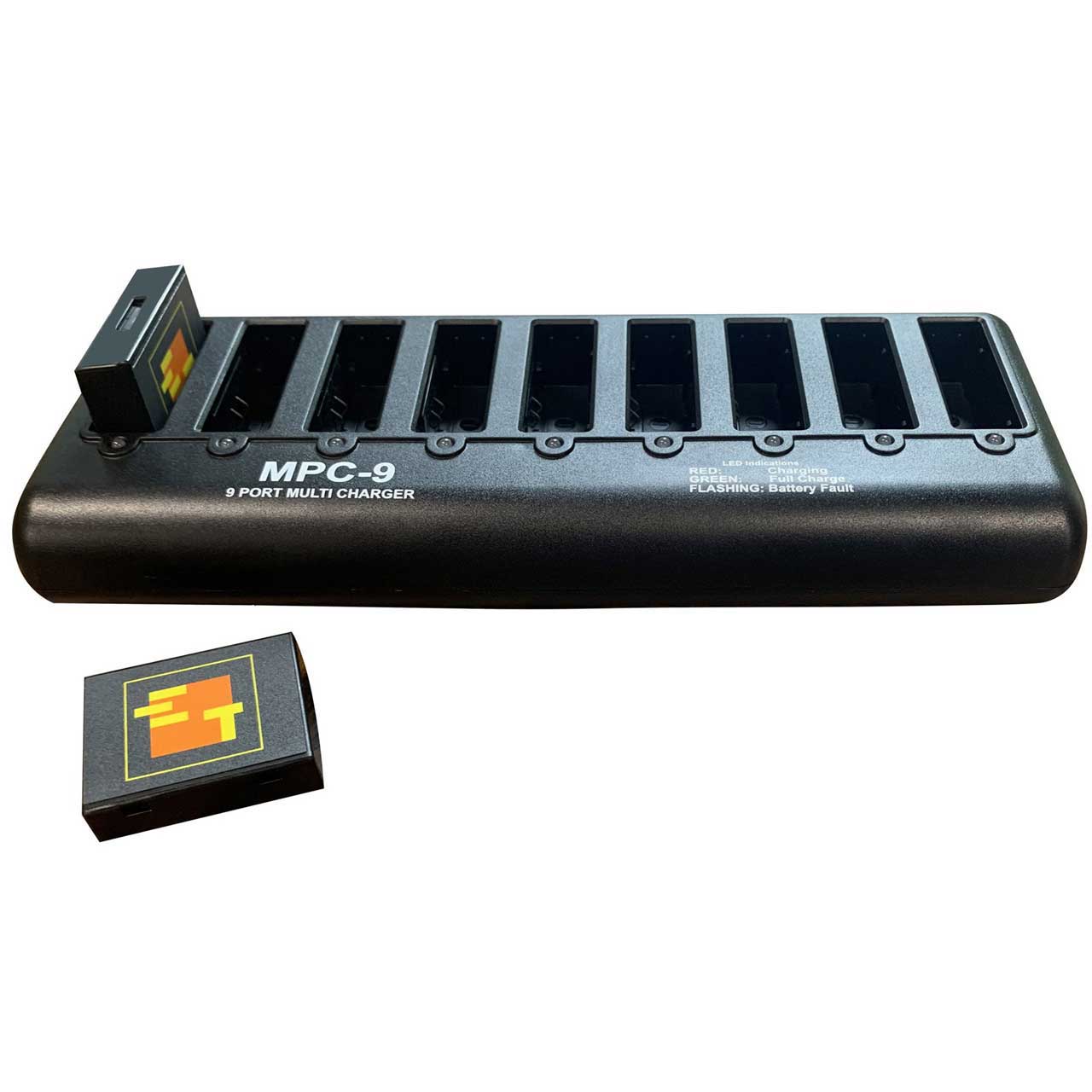

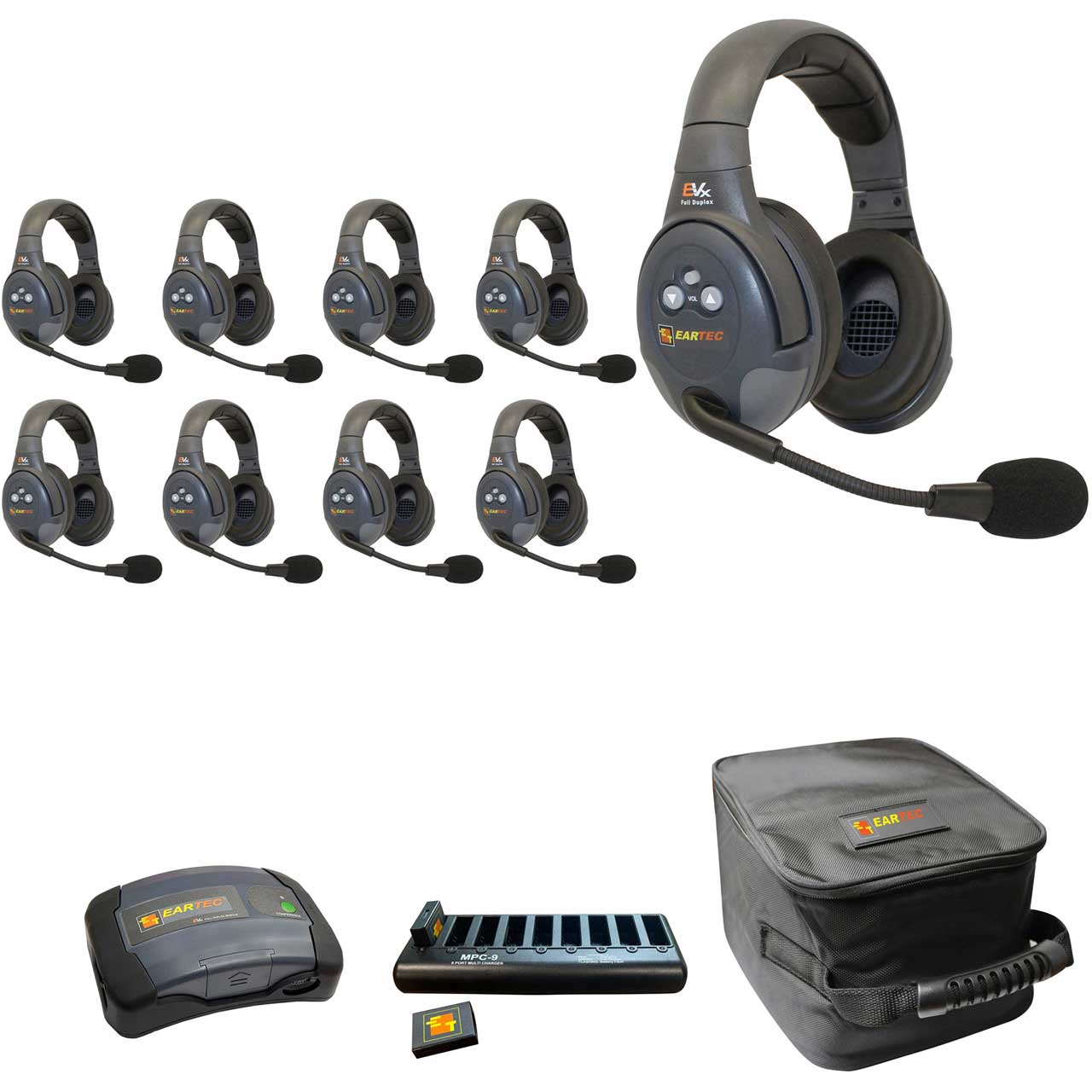

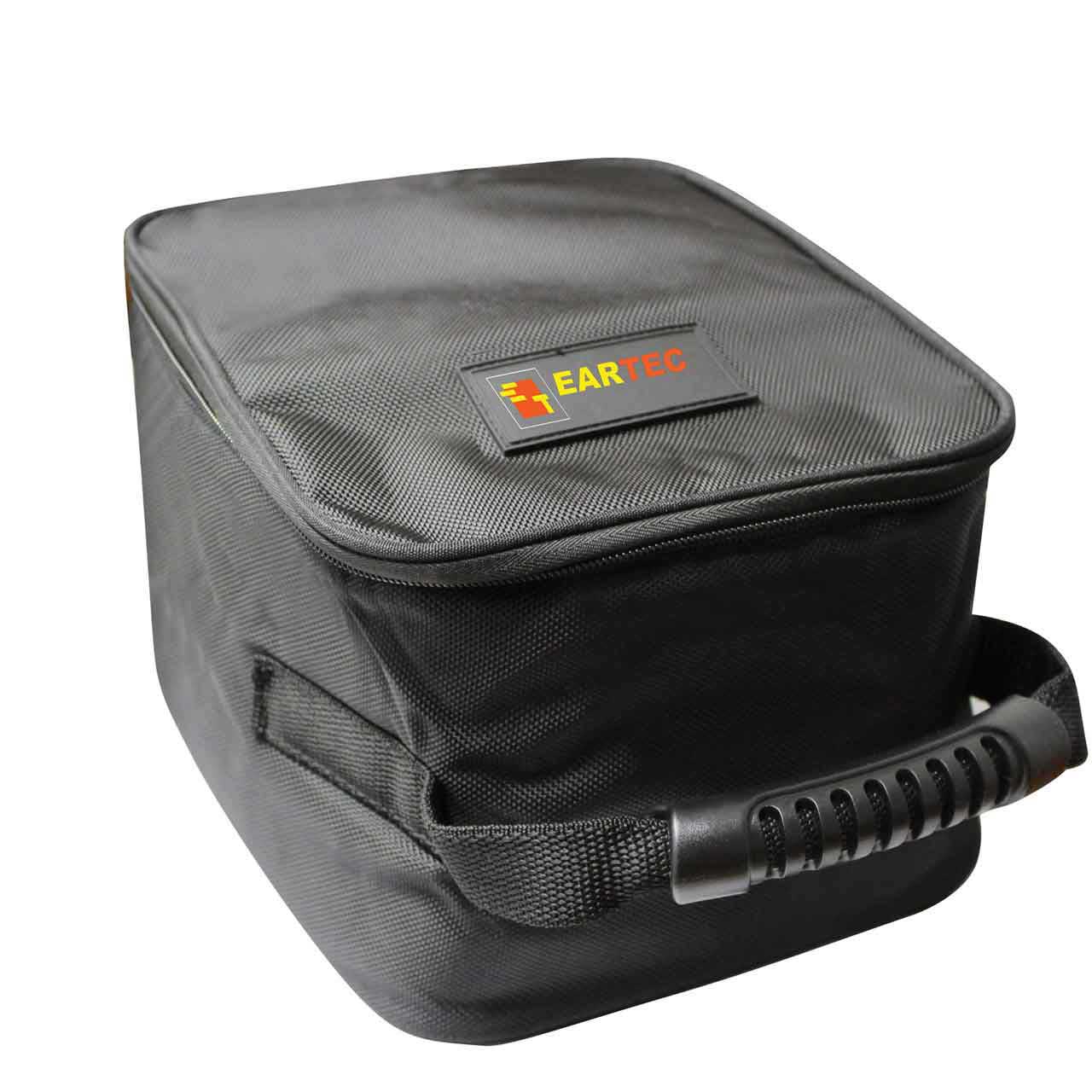

      • 1x EVADE C-MOD 2x EVADE Double-Ear Main Headset 7x EVADE Double-Ear Remote Headset 1x 9-Port Charger w/ Adapter 1x Extra large Soft Padded Case 9x Lithium-Polymer Batteries

    • Warranty:

      • 1 Year
