Eartec HUB624 UltraLITE/HUB 6-Person Full Duplex Wireless Intercom System - 1 HUB/2 Single Headsets/4 Double Headsets

ITEM #: EAR-HUB624 MFG #: HUB624

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,670.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    HUB624 - Overview

    The Eartec HUB624 is a professional Full Duplex Wireless Intercom System for 6 people that need to communicate and work with their hands. This compact system features the HUB Mini base and 6 UltraLITE wireless headsets that utilize Digital Enhanced Cordless Technology (DECT) on the 1.9 GHz band. This provides professional, simultaneous wireless communication within a 1/4 mile range line-of-sight. The HUB is a revolutionary mini base station that expands the capacity of the UltraLITE linking up to 8 wireless headsets, with a wired headset jack to accommodate larger production crews. Weighing only 9 oz. the HUB can either be placed strategically "on location" or belt worn so your crew can remain in constant full duplex voice contact with the freedom of mobility. The UltraLITE headset provides breakthrough technology with all electronics, including the battery/circuit board/antennas being built right inside the earcup of the headset eliminating wires/belt-packs being exposed. The complete Eartec HUB-624 includes 1 HUB mini-base/2 UltraLITE single headsets/4 UltraLITE double headsets/ batteries/charger/adapter and carrying case.

    • Features:

      • UltraLITE Features
      • Excellent performance
      • Range up to ¹4;mile
      • DECT Frequency
      • Digital 1900 MHz band is interference free
      • Li-Poly Batteries
      • Provide continuous 6 hr operation and are field replaceable
      • Adjustable Mic Boom
      • Rotates 270 degrees, worn on left or right ear
      • Auto Mute
      • Mute microphone simply by moving the boom to up position
      • Volume Control
      • Simple up / down push button adjustment
      • Water resistant
      • Silicone sealed for use outdoors in inclement conditions
      • Deluxe padding
      • Headsets fit firmly yet comfortably for an 8 hour work shift
      • Field Programmable
      • Start small and add to your system as needed

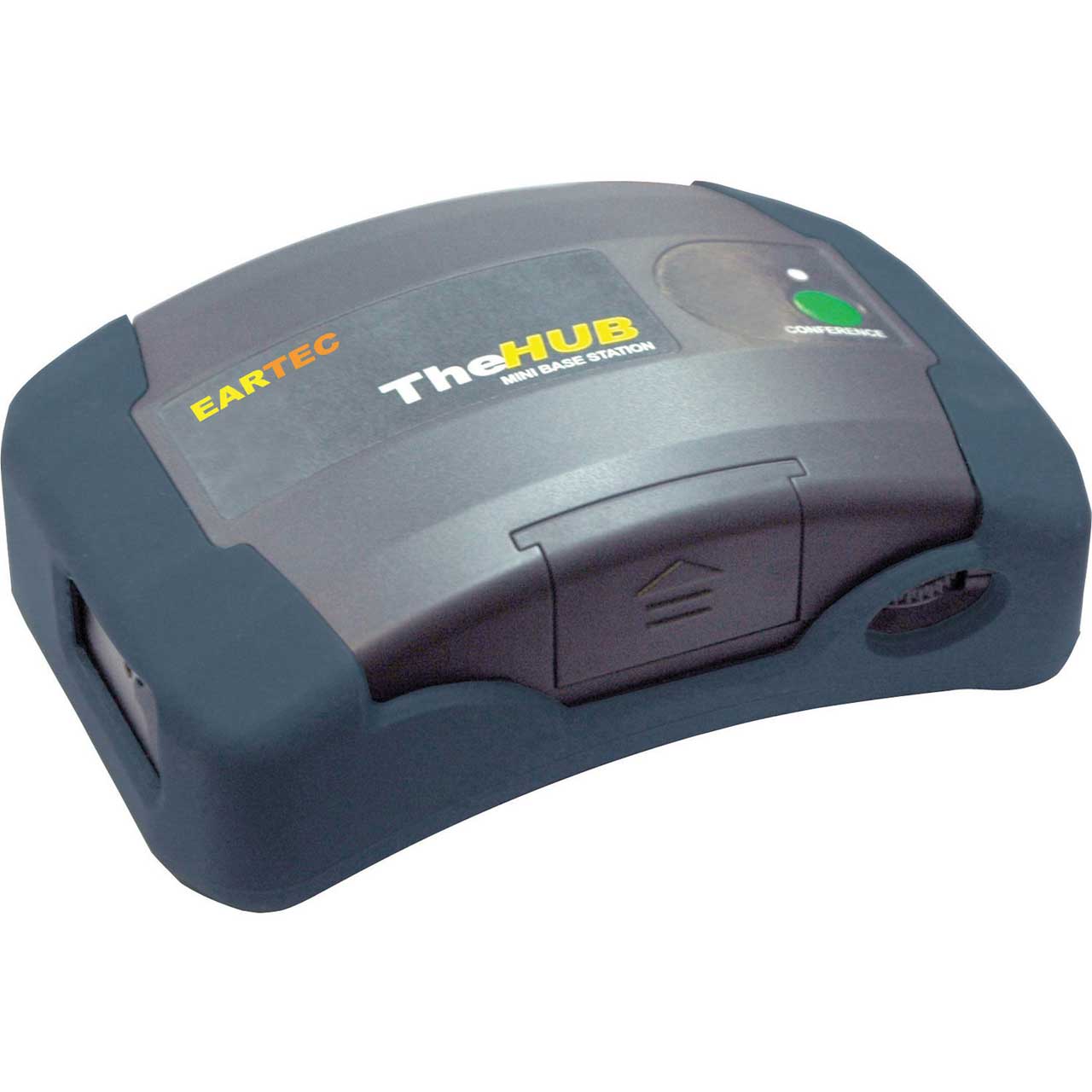

        The Hub Features
      • Portable Mini Duplex Repeater
      • Clip to waist for total team mobility
      • Protective Neoprene shell
      • Two channels or conference
      • Expandable to 16 users
      • DECT / Digital 1900 MHz band
      • Range up to ¹4; mile
      • Dual Power Option Rechargeable Li Poly Battery 7 AC Adapter (Both incl.)
      • Integrated Volume Control
      • Dual Pin Headset Jack

    • Specifications:

      • UltraLITE Specifications
      • Standard: DECT 6.0 (Digital Enhanced Cordless Telecommunications)
      • Frequency: 1920 - 1930MHz (USA)
      • Euro Frequency: 1880 - 1900MHz (EURO)
      • Preferred Frequency: TX/RX: 1921.536 ~1928.448MHz
      • Tuning Range Receive: 1921.536 to 1928.448MHz
      • Maximum Transmit Power: 100mW
      • Usage Type: TDMA
      • Channel Tuning Step: 1.728MHz
      • Weight: 4oz
      • Channel Bandwidth: 1.728 GHz
      • Modulation Type: GFSK
      • Transmission Speed: 1.152 Mbps (Baud Rate)
      • Duplexing: Time Division Duplex (TDD)
      • Speech Encoding: ADPCM / 32bit/s
      • RF Accessing: Time Division Multiple Access (TDMA)
      • Range: 400m in open space
      • Headset Power Supply: Rechargeable Lithium 3.7 V/ 800 mAh 3.0 Wh
      • Charger Power Supply: AC / adapter: INPUT 110-40Vac
      • Charge Time: 3 Hours
      • Operation Time: 6 Hours
      • Operating Temperature: 32° to 50°F (0° to 10°C)
      • Storage Temperature: 14° to 140°F (-10° to 60°C)

        The Hub Specifications
      • Standard: DECT 6.0 (Digital Enhanced Cordless Telecommunications)
      • Frequency: 1920 - 1930MHz (USA)
      • Euro Frequency: 1880 - 1900MHz (EURO)
      • Weight: 4oz
      • Connector: 2.5mm 3.5mm plug-in
      • Dimensions (WxDxH): 5.5 x 1.5 x 3.75"
      • Channel Bandwidth: 1.728 GHz
      • Modulation Type: GFSK
      • Transmission Speed: 1.152 Mbps (Baud Rate)
      • Duplexing: Time Division Duplex (TDD)
      • Speech Encoding: ADPCM / 32bit/s
      • RF Accessing: Time Division Multiple Access (TDMA)
      • Range: 400m in open space
      • Headset Power Supply: Rechargeable Lithium 3.7 V/ 800 mAh 3.0 Wh
      • Charger Power Supply: AC/Adapter: INPUT 110-40Vac OUTPUT 5.0V - 1000mA
      • Charge Time: 3 Hours
      • Operation Time: 4 Hours
      • Operating Temperature: 32° to 50°F (0° to 10°C)
      • Storage Temperature: 14° to 140°F (-10° to 60°C)

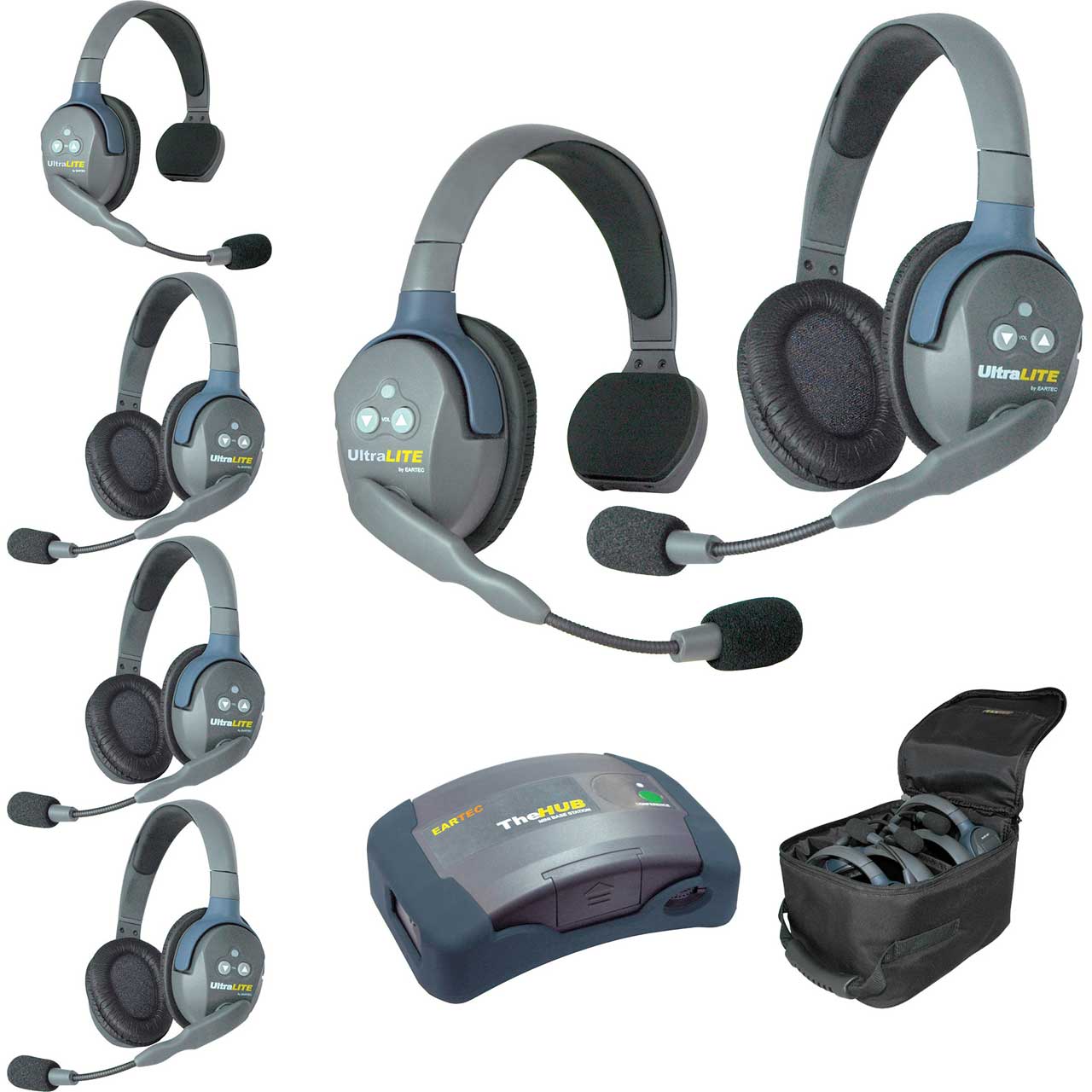

    • Item Includes:

      • 1x The HUB Mini Base

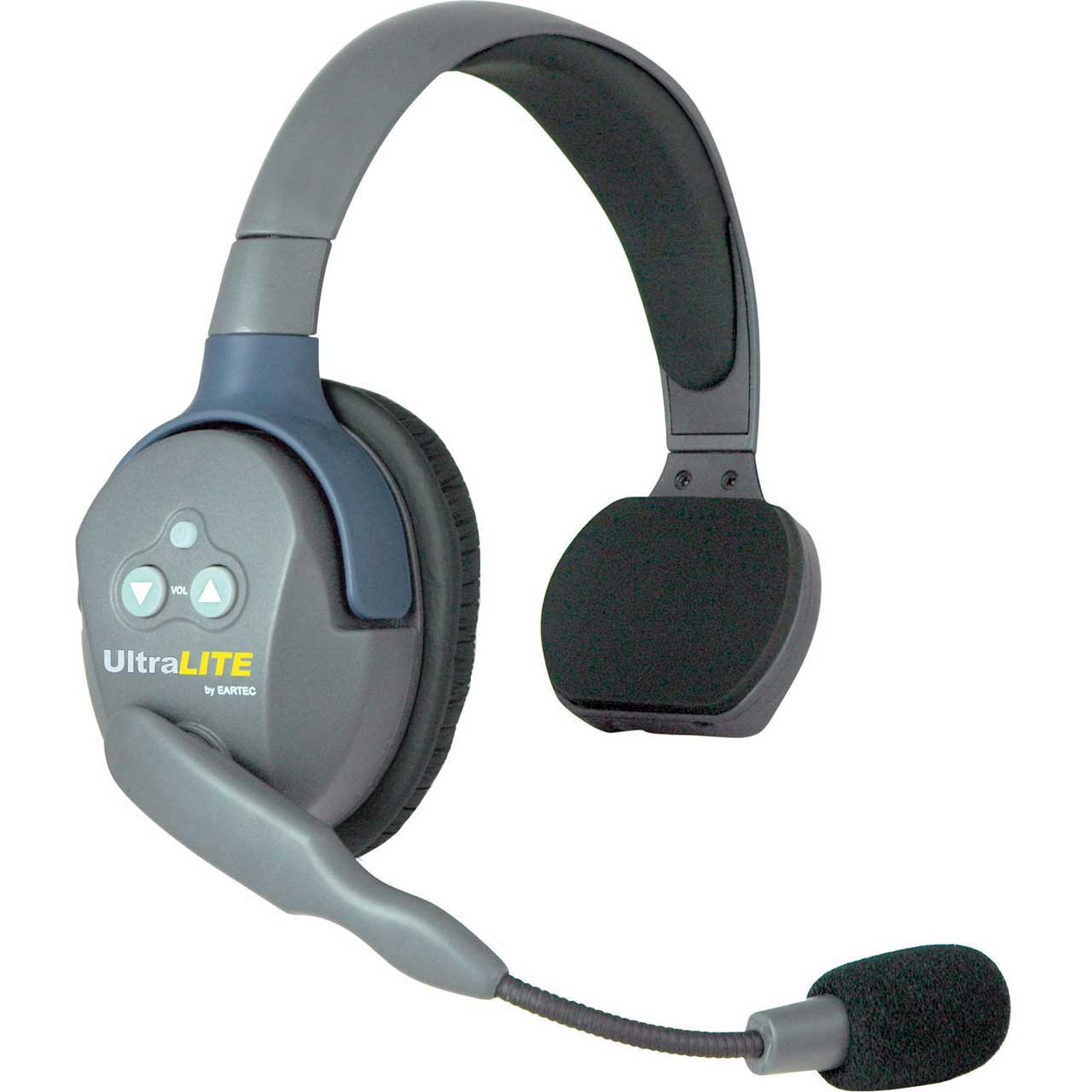

      • 2x UltraLITE Single Ear Wireless Headsets

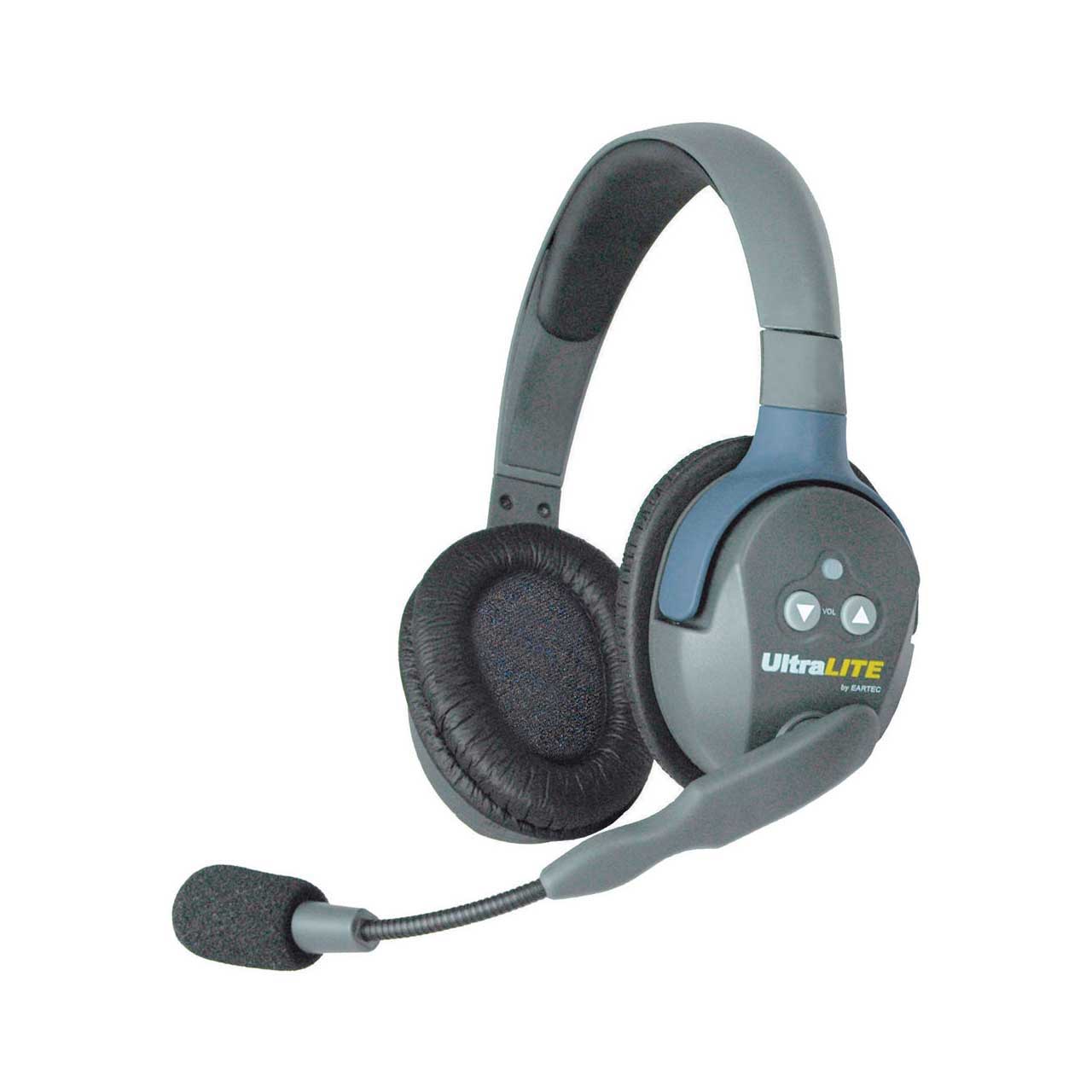

      • 4x Dual Ear Wireless Headsets
      • 1x Batteries & Multi Charger

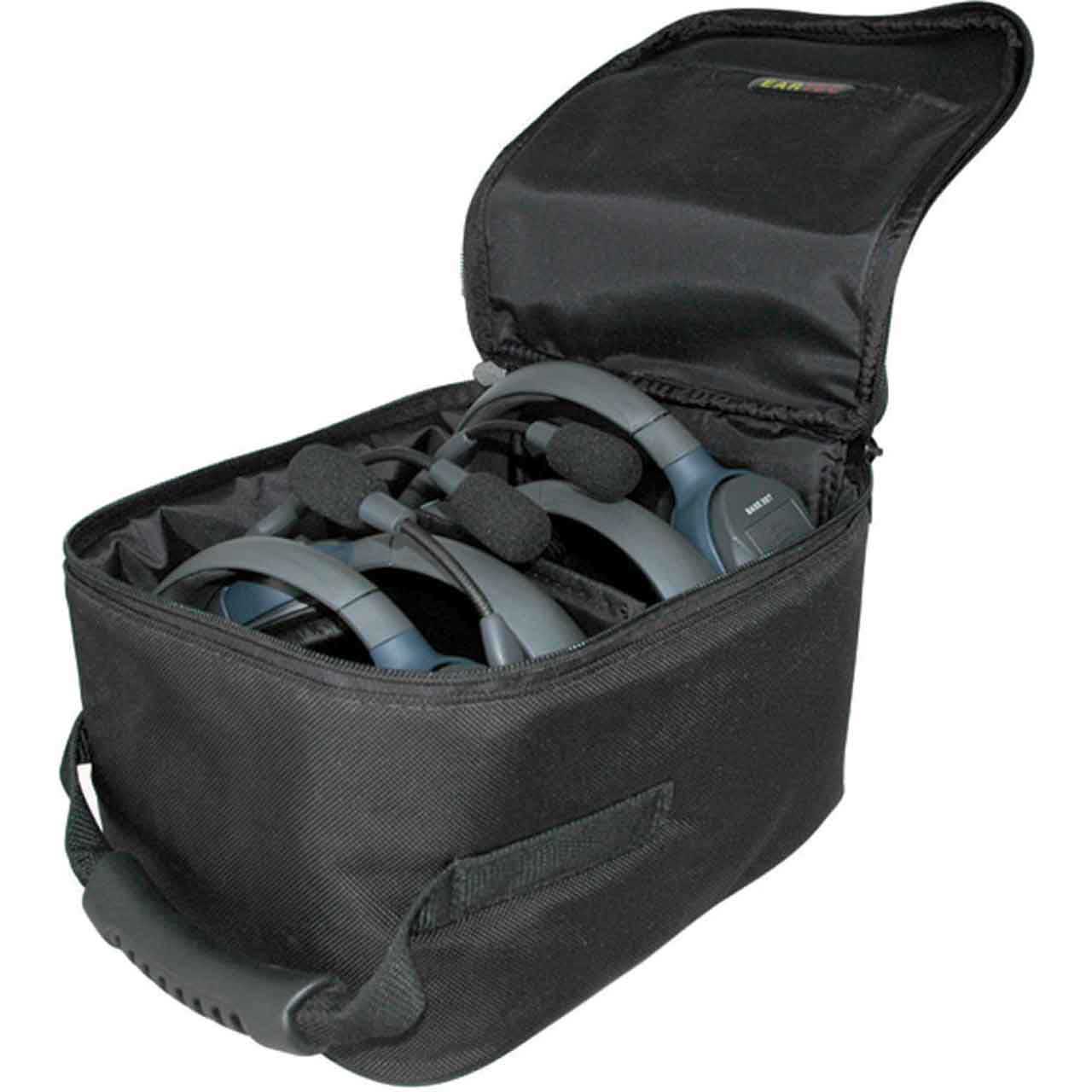

      • 1x Softside Case

    • GTIN:

      0642892764730
