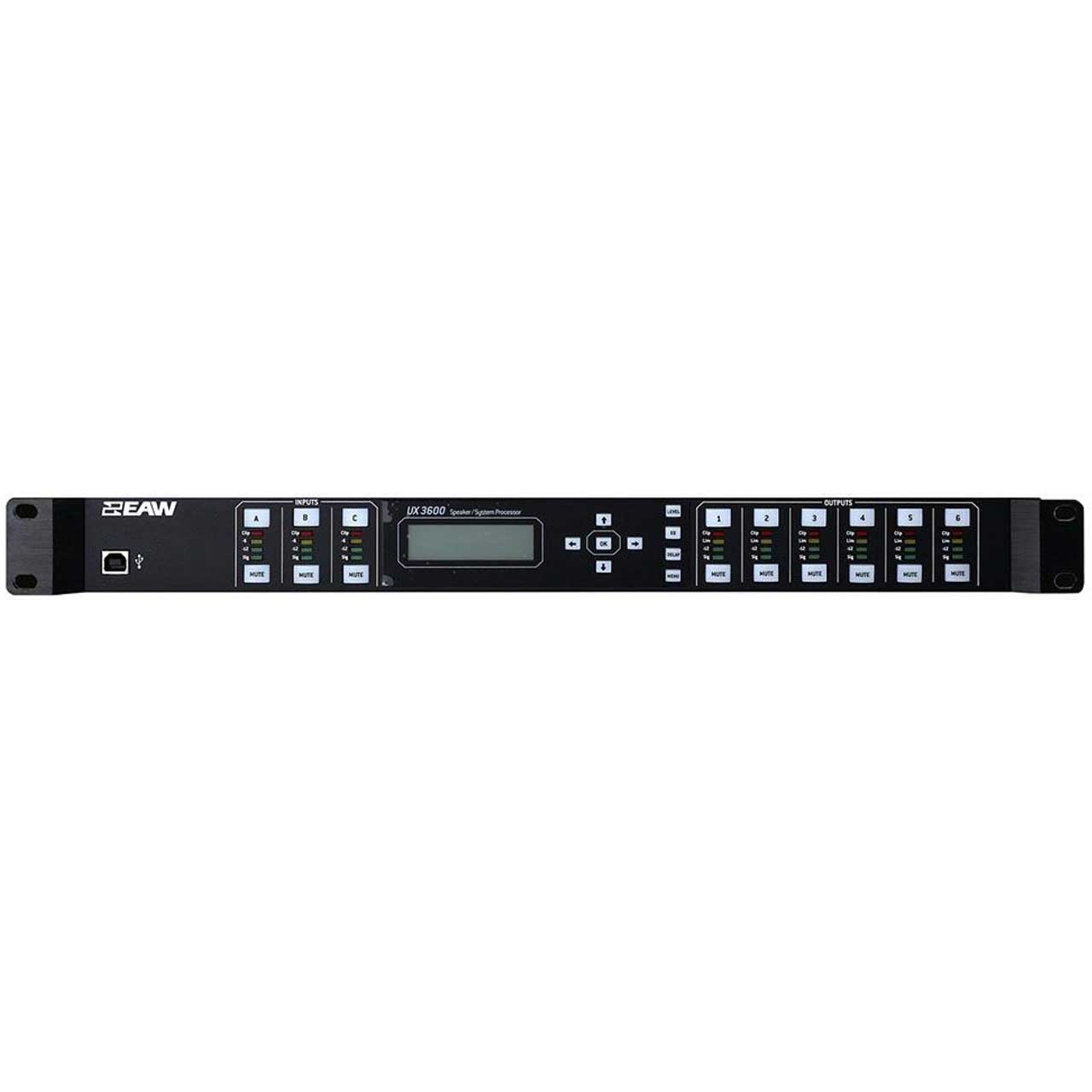

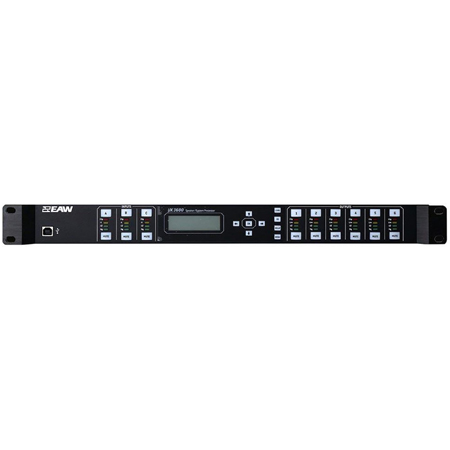

EAW UX3600 Digital Signal Processor / Crossover

ITEM #: EAW-UX3600 MFG #: UX3600

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$1,768.00

Availability: Temporarily Out of Stock
iAvailability Description Popup


    UX3600 - Overview

    The EAW UX3600 provides a complete suite of state-of-the-art digital signal processing tools. Advanced capabilities and features set the UX3600 apart from other processors in its class. This high end processor controls sound systems with a variety of output channels and also delivers optimized processing of specific EAW loudspeakers.

    Built-in System functions include EQ filter, delay, gain, crossovers, and polarity. However, these functions are implemented using custom-designed algorithms to optimize their usefulness when applied to loudspeakers. For example, unlike many bell filter designs, the UX3600's produce a flat frequency response when reciprocal cut and boost filters are overlaid. Also, to more accurately calculate signal delay distances, a temperature setting permits compensation for sound speed differences.

    Loudspeaker preset processing is available for specific EAW loudspeakers and loudspeaker arrays. The UX3600 implement EAW's innovative Greybox™ settings, including EAW Focusing™, as part of the preset processing to correct loudspeaker anomalies that cannot be corrected with conventional digital processing. Advanced limiting maintains sound quality while achieving maximum output levels based on amplifier outputs. An ambient humidity setting provides appropriate "air loss" equalization based on listening distances.

    While the output settings in Greyboxes are locked to deliver optimal loudspeaker performance, the user still retains control of input gain, EQ, signal delay, and polarity for the entire loudspeaker. This mode's simplicity makes the UX3600 practical for entry level users and fast to operate for experienced users, providing a high degree of system consistency while retaining all necessary, user adjustable, alignment controls.

    The UX3600 uses standard USB protocol and cabling for computer control using the custom EAWPilot software. Up to 50 user-defined presets can be save into device non-volatile memory.

    UX3600 - Required Accessories

      UX3600 - Recommended Accessories
