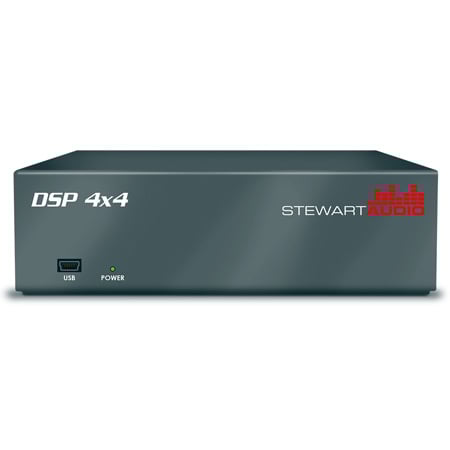

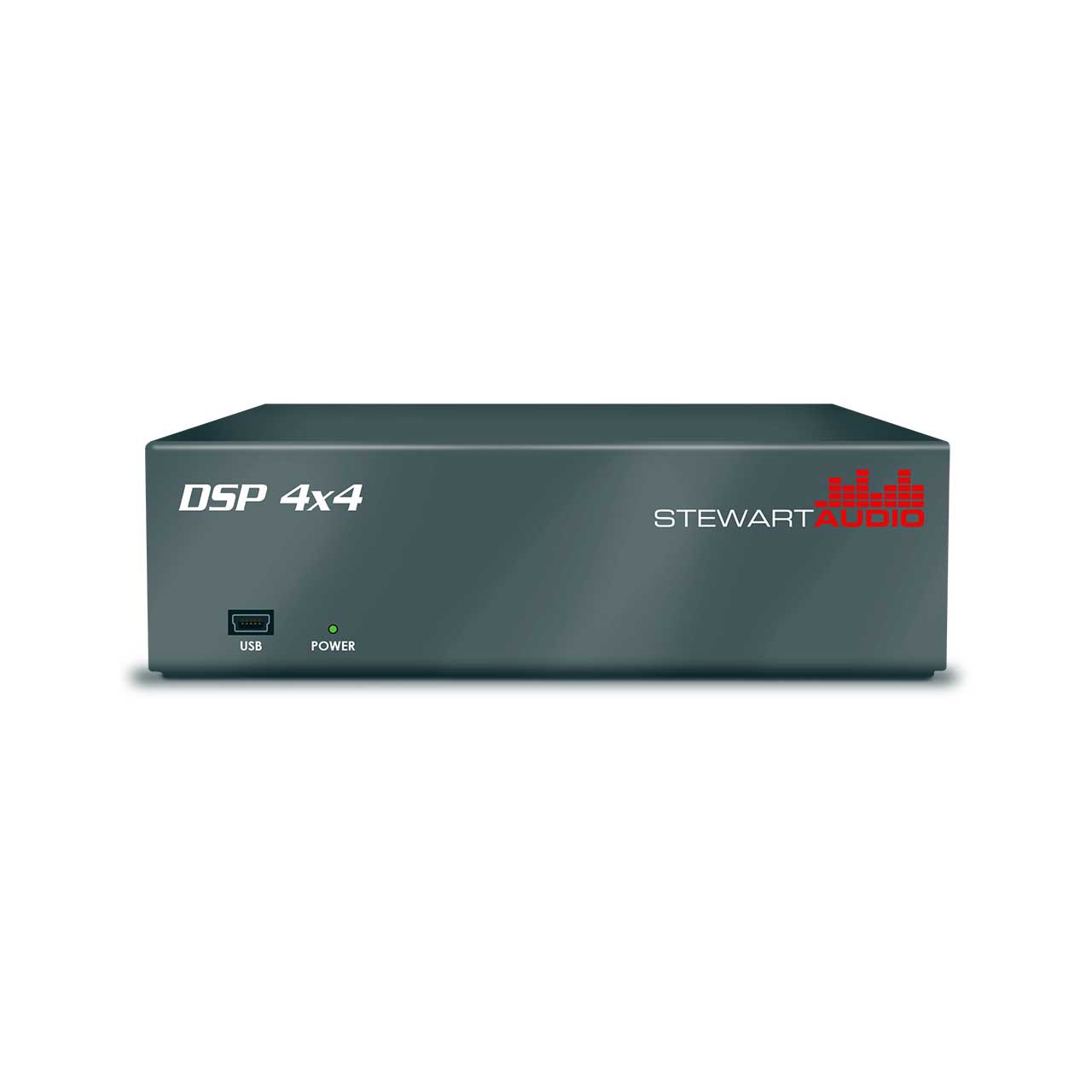

Stewart DSP 4x4 Compact Full Featured 4 x 4 DSP


  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    DSP4X4 - Overview

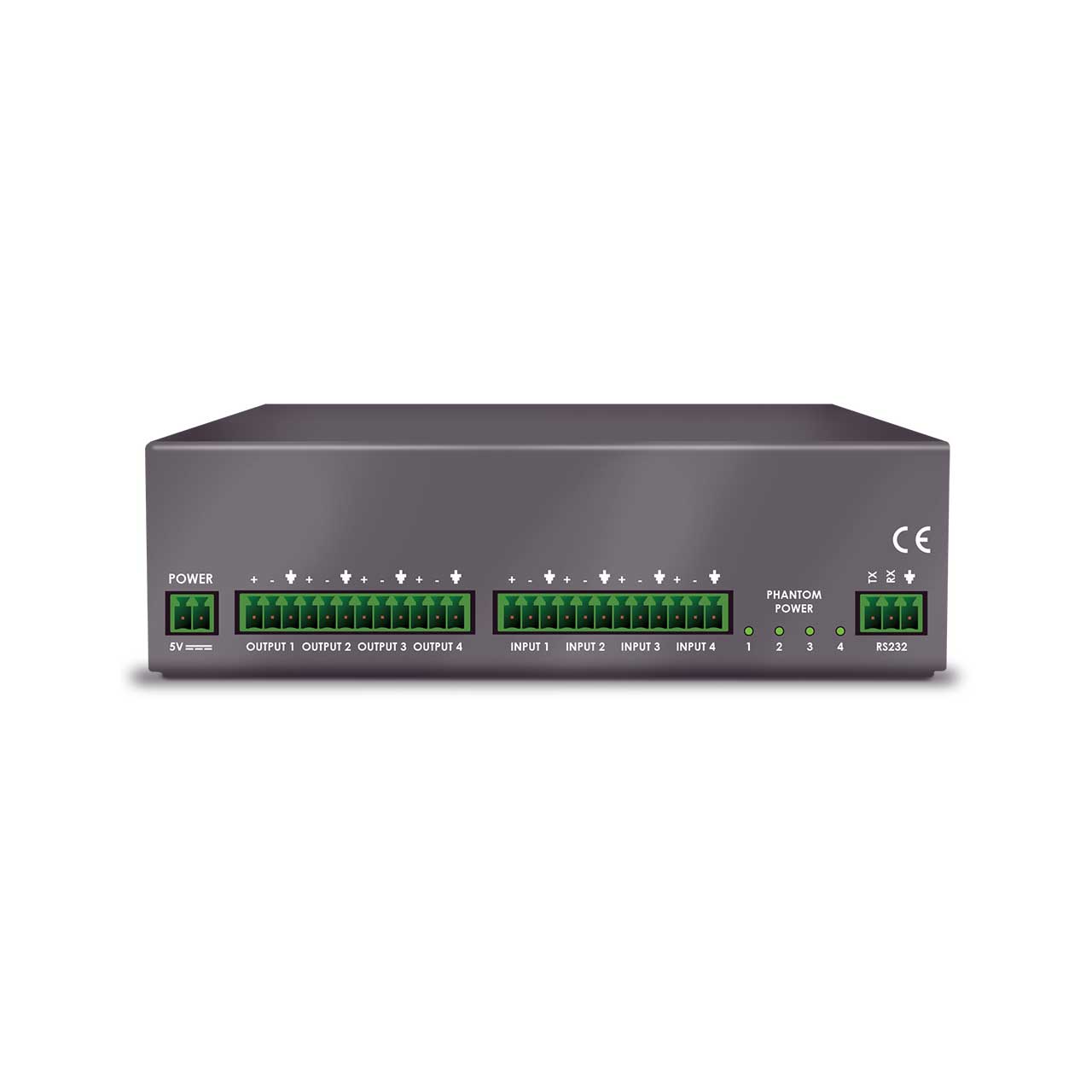

    The Stewart Audio DSP4x4 is the first standalone Digital Signal Processor that Stewart has ever produced. This compact DSP was design to address the multitude of problems encountered in typical installations impacting sound quality. Set and forget configuration is done through the front USB port via an intuitive windows program. This downloadable program makes setup fast and repeatable with the ability to save and copy programs to multiple units for labor savings. To help minimize setup errors, all DSP block values appear with a simple mouse over and mute or bypassed blocks are clearly tagged. The RS232 allows for preset programs to be used for applications like room combining. The inputs can be line or mic level with 24V phantom power available. Simple, versatile and powerful are all attributes of this compact DSP. The RVC and RS232 control allow volume control from a wide range of devices.

    Hospitality Installations
    Board Rooms
    Conference Rooms
    House of Worship
    Remote Locations
    Distributed or centralized venues
    Room combining

    • Features:

      • 4 channels of DSP processing
      • Configurable via USB port
      • RS-232 connection for live changes
      • 1/3 rack package & convection cooled
      • Made in the USA
      • Matrix Mixer
      • 9 bands of parametric filters per channel
      • Priority signal ducker
      • 100ms of delay per channel
    • Warranty:

      • 3 Years
