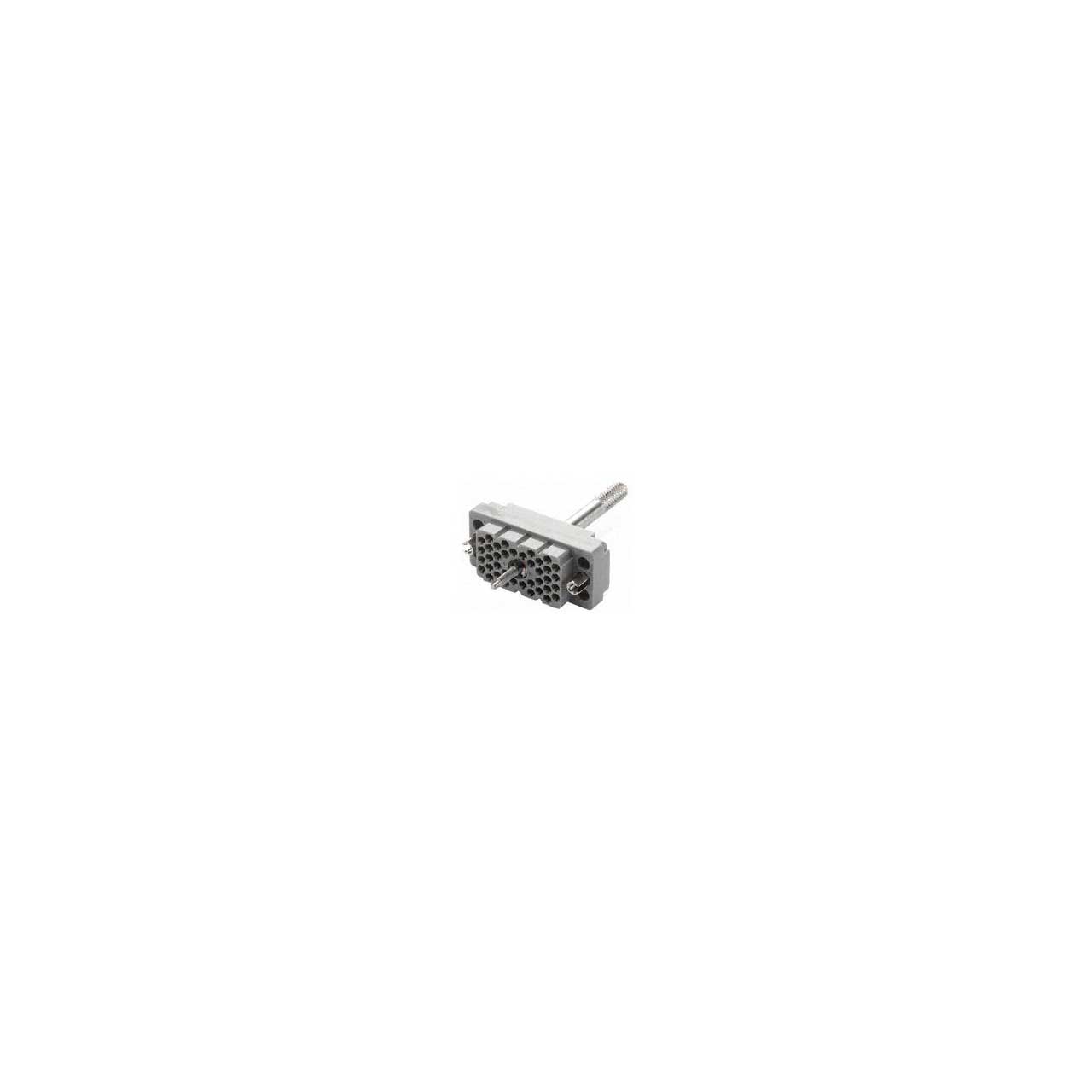

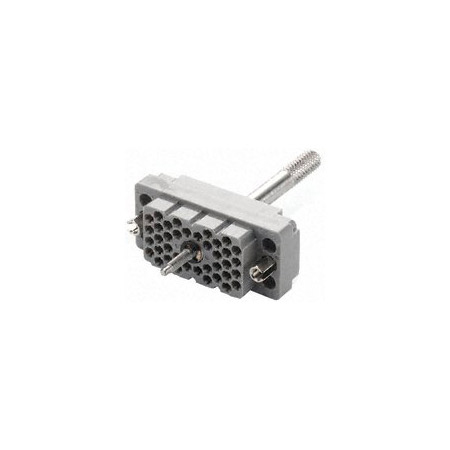

38Pin EDAC / ELCO Receptacle with Actuating Screw

ITEM #: EDAC-117 MFG #: 516-038-000-401

free ship

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    516-038-000-401 - Overview

    38Pin EDAC / ELCO Receptacle with Actuating Screw

    The EDAC-117 is a Elco/Edac receptacle with Actuating Screw that is equivalent and fully interchangeable and mateable with ELCO-816 connectors. You can order in 20, 38, 56, 90 or 120 pin assemblies. Ordering a complete connector is as easy as choosing a male or female end, the proper metal cover, the pin count and contact type and the necessary tools.

    • Features:

      • 0.150" (3.81mm) contact spacing x 0.130" (3.30mm) or 0.150" (3.81mm) row spacing with staggered grid
      • Plug and receptacle in 20, 38, 56, 90 and 120 contact sizes
      • Edacon hermaphroditic contact mating design
      • Contact termination options include crimp, P.C. tail, wire hole and wire wrap
      • Mating and unmating simplified with use of actuating screws
      • Optional covers with side or top entry cable clamp in plastic or metal material available for all connector sizes
      • Versatile metal cover design permits assembly or disassembly after cabling is complete plus cable entry style flexibility
      • Actuating screws, locknuts, polarizing hardware, covers and contacts suitable for either plug or receptacle
      • Polarizing hardware adjustable for 288 mating combinations
      • Tools available for contact installation, removal, crimping and polarizing changes
      • RoHS Compliant & UL Certified
    • Specifications:

      • Insulator Material Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V- 0
      • Color Green or Grey (For 120 Pin Only)
      • Contact Material Copper Alloy
      • Contact Plating Gold Plating over Nickel over entire contact
      • Current Rating 8.5 amps
      • Contact Resistance 10 milliohms maximum
      • Dielectric Withstanding Voltage 2000 V AC rms at sea level
      • Insulation Resistance 5000 megaohms minimum
      • Operating Temperature -40°C to +125°C (Diallyl Phthalate Only)
      • Operating Temperature -40°C to +105°C
      • Insertion & Withdrawal Force 2 to 16 oz (0.56 to 4.45N) per contact position
