Elgato Wave XLR Pro Dual XLR Audio Interface with 80dB Gain - Onboard DSP Effects & Dual USB-C

ITEM #: EGO-WAVE-XLR-PRO MFG #: 10MAM9901

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$349.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


10MAM9901 - Overview

Built for modern workflows, Wave XLR Pro delivers onboard effects with real-time processing, VST effects integration, full control through Wave Link!

Nothing Comes Close
The Elgato Wave XLR Pro drops a full-sized mixing desk in the palm of your hand. But it's more than a mixer. It's a powerful audio matrix that pairs hyper-customizable routing with all the right connections, unlocking capabilities mixers simply can't match. Creators, podcasters, anyone who's serious about audio - this is the solution you've been waiting for. No workarounds. All flow.

Give Your Setup Superpowers
They didn't just add connections - Elgato added the right ones. For co-hosted studios with remote guests, channels powered by fully stacked setups, and solo projects destined to grow. Whatever your workflow, Wave XLR Pro brings all your gear together.

One APP For All Your Audio
Wave Link gives you full control over your Wave hardware, but that's just the start. Apply and customize effects, add a soundboard to voice chat, create a separate recording mix, and so much more. Everything you need for professional sound, all in one place.

The Pro in the Processor
Your voice flows through Clipguard, onboard DSP, and VST effects in one continuous signal path. So you get studio-grade sound with super-responsive monitoring, but none of the routing complexity.

Any Setup Imaginable
Workflows that require workarounds now connect and scale without friction. From dual-mic setups to complex production studios, your gear becomes a seamlessly integrated ecosystem. So what once felt hacked together now feels streamlined and fully under your control. Everything just works.

  • Features:

    • Powered by Wave Link
    • Wave FX Processor
    • Clipguard 2.0 Prevents Distortion
    • Drive two XLR microphones with 80dB of gain
    • Auto Gain Wizard
    • Dual USB-C for multi-device setups
    • Five Independent Hardware Mixes

  • Specifications:

      XLR Input 1/2
    • Frequency Range: 20Hz - 20kHz
    • Dynamic Range: 135dB
    • Equivalent Input Noise (EIN)(A-weighted): -130dBV(A)
    • Gain: 80dB (digital)
    • Phantom Power: 48V, 7mA
    • Maximum Input level: 6dBV
    • ADC Resolution and Sample Frequency: 24 bit; 48kHz

      Headphone Output 1/2
    • Maximum Output Level @16Ω: 50mW
    • Maximum Output Level @600Ω: 18mW
    • DAC Resolution and Frequency: 32 bit; 48kHz

      Line In
    • Frequency Range: 20Hz - 20kHz
    • Maximum Input Level: 10dBV

      Line Out
    • Frequency Range: 20Hz - 20kHz
    • Maximum Output Level: 10dBV

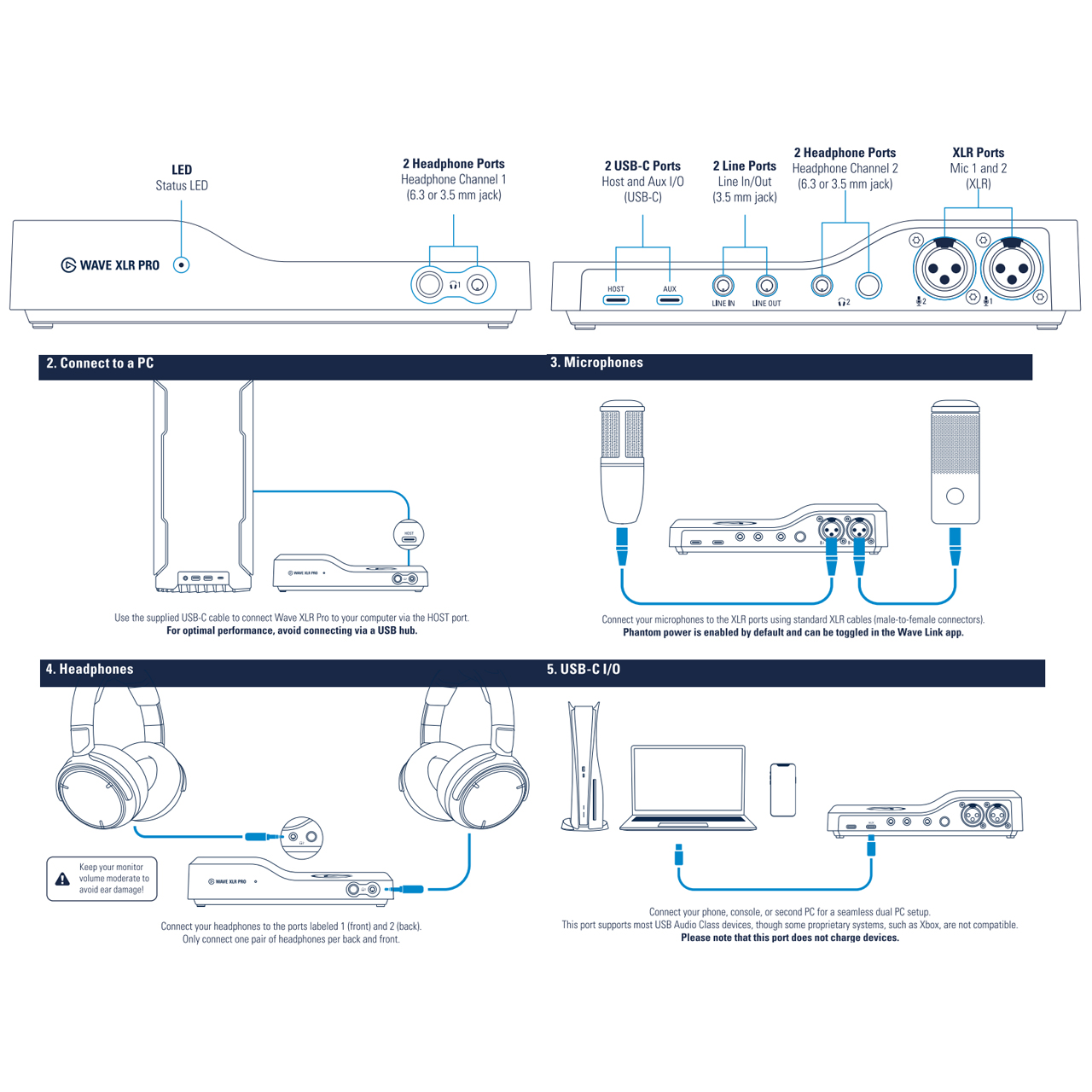

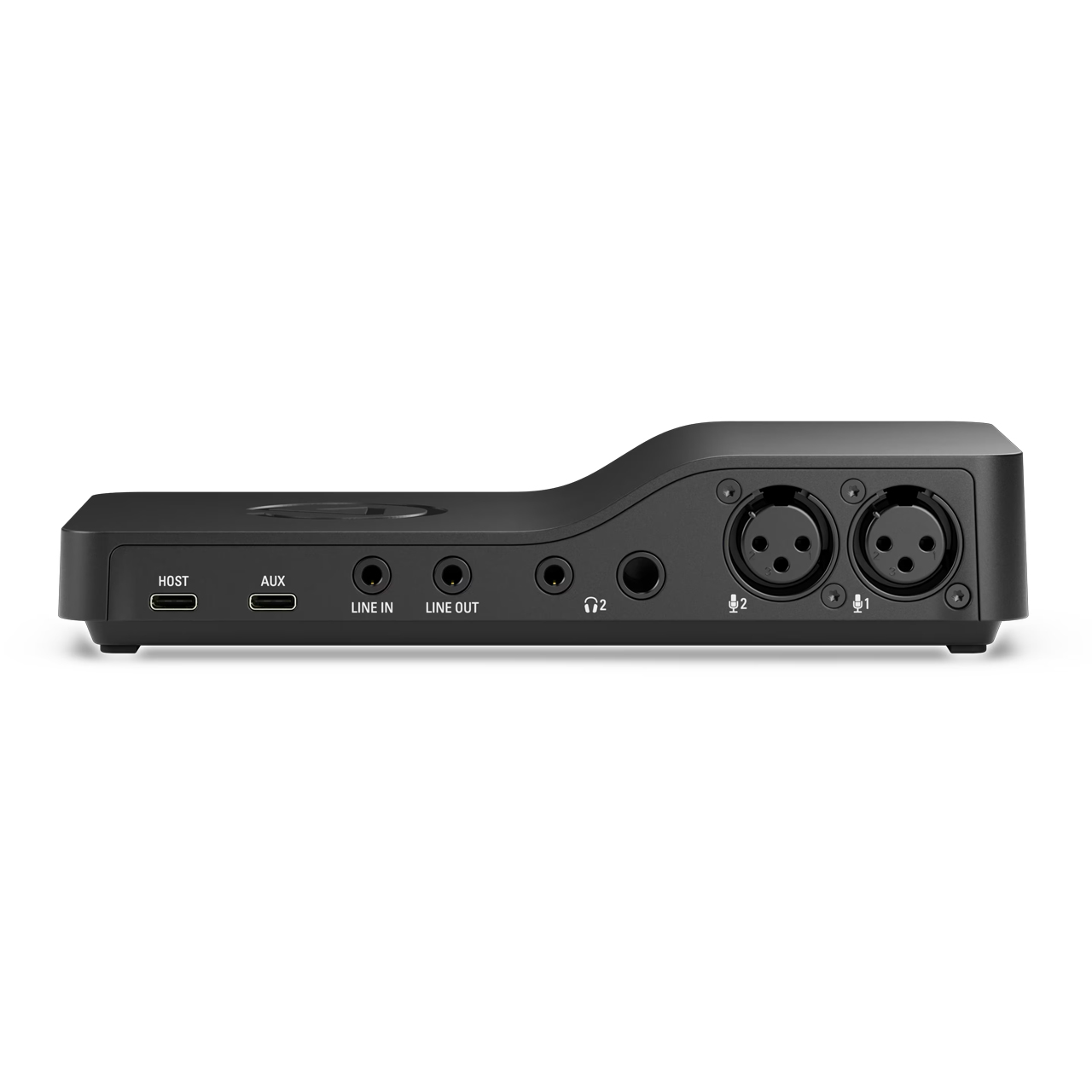

      Connectivity
    • Microphone 1 (XLR, Mono)
    • Microphone 2 (XLR, Mono)
    • Headphone 1 (1/4" and 3.5mm TRS Jack, Stereo)
    • Headphone 2 (1/4" and 3.5mm Jack, Stereo)
    • Line Input (3.5mm TRS Jack, Stereo)
    • Line Output (3.5mm TRS Jack, Stereo)
    • Host I/O (USB-C 2.0 High-Speed)
    • Aux I/O (USB-C 2.0 Full-Speed)

      Physical
    • Product Dimensions (WxDxH): 6.10" x 7.60" x 3.90" (97mm x 185mm x 37mm)
    • Weight: 0.85lbs (385g)
    • Mounting Point: 3/8" (housing) and 1/4" (adaptor)
    • Power Consumption: 5V, 900mA max

      System Requirements
    • Windows 11 or newer
    • macOS 14.2 or newer
    • Wave Link 3.0 or newer

  • Item Includes:

    • 1x Wave XLR Pro
    • 1x USB-C cable 59" (150cm)
    • 1x Quick Start Guide

  • GTIN:

    0840440497950
