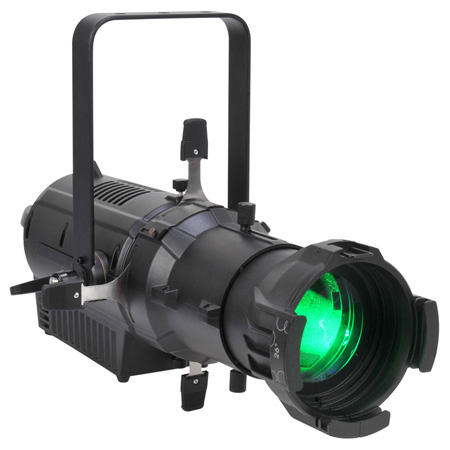

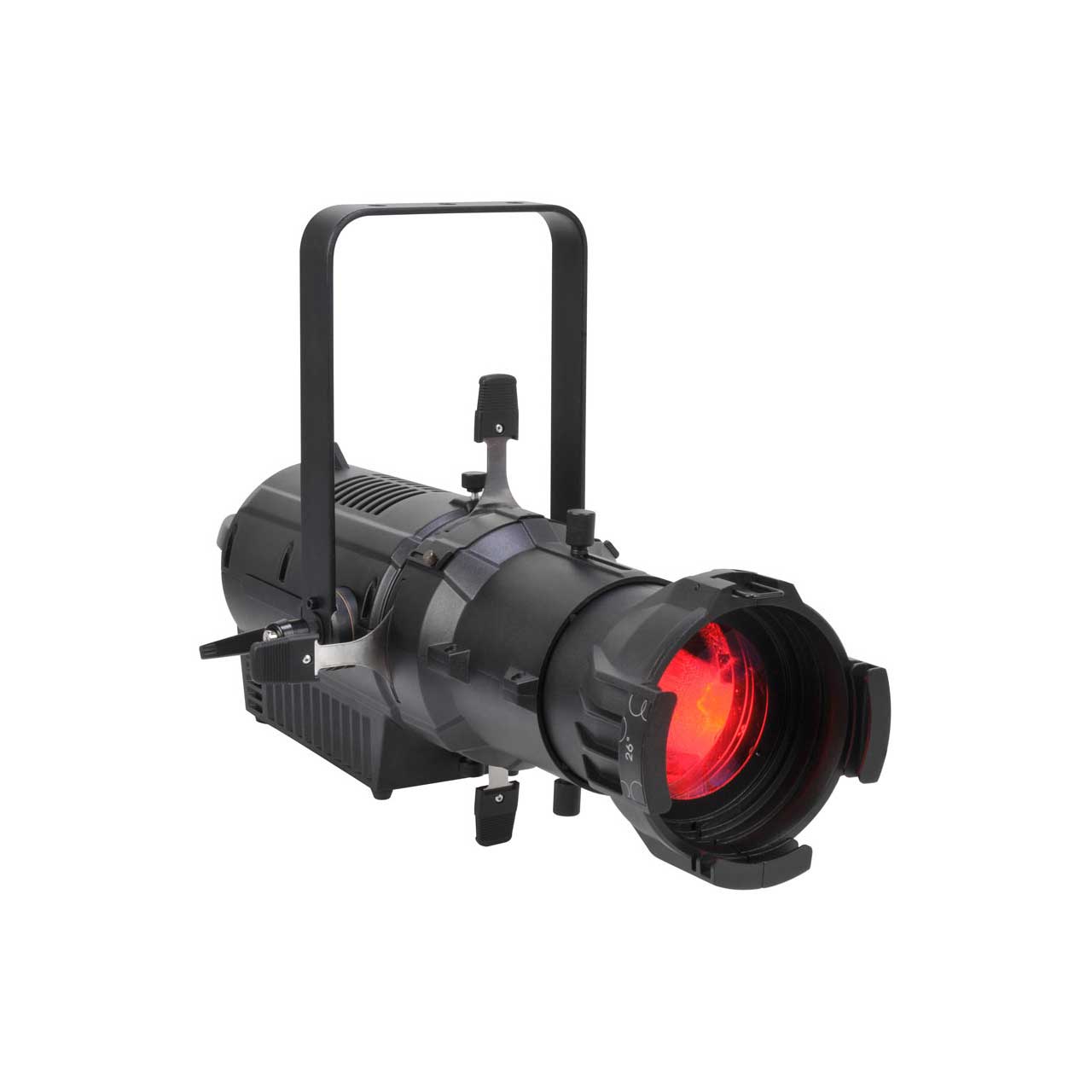

Elation Professional CLP001 Color 5 Profile Ellipsoidal 180W 4100 Lumens RGBAM LED Light with Framing Shutter

ITEM #: ELAT-CLP001 MFG #: CLP001

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$2,000.00

Our Price:

$1,600.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    CLP001 - Overview

    The new COLOUR 5 Profile Ellipsoidal features a 180W RGBAM (Red, Green, Blue, Amber, Mint) LED engine, >94CRI, 4,100 total lumens, with 19, 26°, 36°, and 50° interchangeable lens options (Required & Sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, dimming, and dimming curves, flicker free operation for TV and FILM, adjustable refresh frequency and gamma brightness, 5pin DMX and powerCON in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).

    • Features:

      • High CRI >94, 4,100 Total Lumens*
      • Interchangeable Lens Options** (19°, 26°, 36°, 50°)
      • (4) Blade Manual Framing Shutters
      • Variable Dimming Curve Modes
      • Flicker Free Operation for TV and FILM
      • Adjustable Refresh Frequency and Gamma Brightness
      • Quiet Fan Cooling
      • (*with 26° lens) (**sold separately)

    • Specifications:

      • SOURCE
      • 180W RGBAM (Red/Green/Blue/Amber/Mint) LED Engine
      • 50,000 Hour Average LED Life*
        *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
        PHOTOMETRIC DATA
      • >94CRI 4,100 Total Lumens*
      • (*with 26° lens)
        EFFECTS
      • Electronic Strobe and Dimming
      • Variable Dimming Curve Modes
        GOBOS
      • Supports "B" Size Metal, HT Transparency Gobos*
      • *Gobos and Holder not included.
        CONTROL / CONNECTIONS
      • (5) DMX Channel Modes (5 / 6 / 8 / 13 / 19)
      • Adjustable Refresh Rate (900-1500, 25,000 Hz)
      • Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
      • 4 Button Control Panel
      • LED Menu Display
      • 5pin DMX In/Out
      • powerCON In/Out
        SIZE / WEIGHT
      • Length: 24.3" (618mm) / 26.5" (674mm) Fully Extended
      • Width: 12.2" (310mm)
      • Vertical Height: 15.7" (398mm)
      • Weight: 21.0 lbs. (9.5 kg)
        ELECTRICAL / THERMAL
      • Quiet Fan Cooling
      • AC 100-240V - 50/60Hz
      • 225W Max Power Consumption
      • Power Linking: 4pcs Max @120V / 8pcs Max @240V
      • 14° to 113°F (-10° to 45°C)
        APPROVALS / RATINGS
      • CE | cETLus | IP20

    • Item Includes:

      • (1) powerCON Cable
      • (1) 5pin DMX Cable
      • (1) Safety Cable

    • Warranty:

      • 2 Years

    • GTIN:

      0837874018400
