Lex BNZJ2-6M Bento Breakout Box LSC19 panel Mount to (6) 20A Neutrik PowerCon Receptacle with LSC19 Feed Thru Power Dist

ITEM #: LEX-BNZJ2-6M MFG #: BNZJ2-6M

free ship

List Price:

$1,372.45

Our Price:

$1,037.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    BNZJ2-6M - Overview

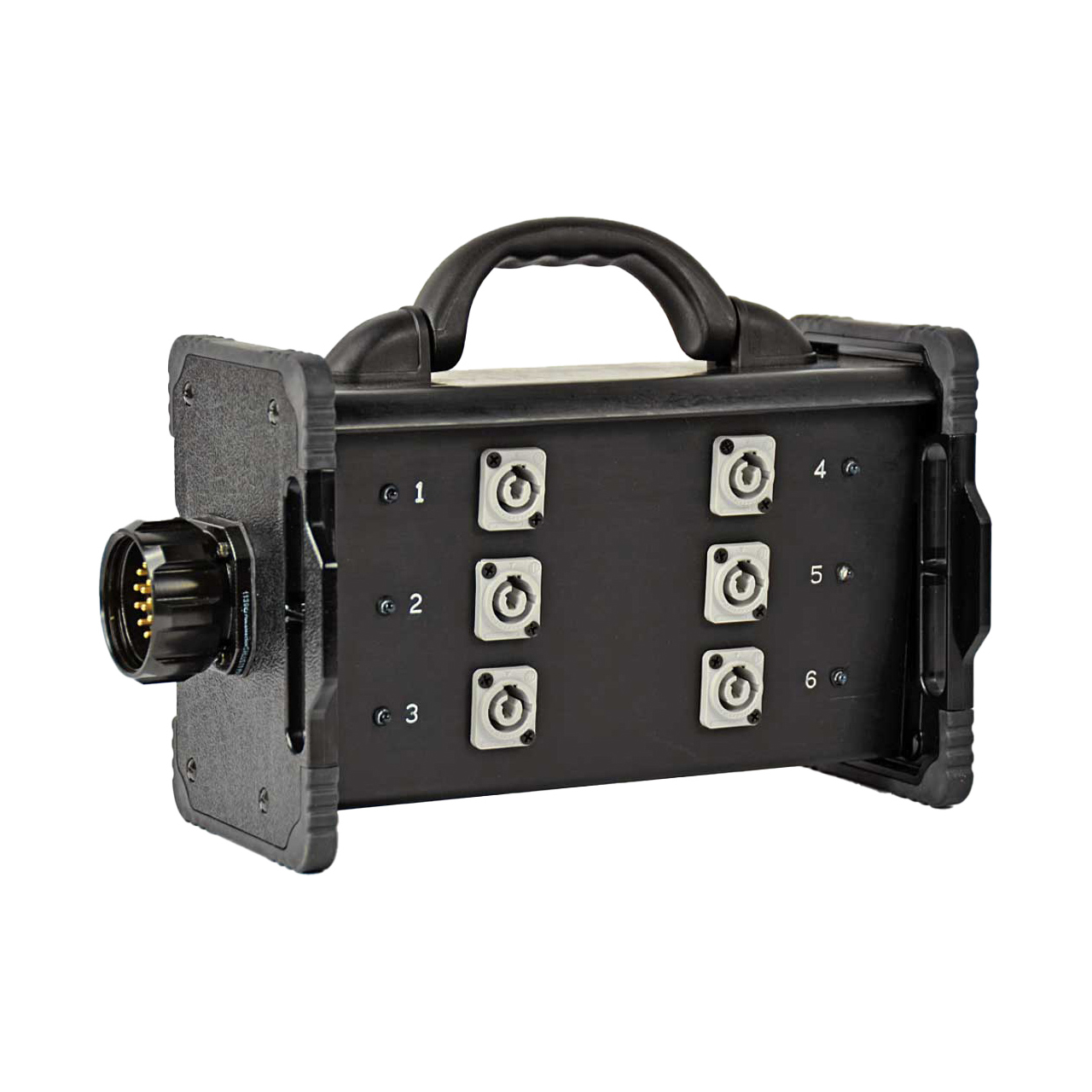

    The Lex BNZJ2-6M Bento breakout enclosure is right at home in live events, film production and broadcast TV applications. It houses a LSC19 panel mount inlet to breakout an industry standard 6-circuit lighting cable to (6) 20A Neutrik PowerCon receptacle for powering LED lights. The feed thru option allows multiple boxes to be placed along the same feed. Its heavy-duty enclosure is electrically insulated and resistant to shock, impact and corrosion and can be stacked for simple storage.

    • Features:

      • 20 Amps per circuit, 6-circuit
      • Break Out Box Bento enclosure
      • LSC19 panel mount male to (6) 20 Amp PowerCON receptacles, Feed Thru,
      • NEMA 1 Indoor
      • Provides power for LED lights using PowerCON plugs
      • Heavy-duty extruded engineered thermoplastic
      • enclosure is electrically insulated and resistant to shock, impact and corrosion
      • Feed-thru option allows multiple boxes to be placed along the same feed
      • End plate grips for easy handling in tight spaces, and collapsible handle available on standard model
      • Stackable and compact for easy storage

    • Specifications:

      • Rating: 20 Amp, 6-circuit,120 VAC
      • Environmental Rating: NEMA 1 Indoor
      • Input: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 panel mount male
      • Output: (6) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles
      • Feed Thru: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 panel mount female
      • Overcurrent Protection: None
      • Dimensions: 11.5”L x 5.9”W x 7.6”H
      • Weight 6 lbs.
